by SvobArts

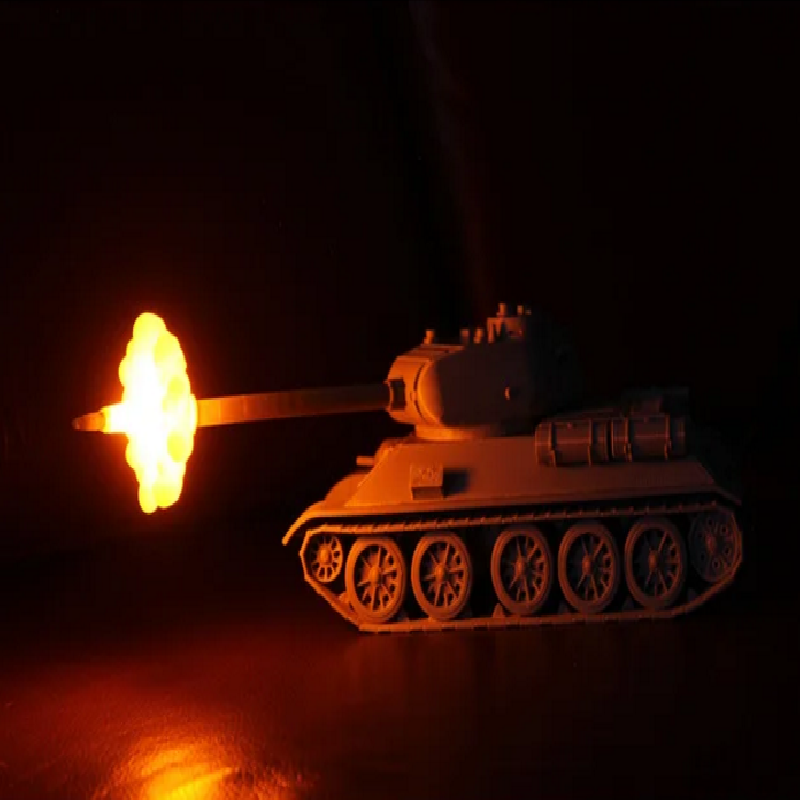

T-34/85 nightlight powered by USB, designed for 5mm or smaller LED

LED
resistor
USB cable
screws 3x10 or 3x20 (6x)
super glue

You could go without screws and just glue everything.

Print everyting once, exept for turret details (3x) and barrel (3x)

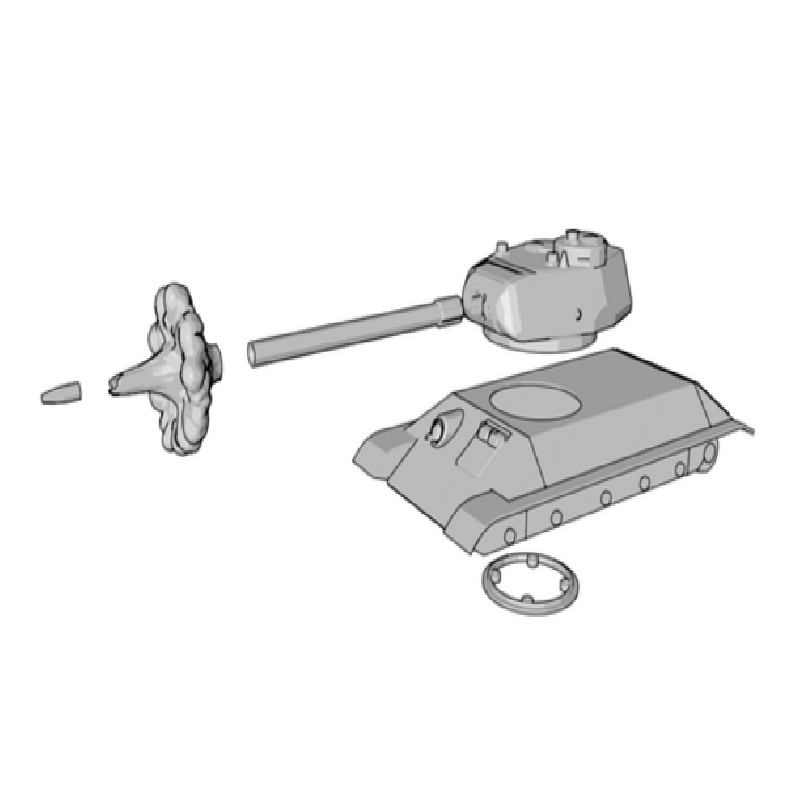

It does not matter what you assemble first as long as you put LED with wires through gun barrel before gluing explosion.

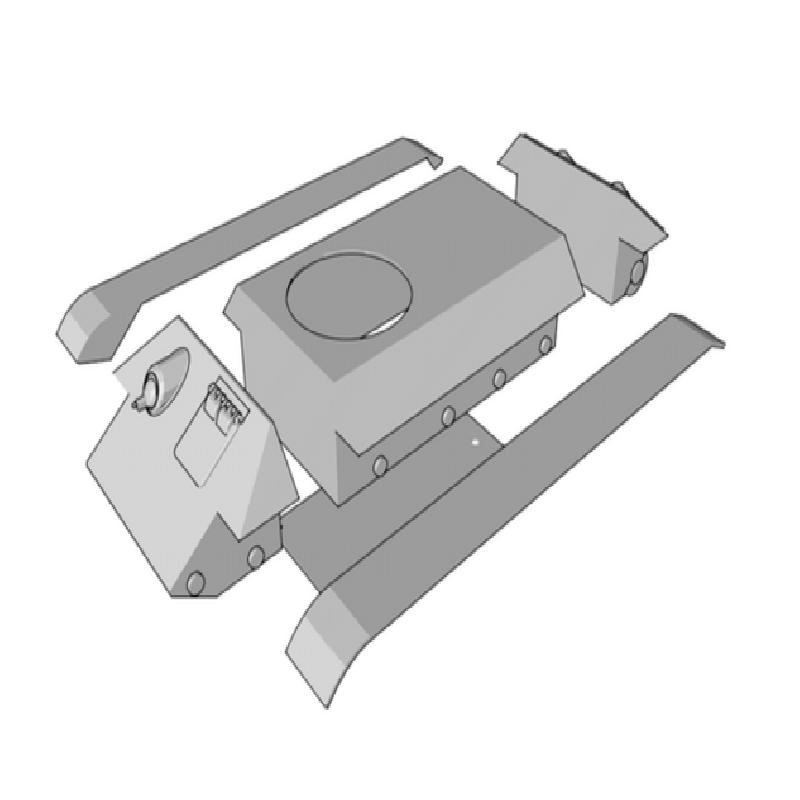

Original design had every hull plate printed and glued separetly so everything was flat but it was nightmare to assemble. Just send me a message if you want original files. This version have hull separeted into 3 parts (front, middle, back), fell free to slice them more or how ever you want.

Explosion

File explosion_hollow is already hollowed with premade suports inside model, just add outside supports

material white PLA
layer 0.1 - lower the better when it comes to glowing parts
raft is not needed
shell thickness 1.2, or less with 100% infill

Tracks +Wheels

Only thing that might cause problems when printing are tracks + wheels
Make sure your printer is set corectly and doesnt string or it would be nightmare for cleanup. You dont need raft just go with brim and you need atleast 15% support infill.

If you have any questions, feel free to ask.

Print Settings

Printer brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Yes

Resolution:

1.6

Infill:

10

Filament_brand:

Gembird

Filament_color:

Grey/White

Filament_material:

PLA
