The Frenchie in Action Pose with Skull was created for dog lovers and as a reference for artists. It is always helpful to have a anatomically correct model to accompany your 2D reference materials when working on a project. I created this model from many photos I took of my dog Anko-Dalia of Saishoyama. It was also a great help having her around to examine...I thank her for her patience.
Print Settings
Printer:
LotMaxx SC-10
Rafts:
No
Supports:
No
Resolution:
0.1
Infill:
30%
Filament_brand:
Esun
Filament_color:
grey
Filament_material:
PLA
Notes:

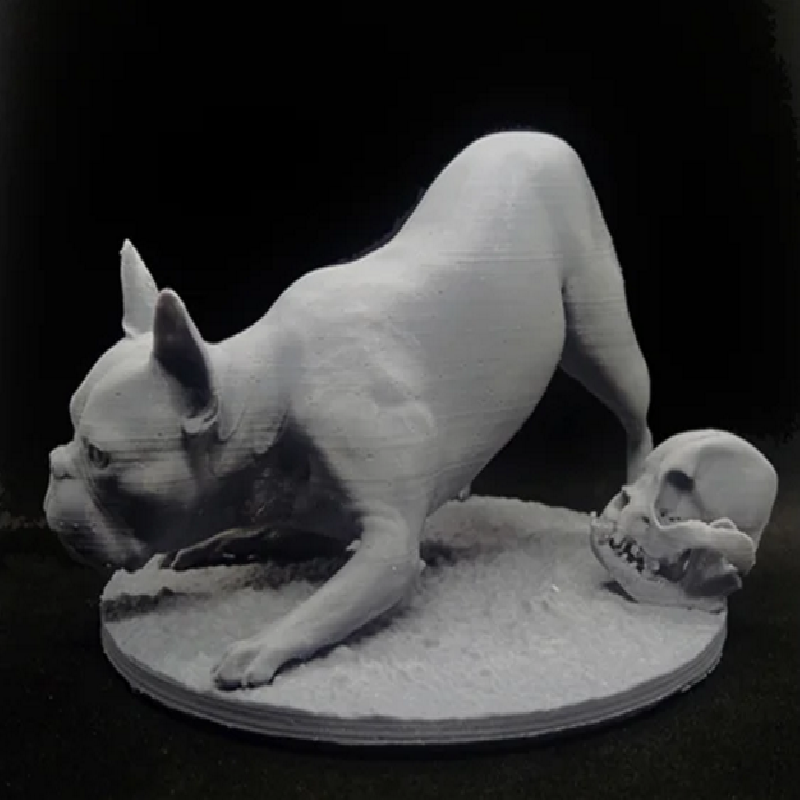

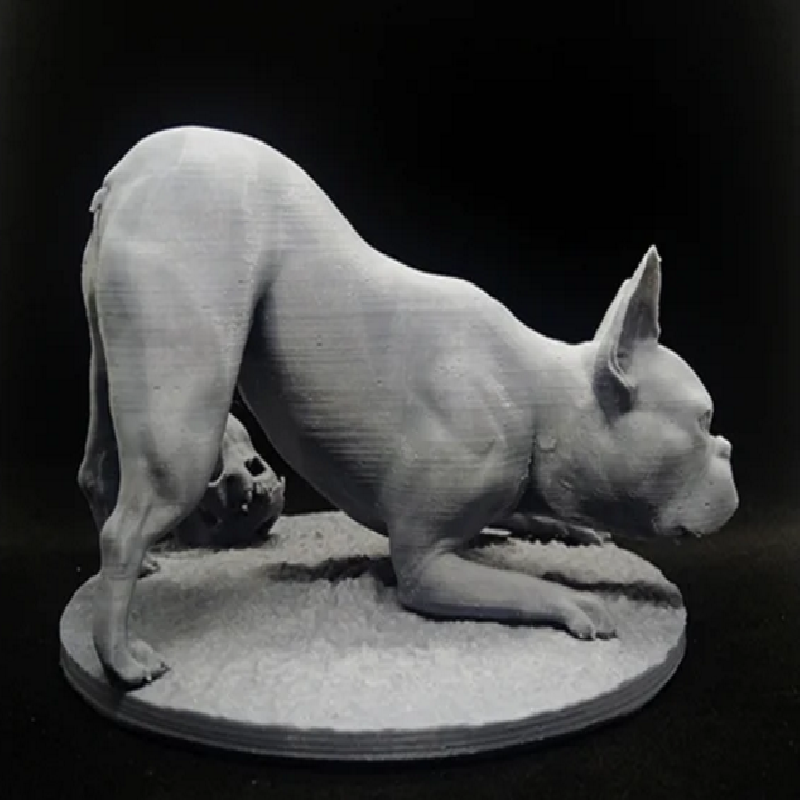

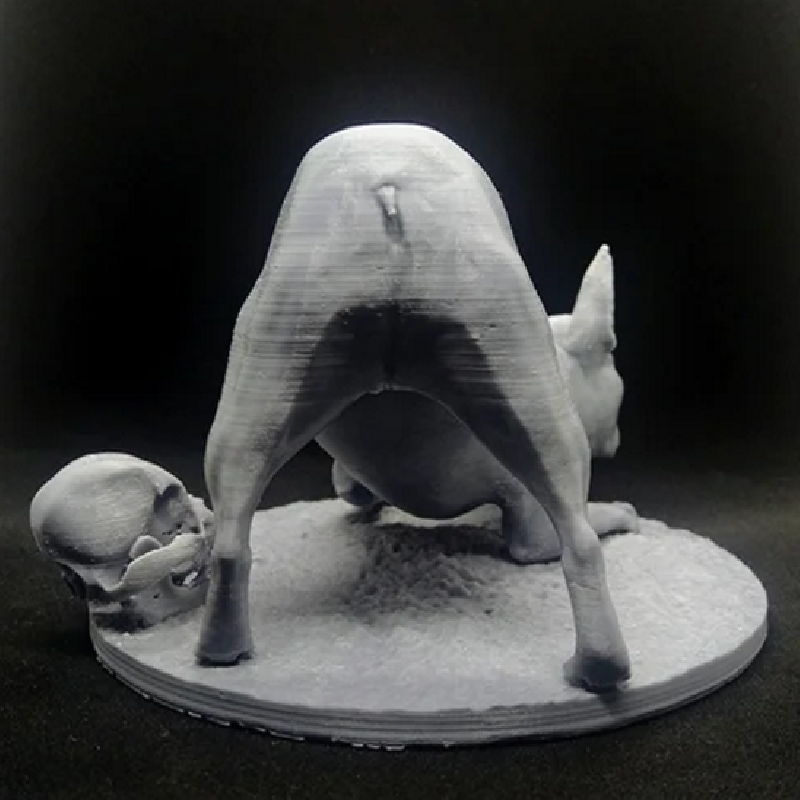

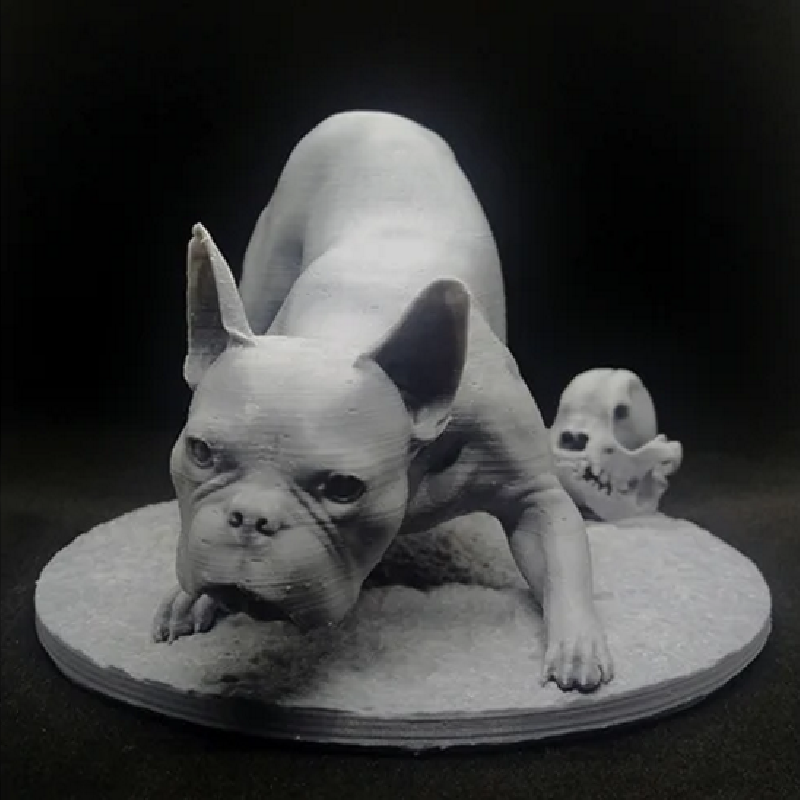

This guy prints pretty well. Be careful with the island on the bottom of the chest. I use Cura for slicing. Make sure the density of your support roof is high enough, or the model could separate from the support at the lower chest area. I set the roof support density to 100% and the top support distance to 0.1. The supports are a bit difficult to remove, but the surface looks better than when the distance from the model is increased. The photos are of the model with very minimal cleanup. I hope it works for you. Size- H/ 94.0 mm W/ 142.9 mm D/ 152.4 mm *I included a few STL files. One is made of four parts cut up in Zbrush. If you want to avoid supports I would use this file.
