by UnimatrixRed

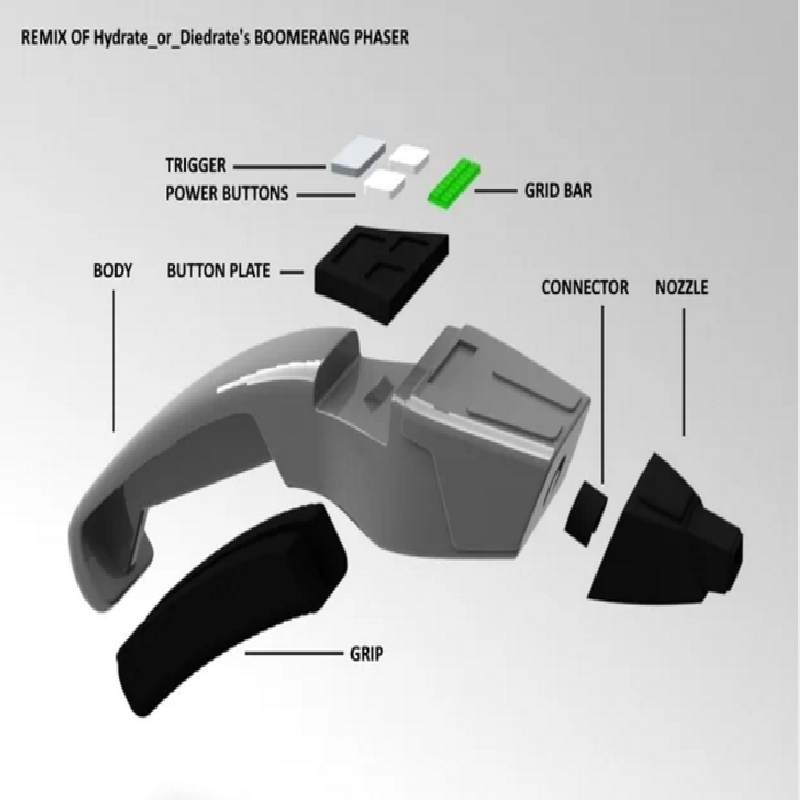

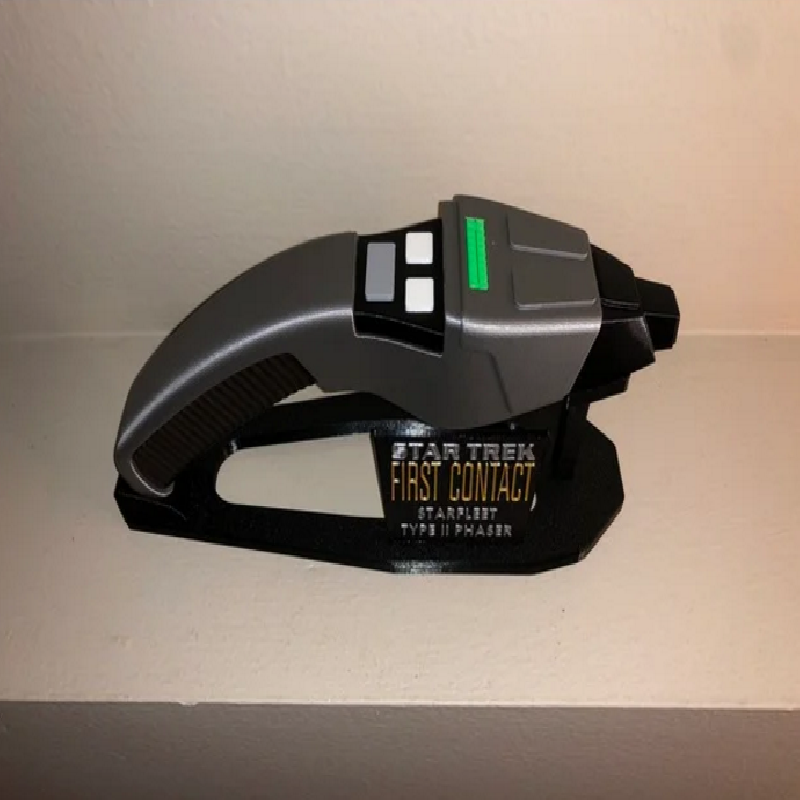

Here are all the modified parts I used to make the excellent phaser by Hydrate_or_Diedrate.
Nozzle and connector - separated the peg from the original nozzle so it could be printed flat to make a nicer gluing surface.
Body and Grip - reinforced the handle and added a little notch to help align the button plate. With this version the grip can't slide into the handle sideways as before, now it has to be popped in place from the bottom.
Button plate - added a hole to fit the notch on the revised body for alignment, and also made it fit the space better to avoid gaps on the front/rear sides. Narrowed the space between the power buttons, IMO they looked too far apart. You can print this part upright to avoid unsightly top infill lines.
Buttons and grid bar - resized slightly to better fit the holes and reduce the gaps.

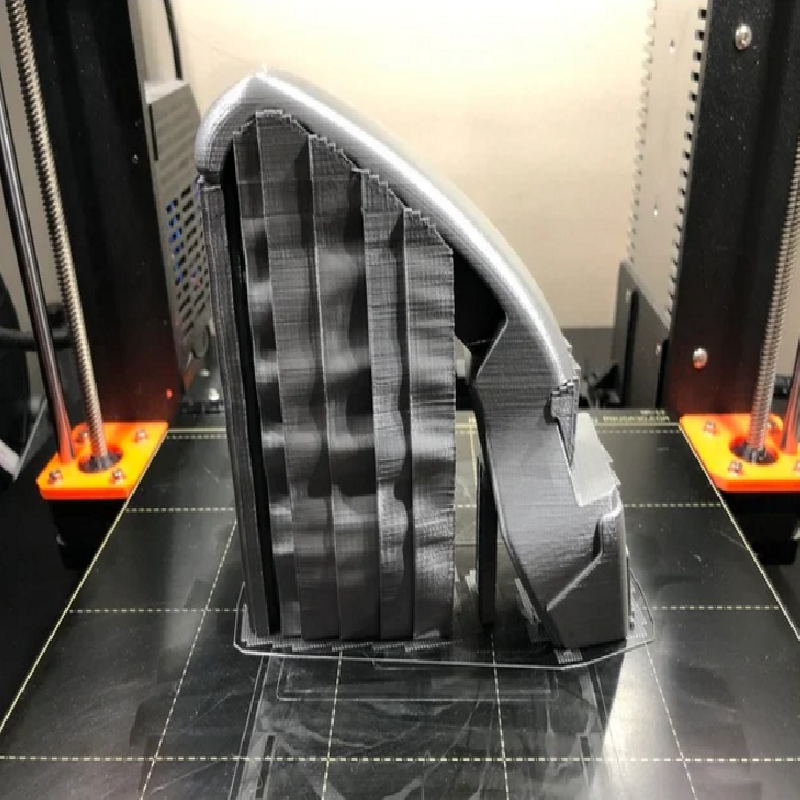

All parts should open in the orientation they were printed in. Use supports for body.
Used CC3D silver PETG
Print Settings
Supports:
No
