Riker's USS Titan (Luna Class). for print without supports. Original Model by David Metlesits, converted from MAX to STL, further corrections made with MakePrintable, byFleetPrinter October 15, 2020. Model sliced with Meshmixer
https://www.deviantart.com/metlesitsfleetyards.

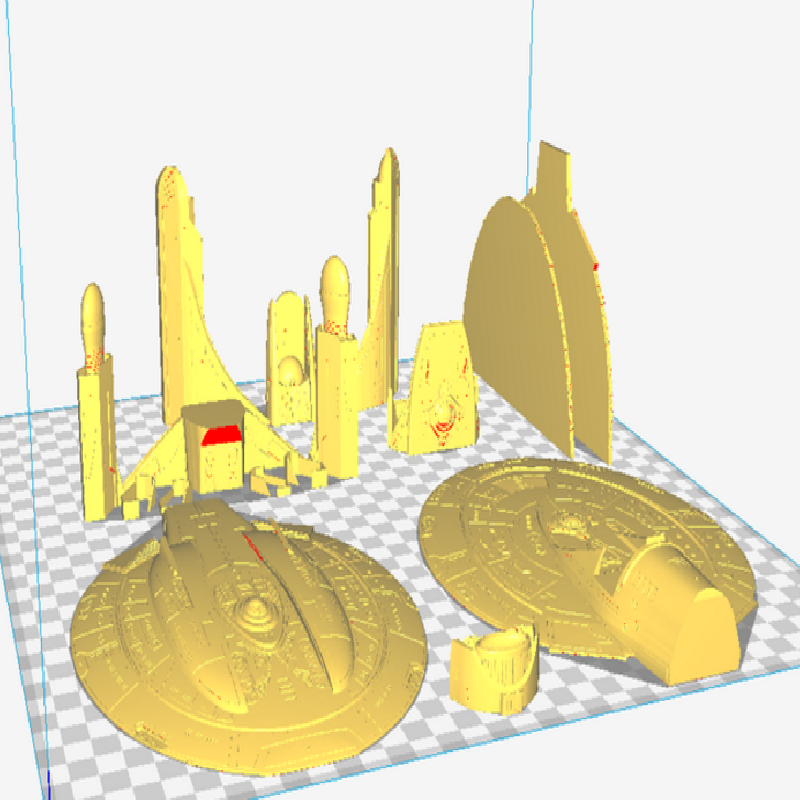

There are 7 pieces. The lower main disc is presented in two variants. One-piece (#2 disco abajo), and an alternative piece (2 B disco abajo-alternative), without the deflector. The deflector piece 2A_deflector should be printed face up, so that the deflector disc prints better.
Secondary Hull and nacelles are in pieces 3 &4(nacelles_and_Bussard and back). The bussard colectors are uncaped, this piece must be paint before add the cap. the busssard cap are each two pieces to be glued and piant before cover the bussard colector.
The sensor module #5, is a part of 2 pieces, which must be glued together and after painting, glue on the main disc. The sensor line (parts 6&7 or back and front) should be printed upright and up, to achieve better quality printing from the lateral sensors. They must be placed between the up and down disc from the main hull.
Print Settings
Printer brand:
Prusa
Printer:
i3 MK3
Rafts:
No
Supports:
No
Resolution:
0.1mm
Infill:
25%
Filament_brand:
Print a lot
Filament_color:
Black
Filament_material:
PLA
