by Byzantium3D
A display stand for RealAbsurdity's Snap-Fit Saturn V rocket. This is the updated version of my stand with the addition of a detailed gantry/tower. designed to be printed without any support.
Height: 35 cm
No support needed
Detailed launch tower/gantry
Easy to print and assemble
Grips the rocket in place to significantly reduce the odds of tipping over.

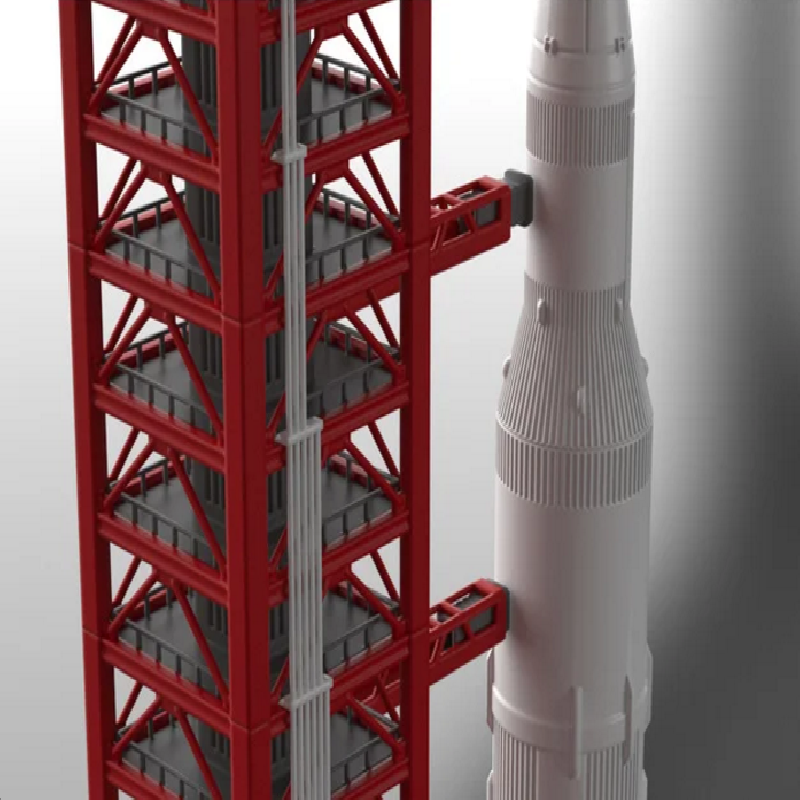

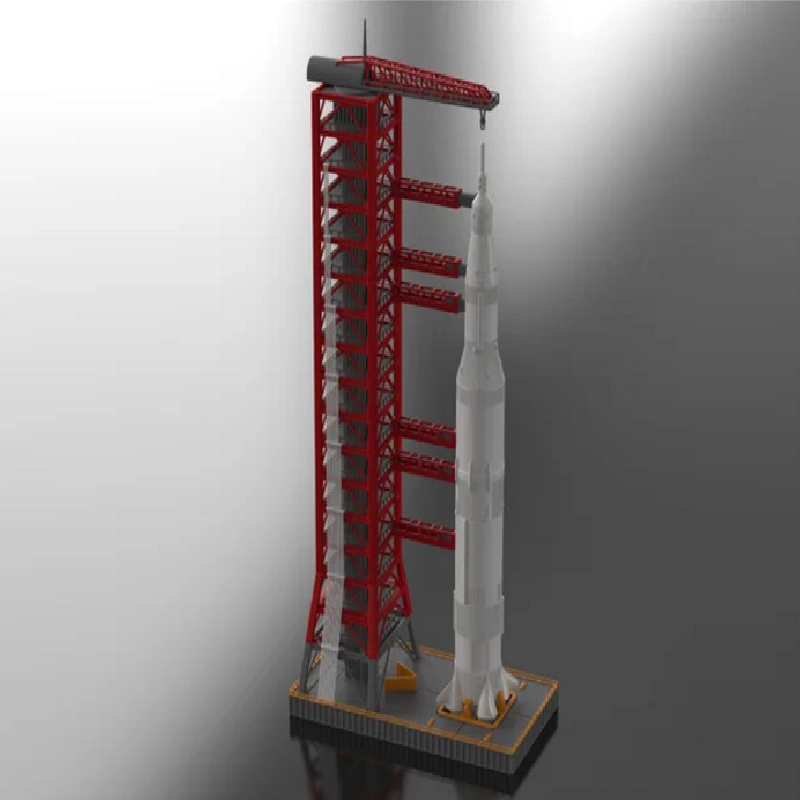

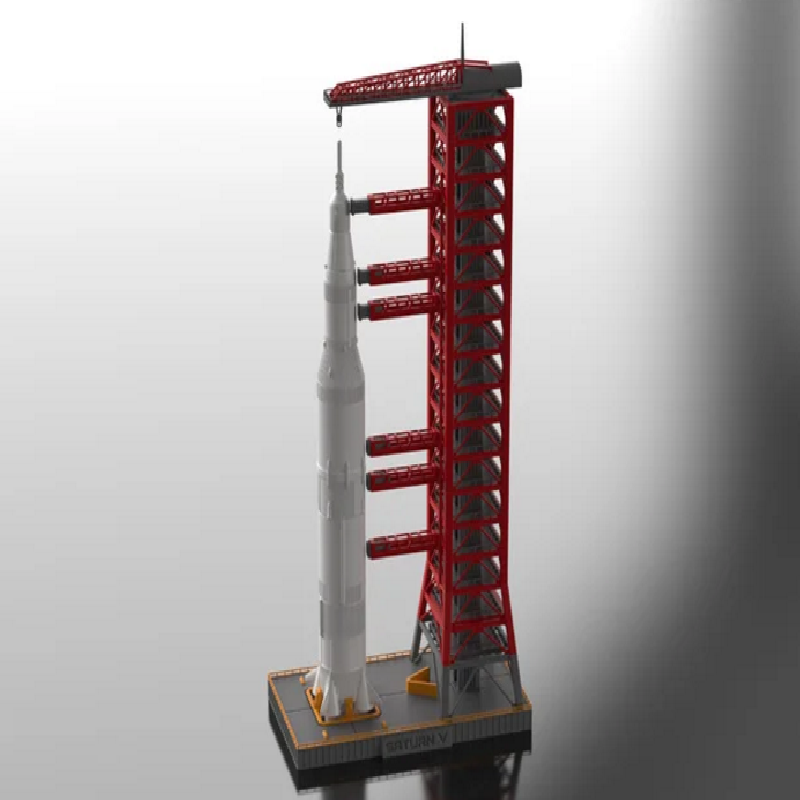

It is possible to print the stand in colour like in the render by doing a filament change at about 11mm height (use your slicer's tools to get a more precise measurement if needed).
In S3D, this can be accomplished by adding the following to the "Additional terminal commands" box of the scripts tab in FFF. This of course also works in Cura or other slicers.
{REPLACE "; layer" "M117 Layer"}
{REPLACE " Z = " " Z="}
{REPLACE "\nM117 Layer 110, Z=" "\nG1 X10 Y10 Z80 E-150\nM84 S0\nM84 E\nM300 S1000 P3000\nM0\nM104 S200\nG92 E0\nM117 Layer 110, Z="}
*** Use Layer 110 in the third line if you are printing at 0.1mm, Layer 55 for 0.2mm, etc.
Snap-Fit Saturn V Rocket model by Real Absurdity (https://www.thingiverse.com/thing:45316/)
Display Stand by Byzantium3D
Message me if you have questions.
Print Settings
Printer brand:
Creality
Printer:
CR-20
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
10%
Filament_brand:
Any
Filament_material:
PLA
Notes:
All pieces should already be oriented for printing. Stringing can be cleaned up with heat.
Post-Printing

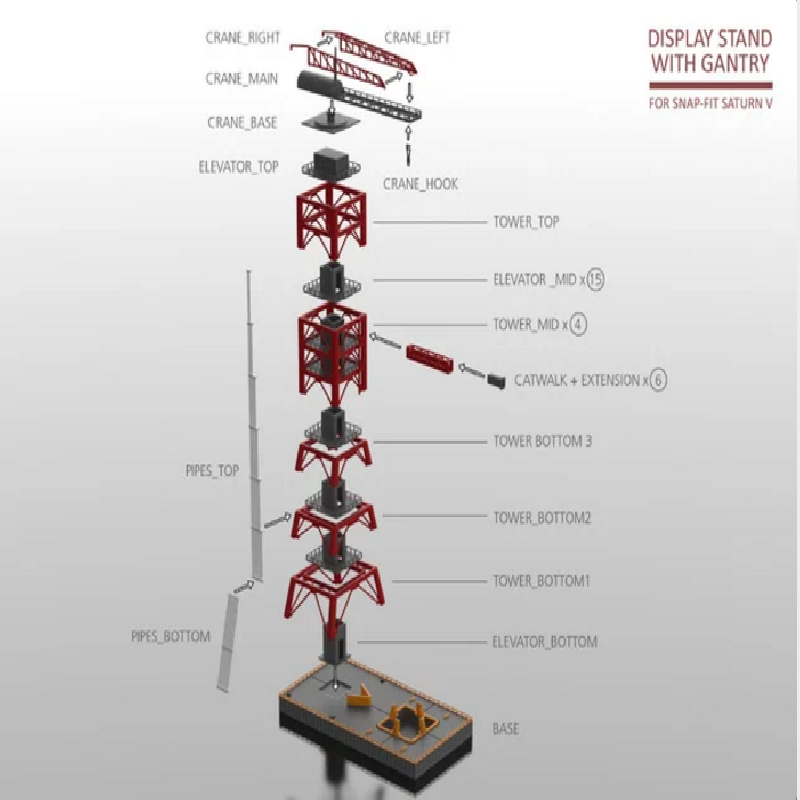

Assembly
Most parts can be easily aligned and glued together. The catwalks and crane can snap to the main structure and remain free to swivel. Be extra-careful when attaching the catwalks to the rod on the tower as the latter is prone to snapping when too much force is applied.
