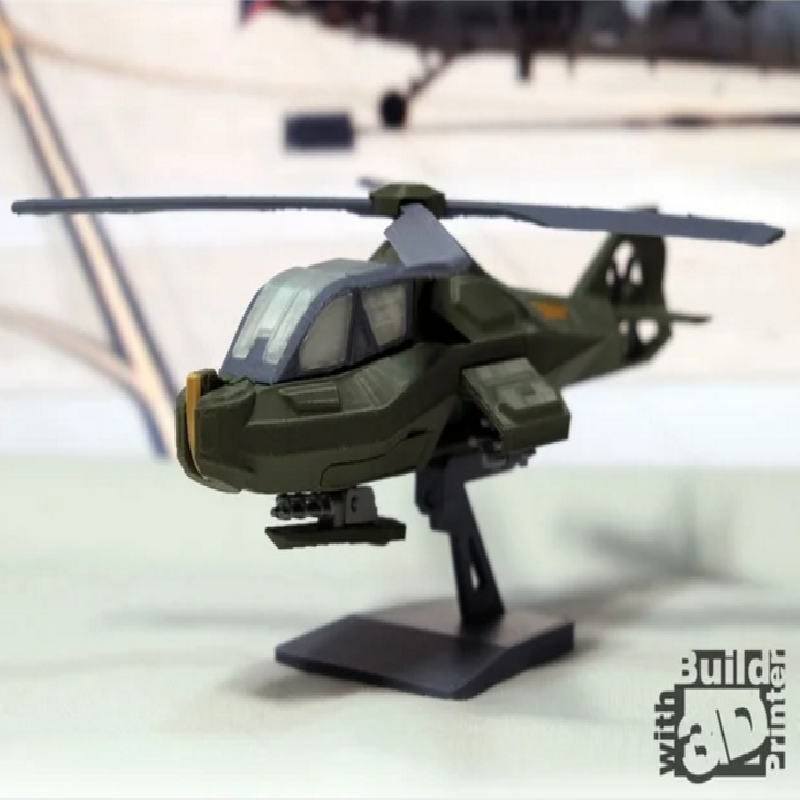

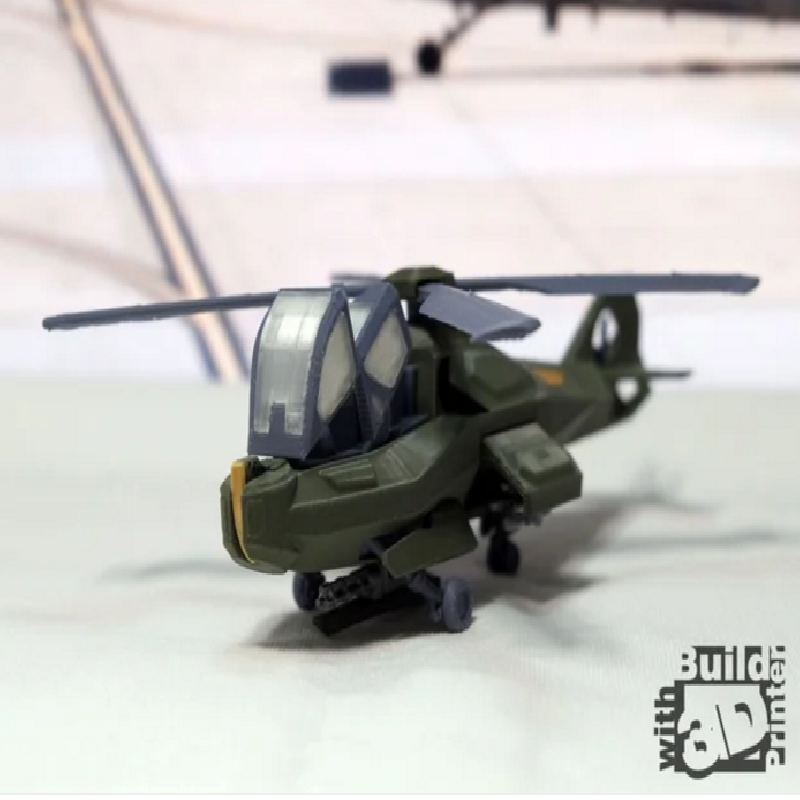

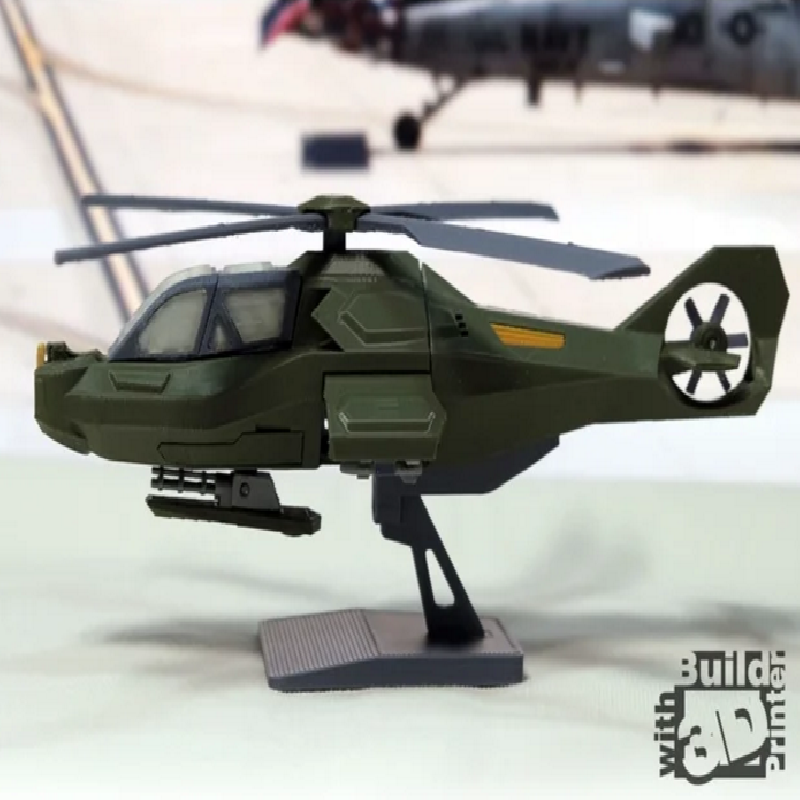

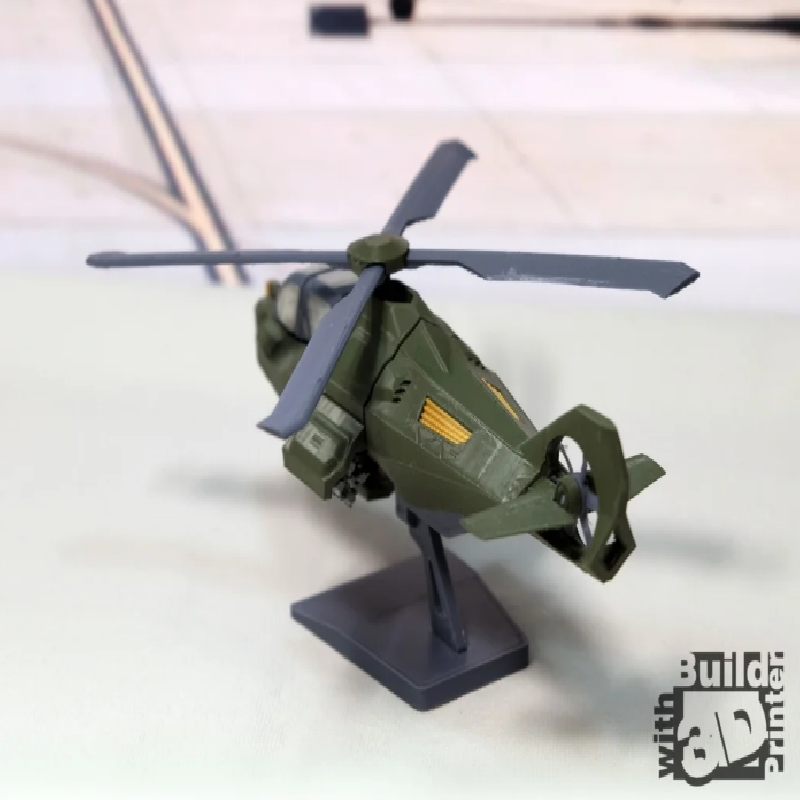

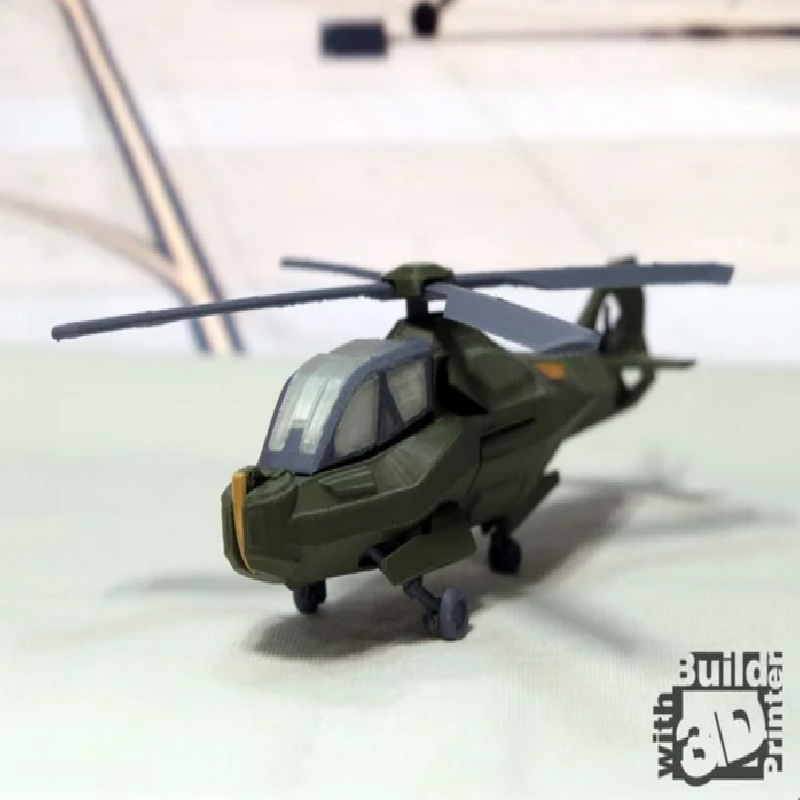

Printable Helicopter Model
Assembly is required.
Assemble instruction is in my youtube channel
https://youtu.be/Yulytyh9UdI
The parts are designed and tested to fit each other, however the tolerance is depends on a 3d-printer's condition.
Please remove the supports completely. May need a sandpaper or cutter while assemble the parts.
Use a raw 1.75mm filament and super glue while assemble the parts.
Print Settings
Printer brand:
FlashForge
Printer:
Adventurer 3
Rafts:
Yes
Supports:
Yes
Resolution:
0.18
Infill:
15%
Filament_brand:
Polysmart
Filament_color:
Olive green, gray, silver, gold
Filament_material:
PLA
Notes:
Layer height: 0.10mm : *_LandingGears_*, Missile_Pallet_*, Missile_X8, 3-Barrel_Cannon.stl 0.18mm : All the Rest Shell count: 3 Fill density: 15%~20% Time to do: about 1300 - 1350 minutes Technology: FDM Material: PLA Dimensions: about 220mm x 200mm x 50mm Material Quantity: about 160g
