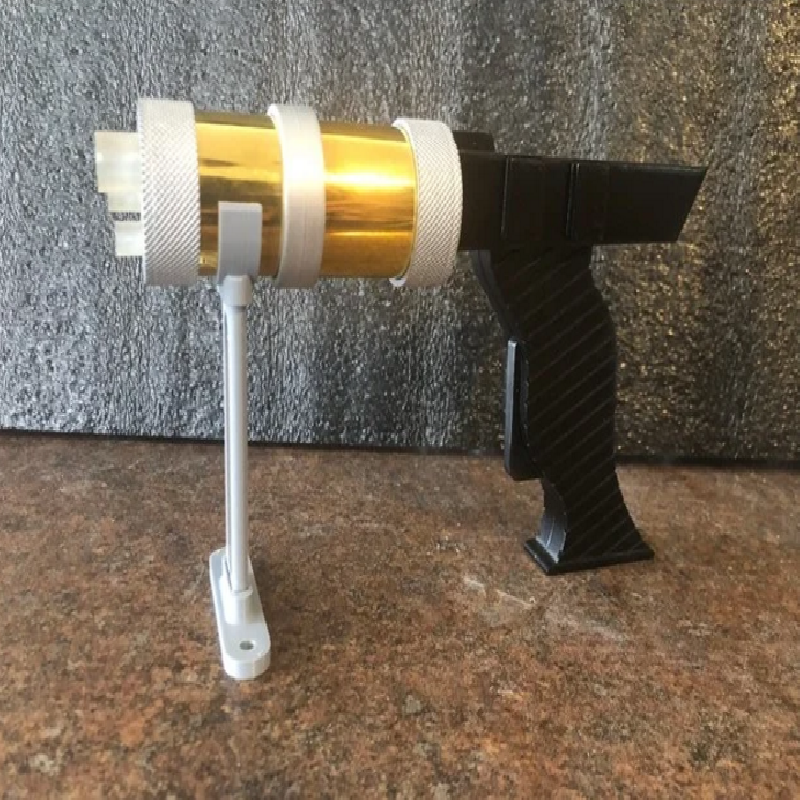

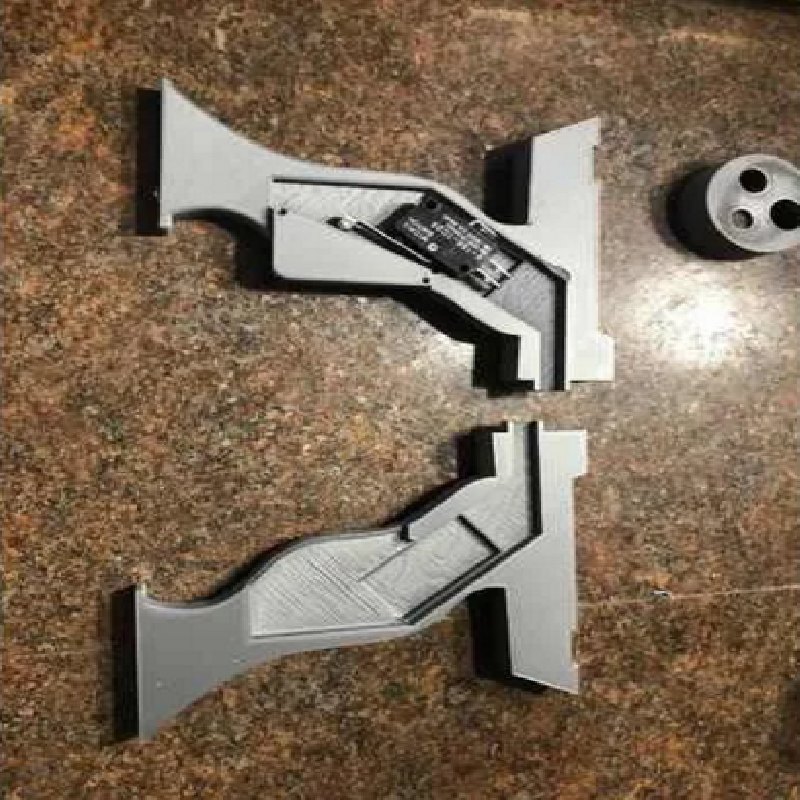

Parts to create replica Laser Pistol from the pilot episode of Star Trek, called "The Cage", based off of mfritz's modelhttps://www.thingiverse.com/thing:3929291and plrmaker7's modelhttps://www.thingiverse.com/thing:939038I used those pieces as reference as I redesigned the parts in Autodesk Inventor to house the electronics.

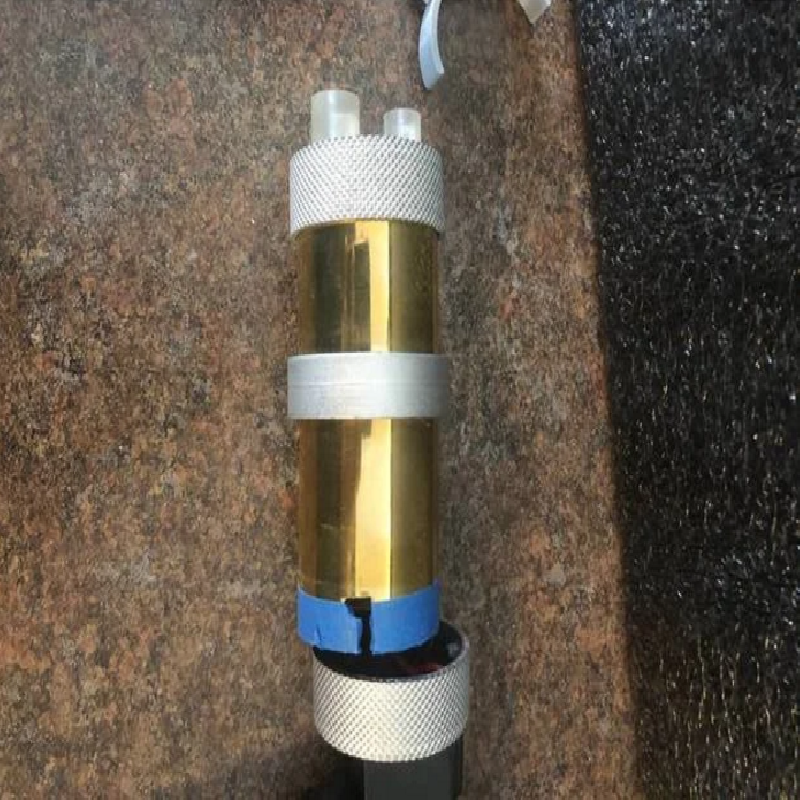

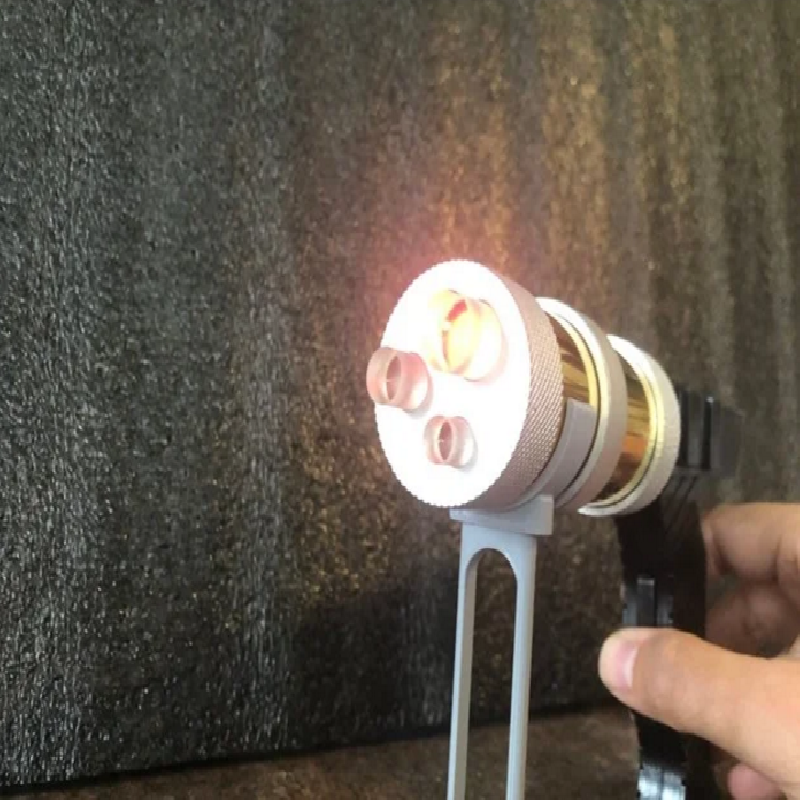

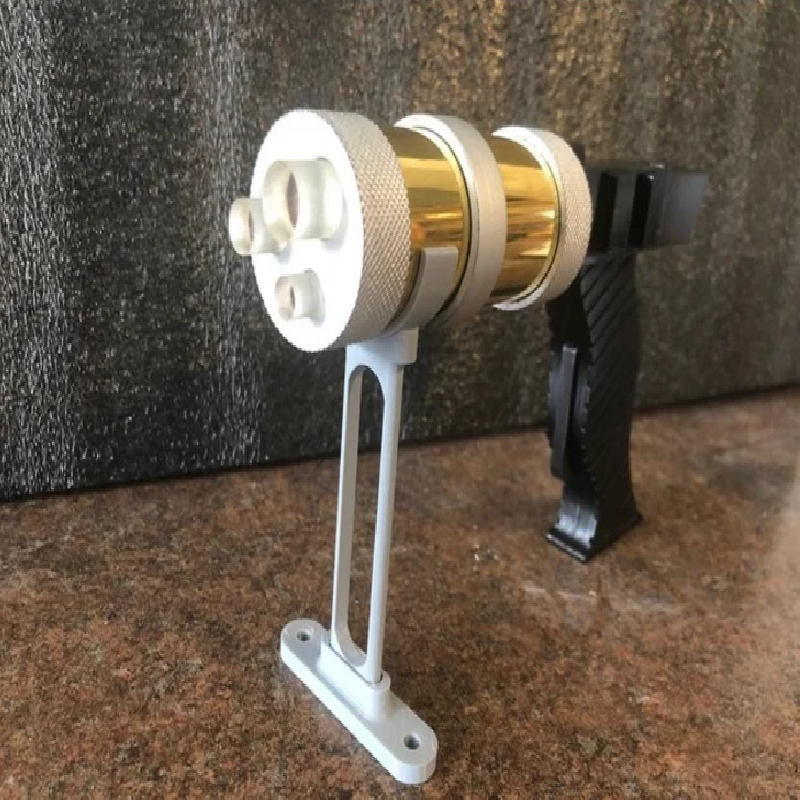

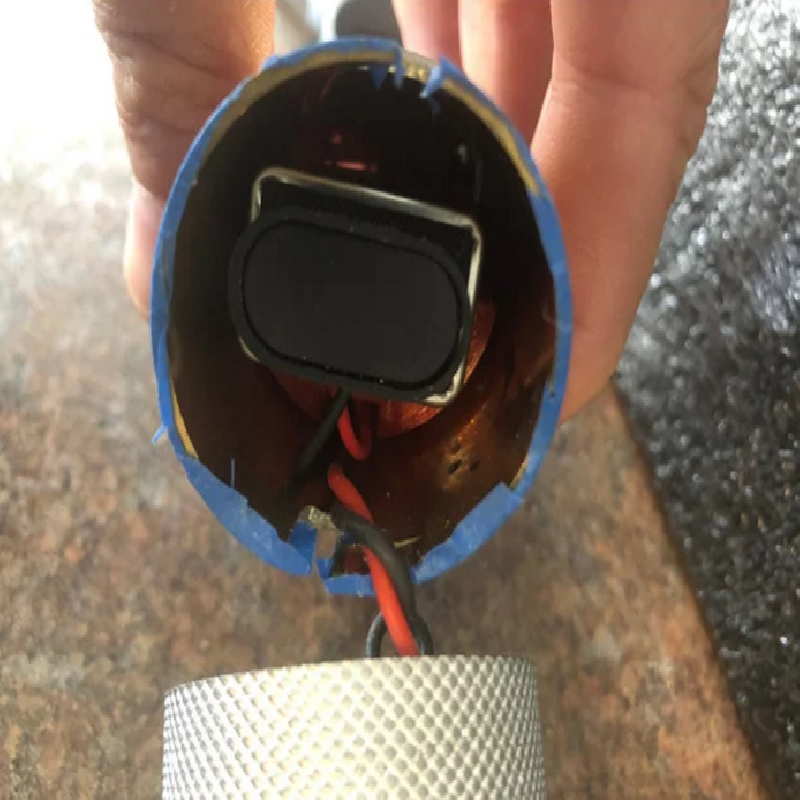

This one has a working trigger which activates the emitter light. The barrel front can be rotated to select the proper emitter size. The emitter parts were printed on the Anycubic Photon S resin printer and the rest were printed on a PRUSA MK3S.
This project requires additional parts:
1.5" diameter Brass Tube (sourced from eBay)
Micro Switch:https://www.amazon.com/gp/product/B07D9C2B6J
9V Battery Connector:https://www.amazon.com/gp/product/B085X11D22
10mm Red LED:https://www.amazon.com/gp/product/B00EZZCKZY
1.8mm metal rod:https://www.amazon.com/gp/product/B07KY9578R
Tools needed:
Pin Vise to drill the mounting holes for the 1.8mm rod for the trigger
Dremel with cut off wheel to cut brass tube to size, and a cutting bit to cut a groove out where the barrel meets the handle.
Print Settings
Printer brand:
Prusa
Printer:
I3 MK3S
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
25%
Filament_brand:
Overture
Filament_color:
Grey
Filament_material:
PLA
