by Nik_601

"Welcome! Welcome to City 17! You have chosen, or been chosen, to relocate to one of our finest remaining urban centers. I thought so much of City 17 that I elected to establish my administration here, in the Citadel so thoughtfully provided by our benefactors..."

Wallace Breen, Earth Administrator.

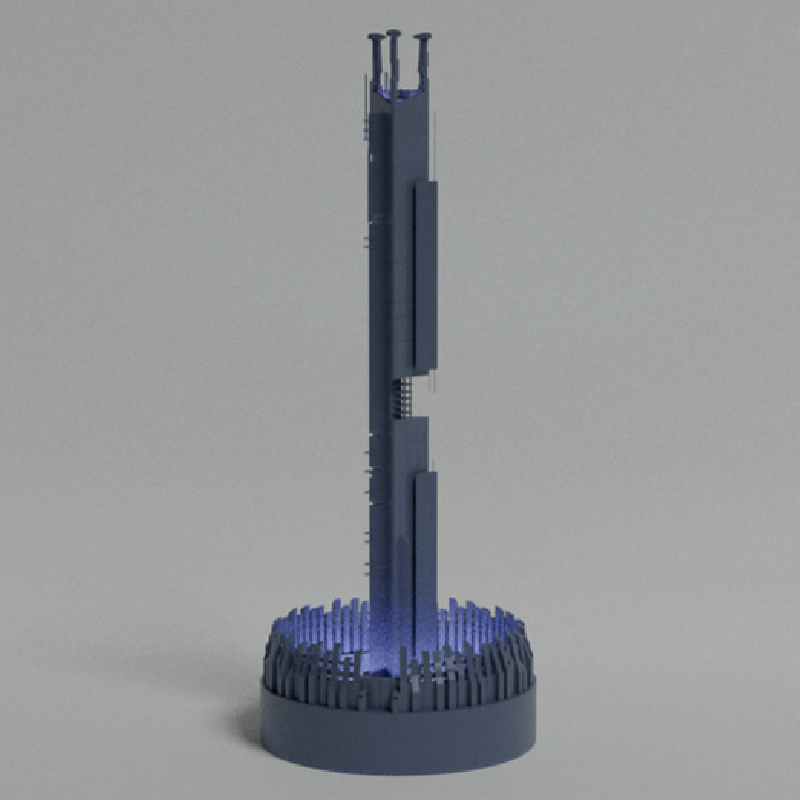

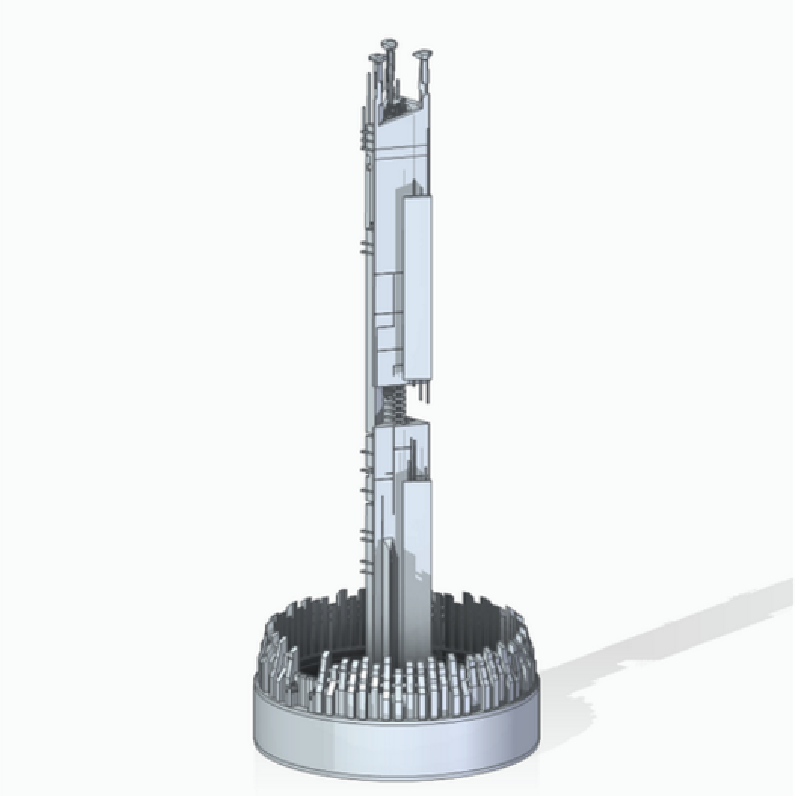

A model of City 17 Citadel from Half Life 2 game. Total high is 347 mm. This project contains 22 parts which are already oriented for the easiest printing with less supports.
Sign x3 after any part's name means you need to print 3 copies of that part.

Some parts are pretty thin (like antennas and side wings) so I recommend to print the Citadel with line width 0.3 mm.

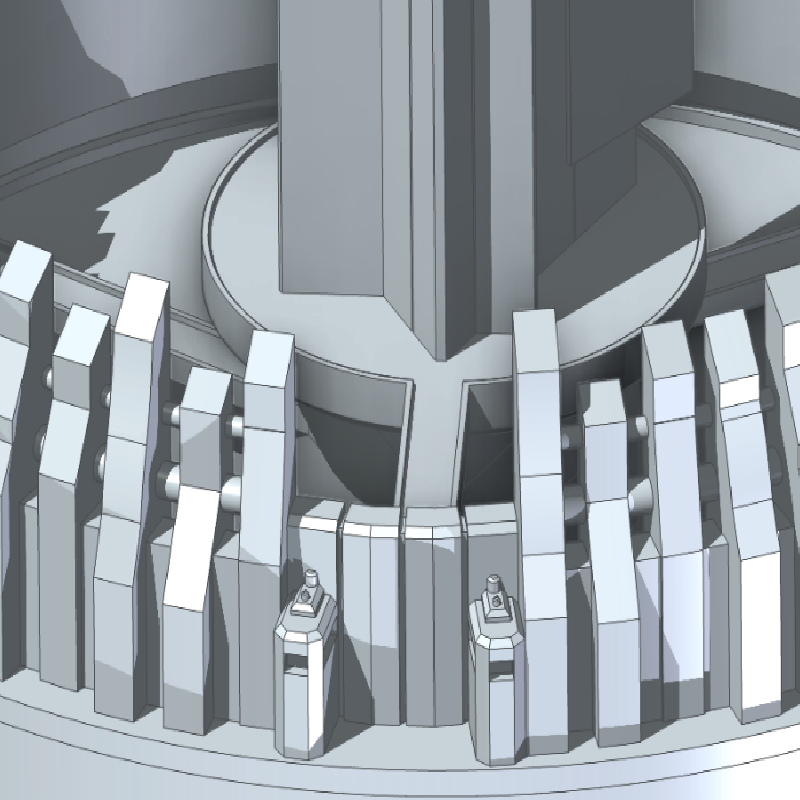

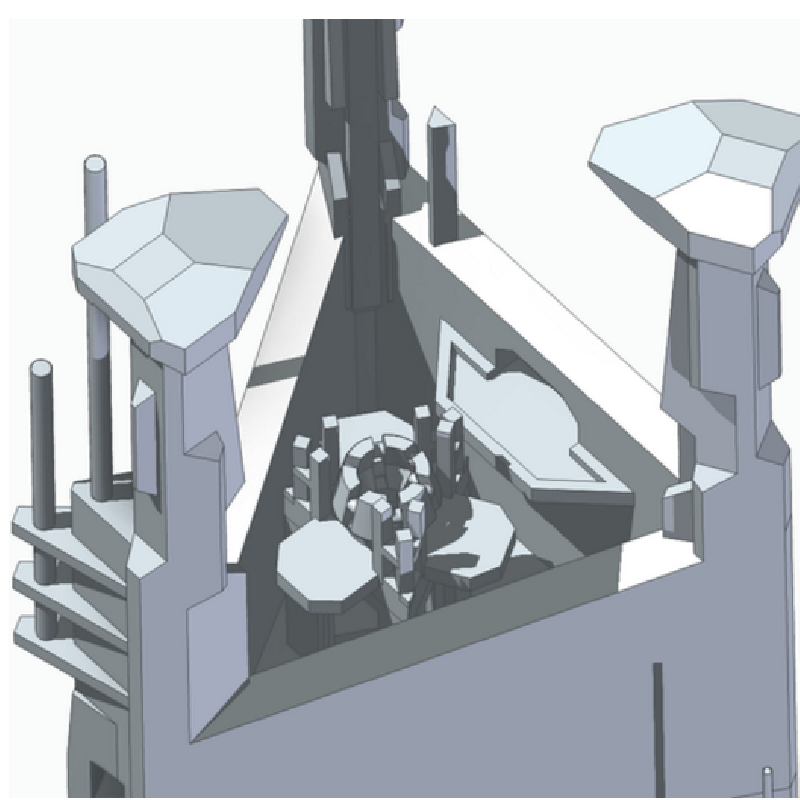

Citadel's base designed for usage with 10 mm wide LED strip. Main roof part is designed for usage with 3 mm light diode and Main 2 part has space for a battery.

To imitate cables which go to the Citadel from nearby buildings you can use threads gluing them into holes in these parts: Low wing, Main 1, Side wing 1.

All the parts should be glued to make joints more durable, except:
1) Box shell - Undeground 3;
2) Undeground 2 - Undeground 3;
3) Side wing 1 - Side wing 2;
4) Main roof - Main 2.

That will give you access to LED in case you need to fix something.

Print Settings

Printer brand:

Creality

Printer:

Ender 3 Pro

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.15

Infill:

15%

Filament_brand:

FDplast

Filament_material:

PLA
