by olliejimm

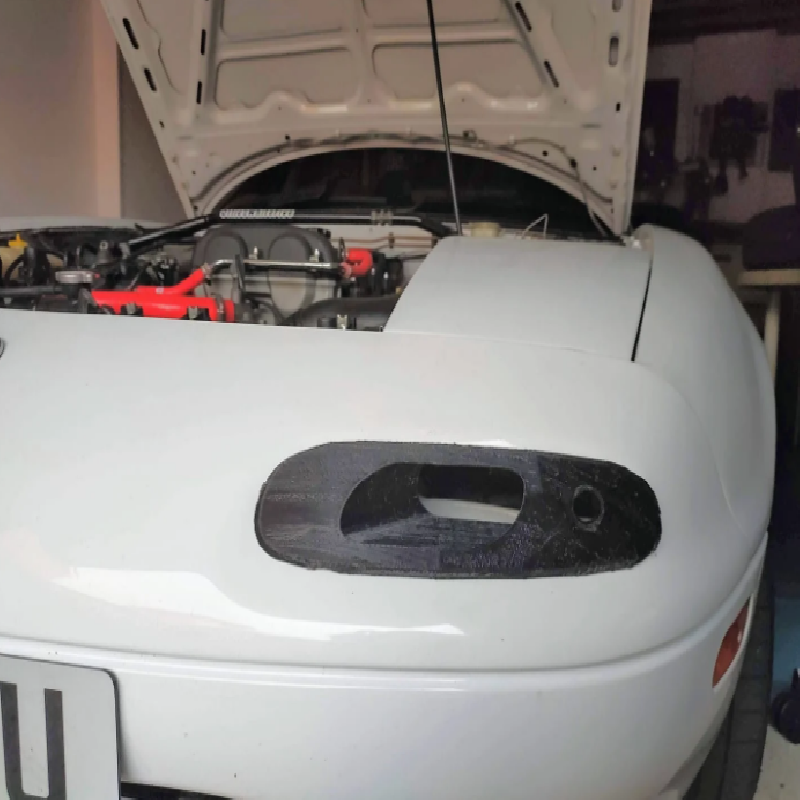

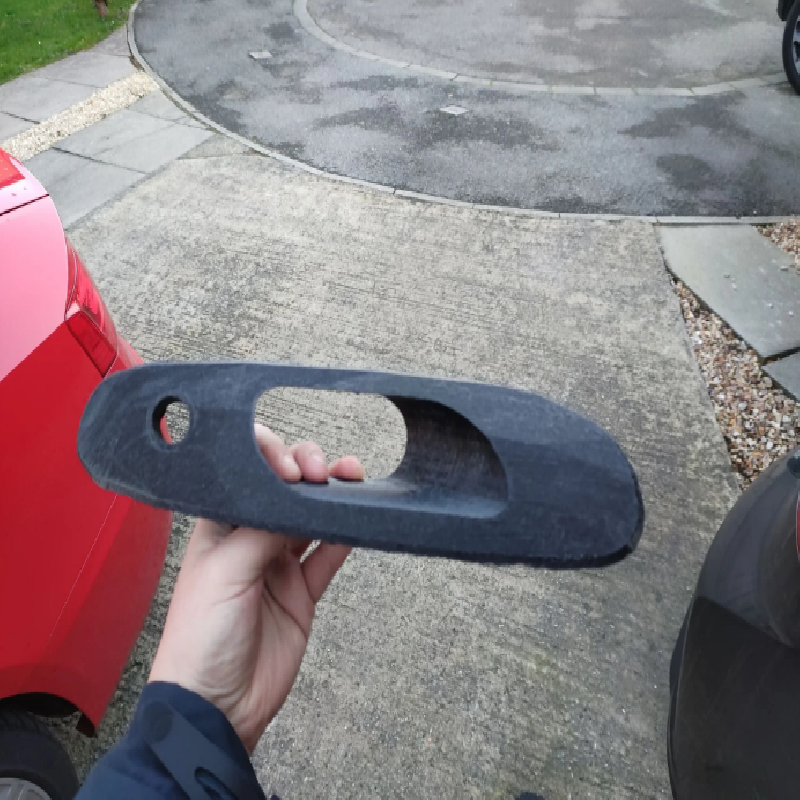

My TSI design/work in progress that's based on the full Sketchup model of the mx5 by "The studeö".
Only part left to finish is the holes in for where the Screws go.

Designed it so that the bulbs from Moss fit - https://www.moss-europe.co.uk/switchback-led-side-light...

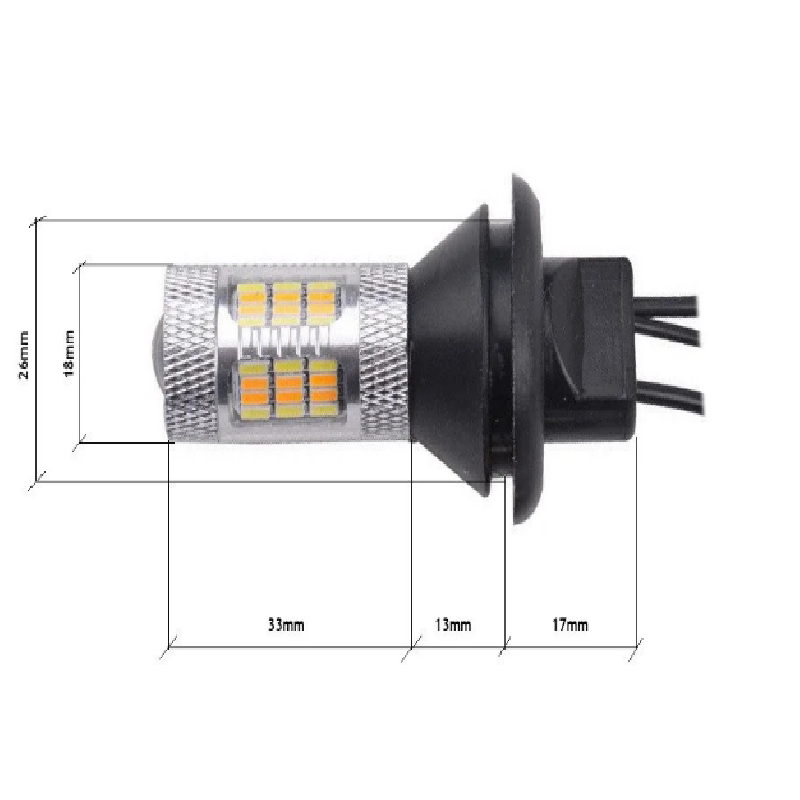

Should also fit any of the switchback LED bulbs like the bulb in the picture attached

The bulbs fit by being a tight snug fit on the rubber seal - could probably makes something to clamp it from behind if needed.

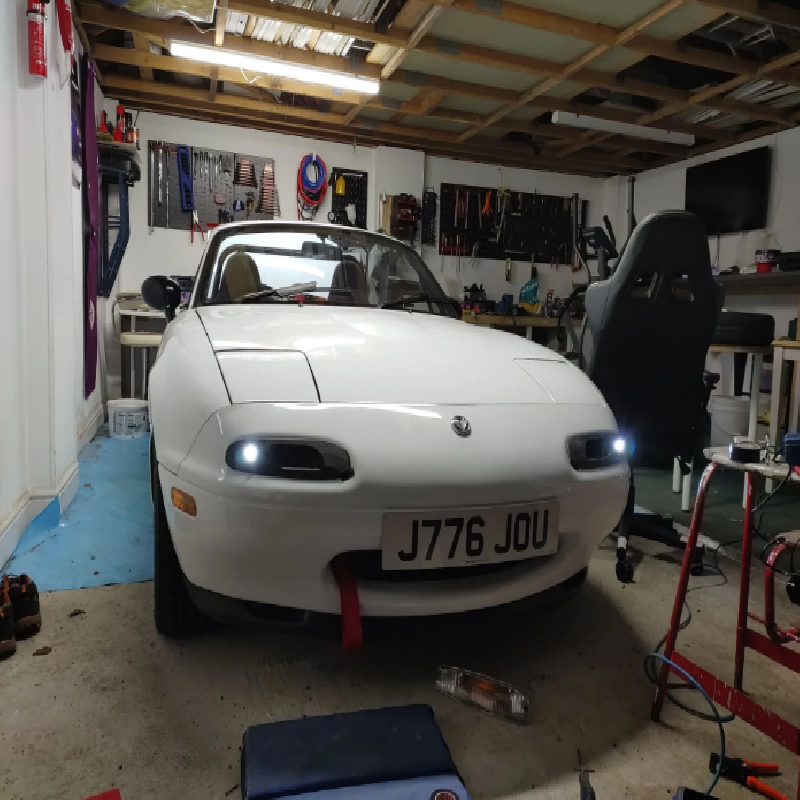

It doesn't line up 100% but tbh I think its good enough for a cheap easy TSI mod.
Print times at 0.25mm layer height is around 8 hours.
Anyone interested in the STL or any suggestions?

Supports are required! - I did mine at 55% overhang
Print with the Rear of the indicator flat to the bed.

Take 8 hours to print at 0.25 layer height with a 0.8mm nozzle

Print Settings

Printer brand:

TEVO


Printer:

Tornado


Rafts:

No


Supports:

Yes


Resolution:

0.25


Infill:

20%


Filament_brand:

YOYI


Filament_color:

Black


Filament_material:

PETG
