by El-Duderino
This is a 200x200x230 mm hollow Christmas Tree with star. I intend to build a Arduino controlled RGB light matrix to go inside the print but for now I plan to use a small roll of Christmas lights to make the tree glow
Print Settings
Printer brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
20%
Filament_brand:
Generic
Filament_color:
Natural
Filament_material:
PLA
Notes:
The lower the infill the more this will glow with lights
How I Designed This
This was designed in Freecad and was a bit tricky of a design:
In sketcher I made a basic outline of a tree that I then revolved.
I made a second body by creating a 2D 8 pointed star that I lofted to a point.
I then overlapped the two solids and did an intersect operation.
I sliced the new solid into five pieces and staggered the pieces to break up the lines.
I then combined the tree slices back together to make a single solid
I started a new body and made a 5 point star by staggering two different sized pentagons and connecting the points then extruding that shape.
I combined the star and the tree and added a final Fillet.

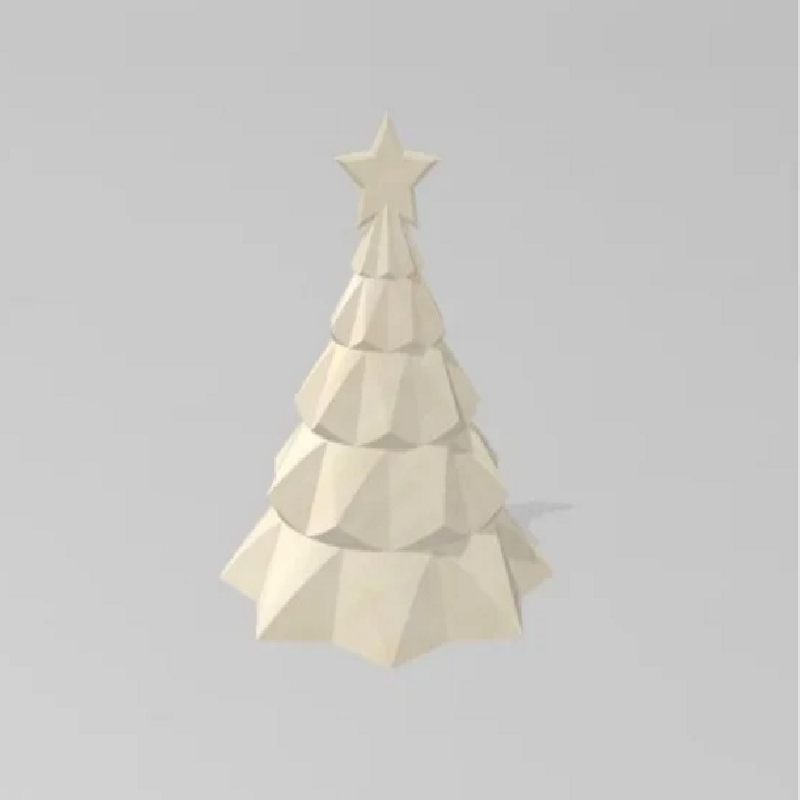

Finished part
