by RF100User

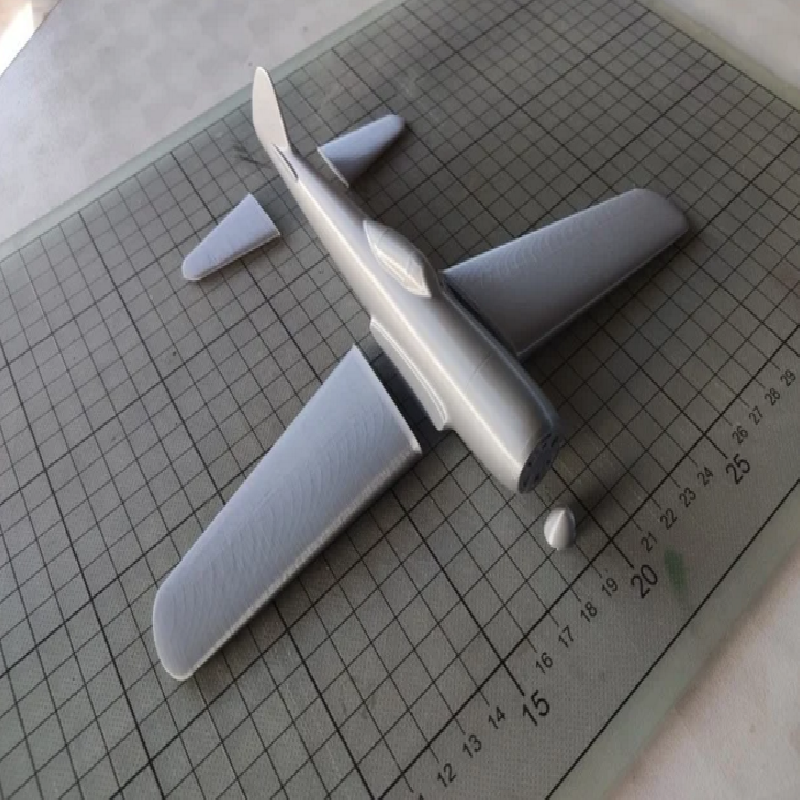

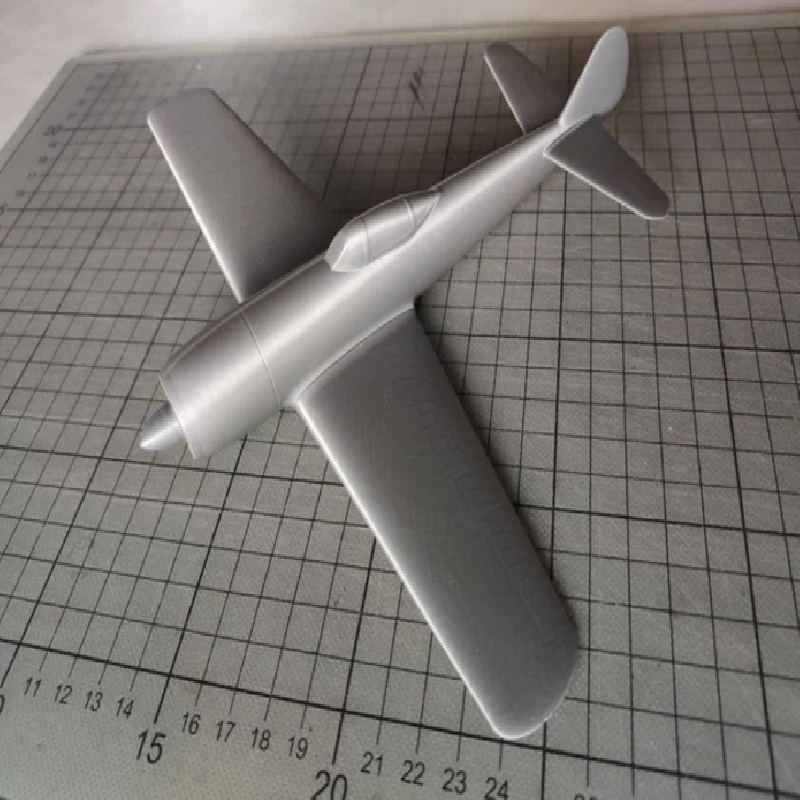

A simple 1/48-model of the Nakajima Ki-84 Hayate. The shape is adapted for printing the fuselage (including the fin), the wings, the horizontal tailplanes, and the spinner individually in vase mode.
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
0%
Filament_brand:
OWL
Filament_color:
Silver
Filament_material:
PLA
Notes:
All parts printed in vase mode (spiralized outer contour).
Nozzle diameter used: 0.4mm
The fuselage is printed standing upright on the nose. The thickness of the "bottom" should be 1-2mm.
The horizontal tailplanes are symmetrical. Therefore, it is simply printed twice.
Post-Printing
Sone sanding should be applied to the nose in order to remove the "elephant's foot" and to achieve a smooth rounding.
How I Designed This
Shape adapted for vase mode.
