by RF100User

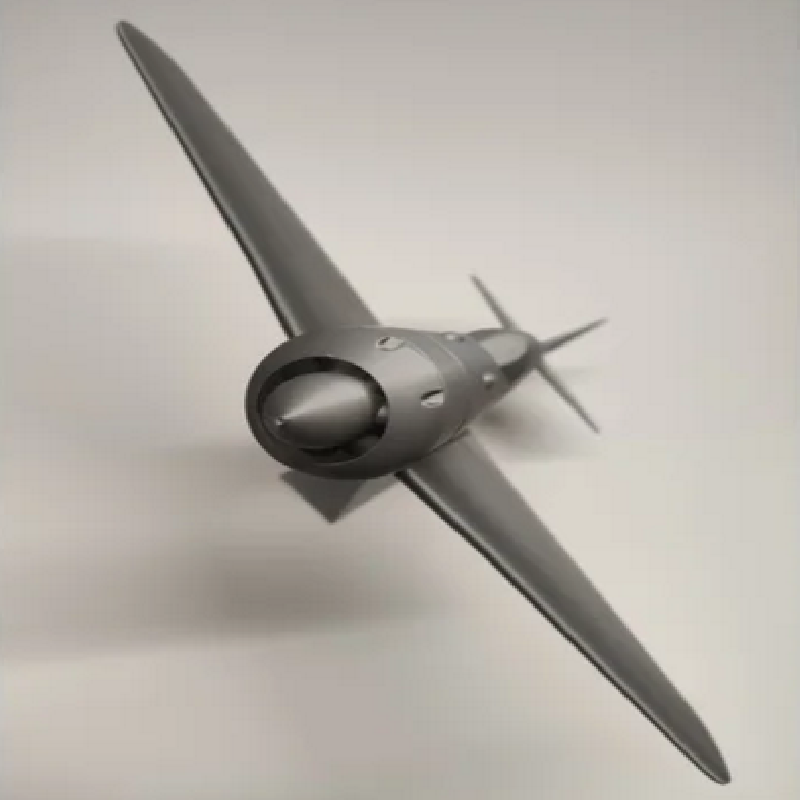

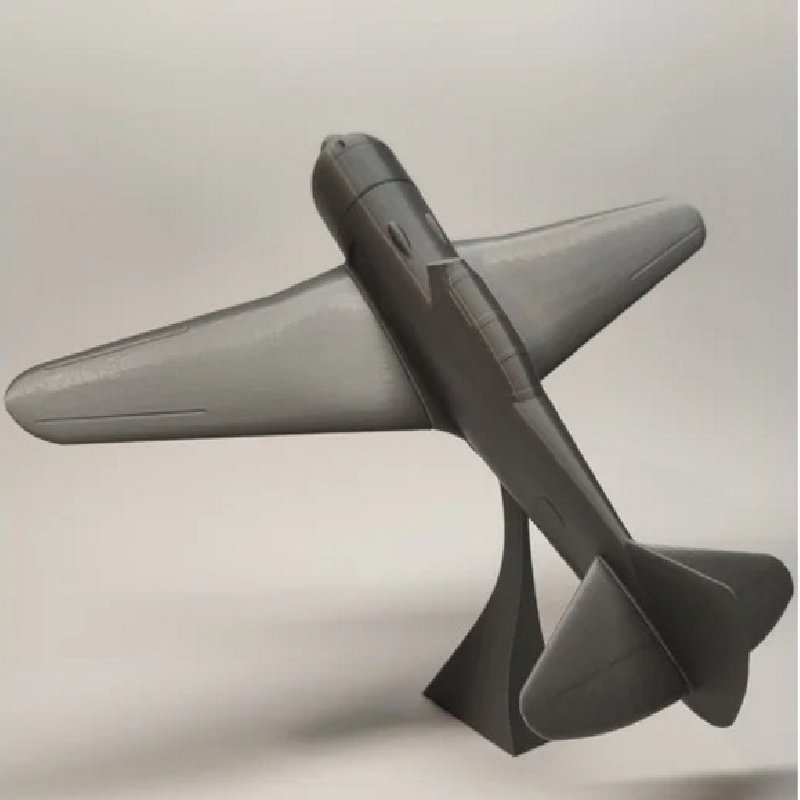

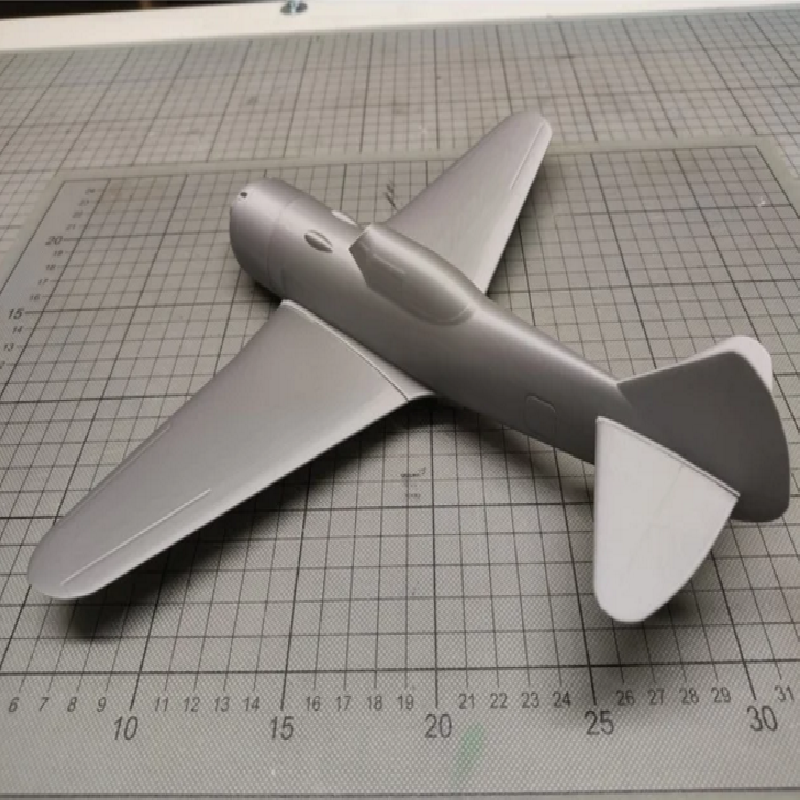

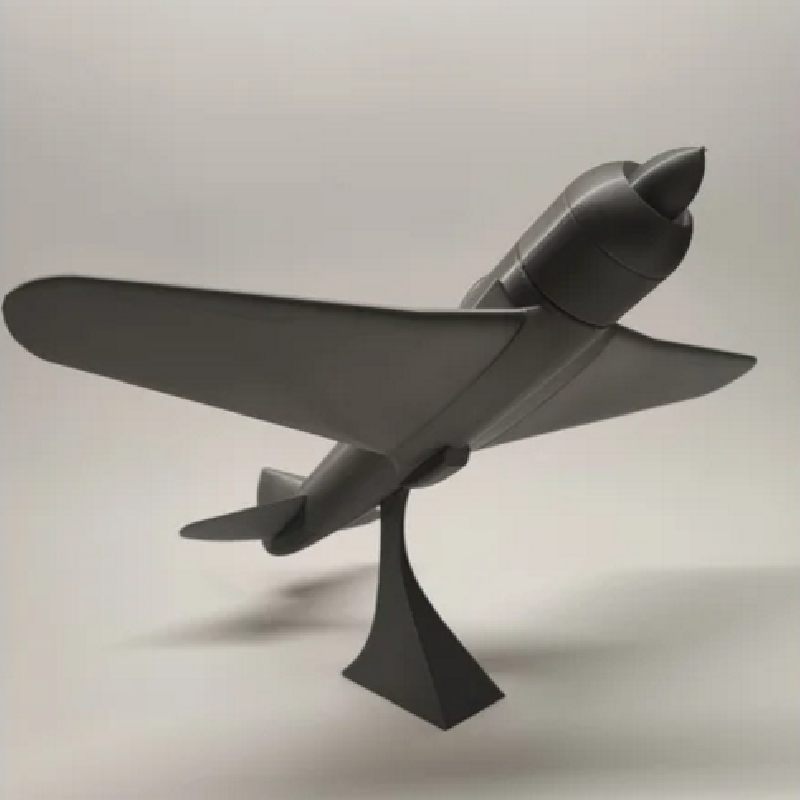

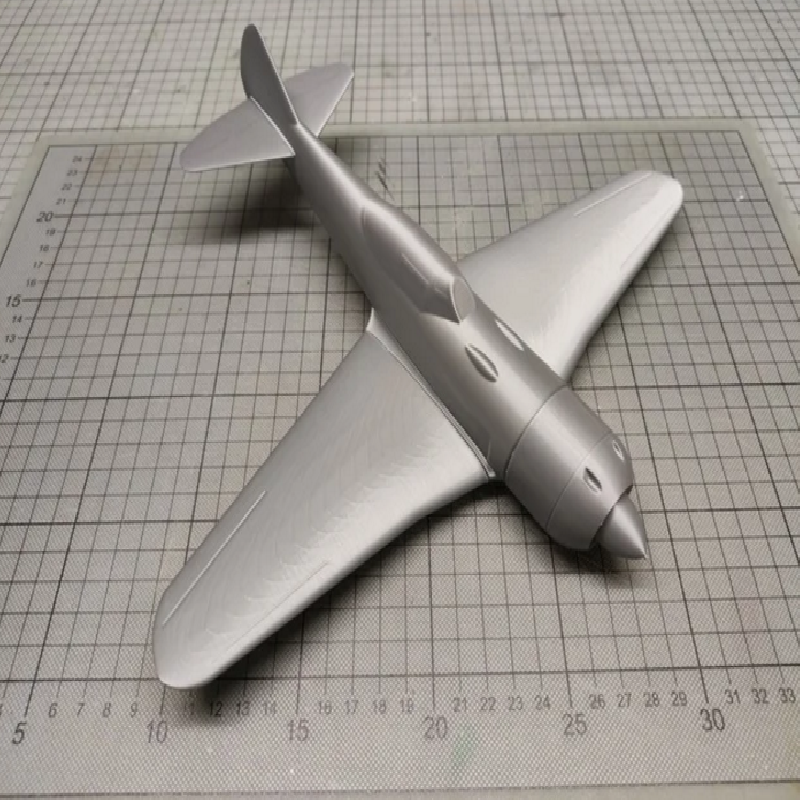

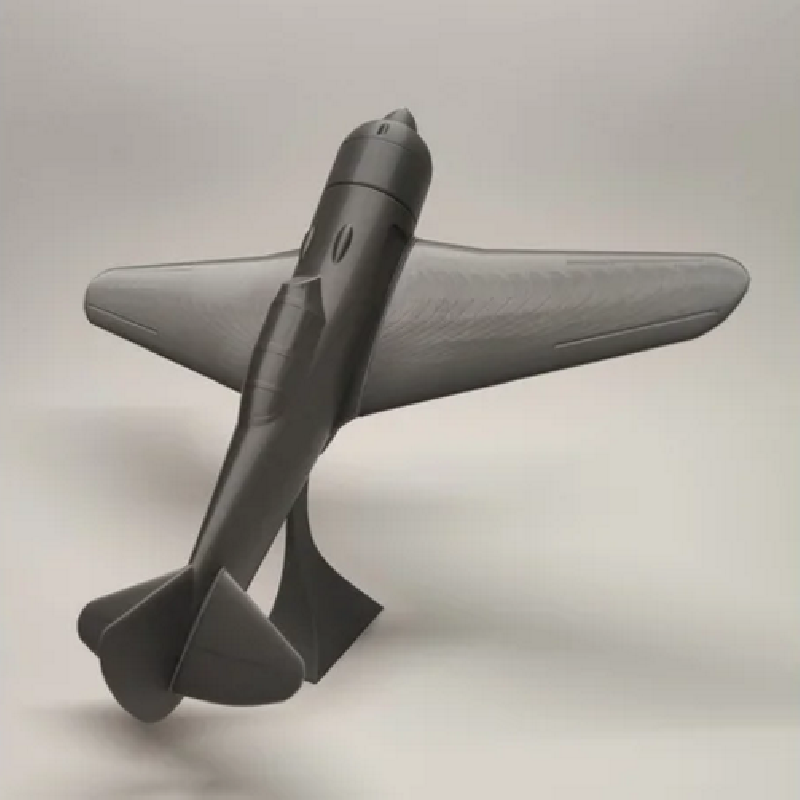

A simple 1/32-model of the the Soviet WW2 fighter Lavochkin La-7 with some basic details.

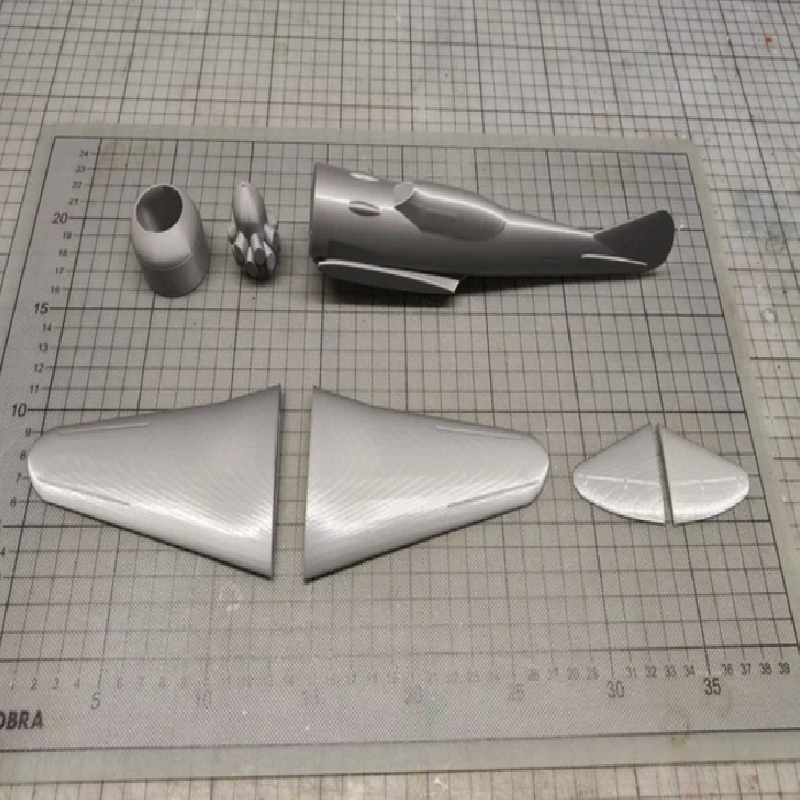

The shape is adapted so it could be split into few major parts, each printable in vase mode.
The wing-halfs and the horizontal tailplane-halfs (HTP) are symmetrical. They have to be printed twice.
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
No
Resolution:
0.15 - 0.2
Infill:
0
Filament_brand:
OWL
Filament_color:
Silver
Filament_material:
PLA
Notes:
All parts printed in vase mode (spiralized outer contour) with a 0.4mm nozzle.
For the "engine", a layer thickness of 0.15mm has been used. All other parts are printed with 0.2mm layer thicknes.
Post-Printing
The parts are simply attached by CA-glue.
The "engine" has to be conntected to the fuselage first, since it does not fit through the front of the cowling.
Small dents on the lower side of the fuselage and the cowling indicate the correct alignment.
How I Designed This
Shape adapted for spiralized printing mode.
