by trumpton

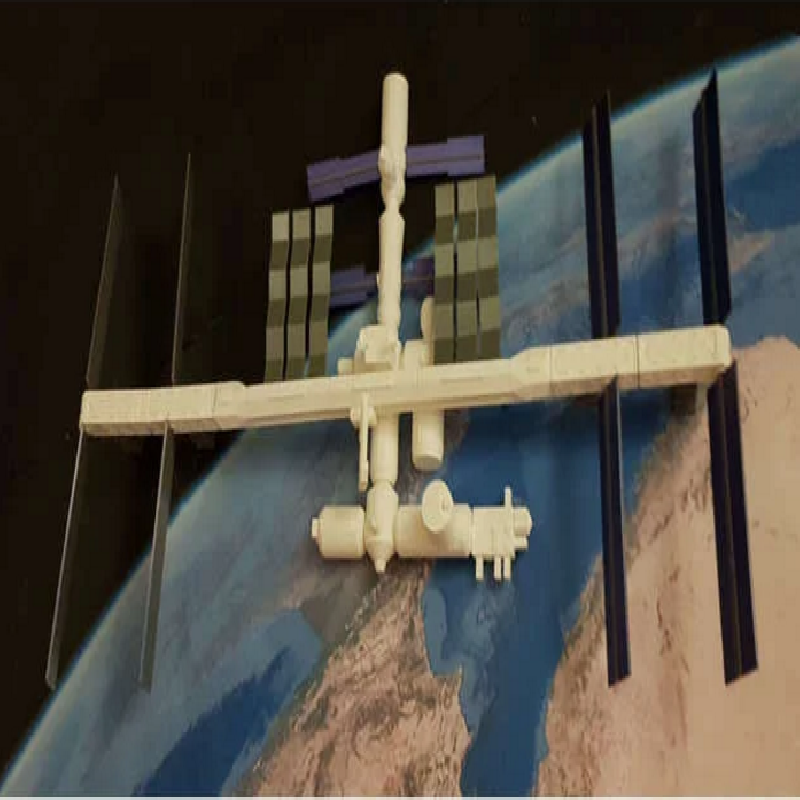

This is a 144th Scale Model of the International Space Station.

In Fact, it is a 58 piece Jigsaw for the Blind, with most of the parts brailled.

If you like this model, please consider leaving a donation to Guide Dogs for the Blind: Here

The entire printing time for the ISS-Saw is around 120 hours, and then there is the assembly time on top.

Many of the modules are held together with magnets, and (ideally), some of the modules contain embedded magnets (Zarya, Zvezda and Destiny). Aside from the magnets, some superglue is also required.

The ISS in most parts is a white/grey in colour, apart from the radiators and solar panels, so a multi-colour print is recommended.

Print Settings

Printer brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

No

Resolution:

0.15

Infill:

15%

Filament_brand:

Any

Filament_color:

White, Mid-Grey, Glossy Blue

Filament_material:

PLA

Notes:

Note: You will find all of the models for the parts in the attached zipfile. Only the Zarya module has been extracted for the presentation.

There are a lot of parts to print, and these need different resolutions.
Ideally, the following general rules should apply:

• ISS capsule bodies : 0.15

• Rods and Biscuits : 0.15

• Solar Panels and Stands : 0.3

• Magnet covers : 0.07

All the component model parts are present in the zipfile - what is currently missing is some detailed instructions! These will follow shortly ....
