by Pharaoh439

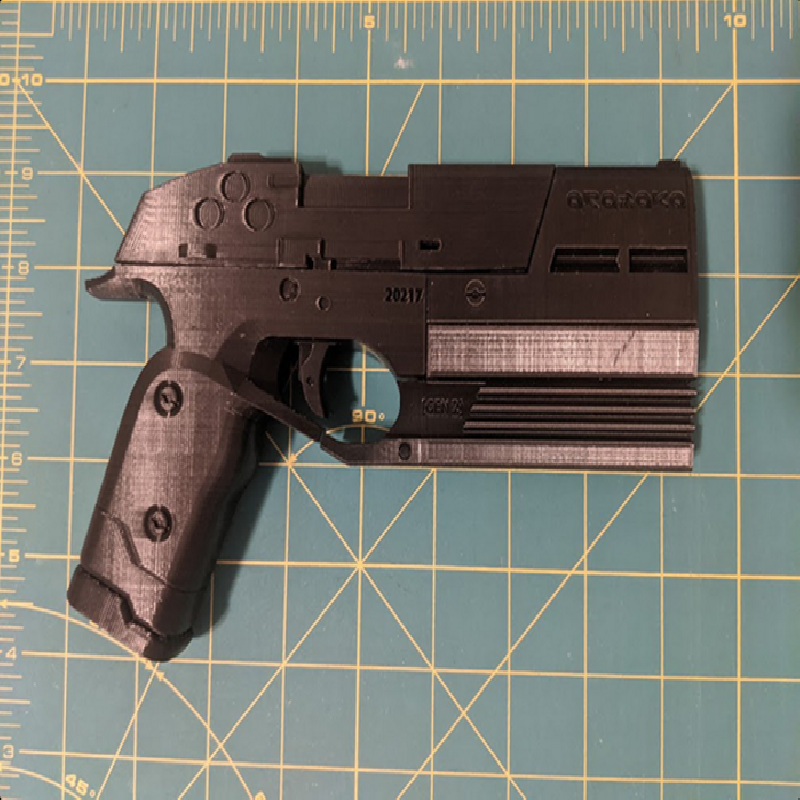

This is a prop version of the Tamayura pistol from Cyberpunk 2077, recreated from ingame screenshots. The slide is designed to move back and forth, but the trigger does not move.
This feels a little small for me at 100%. You can see in the images above that it is smaller in my hands than in the character's. 110-115% scale may be more appropriate if you have larger hands, although you will need to find a different slide rail spring.

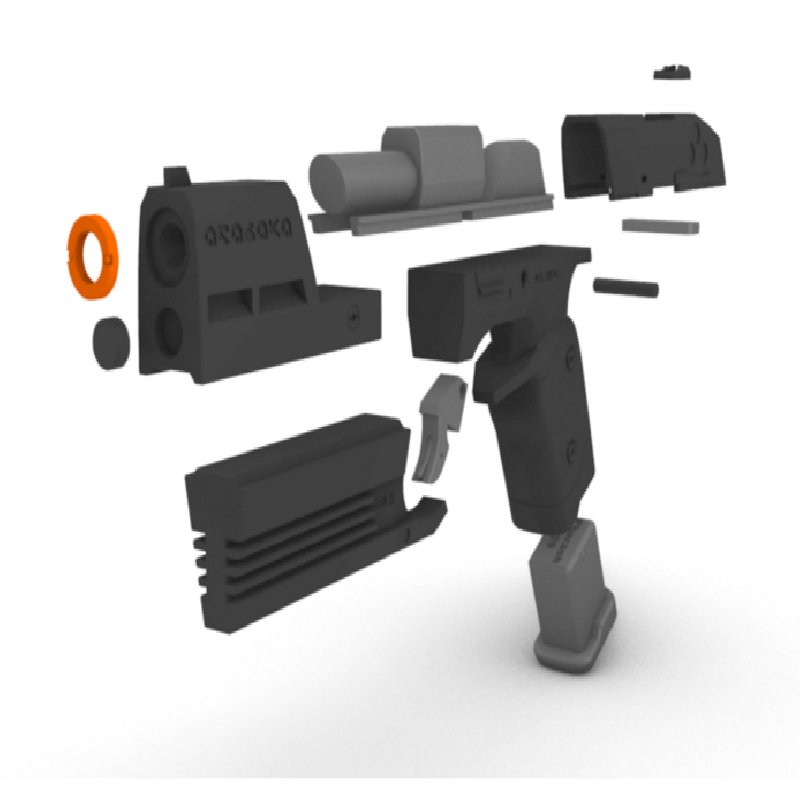

There are two versions of the slide rail. If you want to embed a spring, you can print the "with spring" version, as well as the slide runner.
This is designed to use a 23/64" x 1-3/8" Compression Spring. It's all i had on hand when building.
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.16
Infill:
15%
Filament_brand:
Polymaker Polyflex
Filament_color:
Black
Filament_material:
PLA
Notes:
The moving parts will definitely need sanding. I printed with 3 layers on the walls, pretty standard other than that.
