Noble M400. (m12 w/out side scoops is mostly also in the blender file, no stl at the moment).

Credit where due, I started with this sketchup drawing, and did a whole lot of tweaking to make it mostly printable (without interior)
https://3dwarehouse.sketchup.com/model/140a4812a063fccb9c486f4e6a52261a/Noble-M12-GTO

For my print, I bought small RC car rods so the wheels can turn a little, but you can also probably glue them on.
https://www.amazon.com/gp/product/B082ZNJXFK/ref=ppx_yo_dt_b_asin_title_o03_s00

This is far from a perfect 3d model at the moment, but i wanted to move on, it's "good enough" =)

Known issues:

• the main body is not manifold, i had to fix a lot of stuff but there's still problems left. as such, the hole for the rod doesn't print through in Cura, i wound up drilling it out with a narrow drill bit.

• I had to smooth out a lot of stuff but neglected to properly round out the wheel wells. if you want the wheels to turn there isn't enough clearance. i didn't realize this til after the print. I used a dremel to round them out after the fact so i didn't go back to fix the model. Terrible, i know.

• the exhaust tips have a hard time printing out, i probably should separate these out into cylinders to glue on later.

• the bottom tray towards the exhaust isn't properly flat, the slope is uneven on the bottom.

• my painting skills need work. =P

Print Settings

Printer brand:

Creality

Printer:

Ender 3

Resolution:

0.16

Infill:

10%

Filament_brand:

Labists

Filament_color:

Blue

Filament_material:

PLA

Notes:

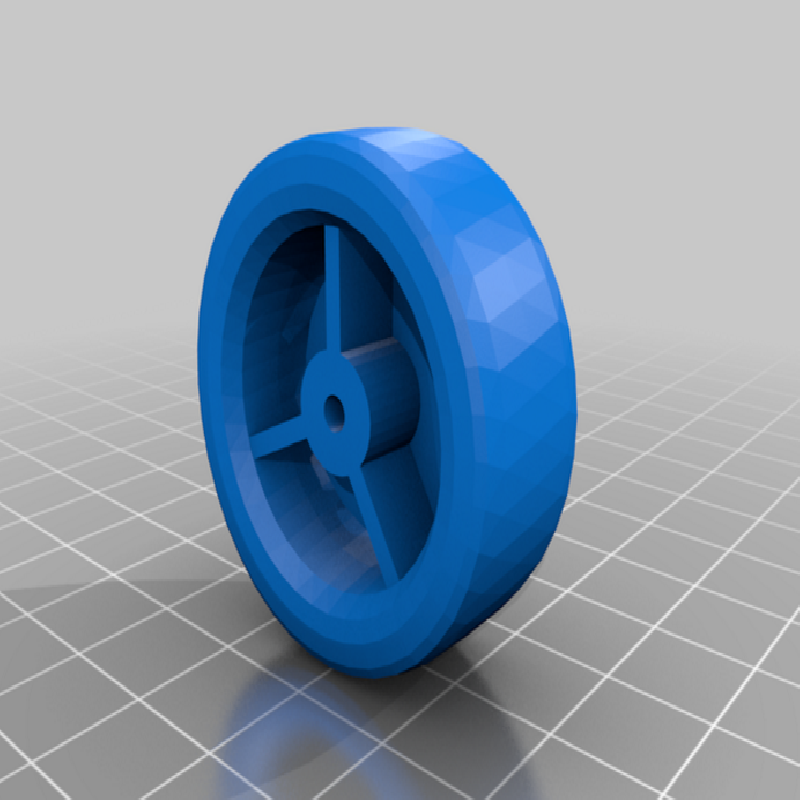

• wheels, print from the axel side of hub facing down

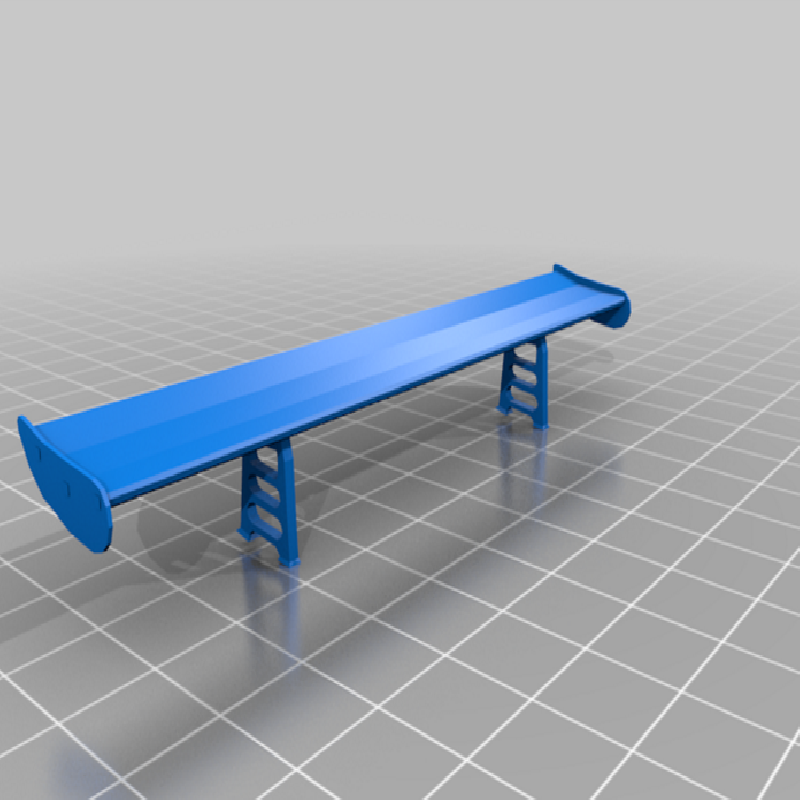

• spoiler print sideways with support (tree support in cura worked well), such that it appears tall.

• i printed at 60% scale on ender. 100% is too big for the plate.
