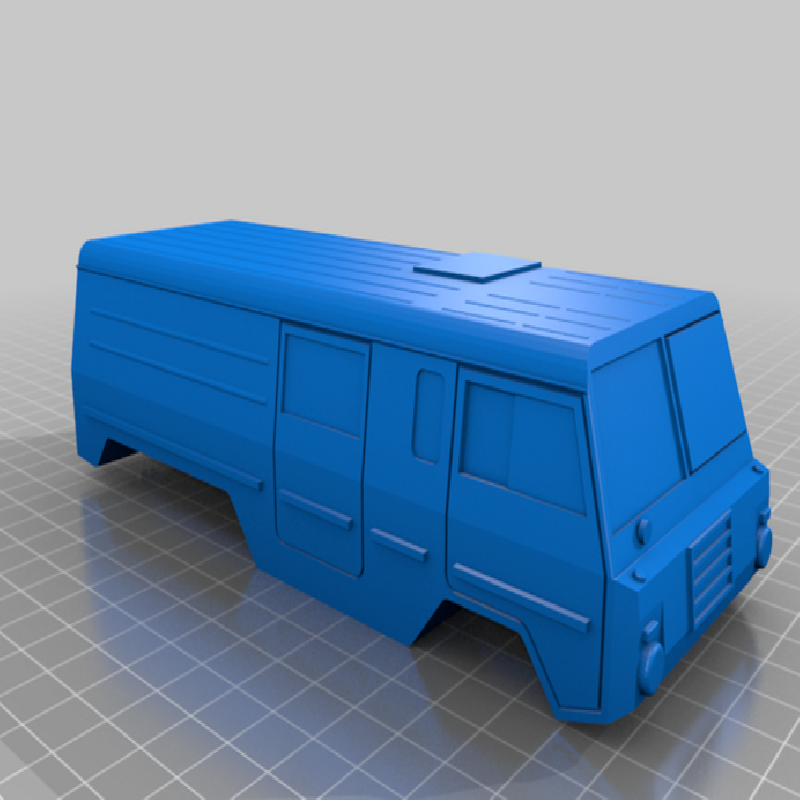

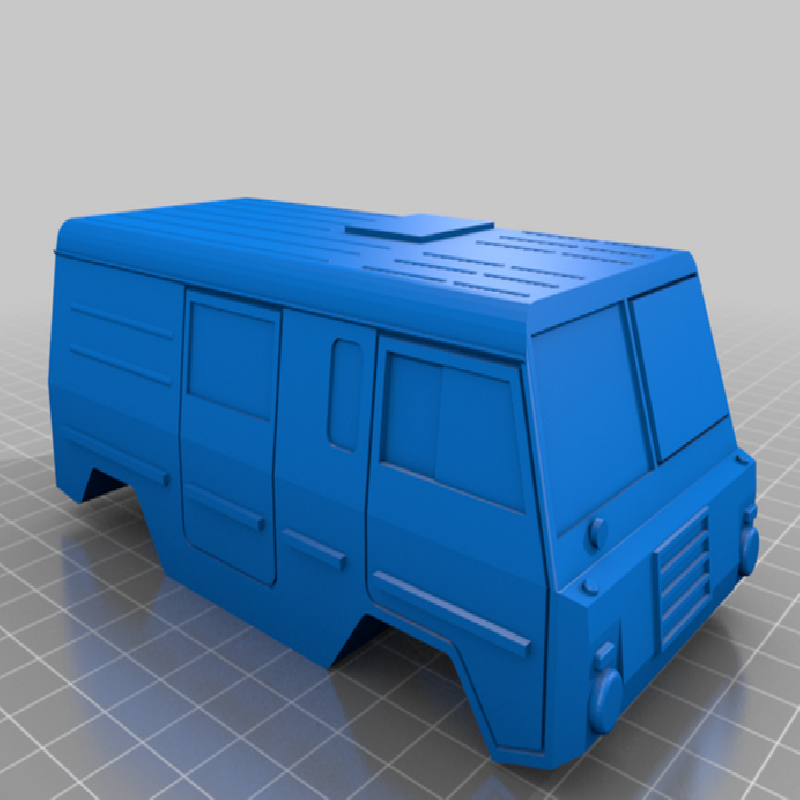

Volvo C303 & C304 Longbody (1:30 Scale)

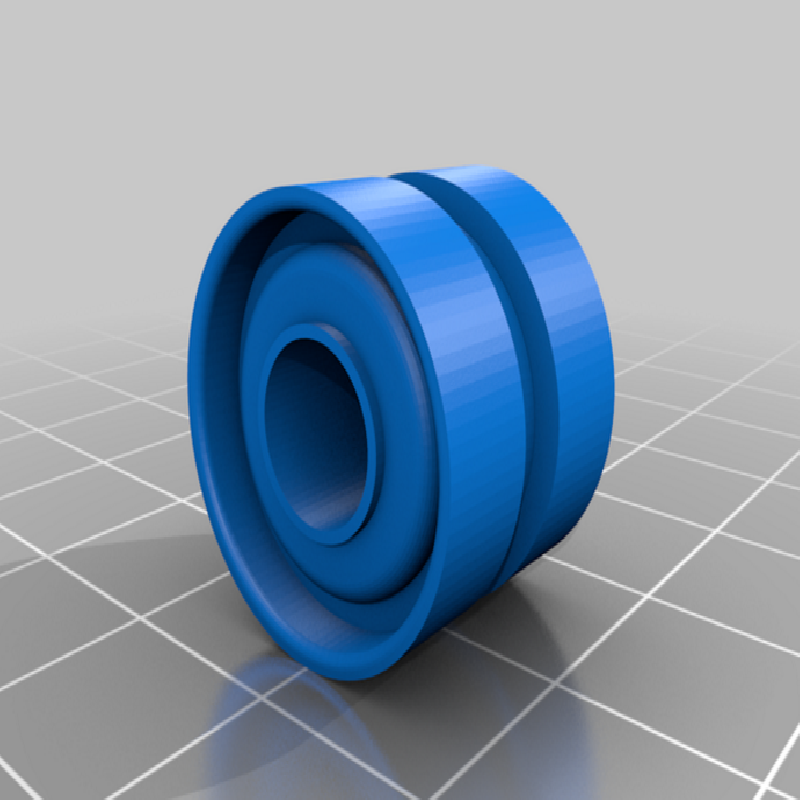

Wheel rims added that accept the LEGO tyre

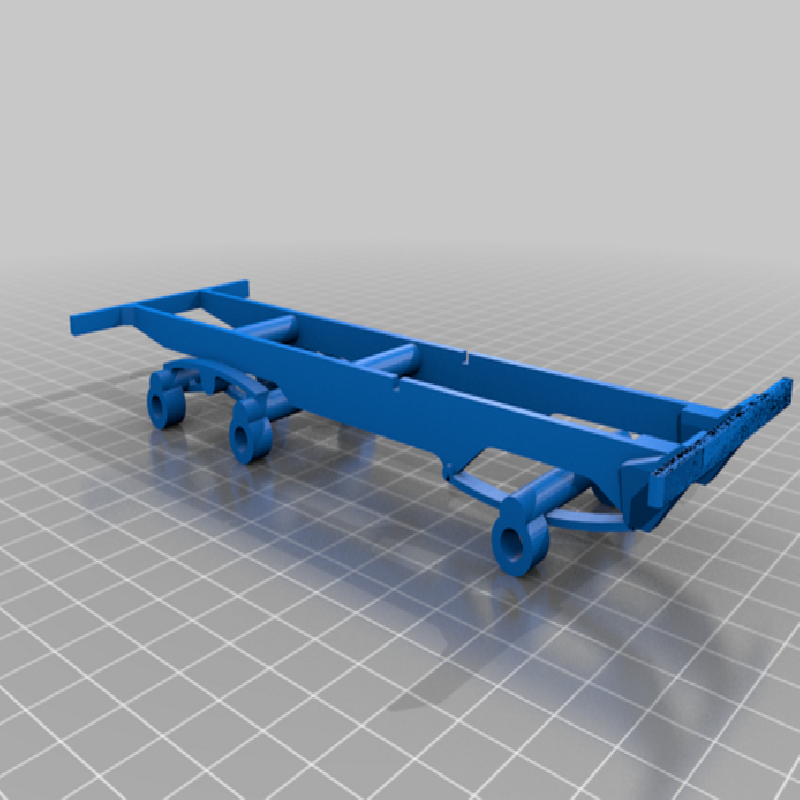

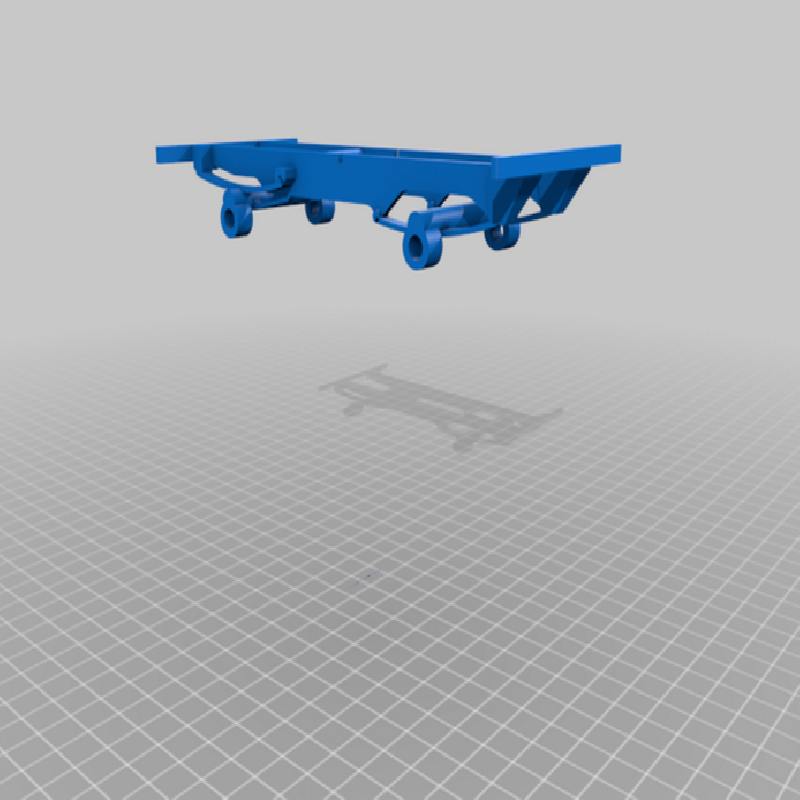

Chassis (V2) added with rear suspension
Chassis V1 only works with Wheels V1 & Chassis V2 only works with Wheels V2 as
on V2 the axles are wider and the portal hub sits partly within the wheel rim. I have
printed the chassis in PETG, PLA may not be strong enough for the suspension.
Drawn in Fusion 360, Measurements taken from my own truck
The cab is detailed correctly but the chassis and axles are partly made up to accept the wheels.
Chassis is designed to take LEGO 30.4 x 14 wheels

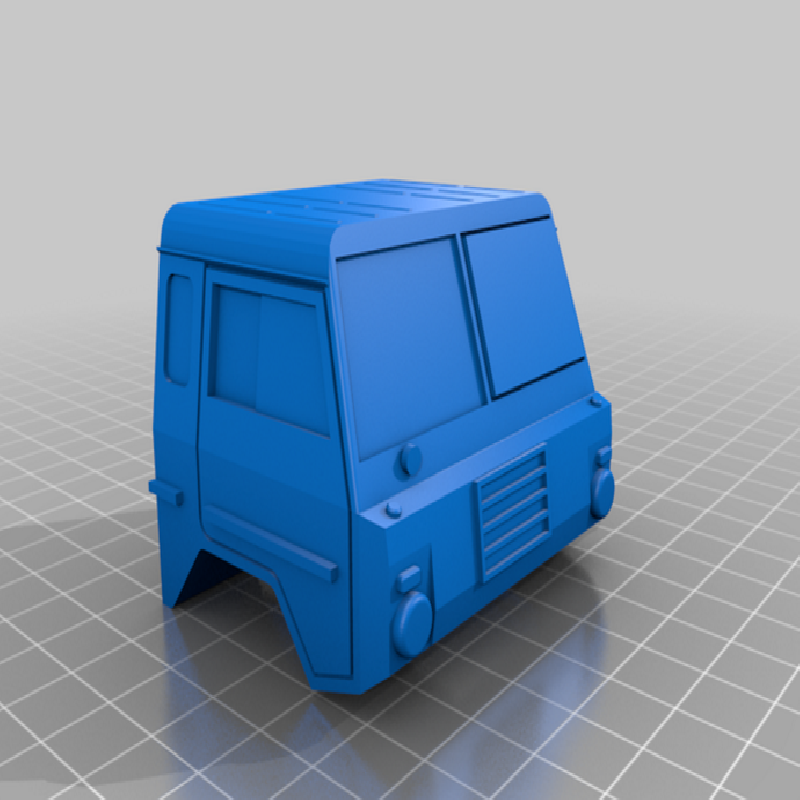

Cab printed right way up with supports

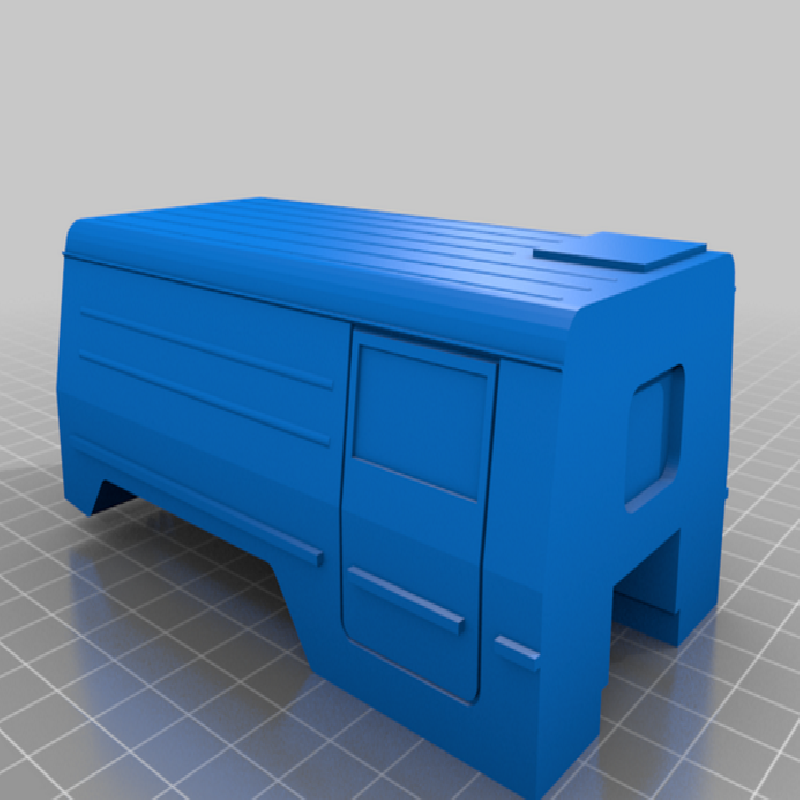

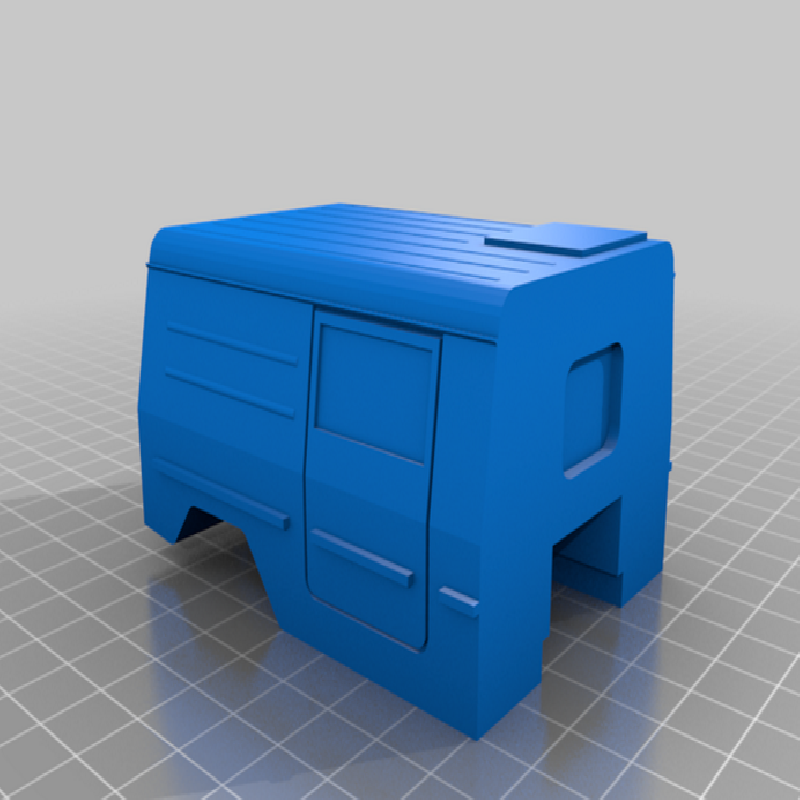

Rear printed right way up with supports
Chassis printed upside down with supports - be careful removing supports around suspension as it is quite fragile and needs some cleaning up from the supports.
I have found it best to have the support interface quite dense (50%) to improve the underside surface.
Cab and body printed in PLA and the chassis in PETG as it needs more flex for the suspension.
Print Settings
Printer:
Artillery Sidewinder X1
Supports:
Yes
