This is a relief model of Switzerland.
STLs were generated using code from here:
https://github.com/IdeaShakerLab/dem-to-stl
with data from here:
https://shop.swisstopo.admin.ch/de/products/height_models/dhm25200
Digital elevation data on a 200 m raster
and country borders from here:
https://shop.swisstopo.admin.ch/en/products/landscape/boundaries3D
Scale is 1:1'000'000 without vertical exaggeration and there is a 3 km base added (surface of Lago Maggiore, lowest point at 193 m, will have material strength of ~3.2 mm).
Feel free to increase vertical exaggeration to your liking (this can be done in most slicers directly by non-uniform z scaling). Large vertical exaggeration may lead to an excessively thick base that may be eliminated also directly in most slicing softwares.

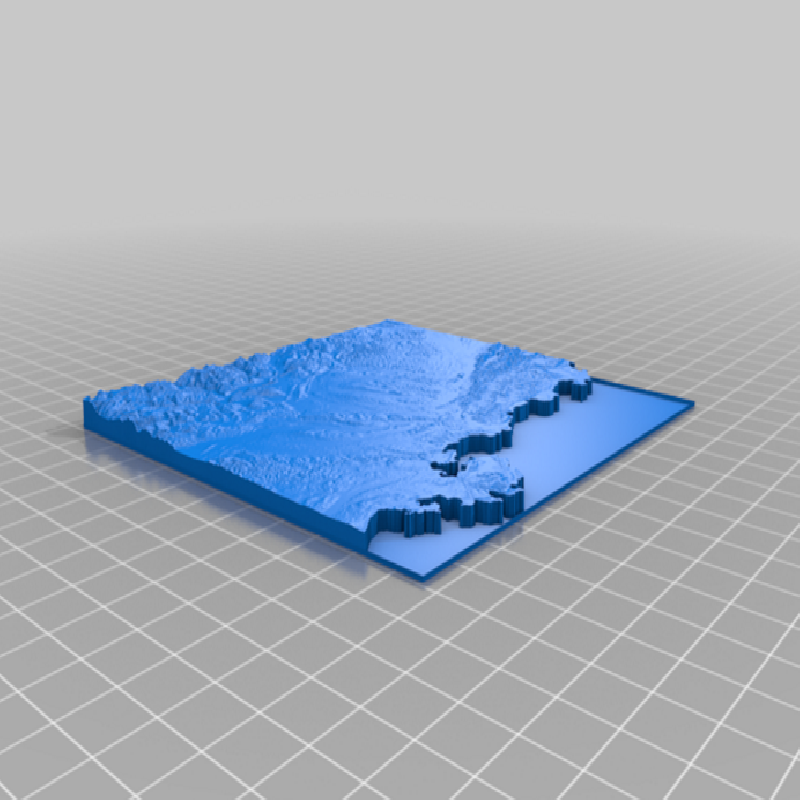

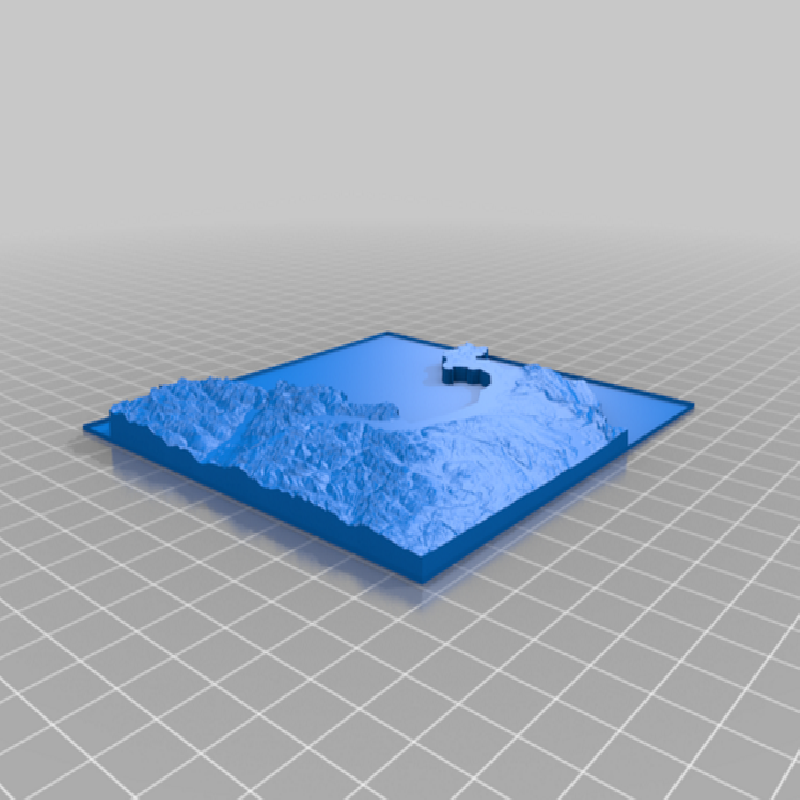

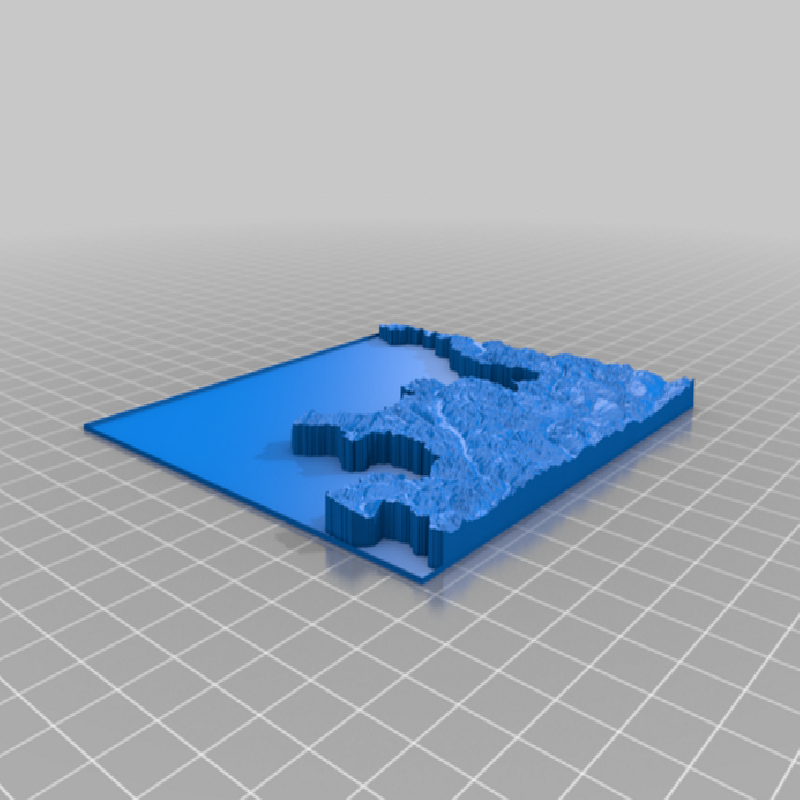

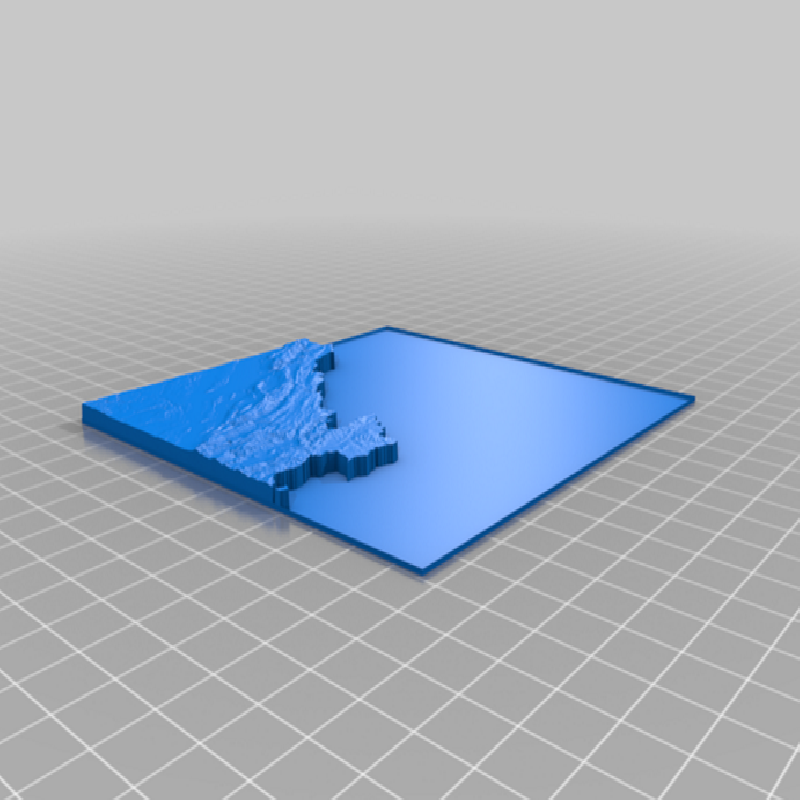

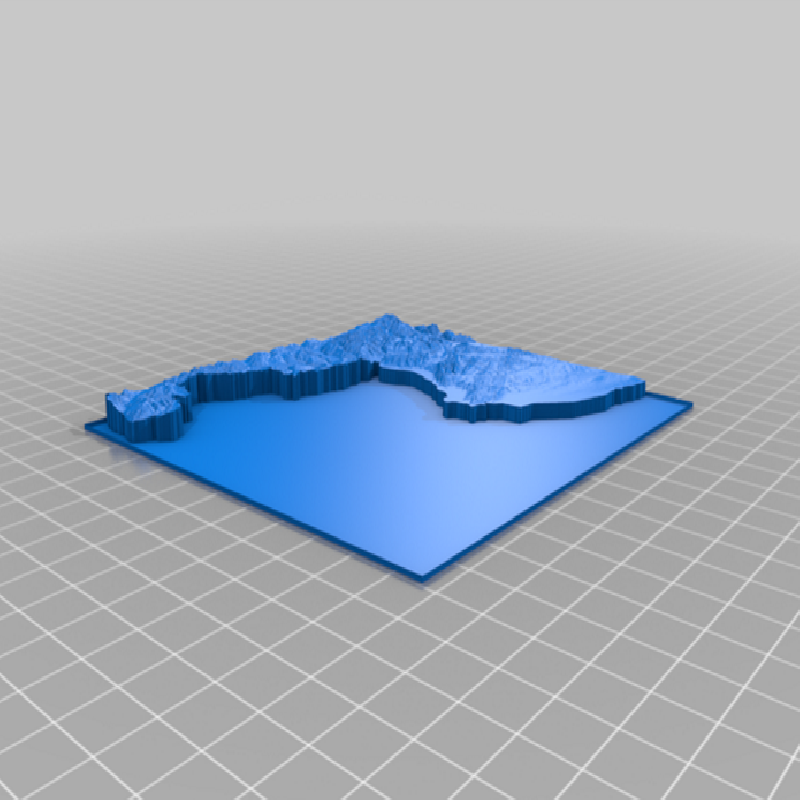

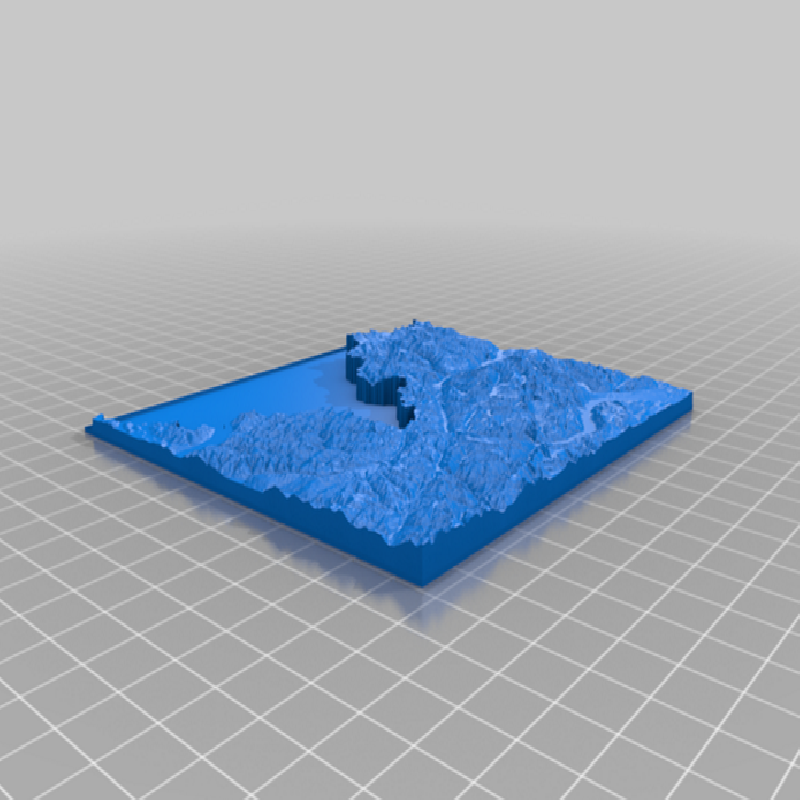

This thingy is available as a single STL file (in Relief_CH_complete.zip, 372 MB unpacked) or cut into six chunks of roughly square shape directly available as STLs.
Print Settings
Printer brand:
Monoprice
Printer:
Select Mini
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.088
Infill:
22%
Filament brand:
Generic
Filament color:
White
Filament material:
PLA
