2014-2018 Mazda3 2.5L Air Intake Adapter / 2014-2018款-马自达3-2.5L进气管
2014-2018 Mazda3 2.5L Air Intake Adapter
Price£0 List:£0.29
Stand by Free Shipping(可下载)
SOLD0 [Comment0Article]
2014-2018+Mazda3+2.5L+Air+Intake+Adapter.zip Click to download Downloads: 0

- +
Add to Cart
In Stock:99
Seller:Model City 模型城
Satisfaction Good rating0%
Rating:0
Service Attitude:0
Logistics:0
Recommended

by myeh2k

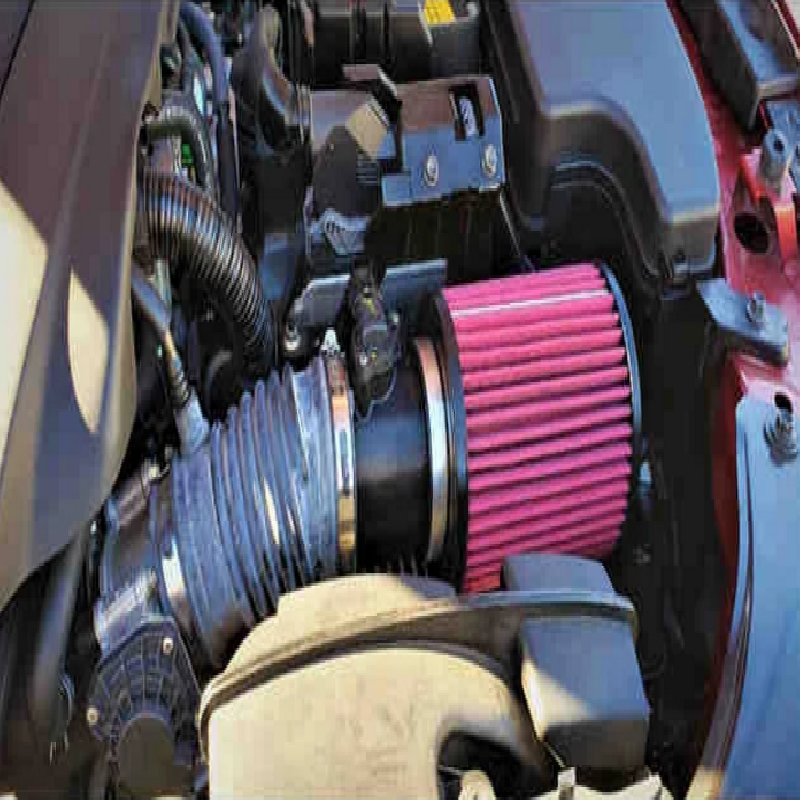

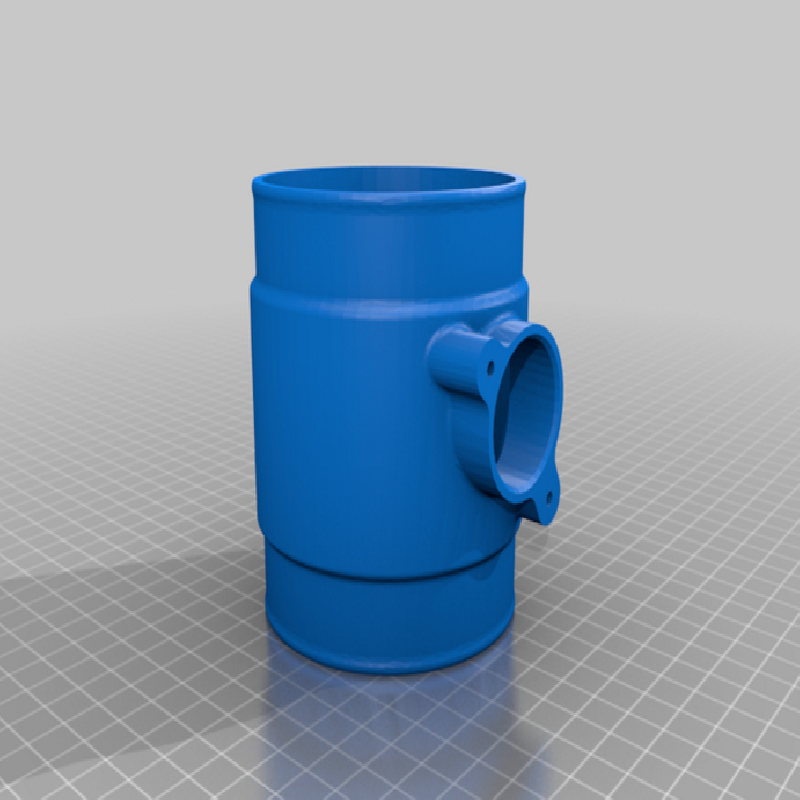

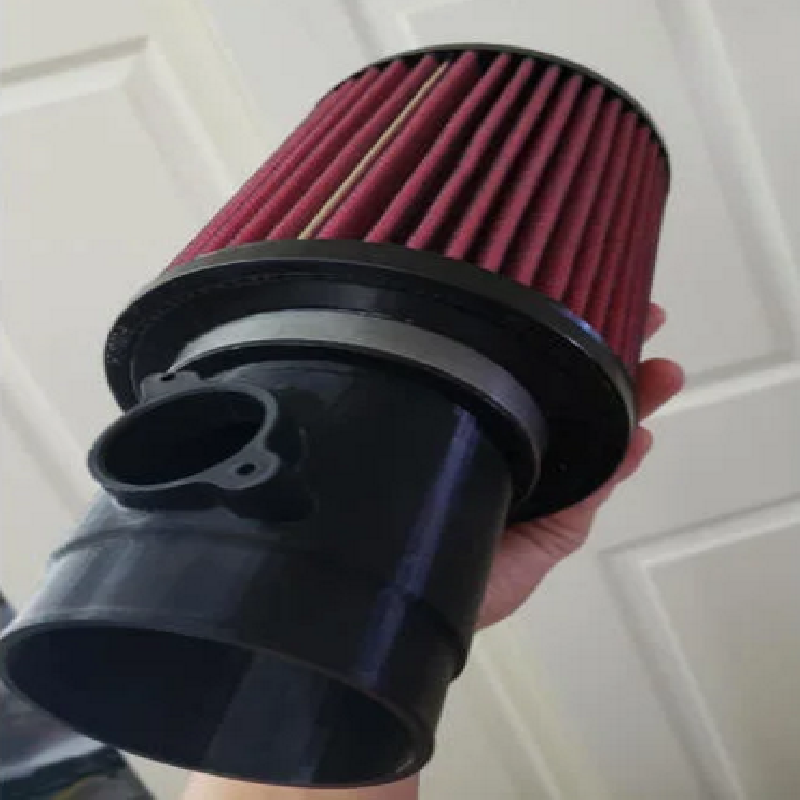

This is a MAF adapter that allows you to convert your stock intake into a short ram intake, or helps you build a cold air intake!

The only modification that I made to this design is that I removed the support bracket since I did not need it. This shaves hours off the print, especially with 100% infill and support.

According to the original designer:
This piece was created based on the CX-5 factory air box which include the MAF housing. It's on the thin side so print accordingly.

I made a revision:

Corrected some dimensions
Added the bottom support for a 2D plate to be bolted
Suggested to print in ABS at the maximum infill possible on your printer

Print Settings

Printer brand:

Creality


Printer:

Ender 3 Pro


Rafts:

Yes


Supports:

Yes


Resolution:

0.2


Infill:

100


Filament brand:

Hatchbox


Filament color:

Black


Filament material:

ABS


Notes:

You should make this part out of ABS or ASA for the heat resistance that it provides. Nylon and Polycarbonate should work too.

The heat deflection of ABS is about 100C (212F), which your air intake should never get to, but better safe than sorry.

Lower layer heights, around .16 - 0.2 also creates strong layer adhesion. Combines with 100% infill, you should get a really solid part.
