by JLmike7

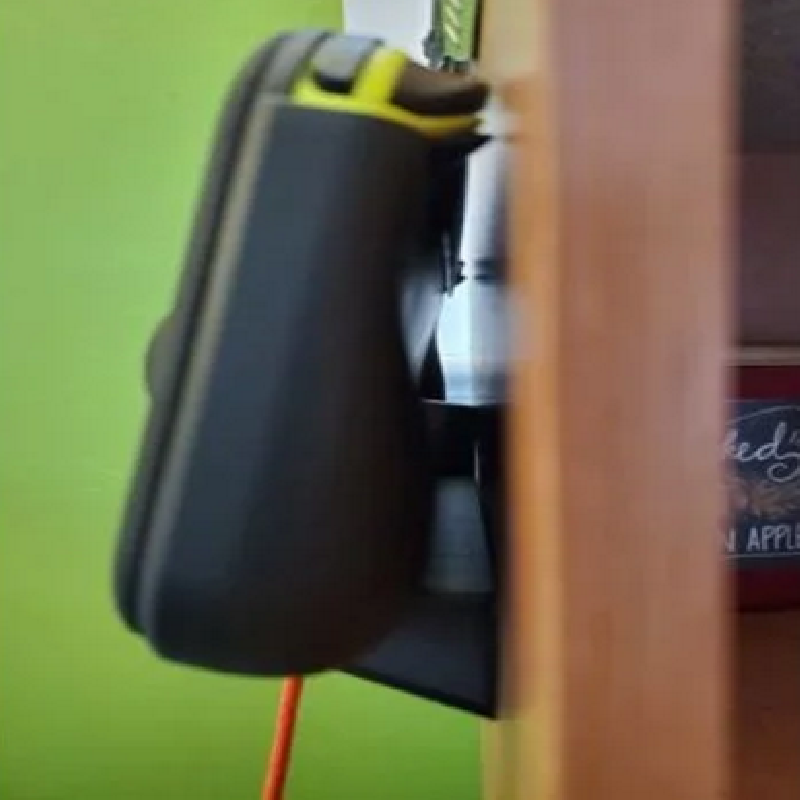

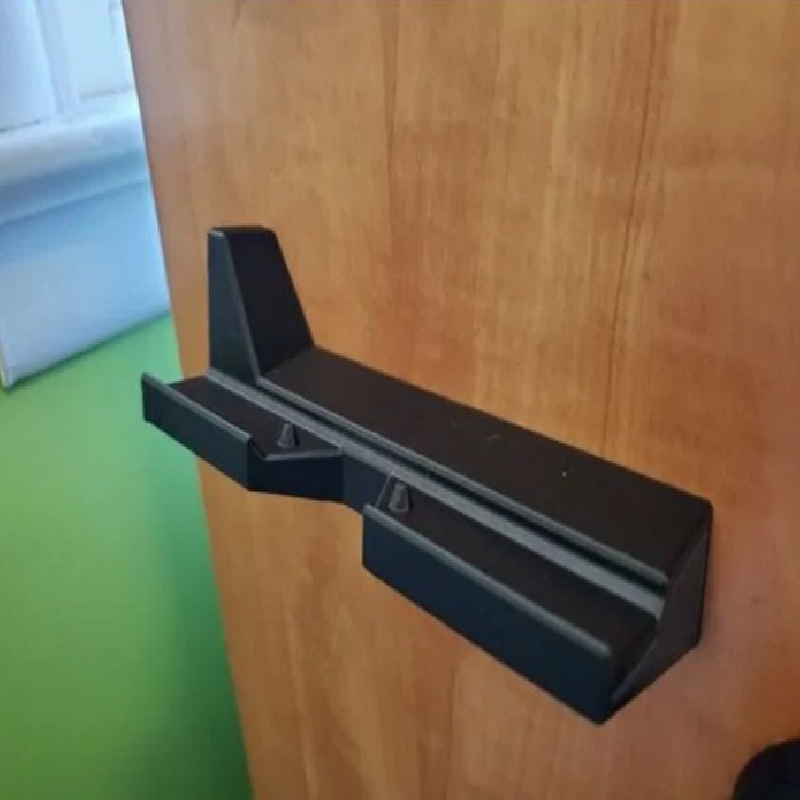

I wanted to mount my switch without a dock, in a way that's secure but also easy to pick up and put down. It uses the two dock holes on the bottom to hold it securely in place, and it leans back at 10 degrees with some small lips on the bottom to stop it from falling over. It's way way more stable than you'd think.

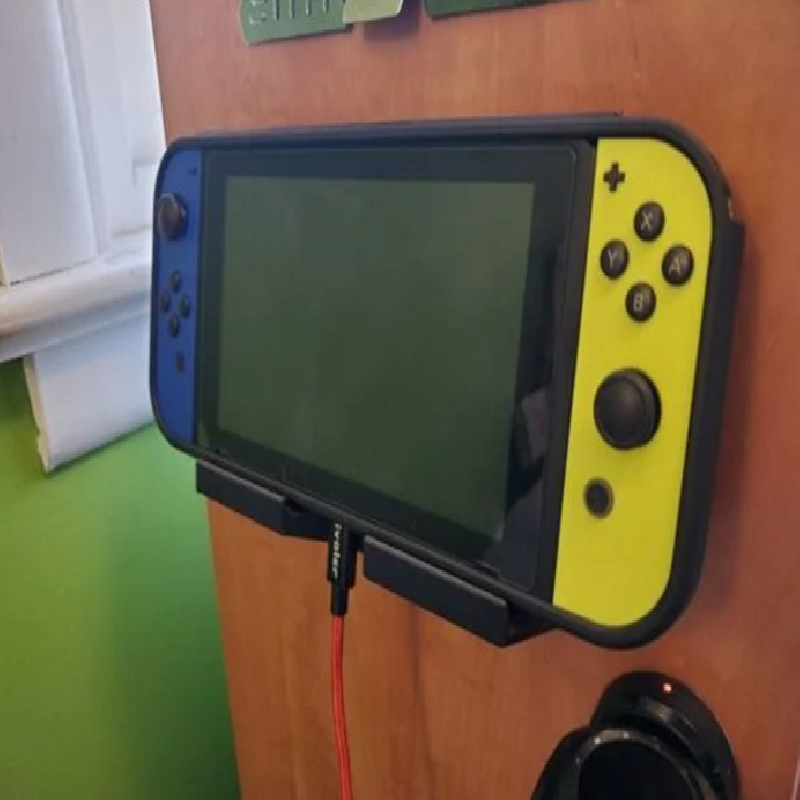

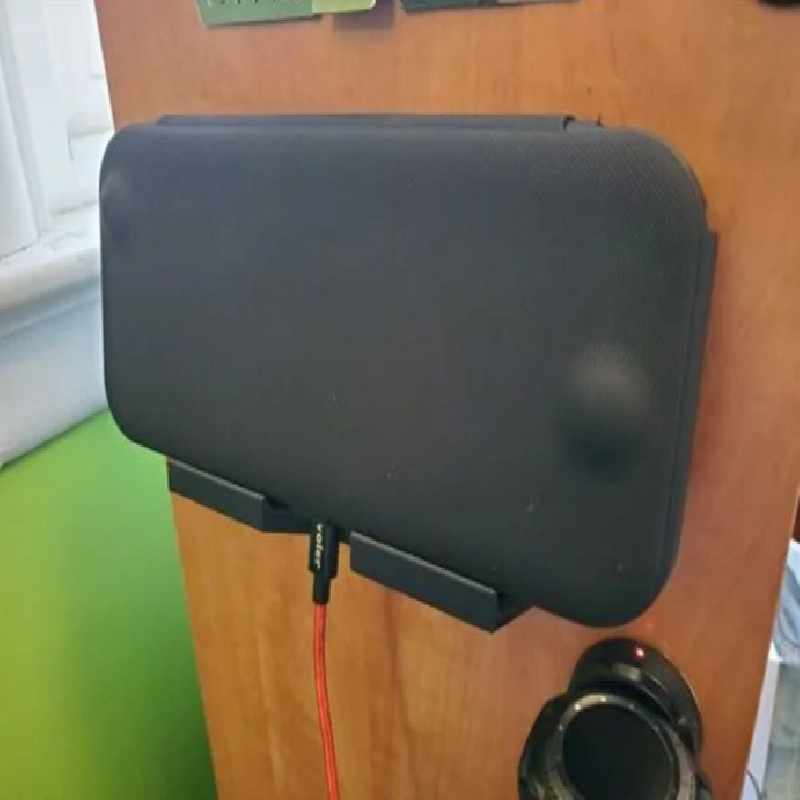

Note that it works with a naked switch but it's a little wobbly without a case to fill the space. I designed it specifically to fit Amazon's top switch case with the magnetically detachable screen cover. Pics are shown with the case on.
Note that this should be PRINTED VERTICALLY. Printing it in that tall orientation eliminates the possibility of delamination with stress.
Three screw holes are provided, regular interior wood screws work great.
Print Settings
Printer brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
25%
Filament brand:
Solutech
Filament color:
Black
Filament material:
PLA
