by fhogphil
Printer brand:
Creality
Printer:
CR-10
Rafts:
No
Supports:
No
Resolution:
0.12
Infill:
Various
Filament brand:
Hatchbox and eSun
Filament color:
Multiple
Filament material:
PLA
Notes:
Print as arranged here. I did the work to have them properly on the bed for you.
This is all press fit. No glue needed.
The goggle and the band have a “T” engraved on them. That goes towards the top.

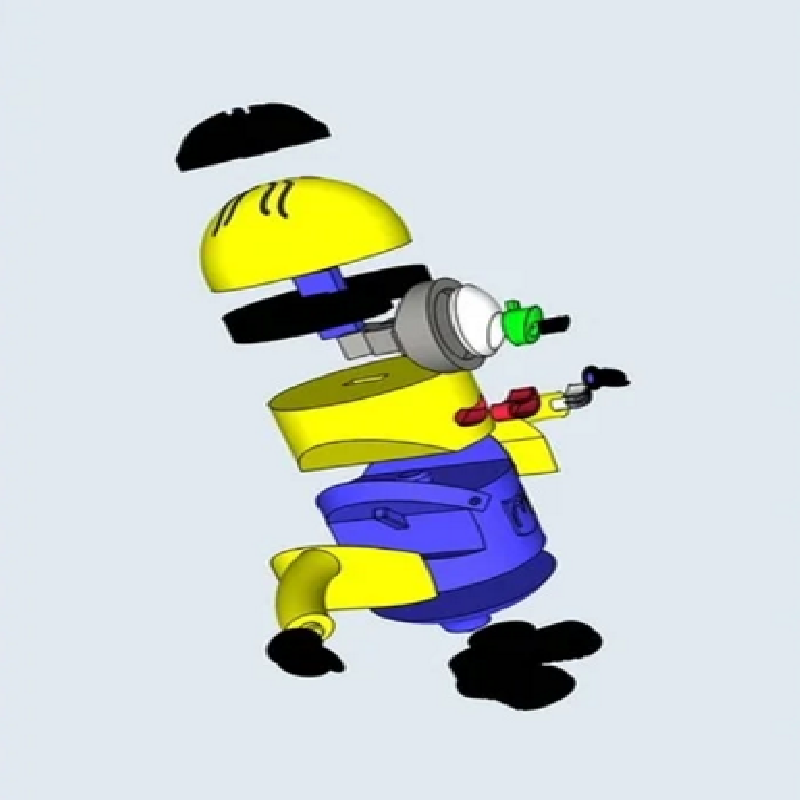

The skull, goggles, band and neck go together in a specific order because of the curvature of the skull
Carefully test fit the band and goggle.
Carefully test fit key into this assembly and disassemble.
Test fit key into neck and skull holes and disassemble
You may need a little sanding of the key if any of the parts have any elephant foot.
Line up goggle with skull so the key hole fits. Make sure the T goes towards the skull
Insert key
Place band over key and goggle.
Place this assembly on neck
Hair is a challenge. Make sure you clean up the bottom of each piece ONE AT A TIME and keep track of them as they are on the board. They print facing front.
** support recommended for the mouth opening in neck
** brim recommended for hair
Post-Printing
Clean up any elephant foot and carefully test fit.
