by JanjyGiggins

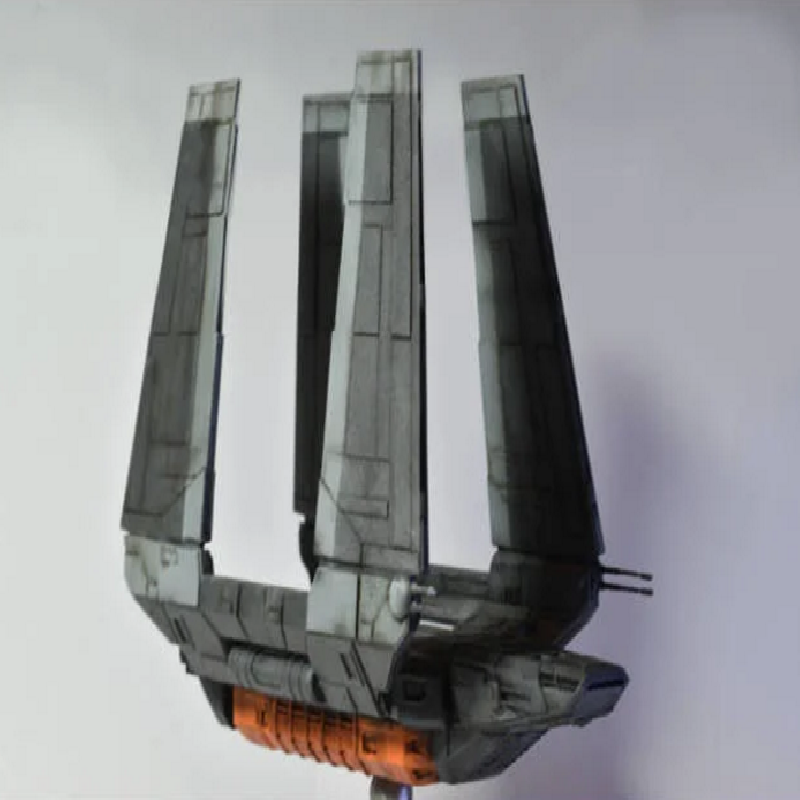

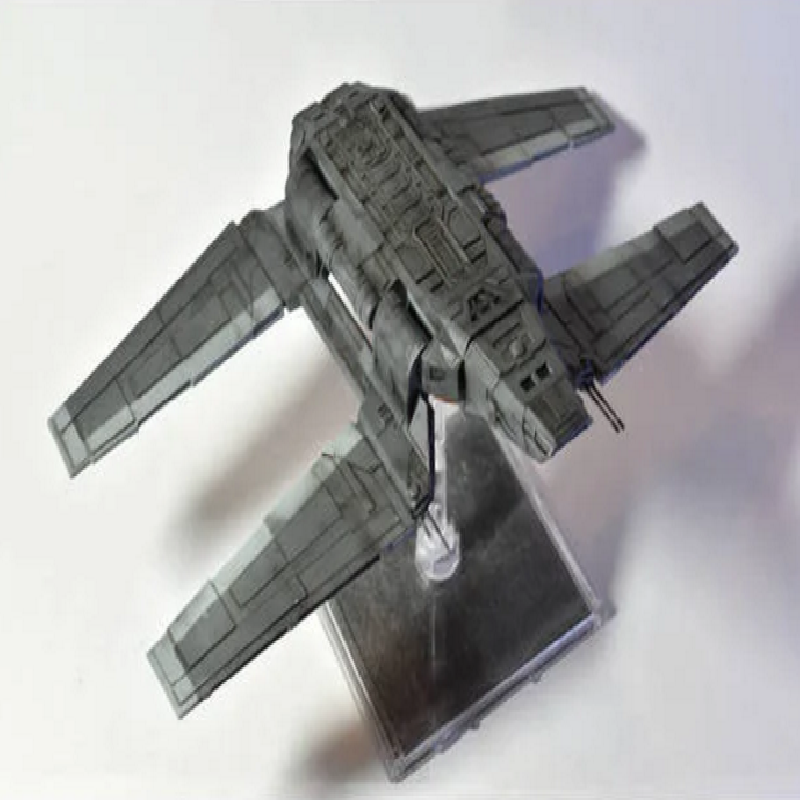

The Zeta Cargo shuttle from Rogue One, scaled for use in the X-Wing miniatures game. Multi-part model with folding wings. This includes STLs and the supported, sliced print files.
Includes space for a 12mm magnet to mount. I didn't get the centre of gravity quite right so I recommend roughening the magnet to help with grip.
Wing hinges should be fastened in using 3mm rod slotted in from the back, then the wing caps can be used to cover the ends. I had to drill the hole in the hinges a little to get it clear for the rod, but the hole in the hull was fine.
All wings are the same so the one provided should be printed 4 times (or 2x the supported file, which includes 2 wings). I had to file down the tabs just a little to get them to slot into the hinge mounts.
Print Settings
Printer:
Elegoo Mars
Rafts:
No
Supports:
Yes
Resolution:
0.05
Infill:
NA
Notes:
Designed for resin printers
