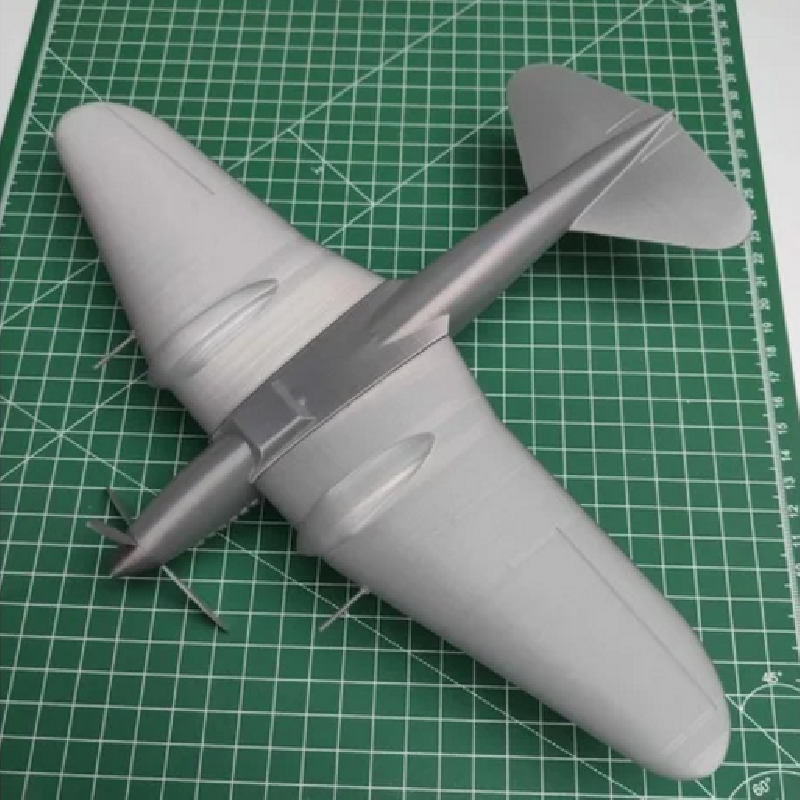

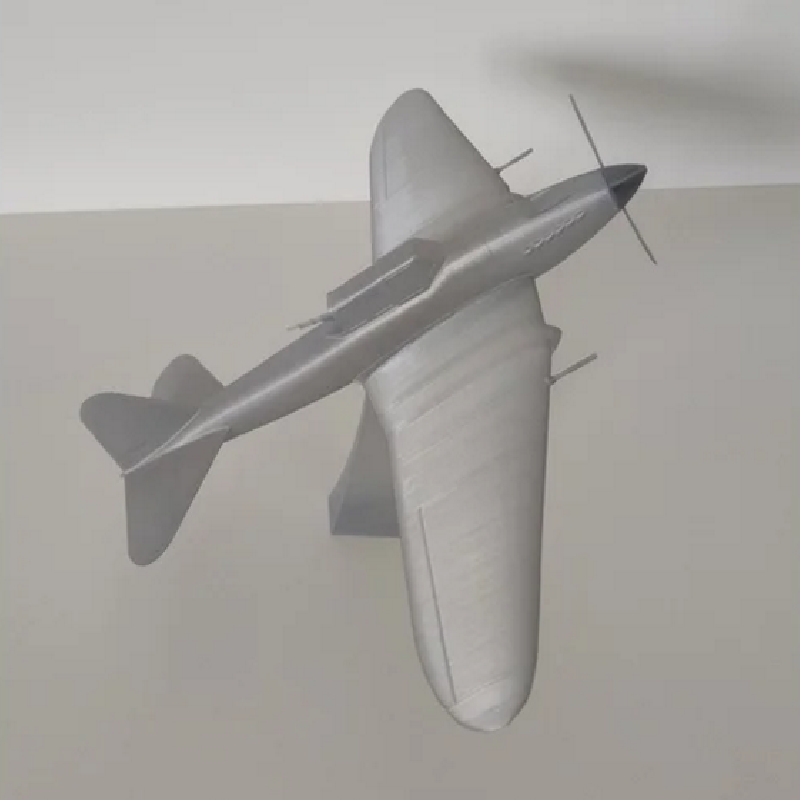

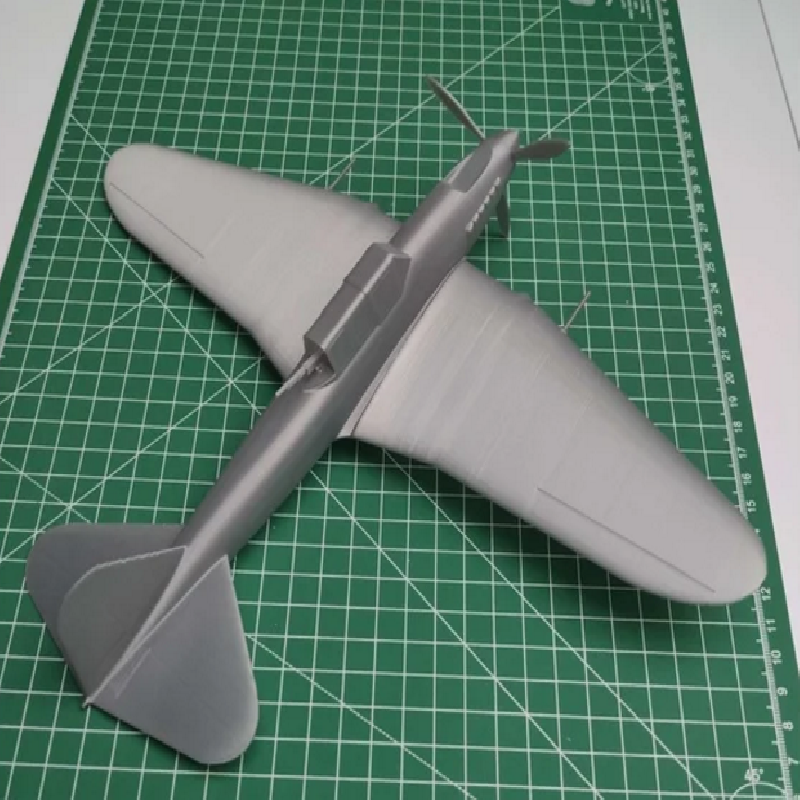

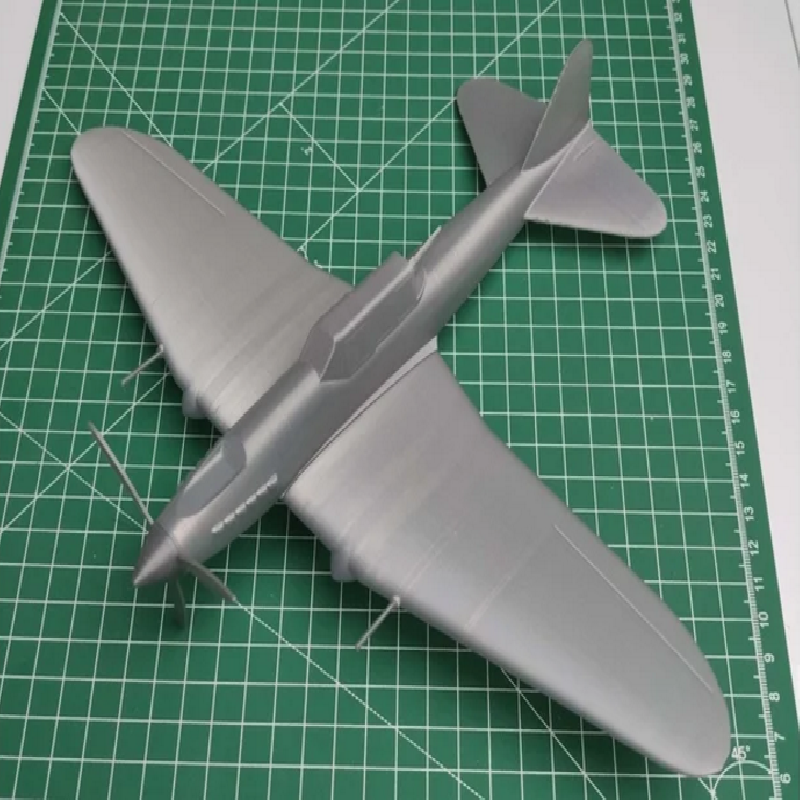

This is a very simple 1/48-model kit of the well known Ilyushin Il-2 Sturmovik. It is not very detailed, but the general appearance is rather representative.
All major parts of the model are designed for printing in vase mode in order to save time and material, and to improve the surface quality.
Only for the propeller and the rear machine gun the standard printing mode has to be used.
Instead of the propeller there is also a clean spinner included.
Print Settings
Printer brand:
Creality
Printer:
Ender 5
Rafts:
No
Supports:
No
Resolution:
0.1-0.2
Infill:
0%
Filament brand:
OWL
Filament color:
Silver
Filament material:
PLA
Notes:
Slicer: Cura

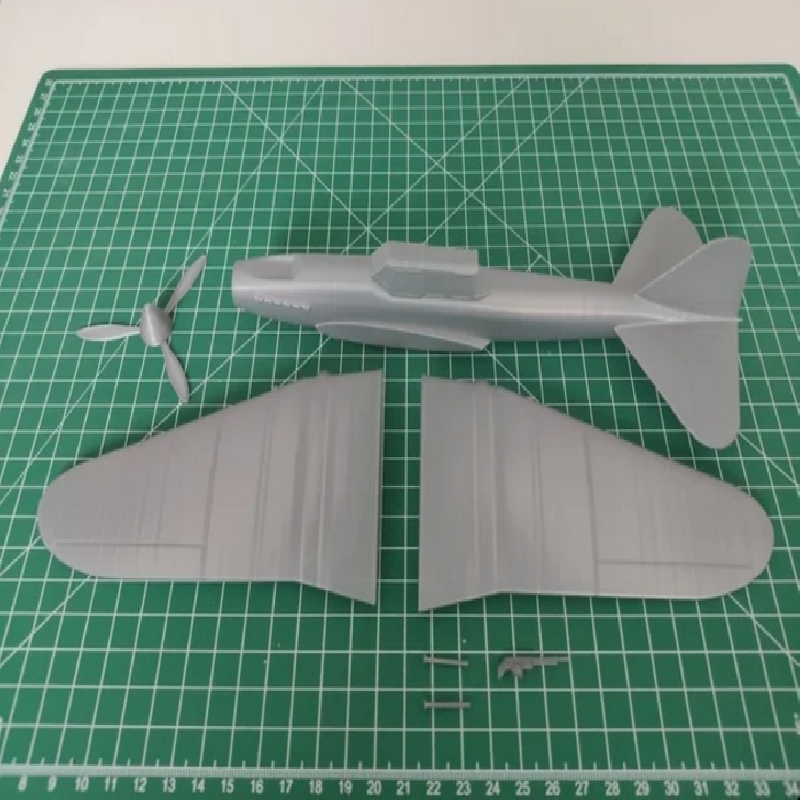

Fuselage, wings, and the gun barrels were printed in vase mode. Print the gun barrel twice.
Layer thickness: 0.15 mm
Propeller and rear MG printed in standard mode without infill.
Layer thickness: 0.1 mm

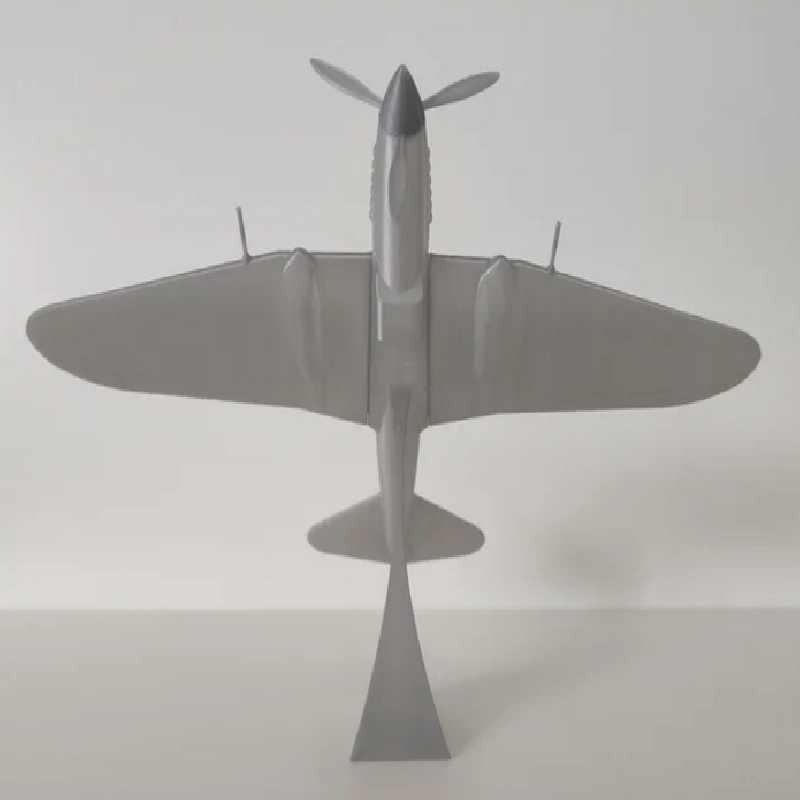

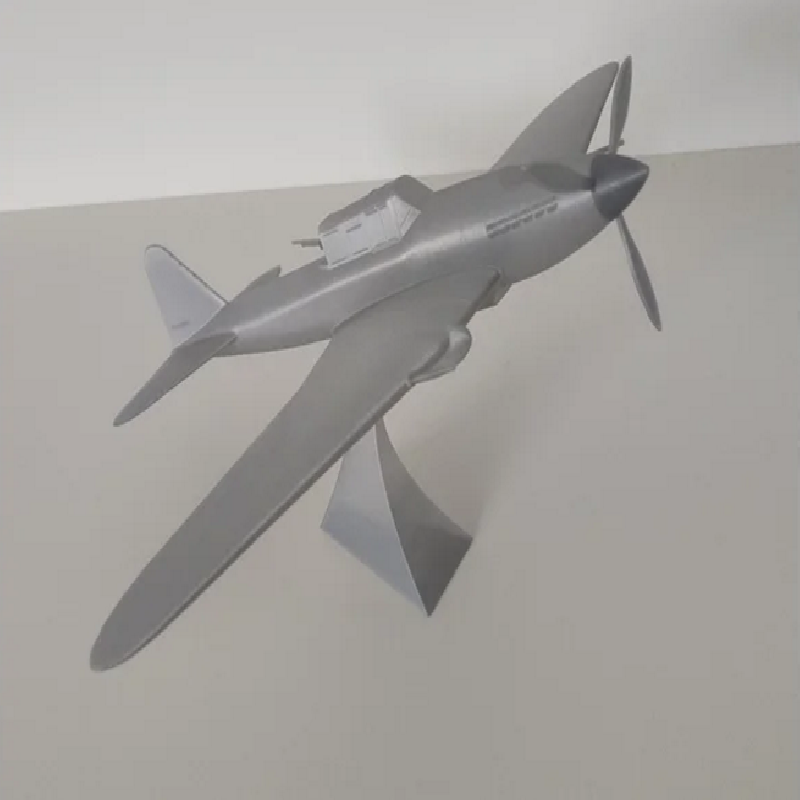

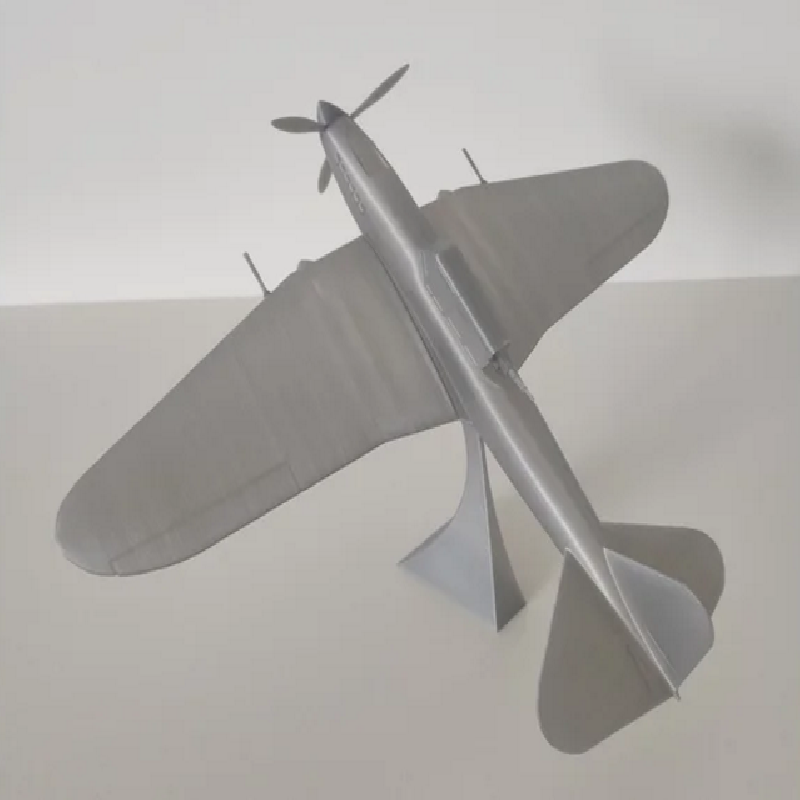

Stand printed in vase mode.
Layer thickness: 0.2 mm
Post-Printing
Parts glued together by polysyrene cement.
The rear MG was simply glued at the center of the plain area just behind the cabin.
How I Designed This
The shape is adapted in a way that the major parts can be printed in vase mode.
