by itbefred

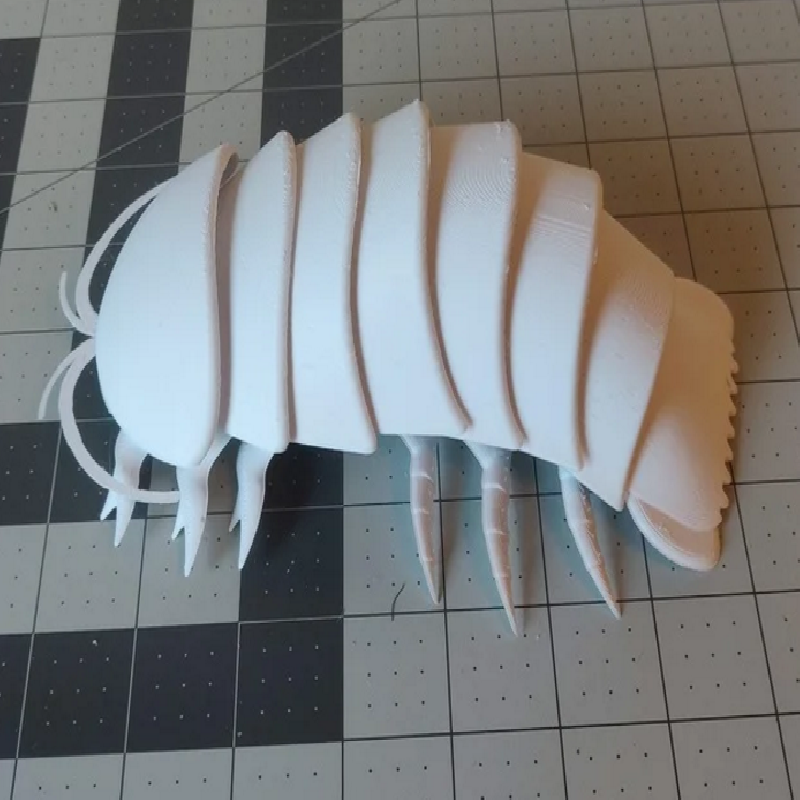

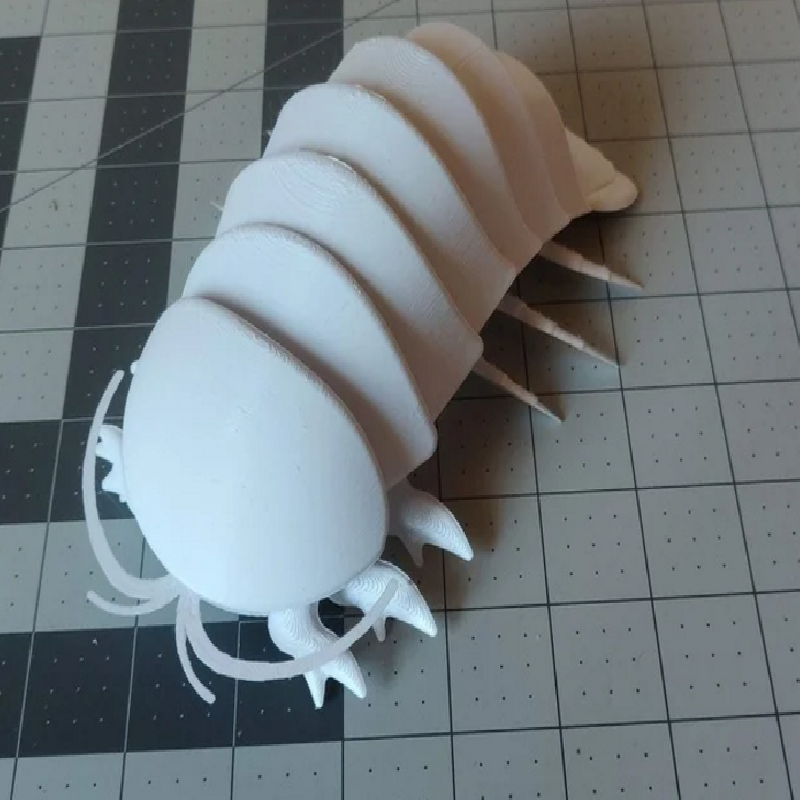

Giant isopod with articulating body joint, front legs, rear legs, and tail flippers:

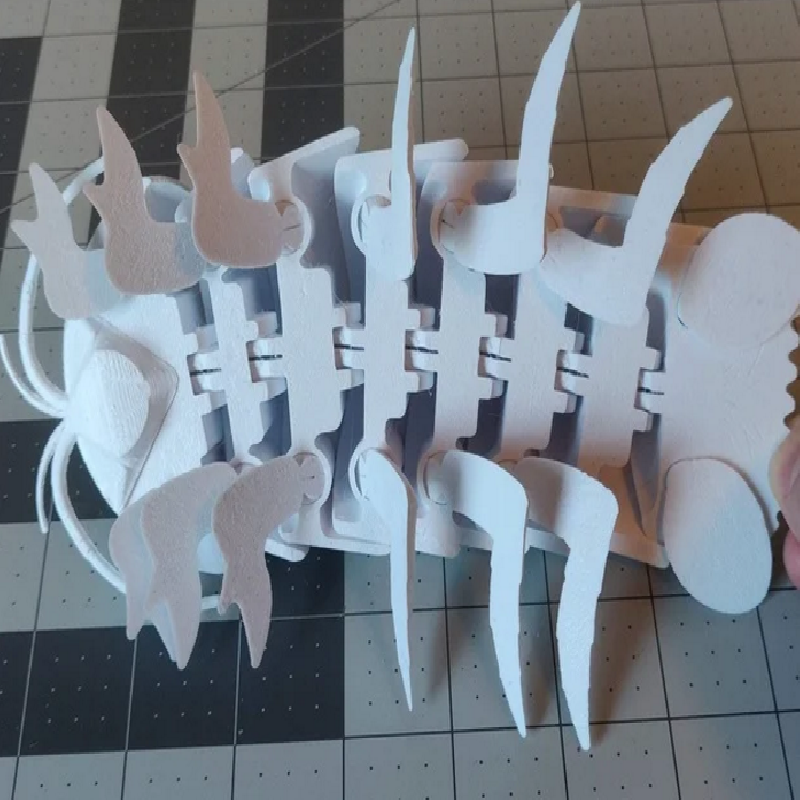

The main body with 8 pieces is printed in place without supports.
The main body objects can be split in the slicer (example: PrusaSlicer -> Split -> To Objects) and then snapped together after printing.
The face/antennas, front legs, rear legs, and tail flippers are printed separately and snap in with ball joints.
The face is a little hard to install; use pliers to install the dog bone onto the face first, and then onto the main body.
The legs should fit tightly so that they are posable.
The legs go as follows front to back: short front legs, long front legs (x2), short rear legs, long rear legs (x2)

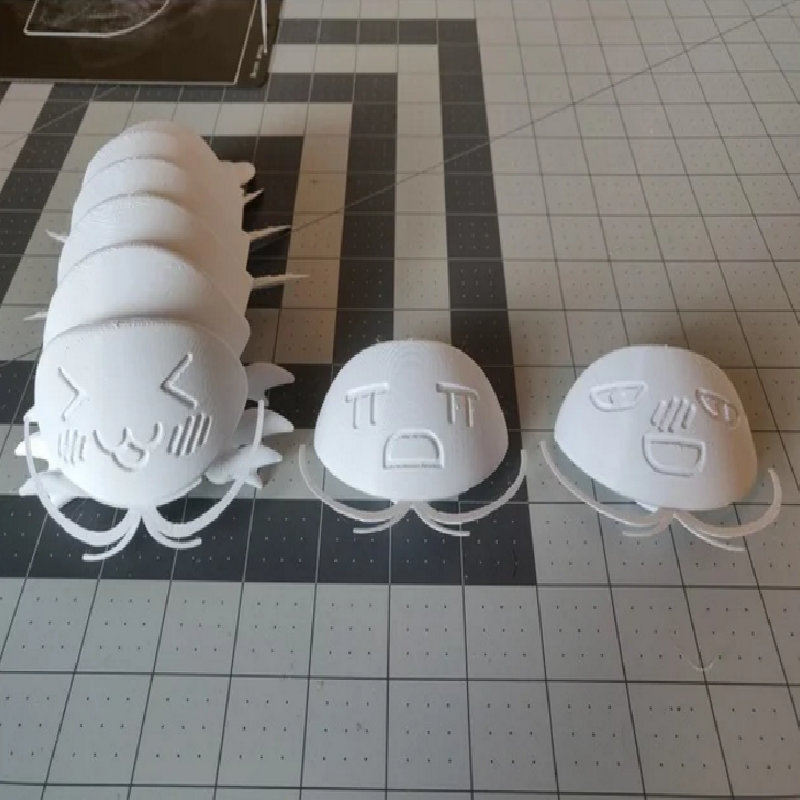

Also included separate head joint files with kawaii faces ≧◡≦
Enjoy!
Print Settings
Printer brand:
Prusa
Printer:
I3 MK3S
Rafts:
No
Supports:
No
Resolution:
150
Infill:
20
Filament brand:
SainSmart
Filament material:
PLA
Notes:
Use a black sharpie or similar to color in the eyes, makes a big difference.
