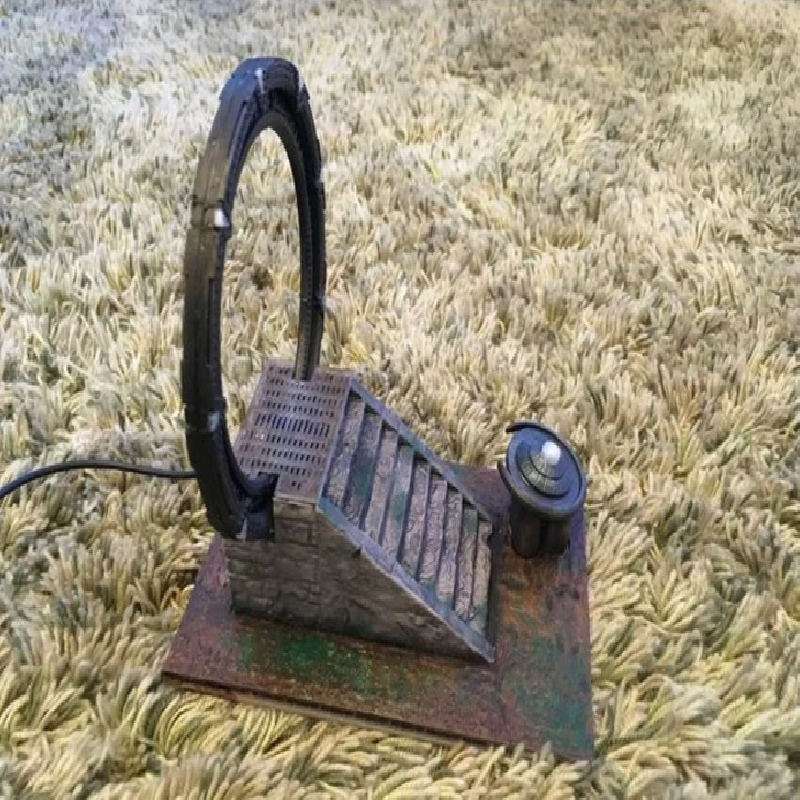

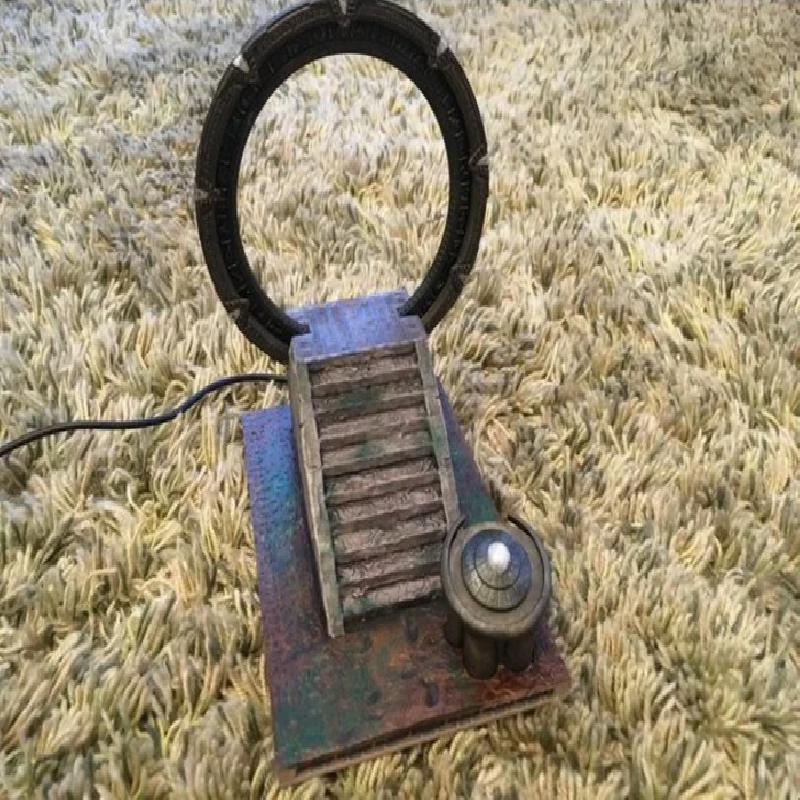

This 120mm Stargate rotates the symbol ring and controls the chevron LEDs based on 7-chevron address, which can be programmed by the DHD button. The gate rests on 4x6 Openlock base.

File Stargate.pdf contains design principles and assembly instructions. See also videohttps://youtu.be/m7Bo0lUhz8U.

DHD button controls the operation, which has three modes:

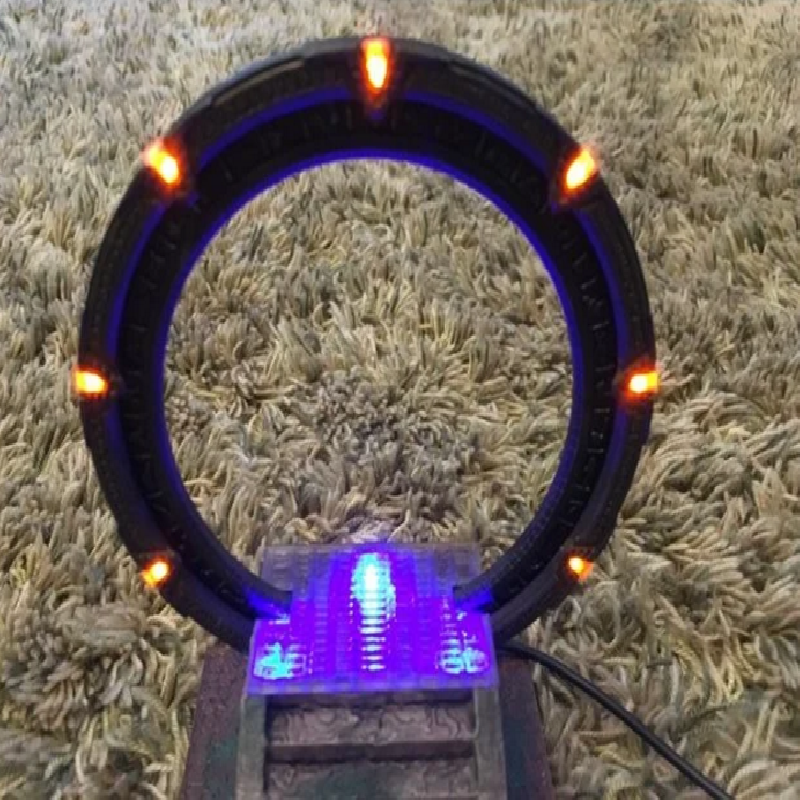

• Dialing is started by short pressing of DHD button – the gate dials a 7-chevron address saved in EEPROM. The gate stays open for 1 minute and then closes by itself.

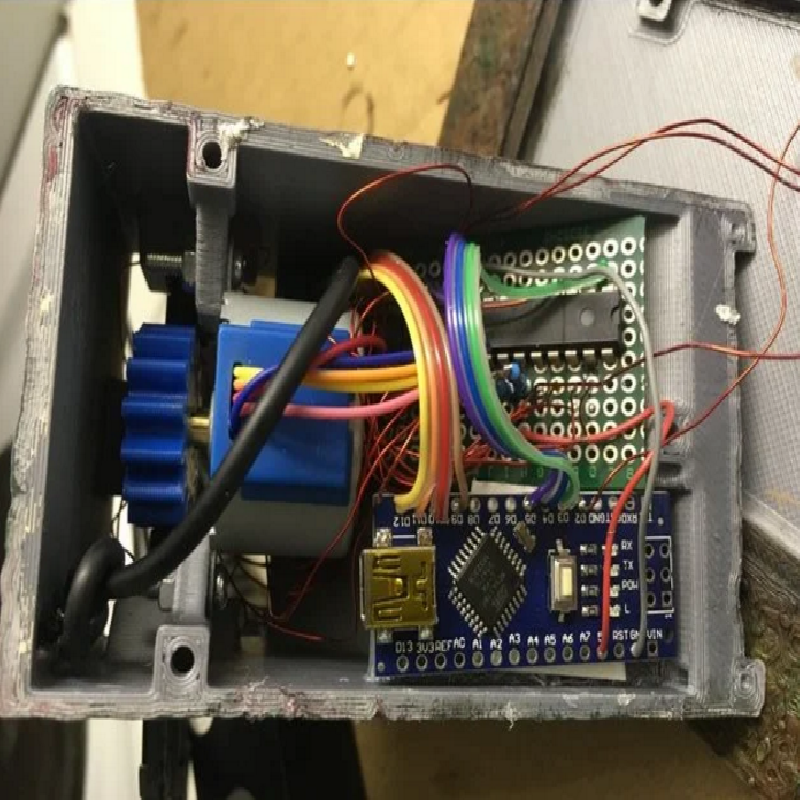

• Programming mode is activated by pressing the DHD button for 5 seconds. Then the button is used to control rotation and direction for each of the 7 stages in order to define the address; the address is saved in EEPROM of Arduino.

• Tuning mode is activated by pressing DHD button for 10 seconds. Then the gate rotates very slowly when DHD button is down. This mode is used to align the symbol ring correctly with the middle chevron.

NOTE: Stairs.stl is a derivative of MyMiniFactory object, whose license is restricted to MyMiniFactory only. Therefore it is missing from the list of stl files here on Thingiverse. You can download it from MyMiniFactory page https://www.myminifactory.com/object/3d-print-159125.

Credits:

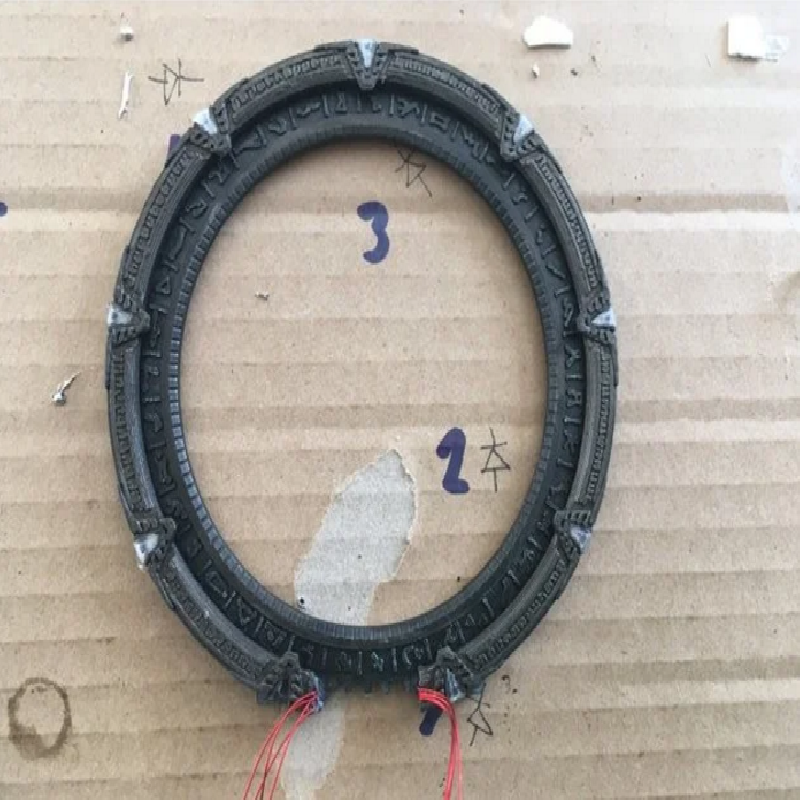

The gate is based on https://www.thingiverse.com/thing:2348550. Design was completed and modified to fit LEDs better in the front ring.

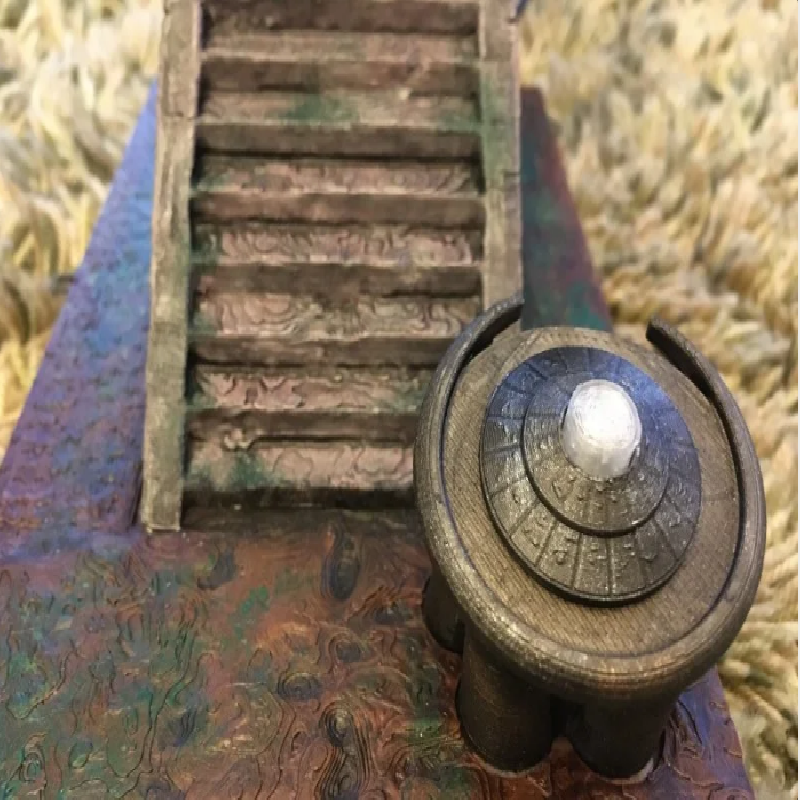

The DHD is scaled-down and remixed from https://www.thingiverse.com/thing:4302643.

The stairs are remixed from https://www.myminifactory.com/object/3d-print-fantasy-themed-bladeless-fan-48798.

Edit: Added also the Arduino sketch :)

Print Settings

Printer brand:

Creality

Printer:

CR-20

Rafts:

No

Supports:

No

Resolution:

varies

Infill:

varies

Filament brand:

any

Filament color:

several

Filament material:

PLA
