This is a project I have been working on to create a proper C-130 Transport Plane for 3-3/4" Action Figures.

This is a “non-commercial” file for free download to print for personal use only.

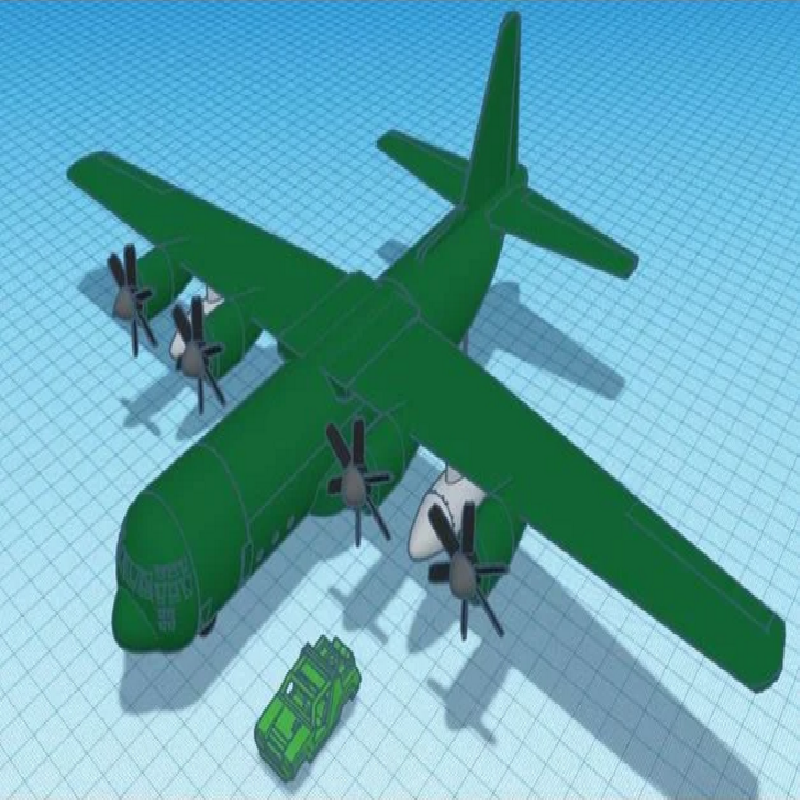

This is a scale replica of a C-130 Transport plane. The model is designed so that it can be adjusted to fit any scale army.

The current size of the floor of the cargo bay is 25mm. To fit a normal 3-3/4" figure, these files would need to be scaled to 600%.

Included in the files is a "TEST Cross Section", which can be printed to determine the correct scaling. The notch in the side of the test print is the same as the "Troop Door" and for proper scaling, it should match the height of a six foot person.

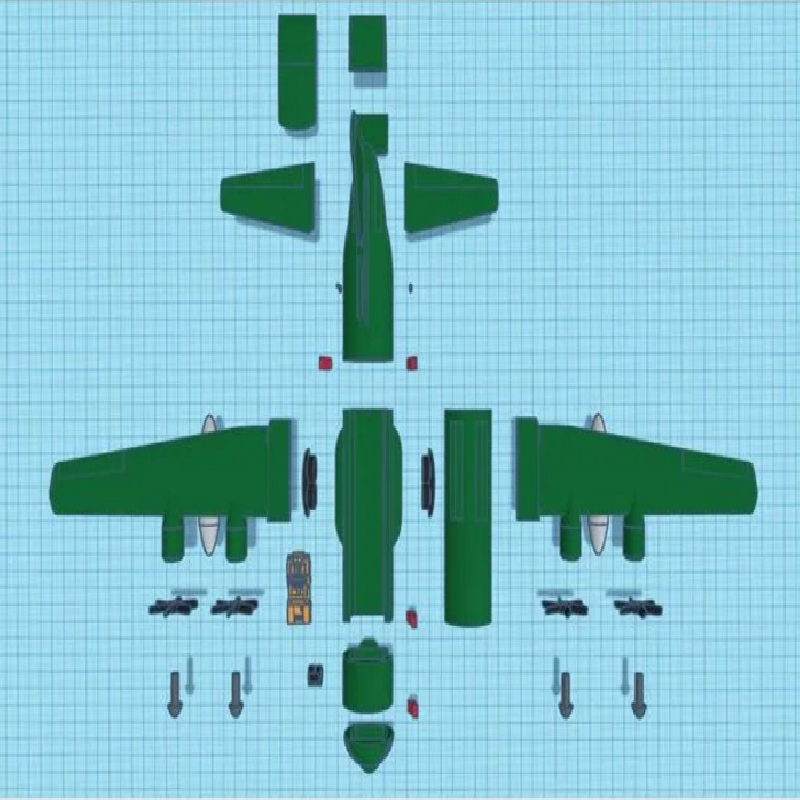

The files required to build are:

C-130 - Fuselage - Upper
C-130 - Fuselage - Lower
C-130 - Fuselage - Front
C-130 - Cockpit
C-130 - Tail Section
C-130 - Horizontal Stabilizer (2 Required. Mirror for Left / Right)
C-130 - Vertical Stabilizer
C-130 - Wing (2 Required. Mirror for Left / Right)
C-130 - Propeller 6 Blade (4 Required)
C-130 - Propeller Pin (4 Required)
C-130 - Center Landing Gear (2 Required)
C-130 - Front Landing Gear
C-130 - Troop Door (3 Required)
C-130 - Crew Door
C-130 - Tail Gate Open - Lower
C-130 - Tail Gate Strut (2 Required)
C-130 - Tail Gate Open - Upper
C-130 - Tail Gate Closed (Option)

Print Settings

Printer brand:

Creality

Printer:

Ender 3

Rafts:

Yes

Supports:

Yes

Resolution:

200

Infill:

20

Filament brand:

PolyMaker

Filament material:

PLA
