by fhogphil

Number 5 in the series!

BEEE DOOOO BEEE DOOOO BEEE DOOOO BEEE DOOOO BEEE DOOOO

Designed to be mostly friction fit. Couple of spot where glue may be smart

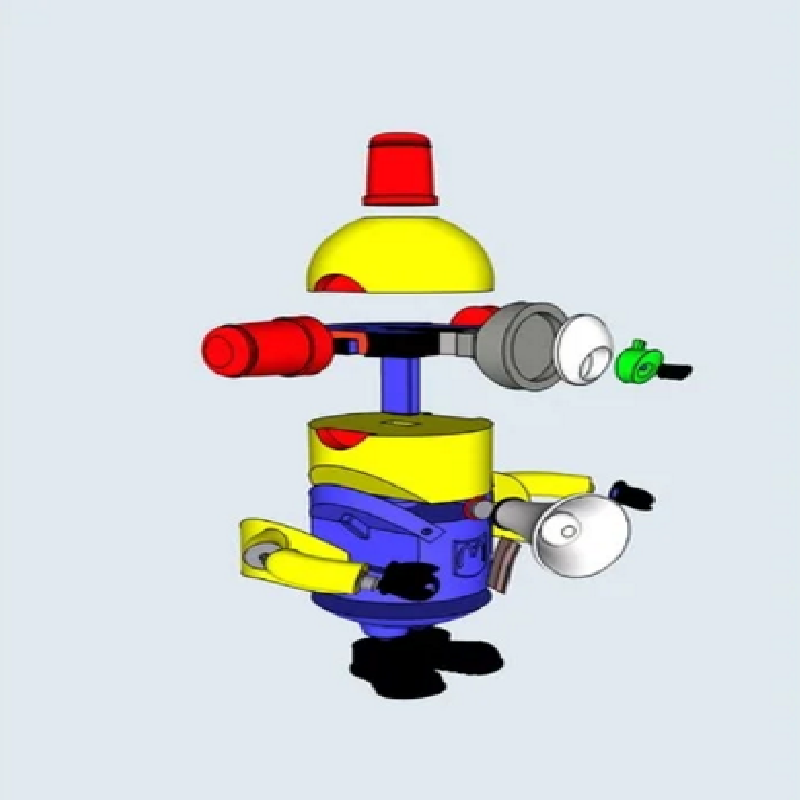

Assembly tricks

Place top key in skull
Place band and assembled goggle over key
Place assembly into neck

with right rib in shirt, place elbow pin in rib.
Press lips into megaphone - it goes in only one way, you should see the alignment part
Glue Handle into megaphone
Glue R hand onto handle

Place wrist pin into arm.

Dry fit all of this onto rib and align lips to neck

with small amount of glue on lips and on elbow pin, reassemble and hold long enough for glue to set

TEST FIT EVERYTHING BEFORE ANY GLUE!!!! Oh yeah - also TEST FOT EVERYTHING BEFORE ANY GLUE

Shouldn't need any supports. All the parts are aligned as the should be printed.

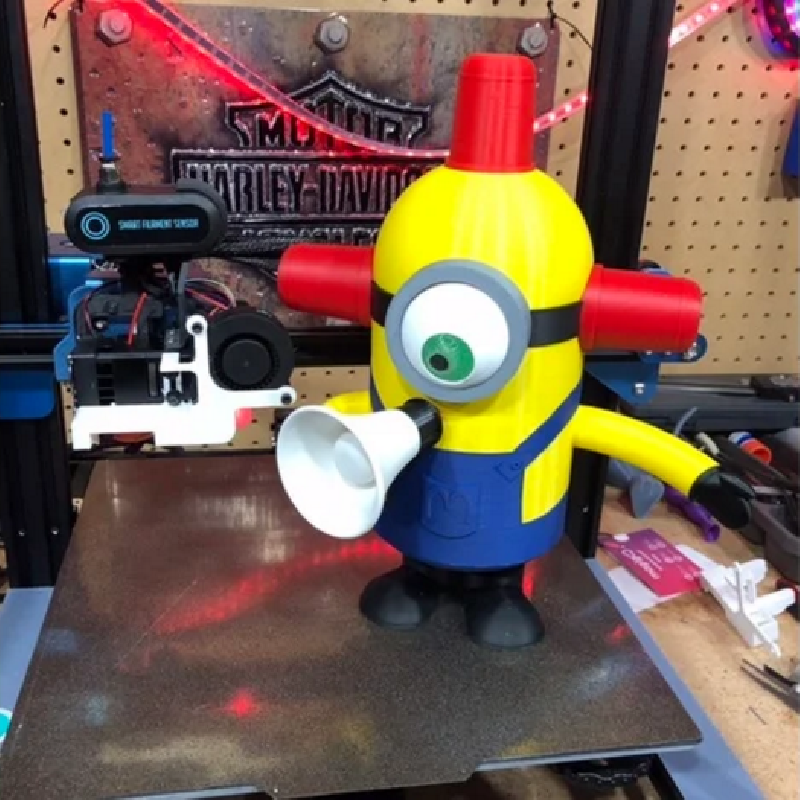

PLEASE post a pic of your make and hit the like button now.

See my designs for his brothers

Print Settings

Printer brand:

Creality

Printer:

CR-10

Rafts:

No

Supports:

No

Resolution:

.12

Infill:

15

Filament brand:

Multiple

Filament color:

multiple

Filament material:

PLA

Notes:

Use Change filament at height on the megaphone to give it a little better look.

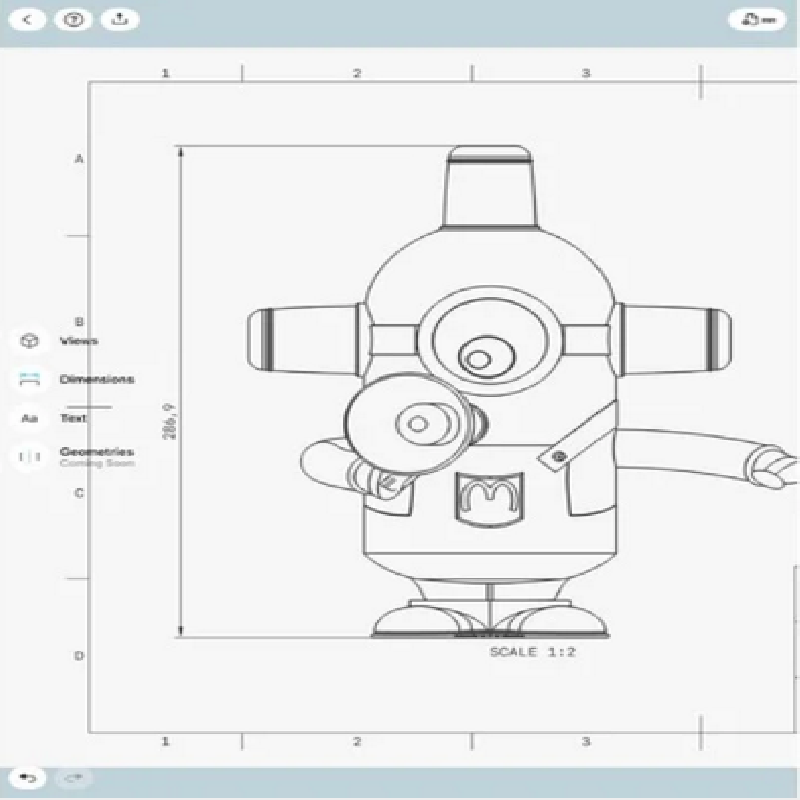

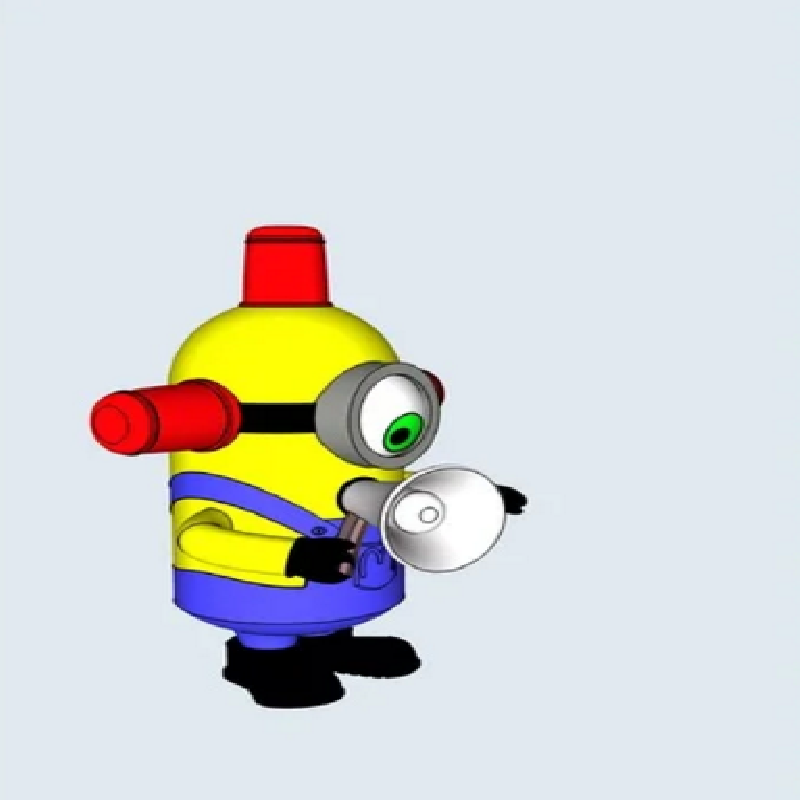

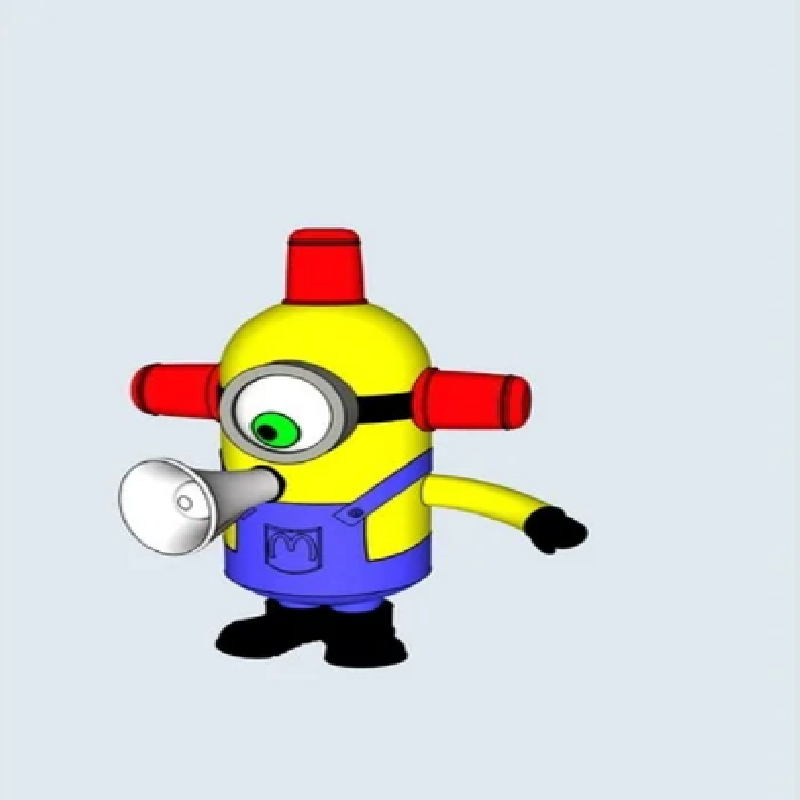

How I Designed This

SHAPR3D for Ipad rocks

All of this done in SHAPR3D for Ipad
