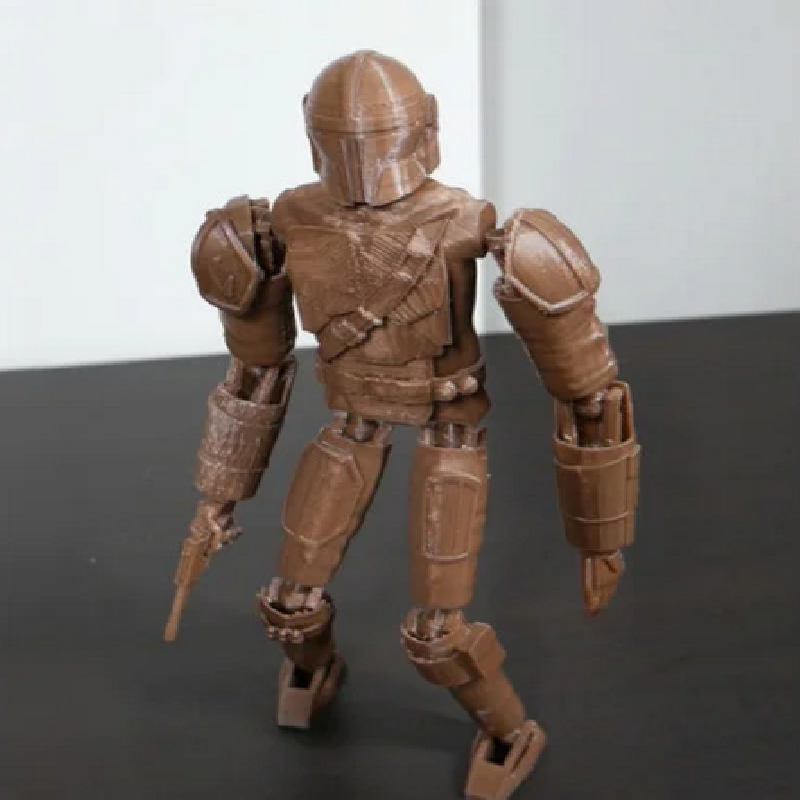

A set of models which come together to form an action figure based on Mando.
One of everything, except two mando_feet and 10 mando_joint(s).
WARNING: these parts take a lot of work to put together, the objects have peg holes for pegs/ball joints, but you will likely need to do some work to get everything to go together tightly. Also, the ball sockets are EXTREMELY tight. I found that PLA to have quite a bit of give so I pushed it as far as I could while still being able to assemble. See printing and post-printing for more details and advice.
Print Settings
Supports:
Yes
Notes:
Note on printing, if a part has a ball socket (the biceps, forearms, thighs, and calves) you need to print the part so the prongs for a U shape looking from above. it's the only orientation which will be able to hold the stress of assembly. Otherwise the prongs will snap off when inserting the ball joint.
Post-Printing
The pegs will likely need to be reduced/glued to get a solid fit. For the pieces with ball sockets the prongs need to be cleaned so they can bend out of the way of the ball joint. This will require some effort, as without the tight fit the plastic won't have enough strength to hold a position.
