by Props3DPro
This is a work in progress! Print at your own peril until V1 is out! It does work though.

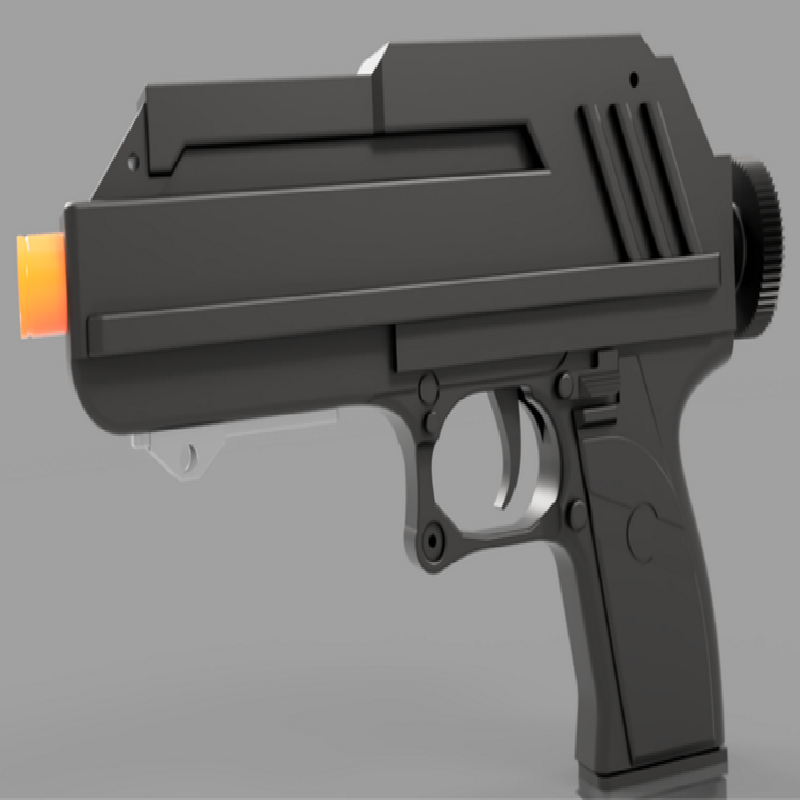

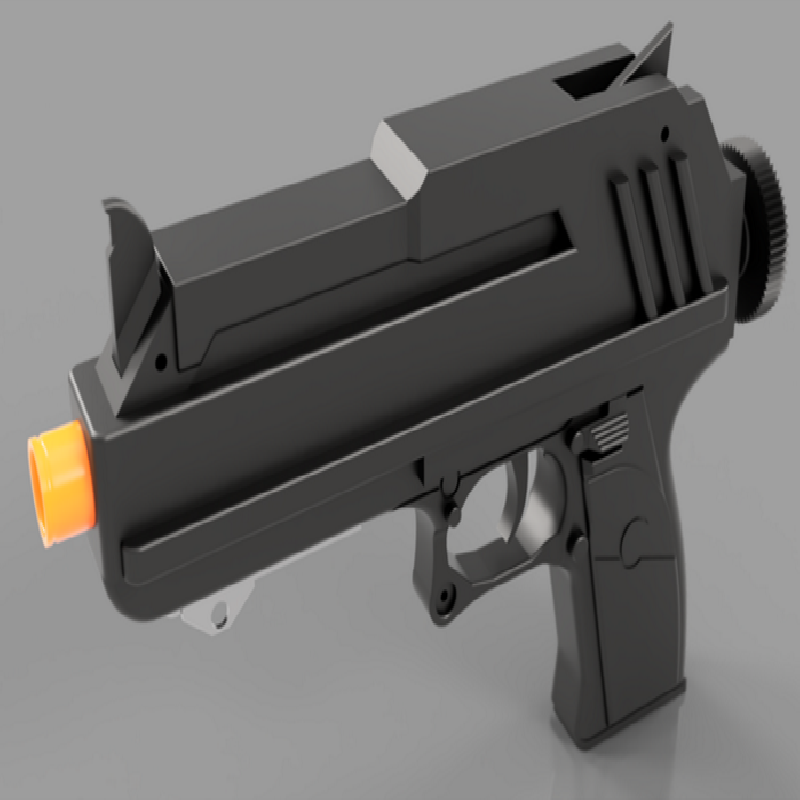

This is convertible from a prop with a functioning trigger to a semi-automatic rubber band gun. There's a compartment in the front that will allow you to stow the unused parts and rubber bands. To convert: pop the two exposed pins and swap the back cover for the magazine, and the front block for the elastic catch, and replace the pins. Can be done toolless with a bic pen.
Note that unless you're really firm in the trigger pull it'll tend to 'spin off' a few bands in a row if there's more than 6 loaded. This will be fixed with a drop in adjustment on the next version.
Full parts list coming soon but it just uses M3 screws and 1/8 rod, so it's not complicated.
NO GLUE REQUIRED!! This is important as I try and make all upgrade parts backwards compatible.
Use the pin sizers to cut the rod to the correct length.
Print Settings
Rafts:
No
Supports:
No
Resolution:
200
Infill:
20
Filament brand:
PolyMaker
Filament material:
PLA
