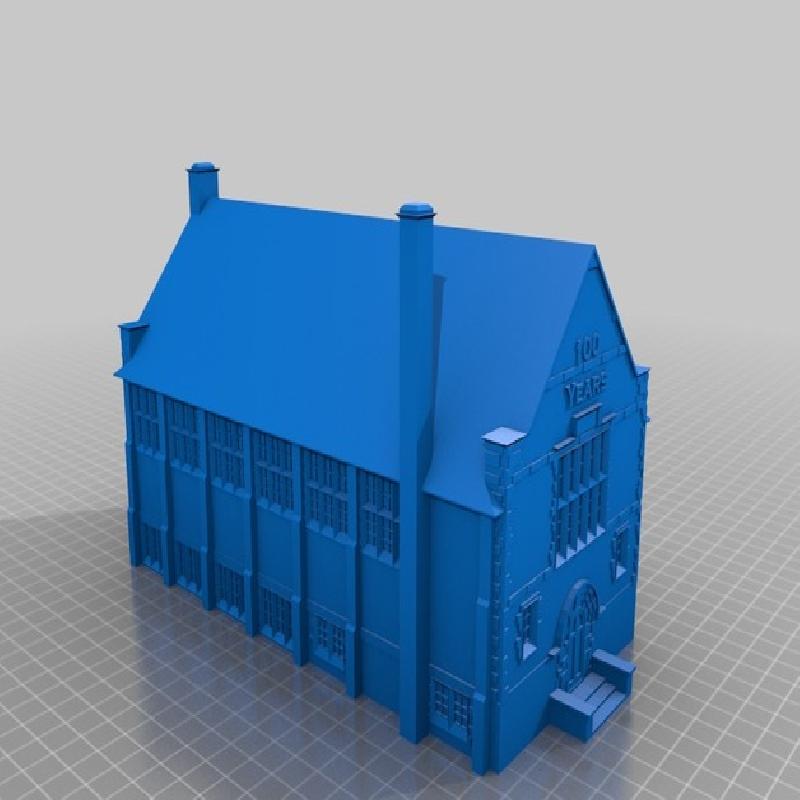

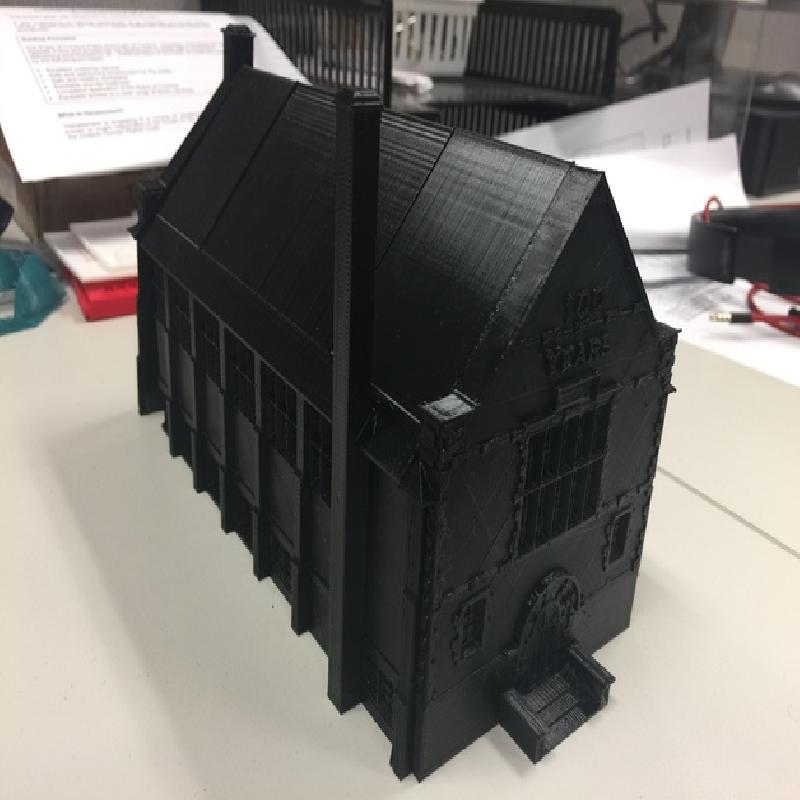

As part of the centenary celebration of the High Park, Wychwood, and Beaches branches of the Toronto Public Library system, this model shows the original architectural designs of the three branches as designed by Eden Smith & Sons. All three of these branches opened their doors in 1916 and were three identical branches that the Toronto Public Library built with a $50,000 grant from the Carnegie Corporation of New York.
The model was designed by Digital Innovation Hub staff Marek Holly using SketchUp Pro, and was divided into parts using NetFabb software.
Printer Brand:
LulzBot
Printer:
TAZ 5
Rafts:
No
Supports:
Yes
Resolution:
0.3 mm or less
Infill:
5% or higher
Notes:

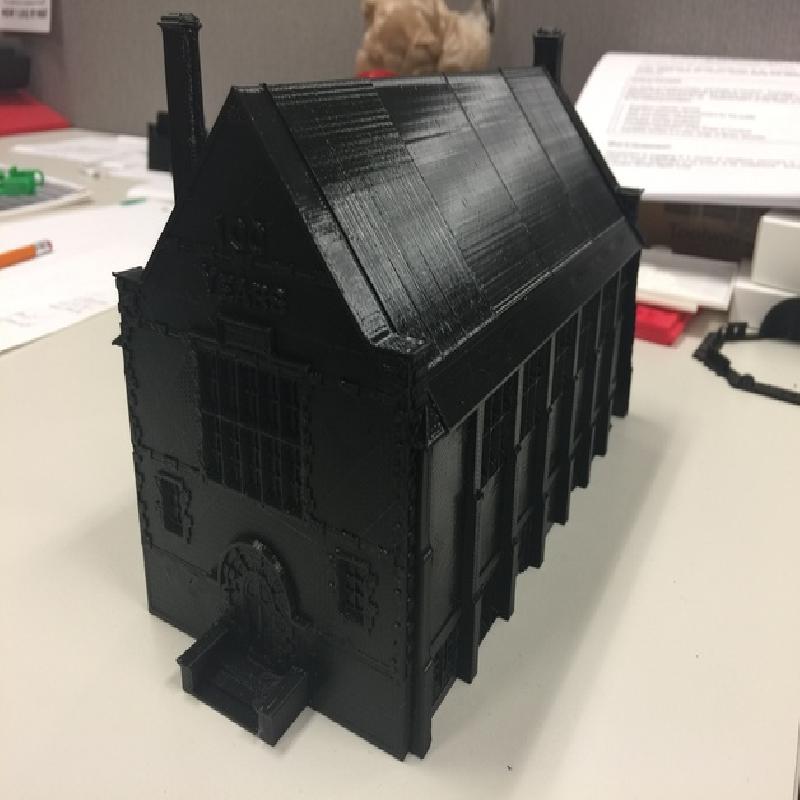

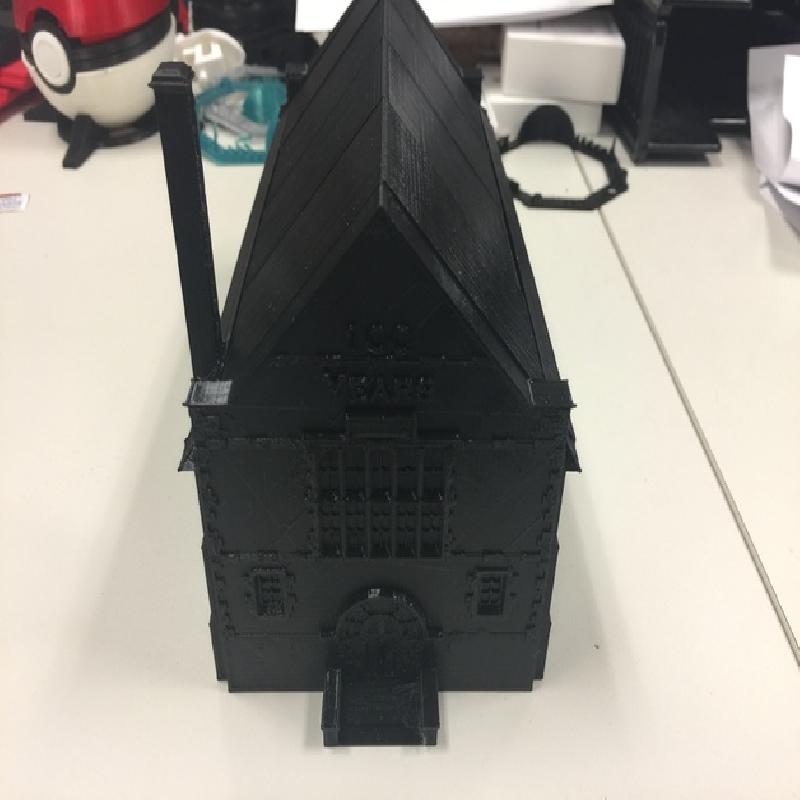

This was printed without a raft because the Taz5 has a heated bed. A raft is necessary if you are using a printer with a cold build plate. The model was designed to be printed at 0.3 mm layer height or less and prints best with rectilinear infill pattern.
Assembly Order
There are several options for printing this print.

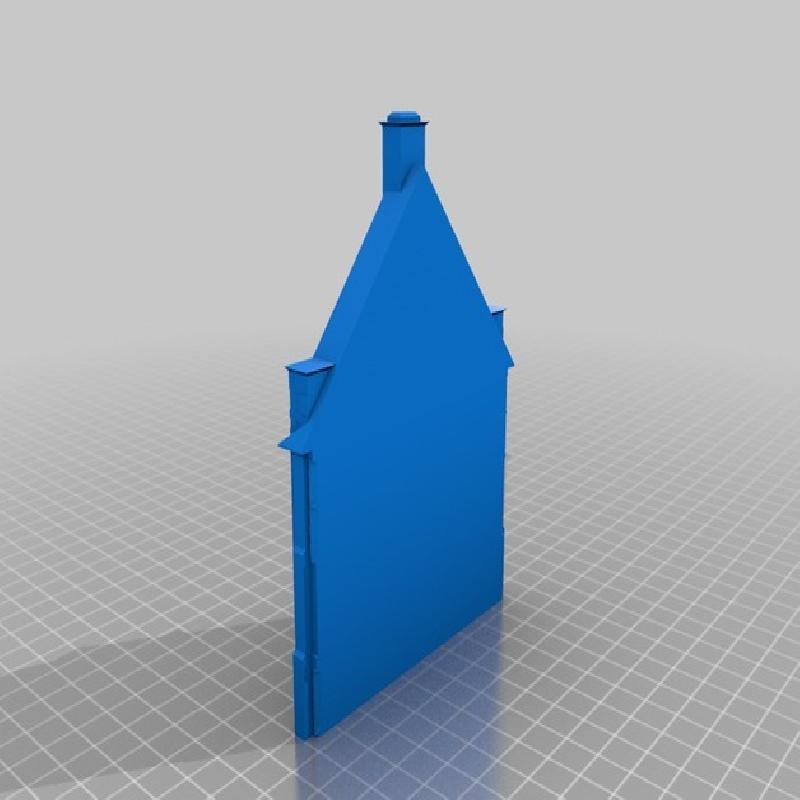

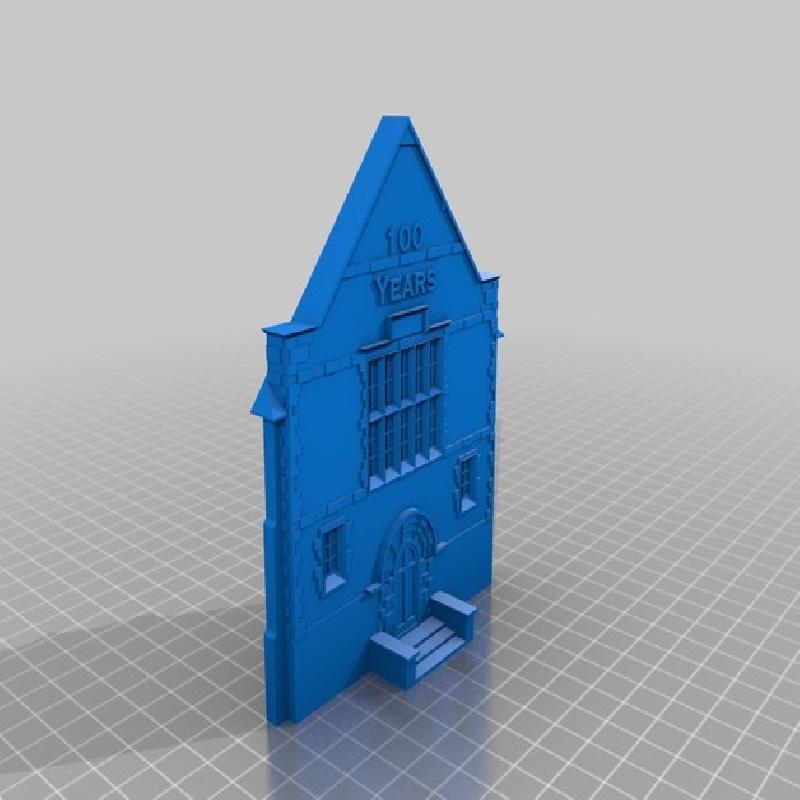

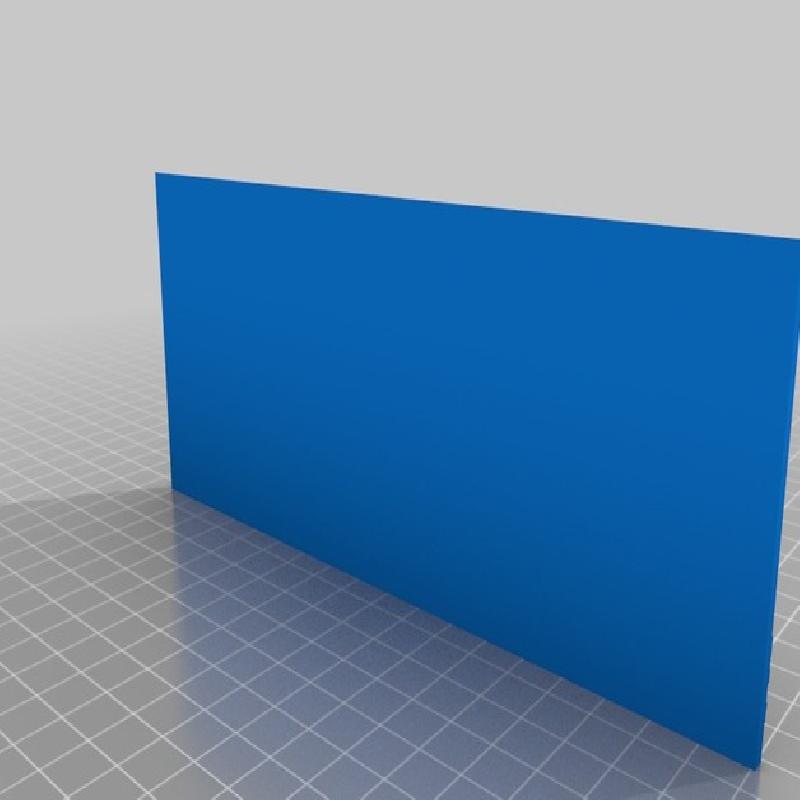

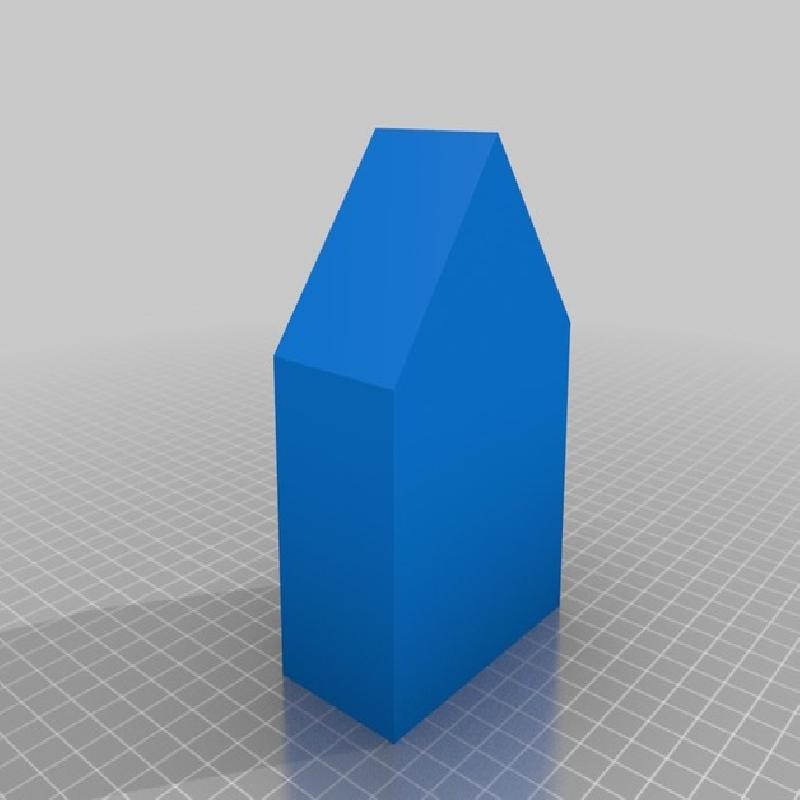

Option 1: Print all 8 separate pieces (Front, Back, Left, Right, Body 1, Body 2, Body 3, and Body 4). Glue the 4 body pieces together. Next, glue the left and right sides, followed by the front and back.

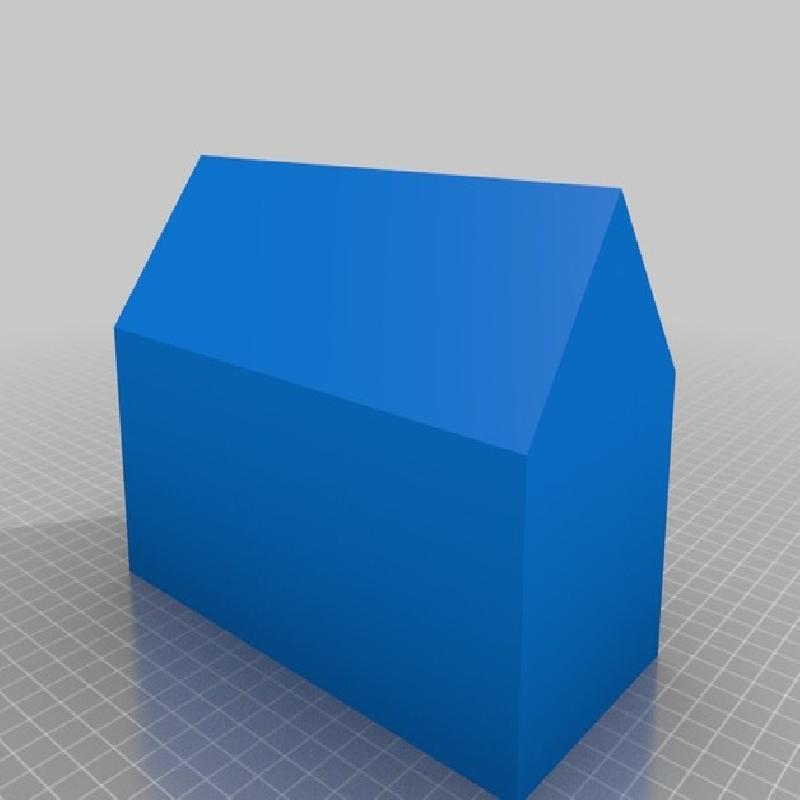

Option 2: Print all 4 of the side pieces (Front, Back, Left, and Right) as well as the main body piece (Main Body). Glue the left and right sides, followed by the front and back.
Option 3: Simply print the full model, with supports enabled.
