Sopwith Camel Model plane for printing.
I made most of the thicknesses 1.6mm to be as close as possible to balsa wood
Its not to any specific scale so feel free to change and mod as you see fit
The video will also give an indication of where the parts go

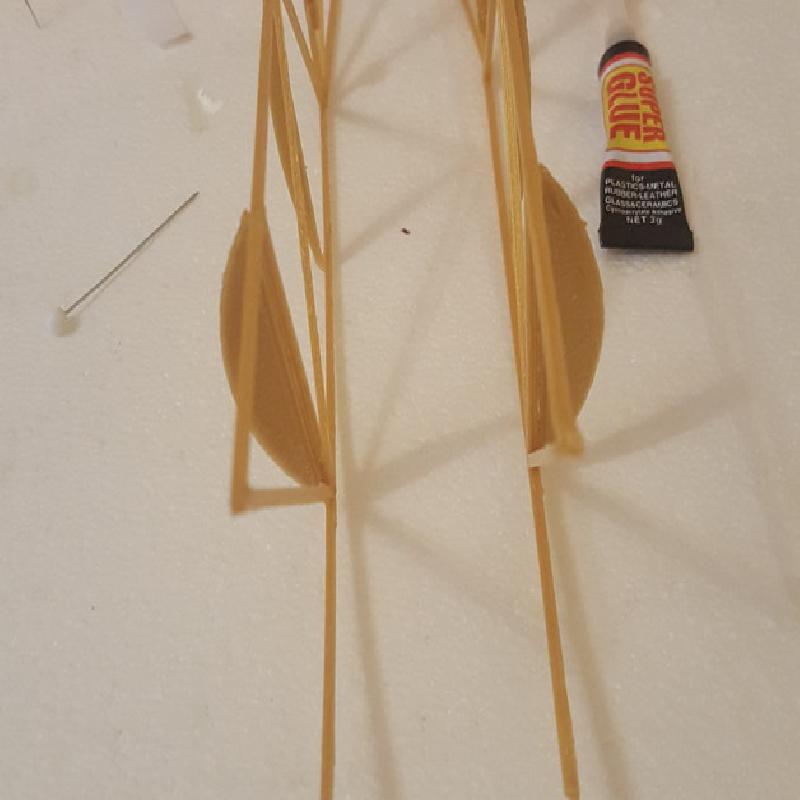

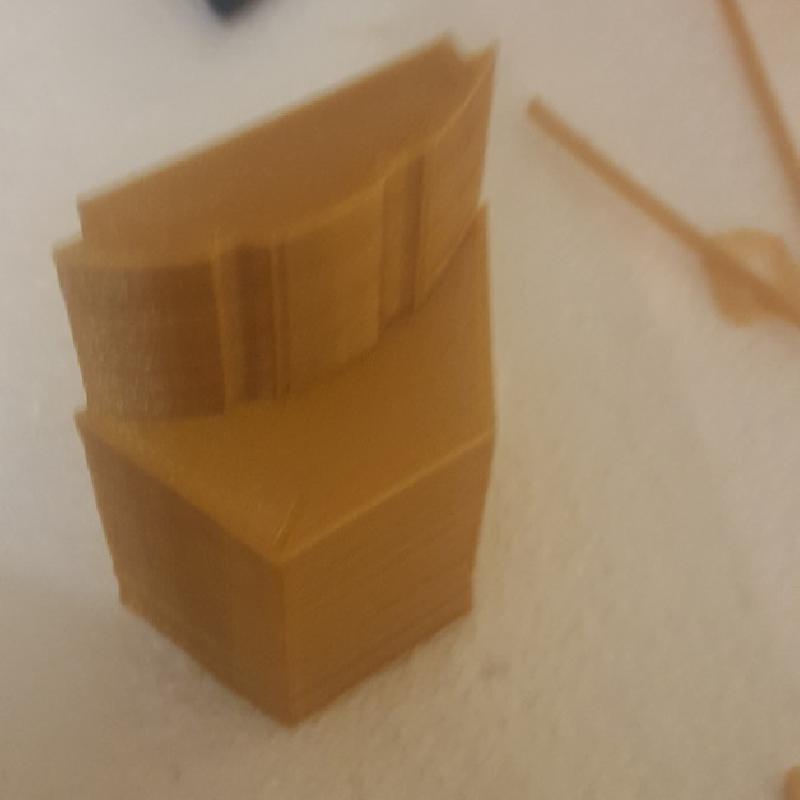

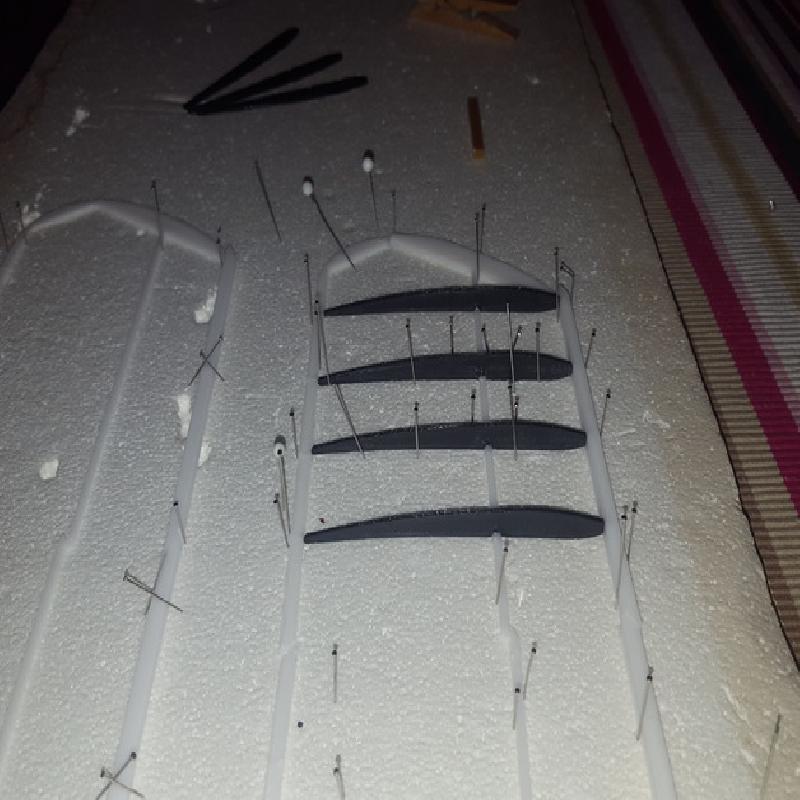

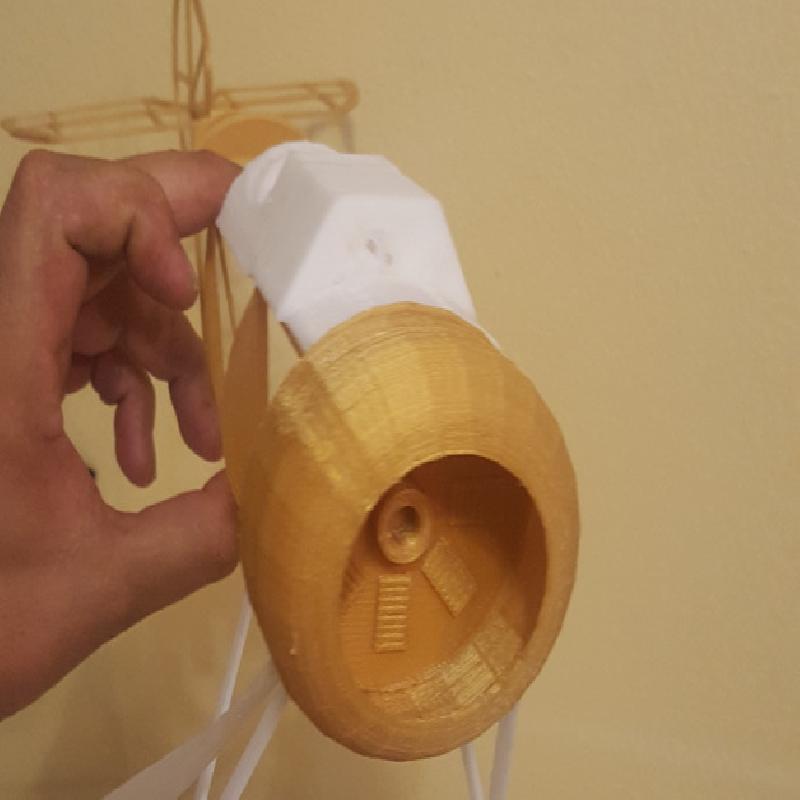

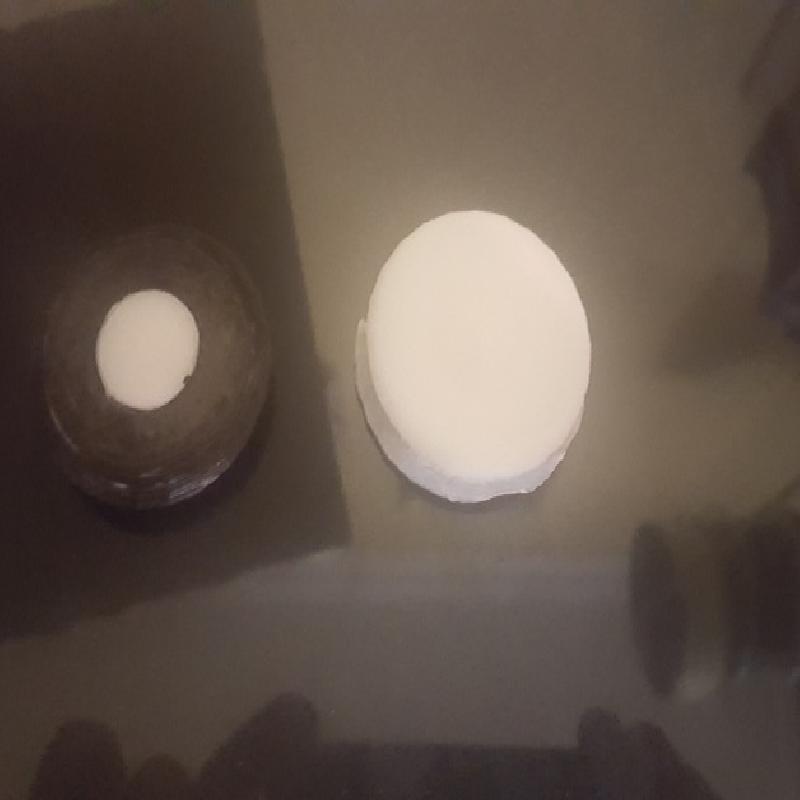

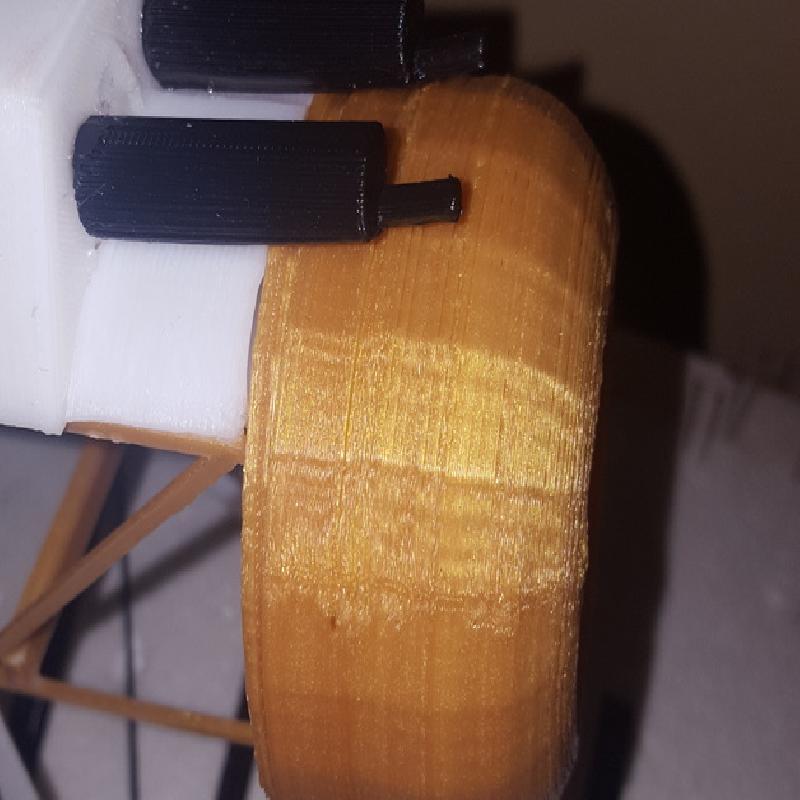

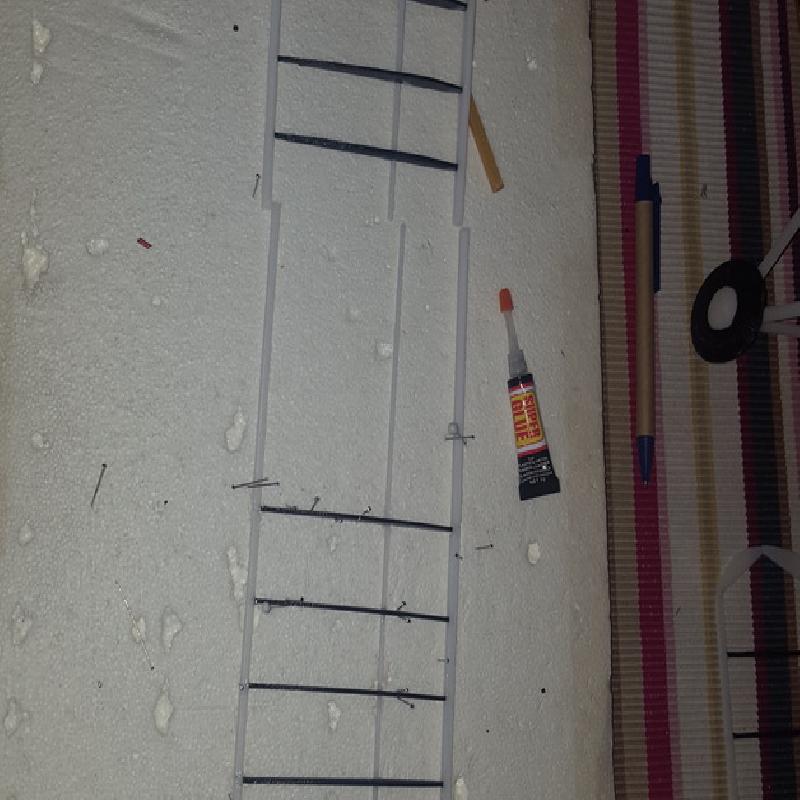

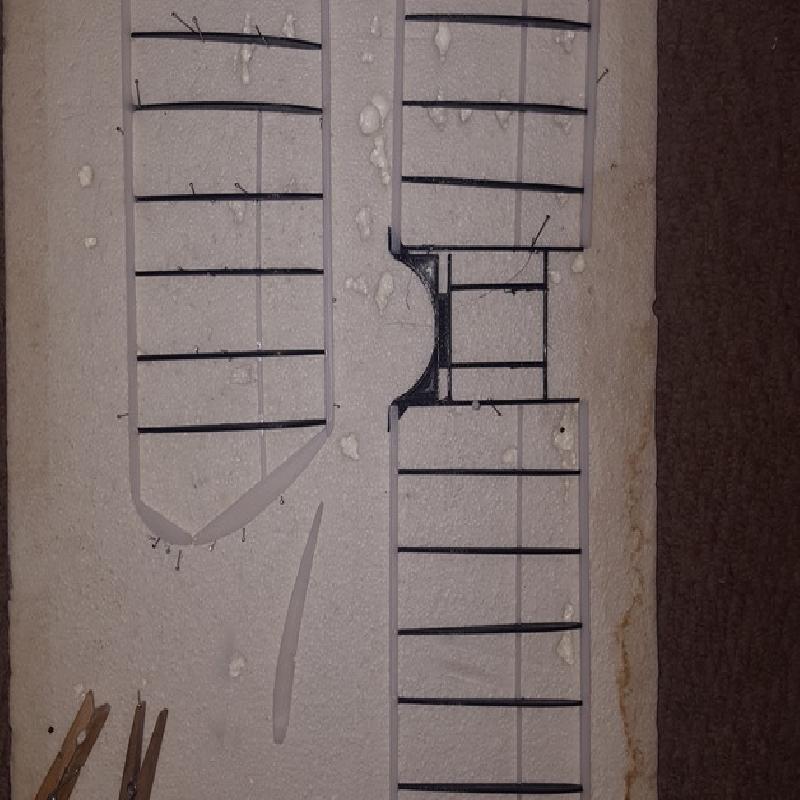

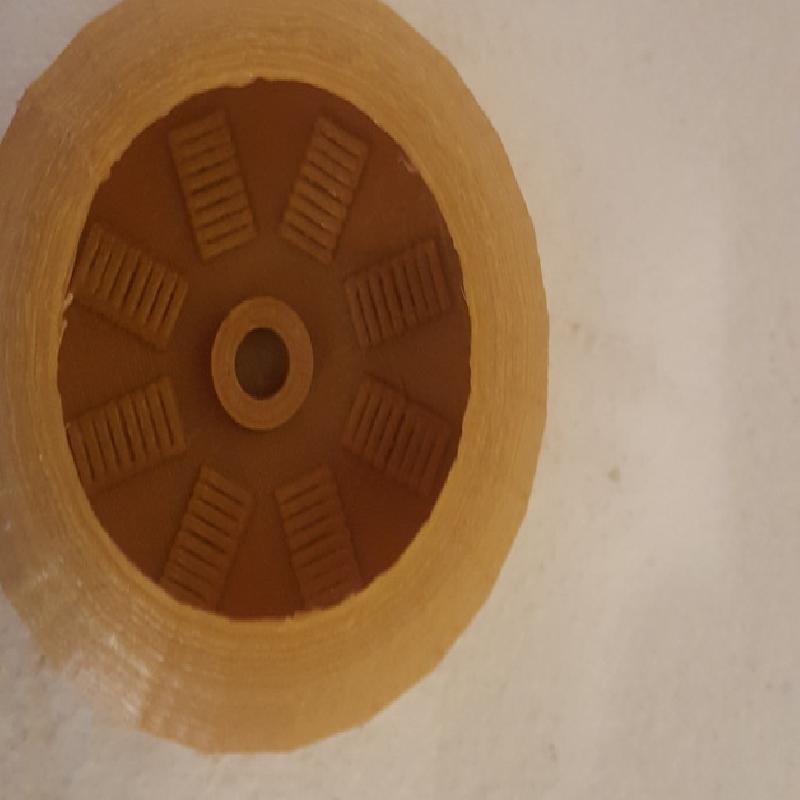

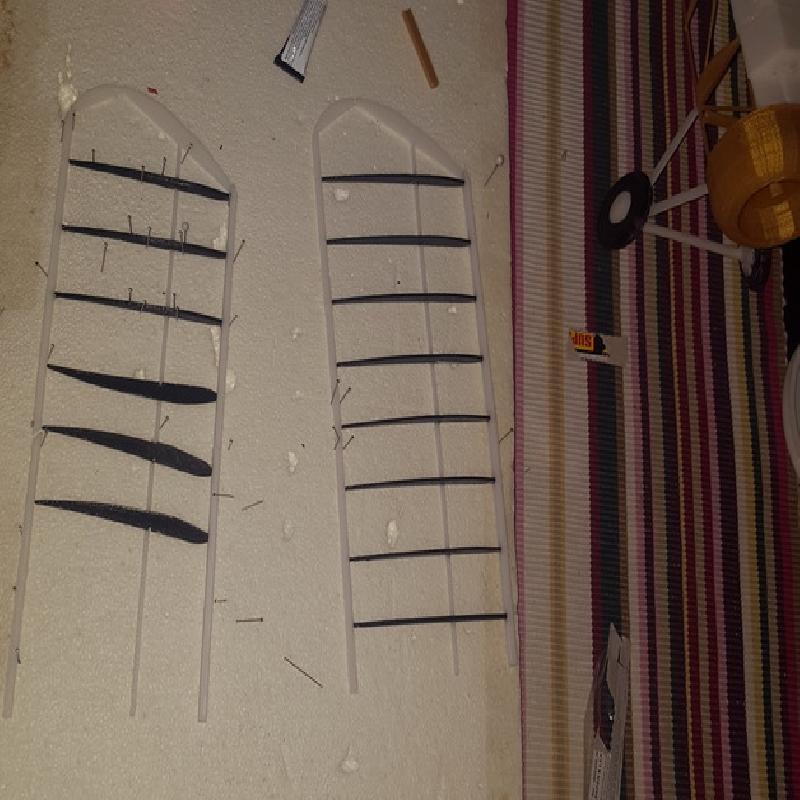

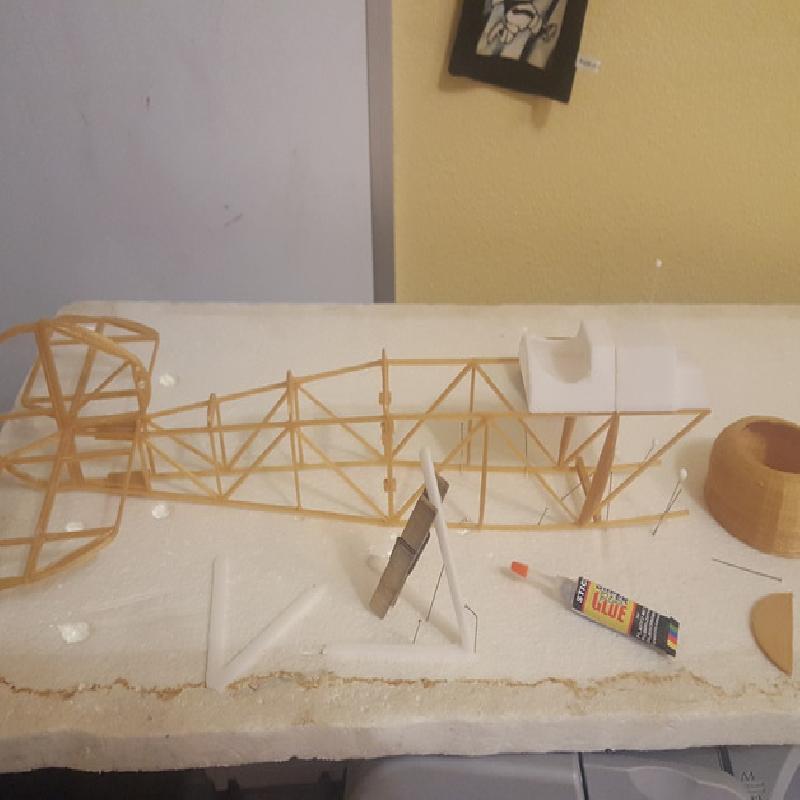

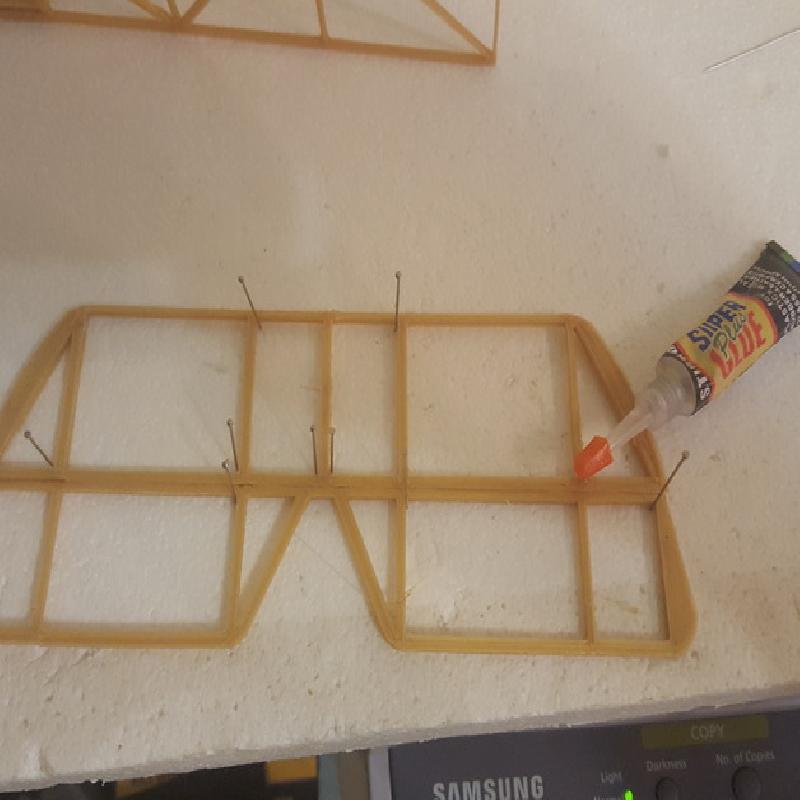

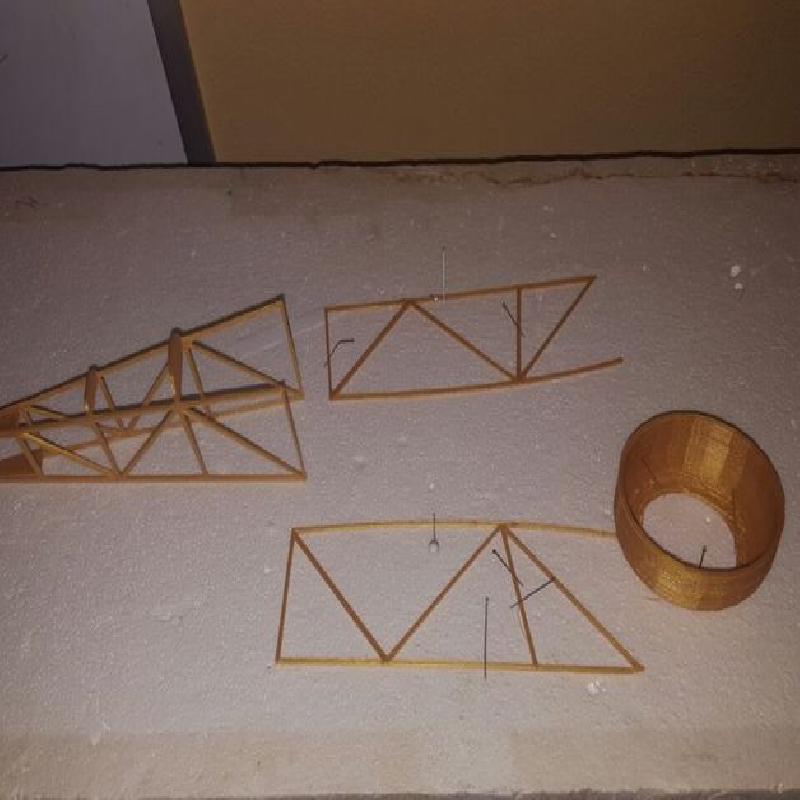

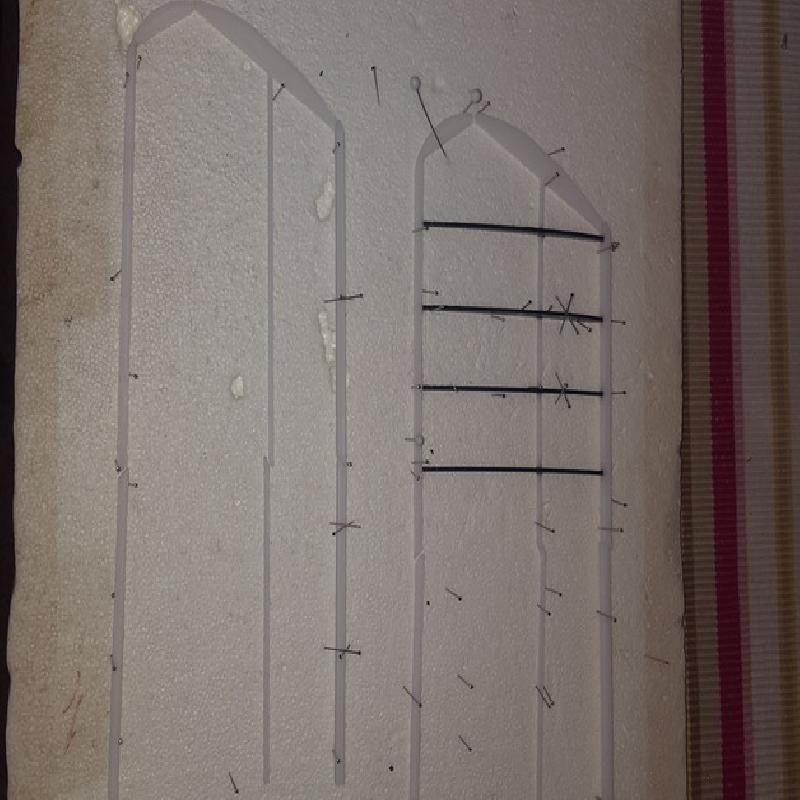

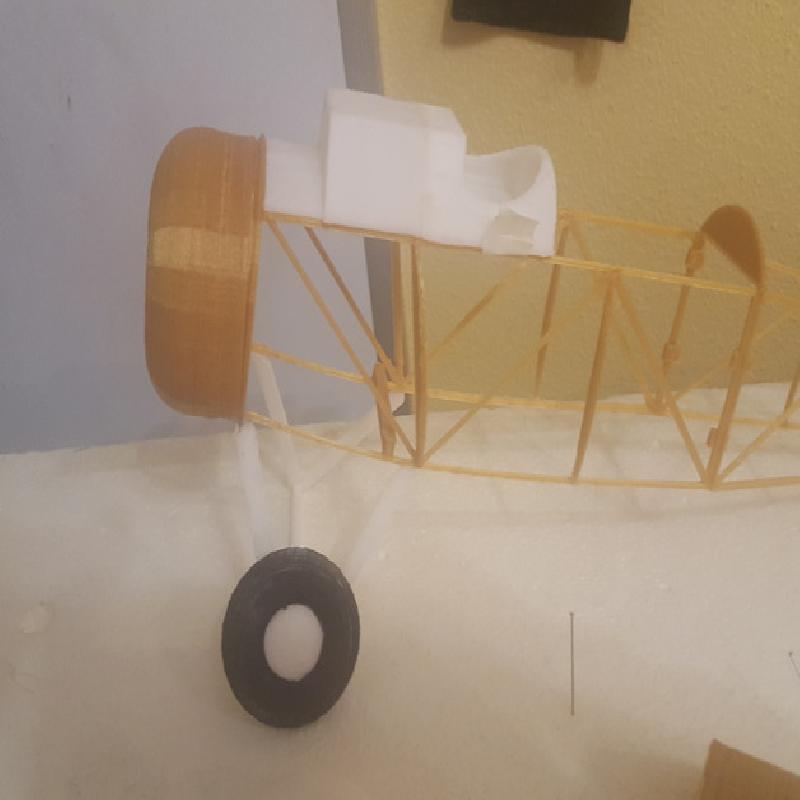

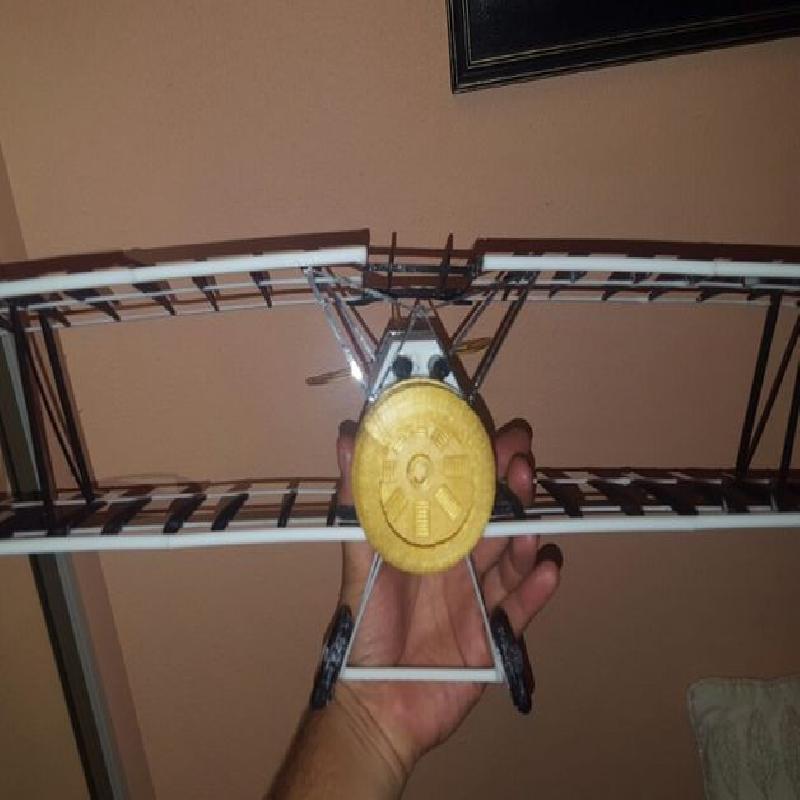

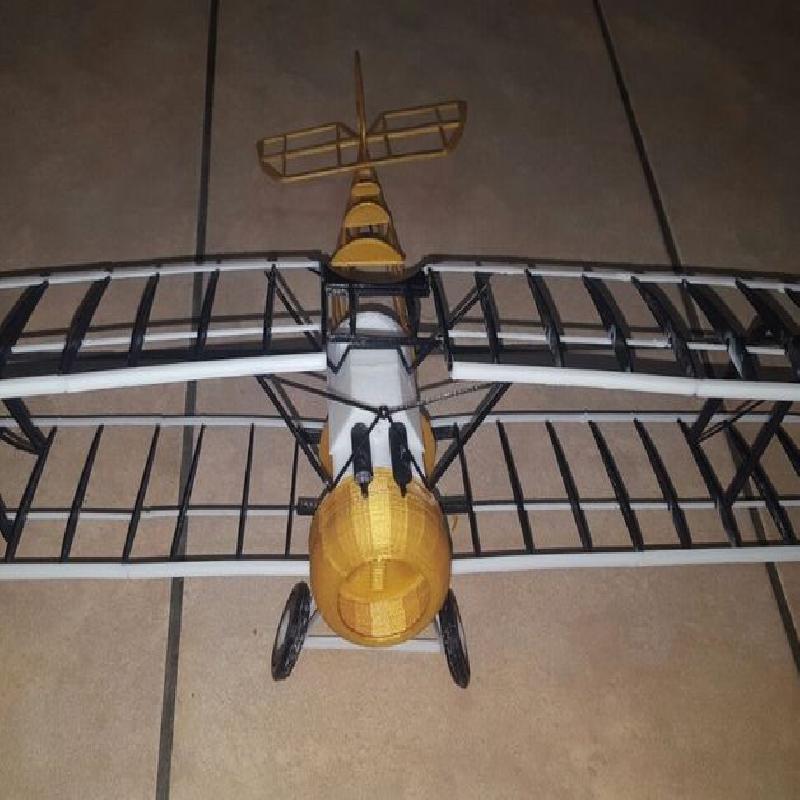

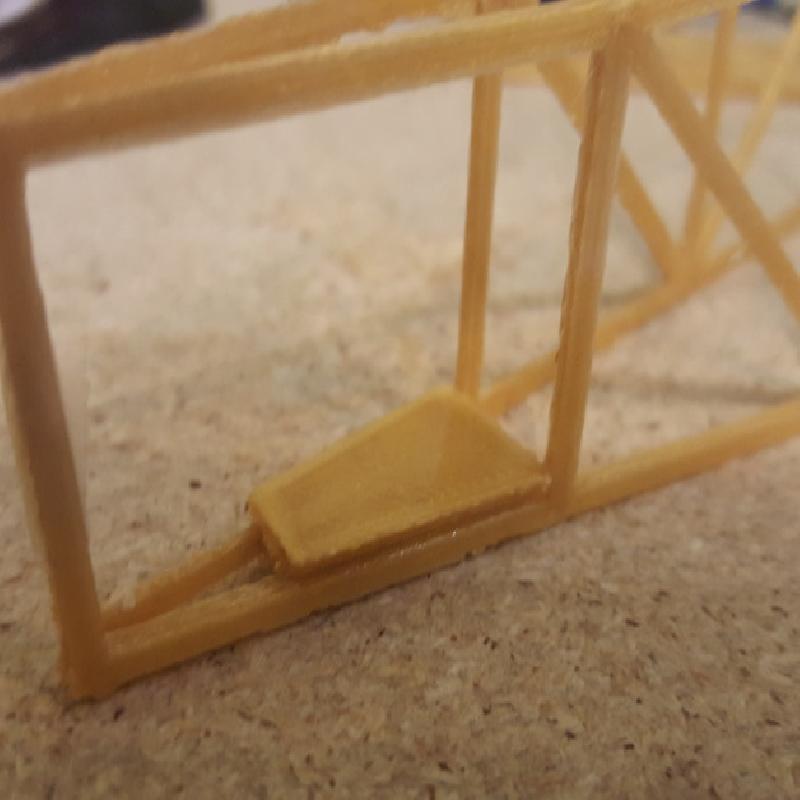

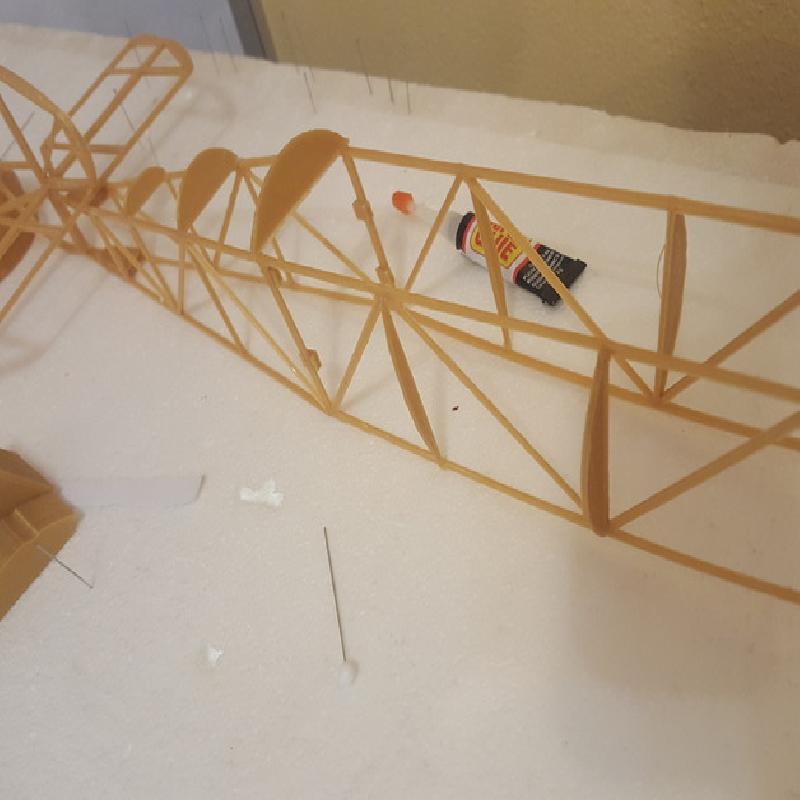

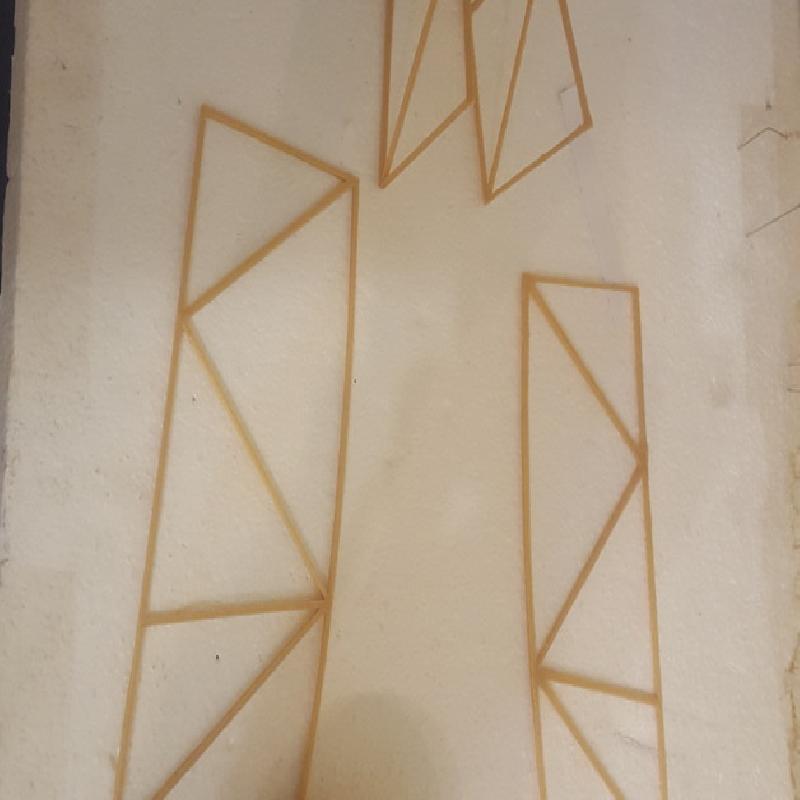

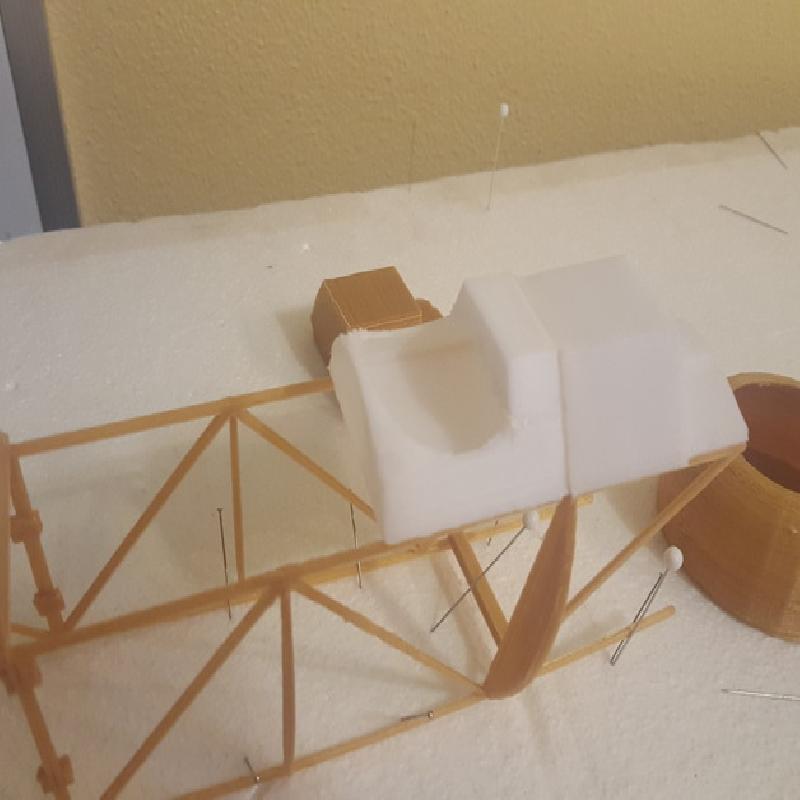

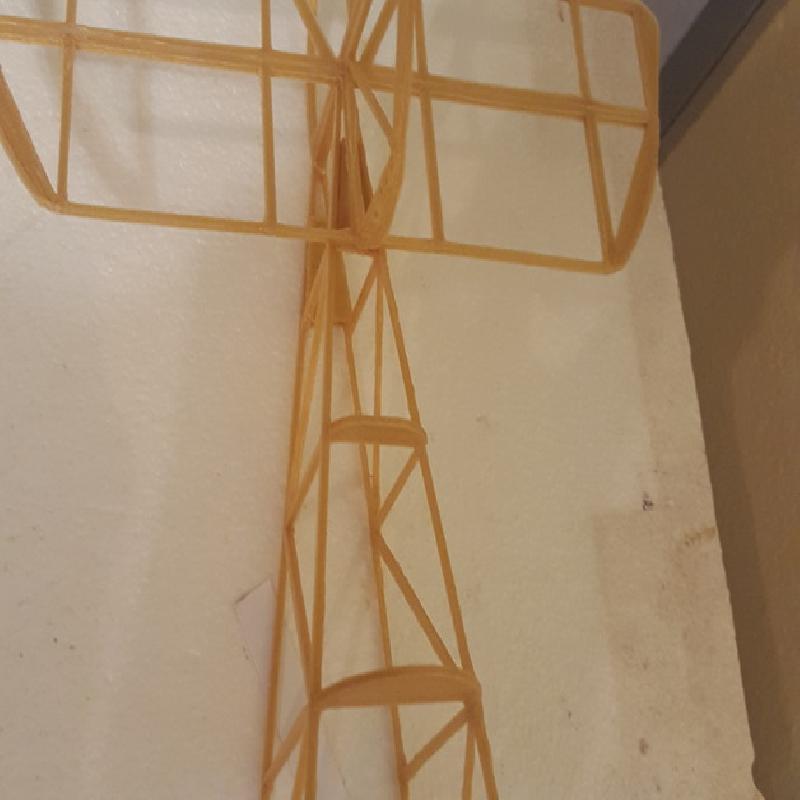

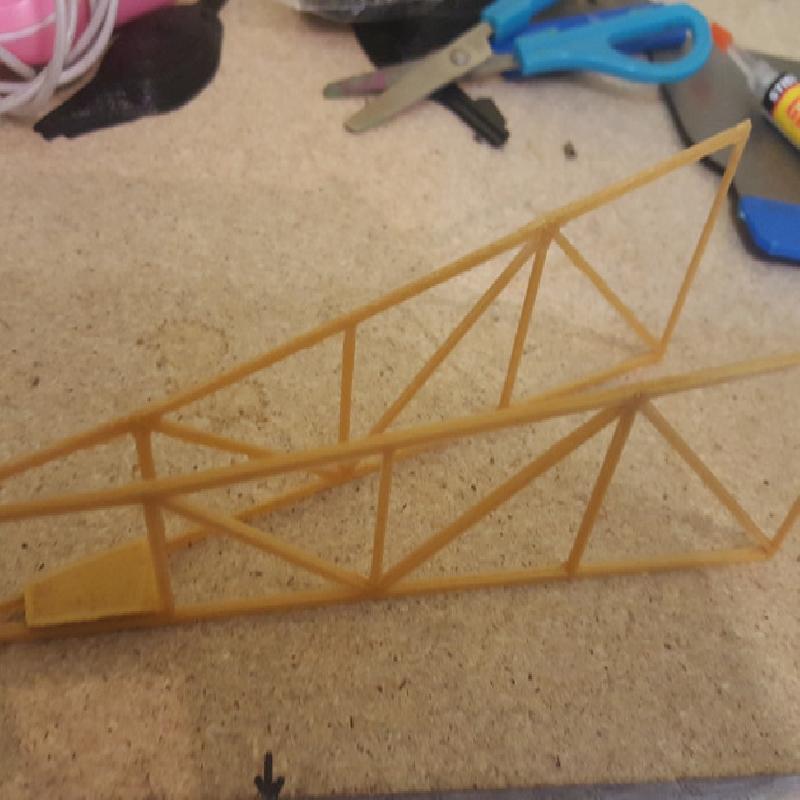

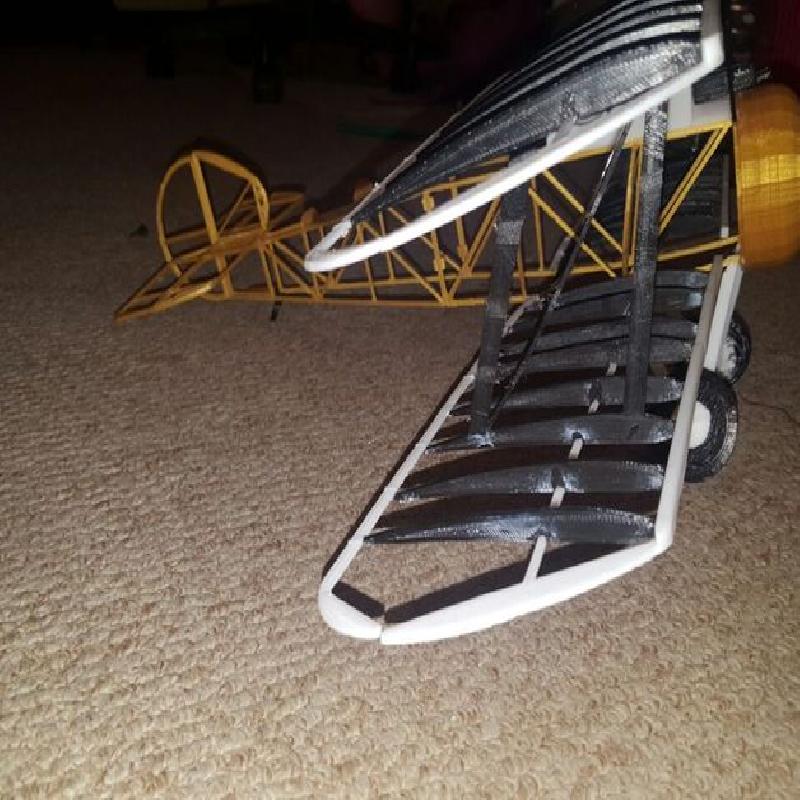

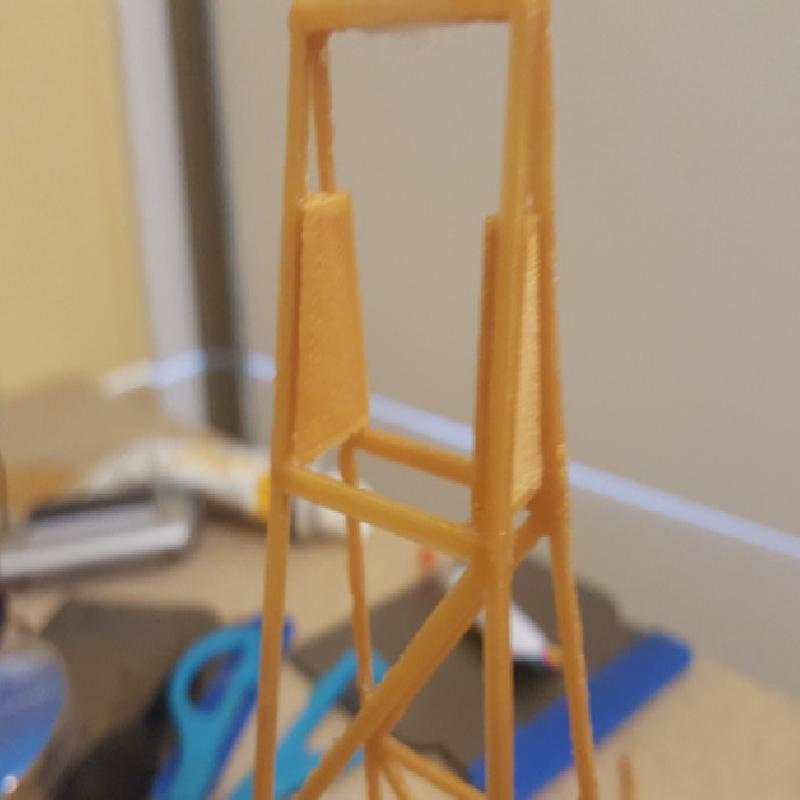

I have added photos for building that should be self explanatory
All parts to be superglued together
Please post your makes
and if you would like to make a donation on pay-pal please use jacojvv@gmail.com
Print list
Nosecone x1
motor x1
sides front x2
F1x1(also uploaded a lighter version)
F2 x1
F3 x1
F4x1
F5 x1
F6 x2
F7 x2
F8 x4
F9 x2
F10 x2
Tail x1
Tail horizontal x1 (rotate if needed to fit on bed)
propeller is by http://www.thingiverse.com/thing:30284
C1 x2 (carriage)
C2 x1
Front Wheel x2
W1 x36
W1left x2
W1Rightx2
W8 x2
W9 x1
Guns x1
Wings midle x1

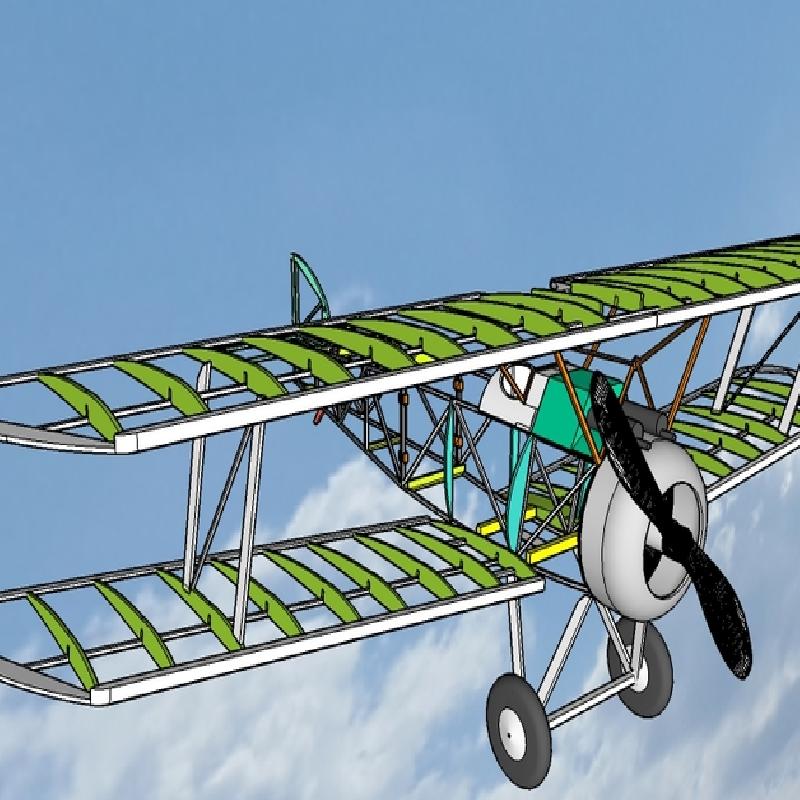

uploaded sketchup file....(please ensure to reference me when using it elsewhere)
Printer Brand:
RepRap
Printer:
Prusa I3
Rafts:
No
Supports:
No
Resolution:
0.3mm
