This is my second (big) project - Half Life / Half Life 2
The height of the characters is 14 - 14.5 cm, the other objects are proportional to the characters.

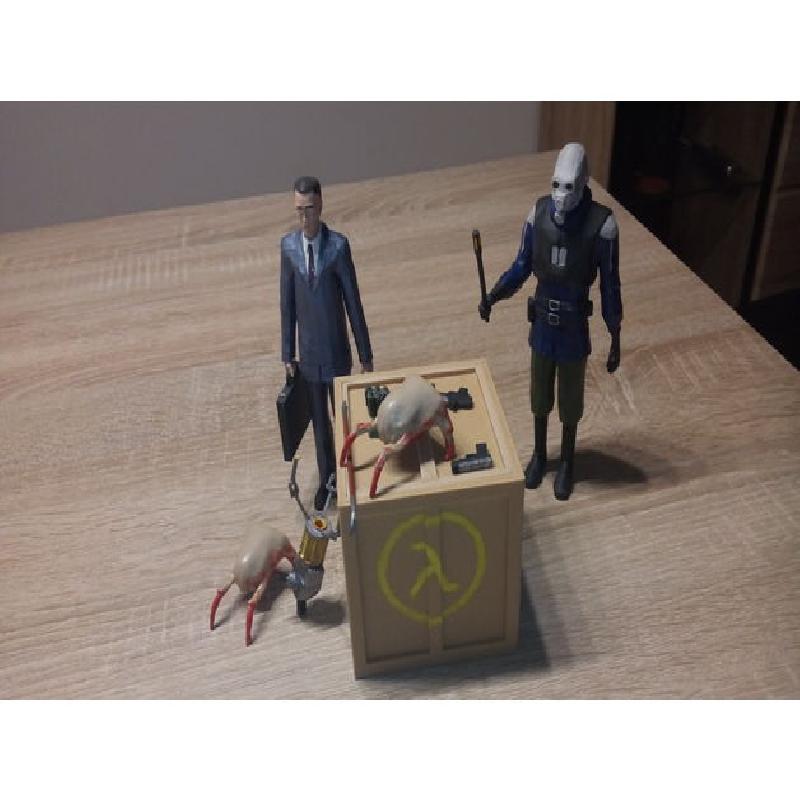

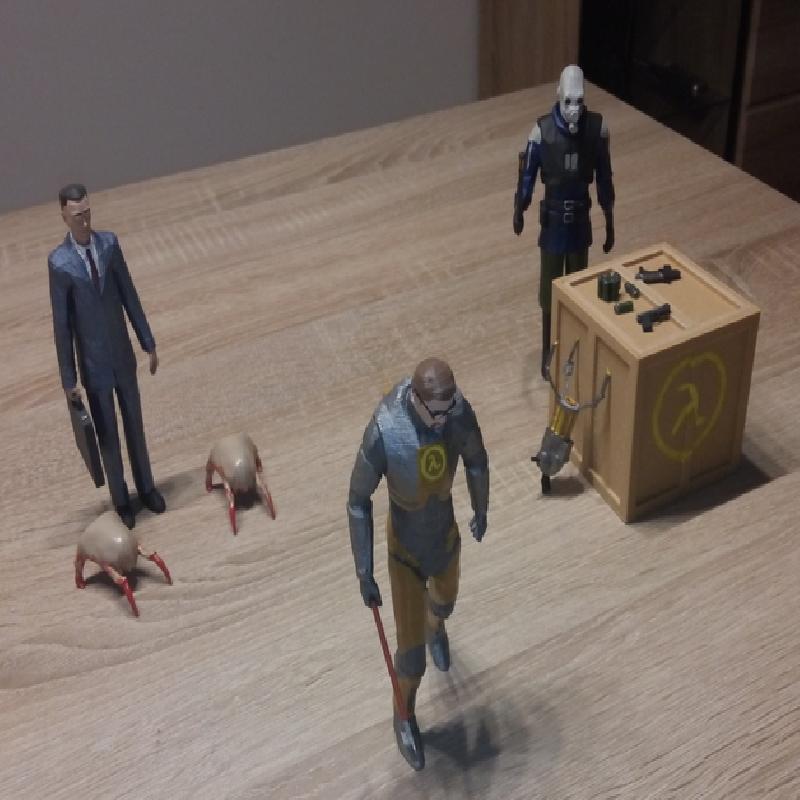

Printed all parts on the Monoprice MP Select Mini, glued it together and painted it - special thanks to my girlfriend who helped me with the colours! The crate was printed with wood "Original Oak" for realistic surface.
These were my first experiences in the design program MeshMixer and paint a figure. The face is very difficult, but I am satisfied, I just started with painting 5 months ago.
Enjoy it and Merry Christmas!
PS: Sorry for the poor photo quality!
Notes:
You can use the complete figure OR the splitted Files (zip-archiv) and glue the parts together. However, the [Character]-"Weapon" always needed.
Note to: Combine-Stunstick & Gordon-Crowbar
If you have problems to fix the weapon to the characters hand, use a drill with a diameter of 2.5mm and clean the hole (only the drill, without drilling machine!).
Print Settings (recommended):
Modell | layer height [mm] | Infill [%] | Support | Raft |

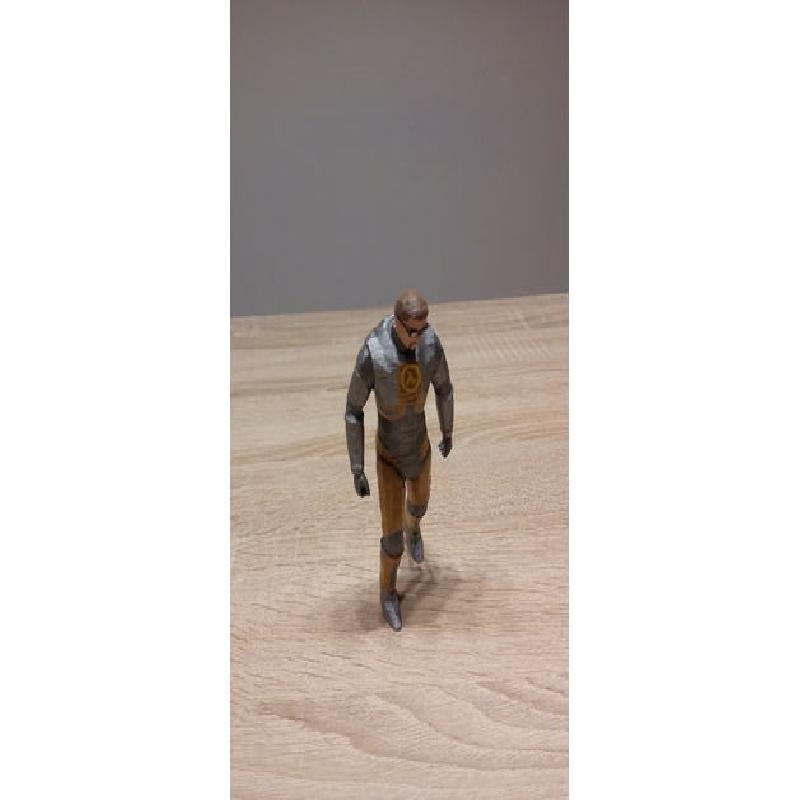

Gordon | ||||
– Part 1 (body) | 0,1-0,2 | at least 17 | no (manuel) | no |
– Part 2 (legs) | 0,1-0,2 | at least 17 | no (manuel) | no |
– Part 3 (hands) | 0,1 | 20 | no (manuel) | yes |
– Crowbar | 0,1 | 100 | no | yes |
Combine | ||||
– Part 1 (body) | 0,1-0,2 | at least 12 | no (manuel) | no |
– Part 2 (legs) | 0,1-0,2 | at least 12 | no | no |
– Part 3 (hand) | 0,1 | 25 | no | yes |

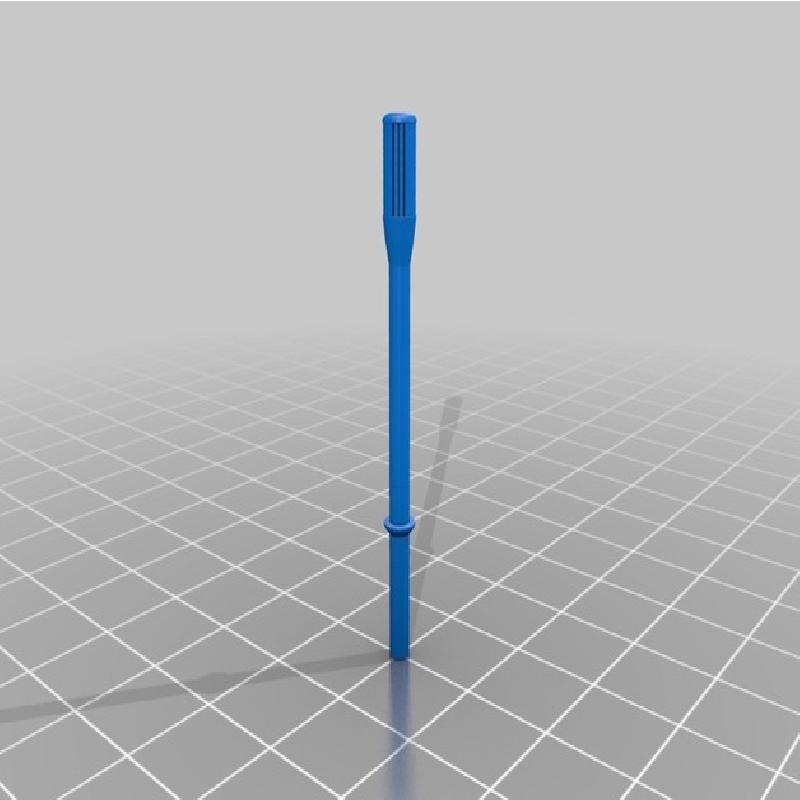

– Stunstick | 0,1 | 100 | no | yes |
Gman | ||||
– Part 1 (body) | 0,1-0,2 | at least 17 | no | no |
– Part 2 (legs) | 0,1-0,2 | at least 17 | no | no |
– Part 3 (hands) | 0,1 | 20 | no | yes |

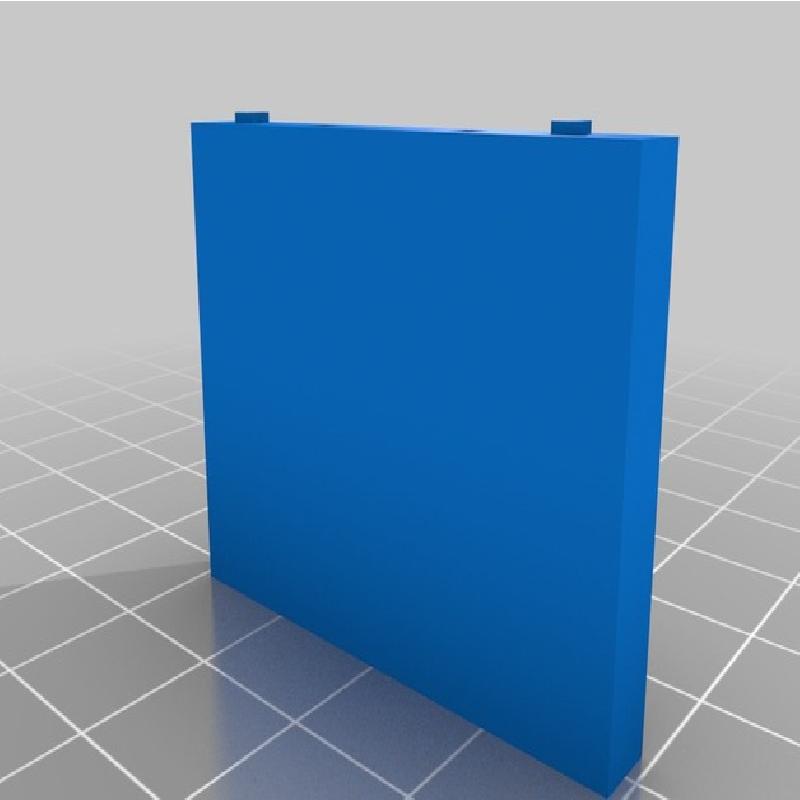

– Briefcase | 0,2 | 17 | no | yes |
Headcrab | 0,1 | 20 | yes | yes |
Weapons-Package | 0,1 | 20 | no (manuel) | yes |

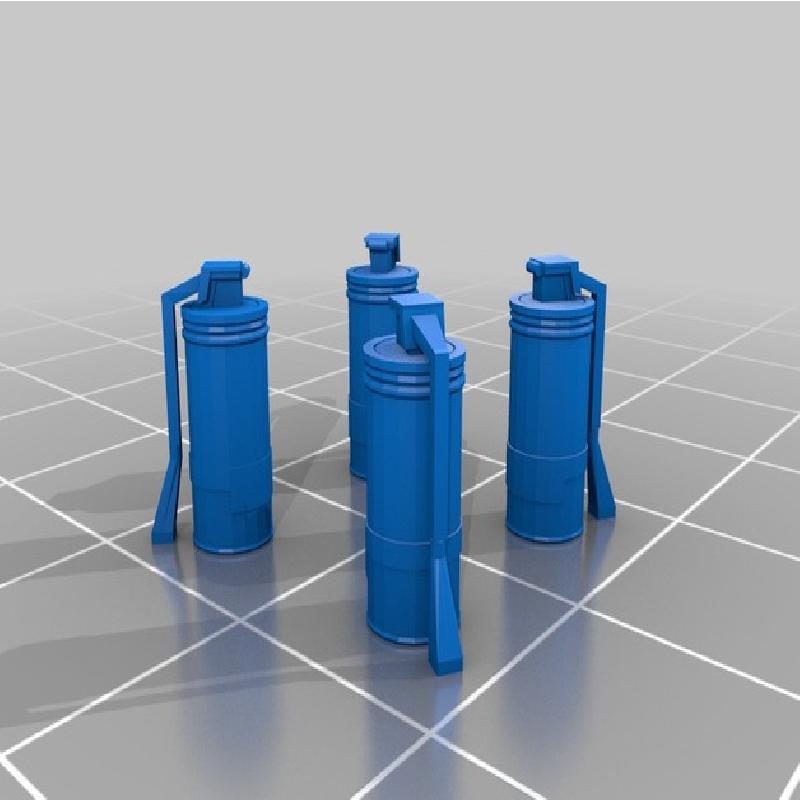

Weapons-Grenades | 0,1 | 100 | no (manuel) | yes |

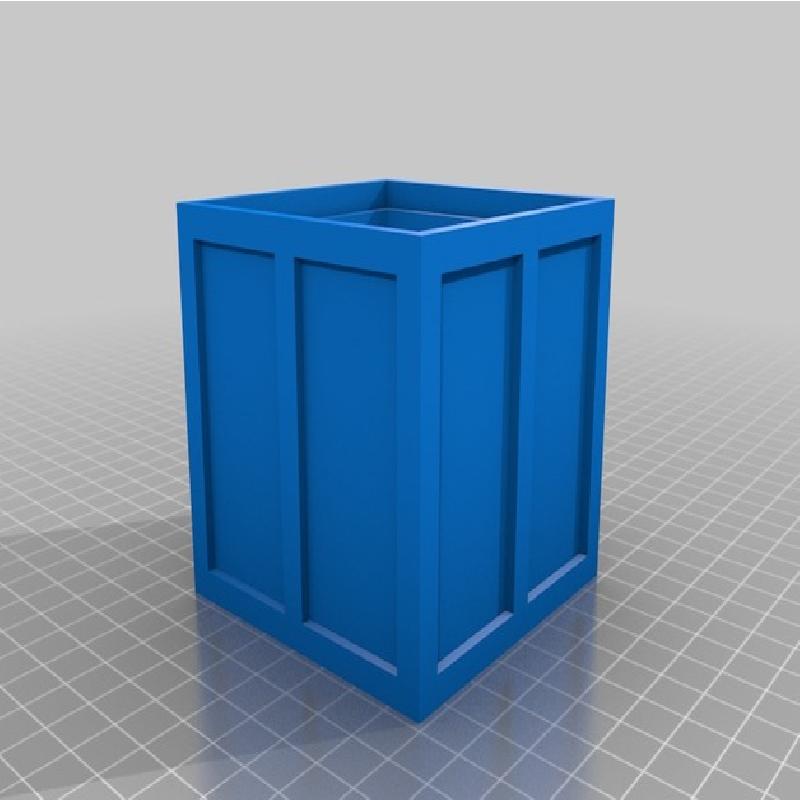

Crate-Base (Wood-Filament) | 0,2 | maximum 25 | no | no |

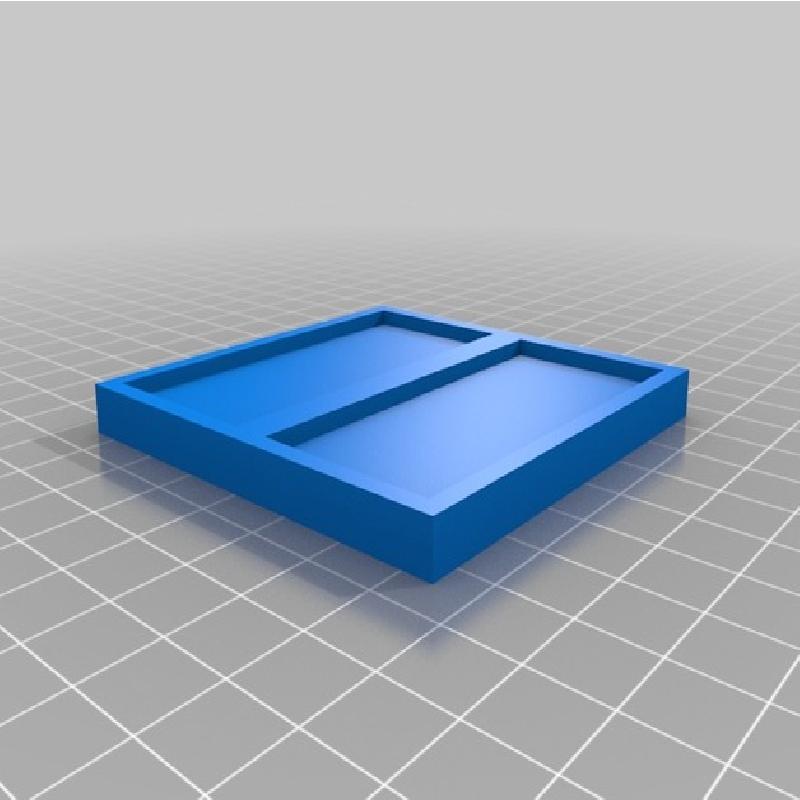

Crate-Top (Wood-Filament) | 0,2 | maximum 25 | no | no |
Design Programs
I haven't designed the characters, check the list below to see where I got it from. I modified the characters with the design programs MeshMixer, Sketchup and netfabb basic.

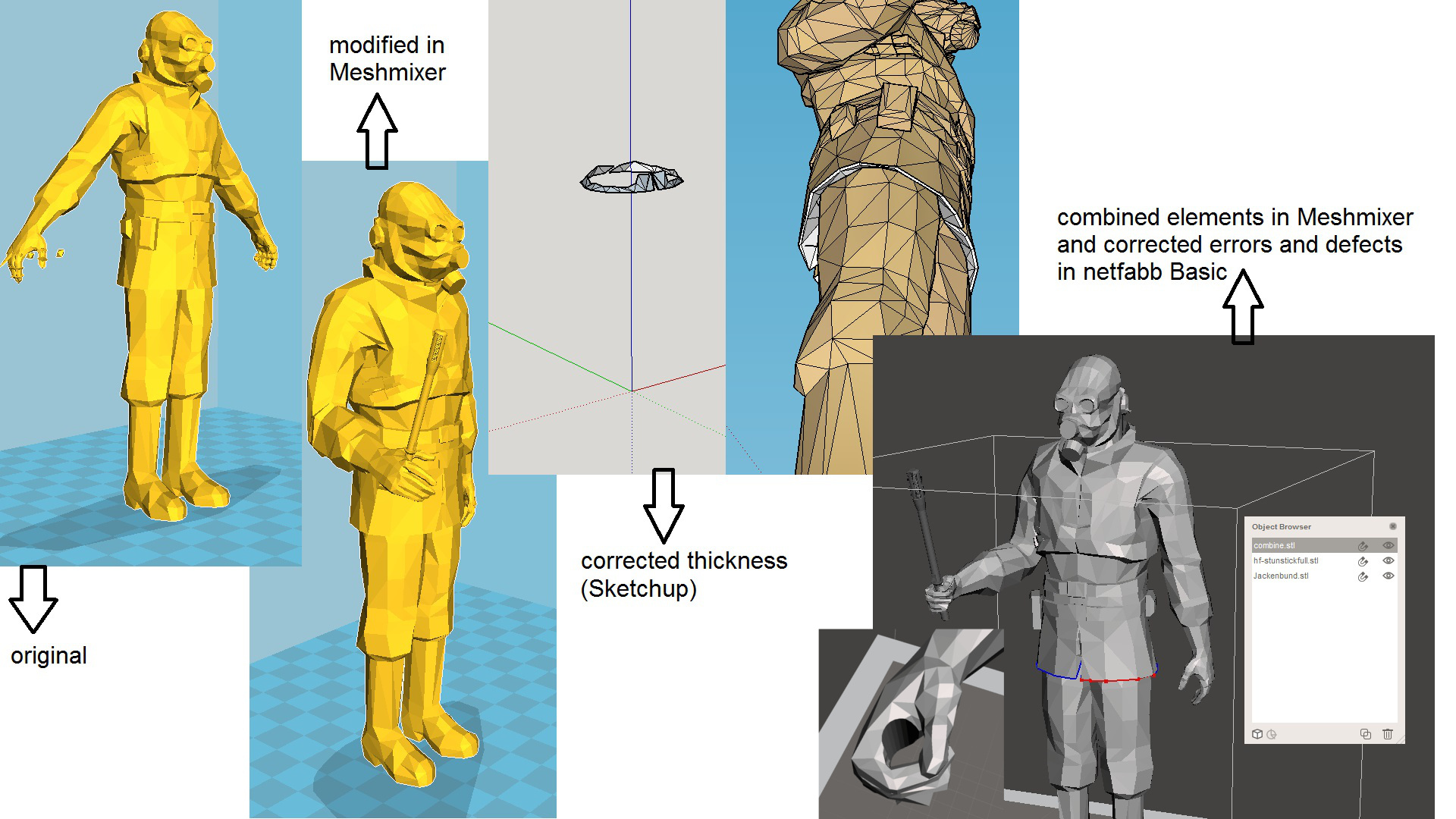

Combine - modifications (overview)

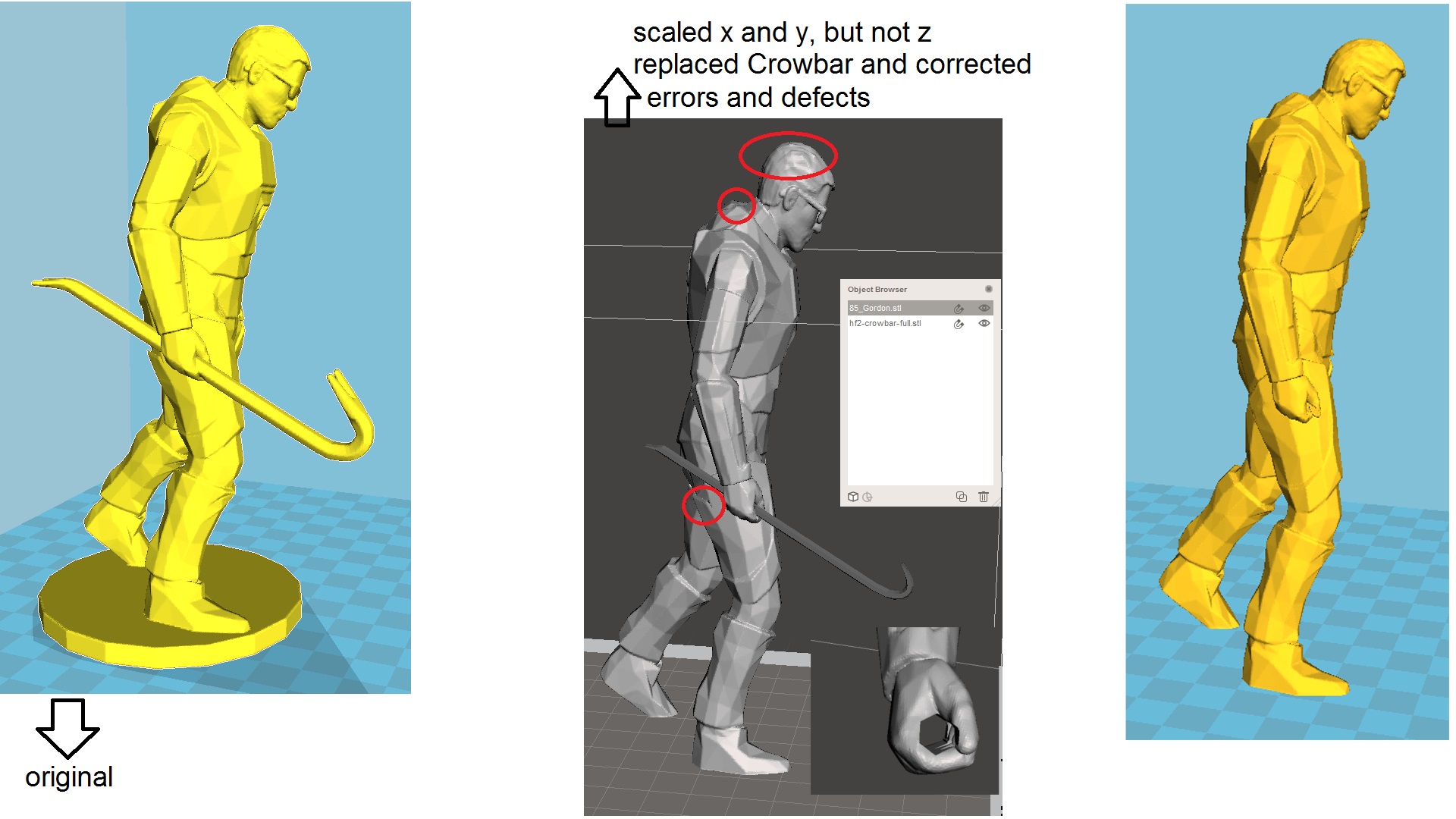

Gordon - modifications (overview)

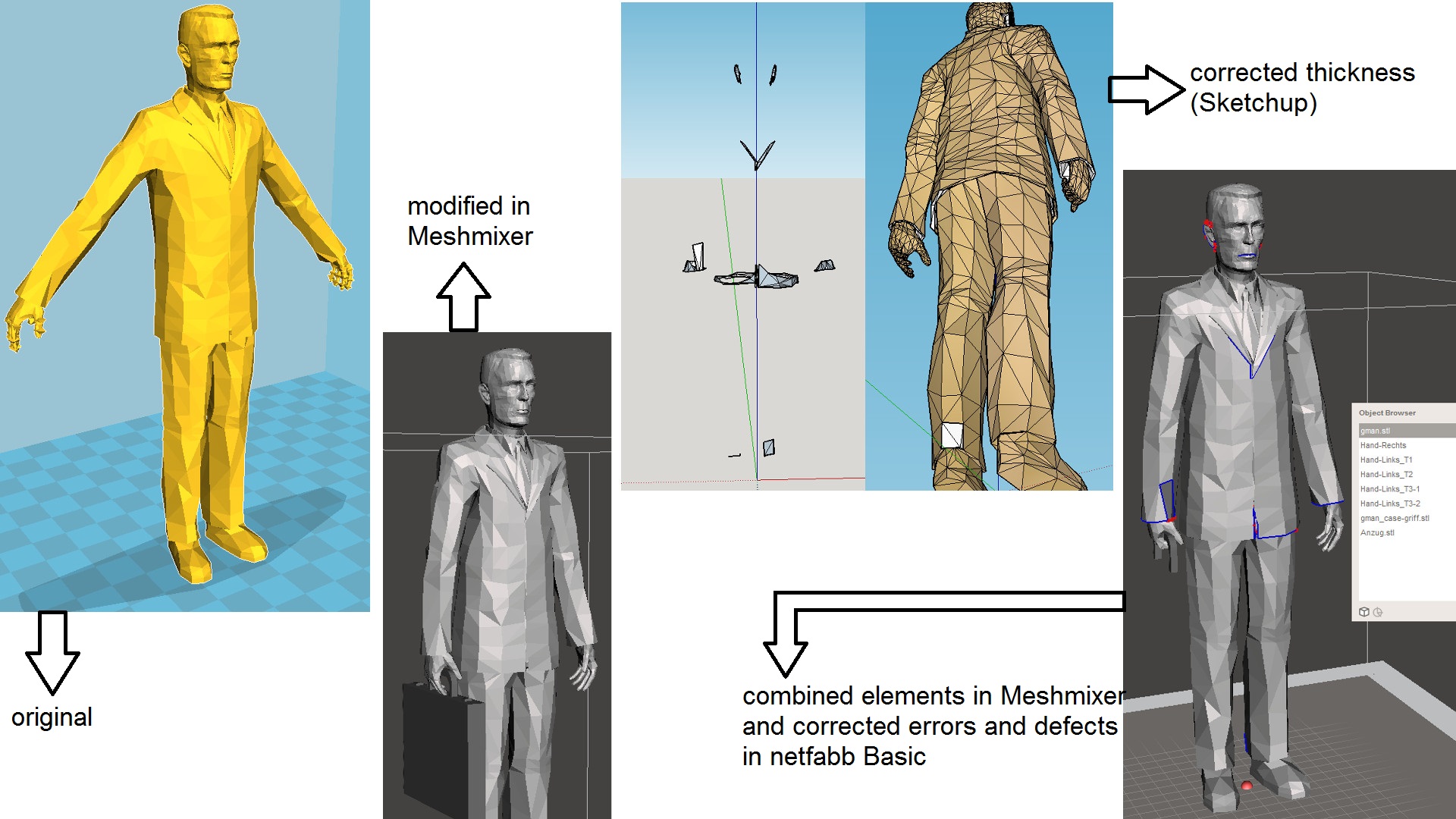

Gman - modifications (overview)
