Modeled in Blender and edited for printing.
Pretty simple to construct:

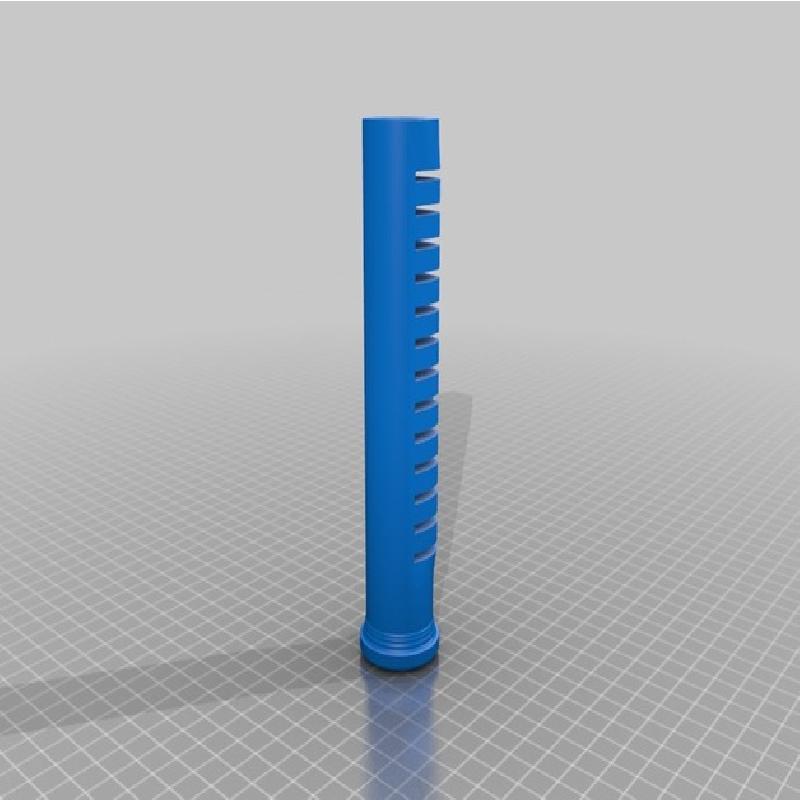

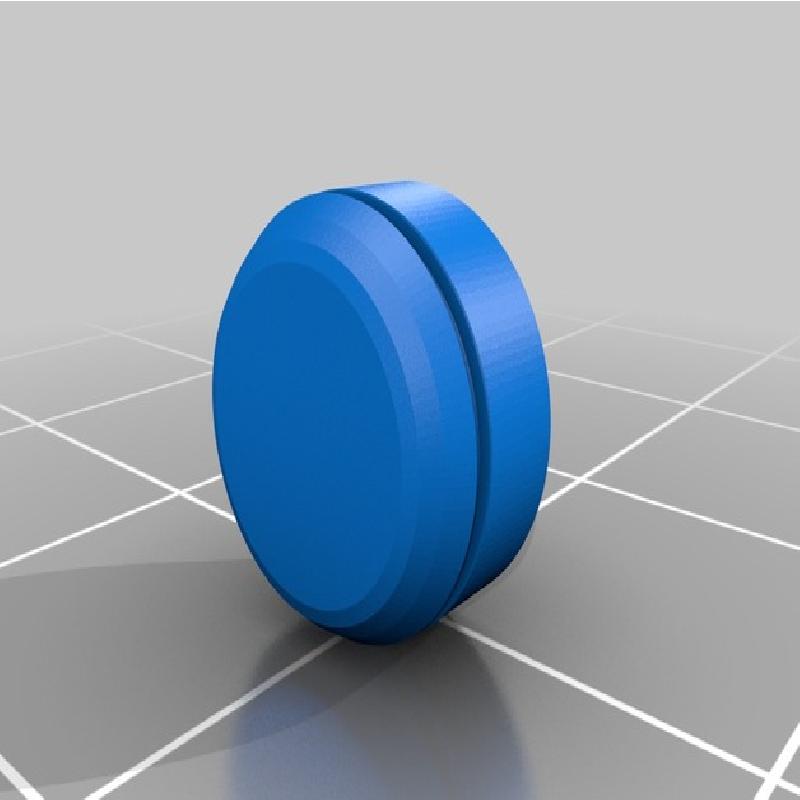

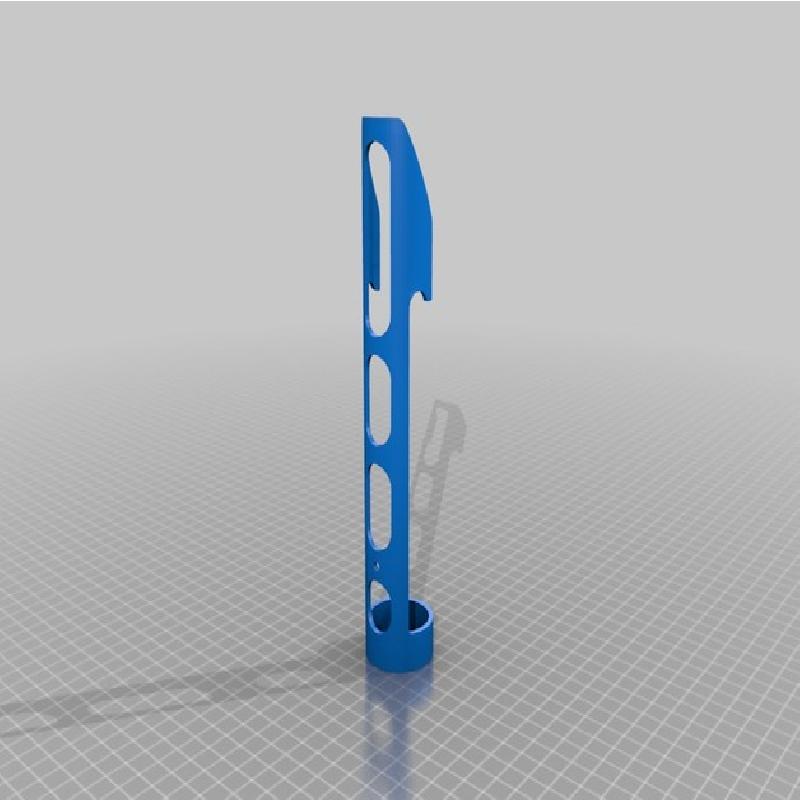

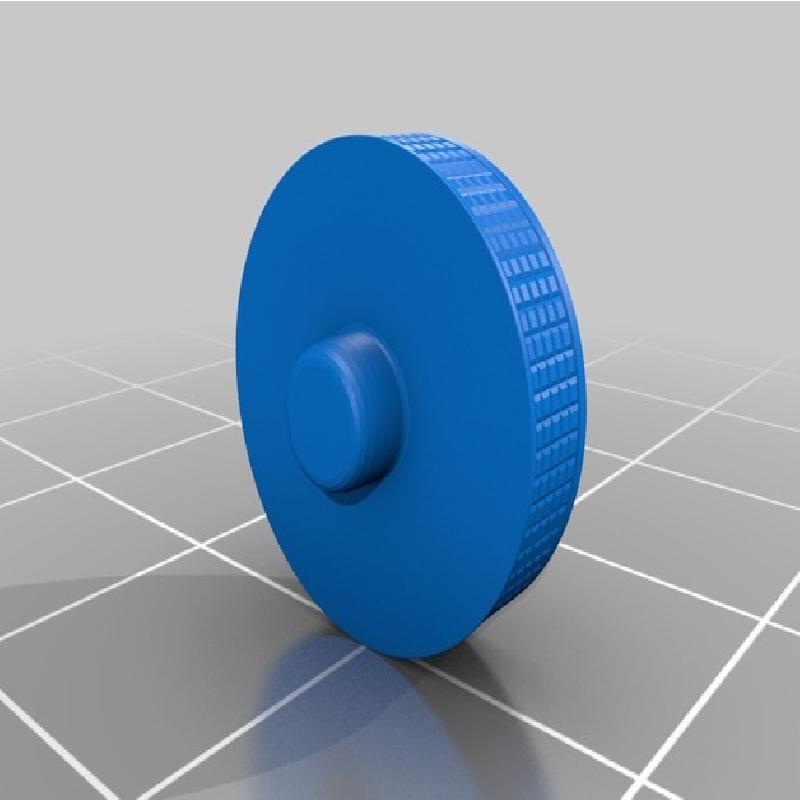

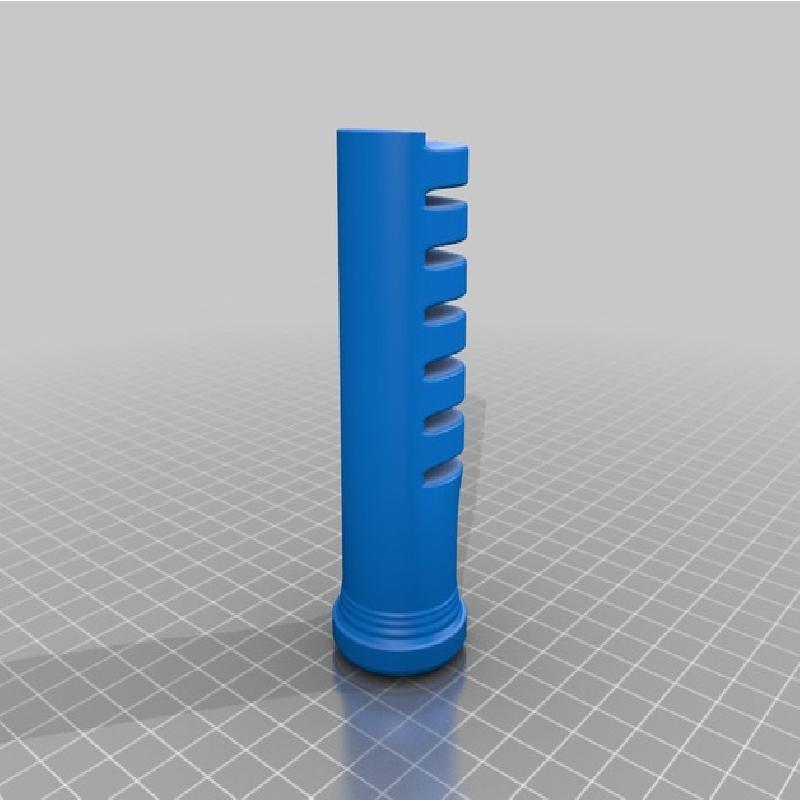

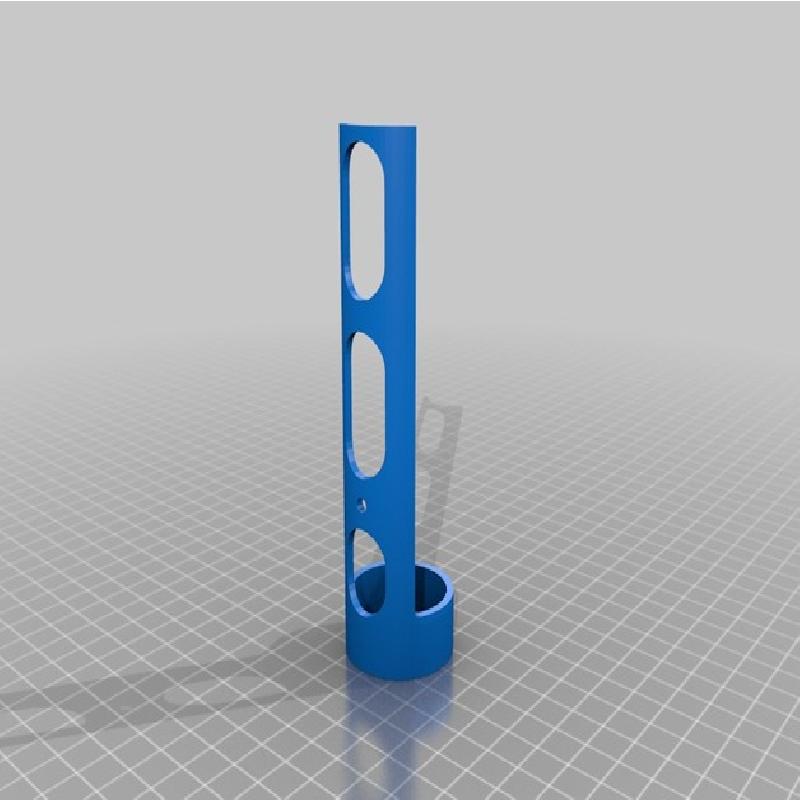

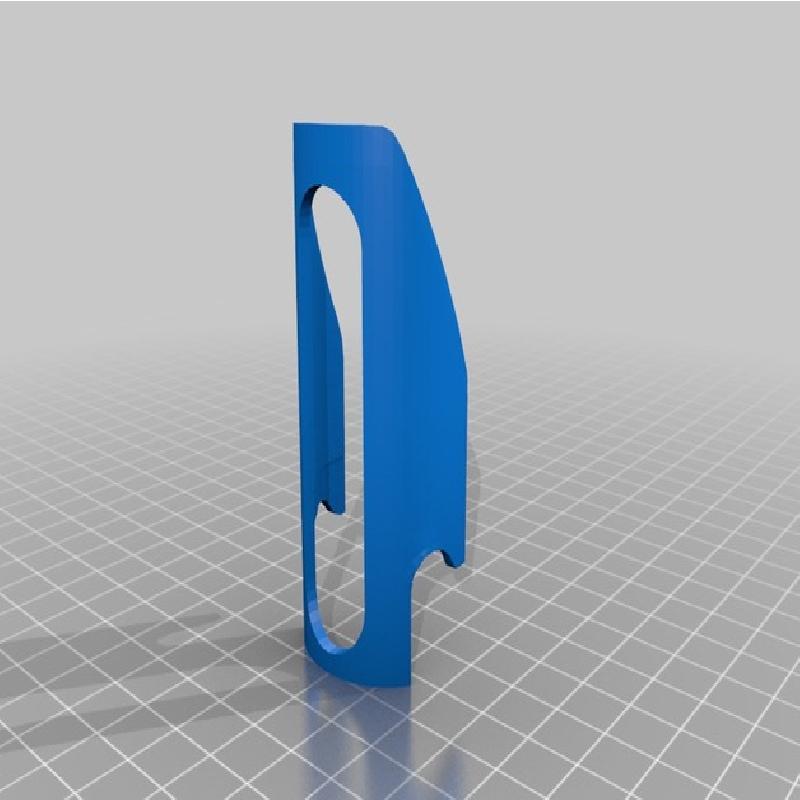

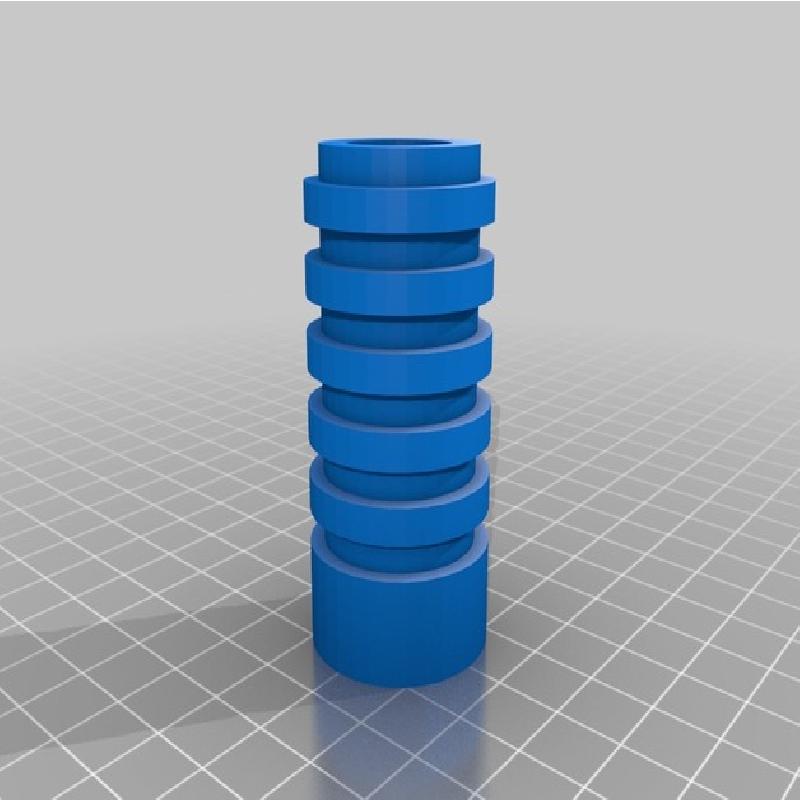

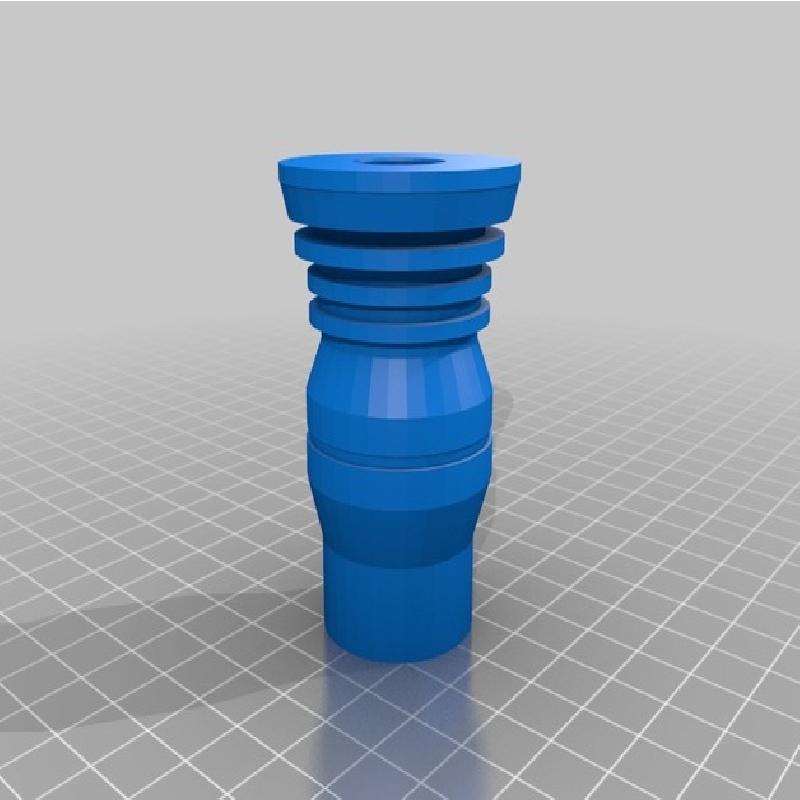

Print a Top, Mid, Bot, Shroud, and Knobs (2)
Glue together

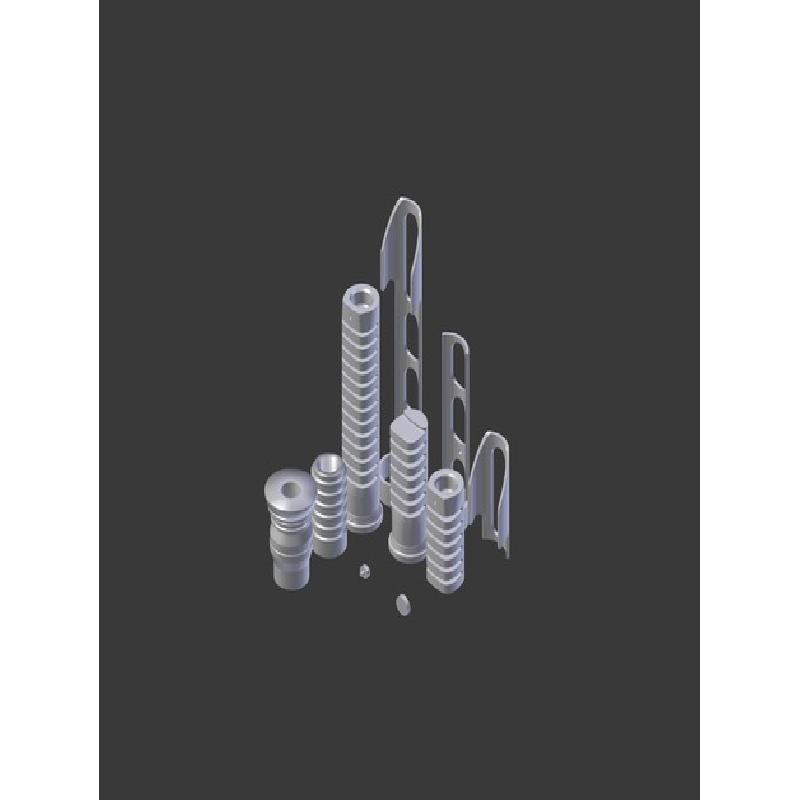

I've included the larger parts broken up to print on smaller printers as well as larger parts.

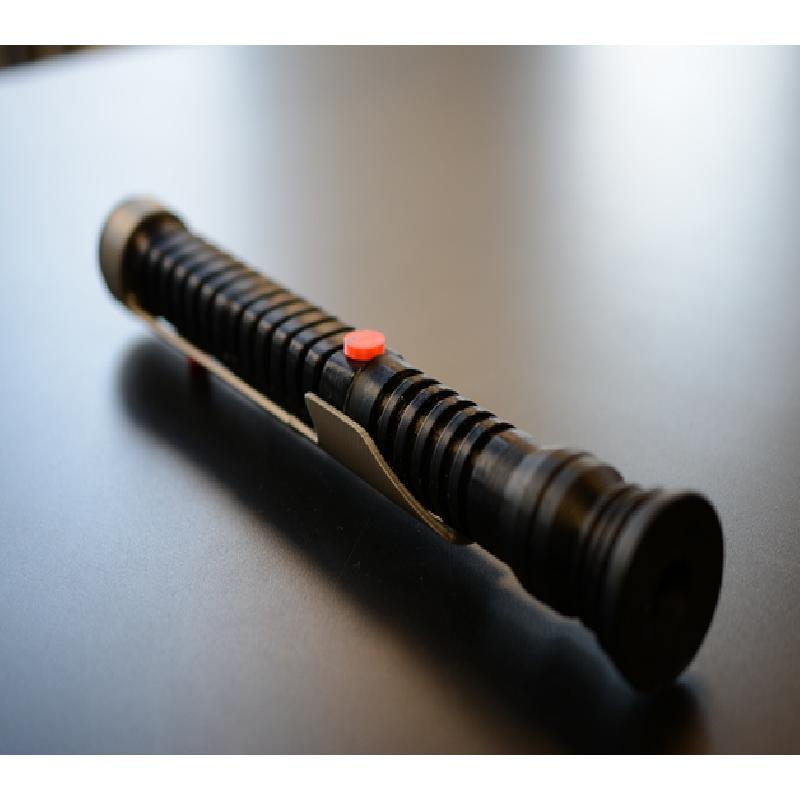

I can print one of these in less than two hours by spreading across 5 Dremel 3D45's - that's the one in the cover image. Can also be painted and weathered.
It really wasn't an attempt to go 100% movie accurate and shouldn't be used as such. I didn't do the design in proper CAD so some of the faces are wonky from the subtraction I used to make the parts printable. Everything should be manifold and I have no issues running it through Simplify3D
Printer:
Dremel 3D45
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
200um/300um
Infill:
20%ish - Doesn't matter
Notes:
Support on the bottom section needs to be carefully removed using tweezers. There's room to get the supports out.
Print everything vertically.
