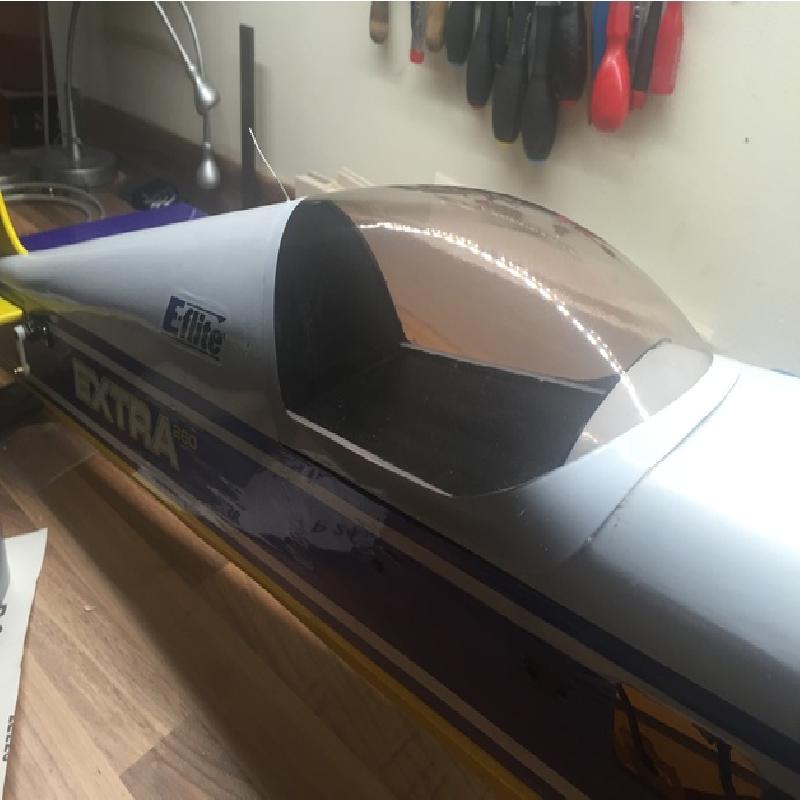

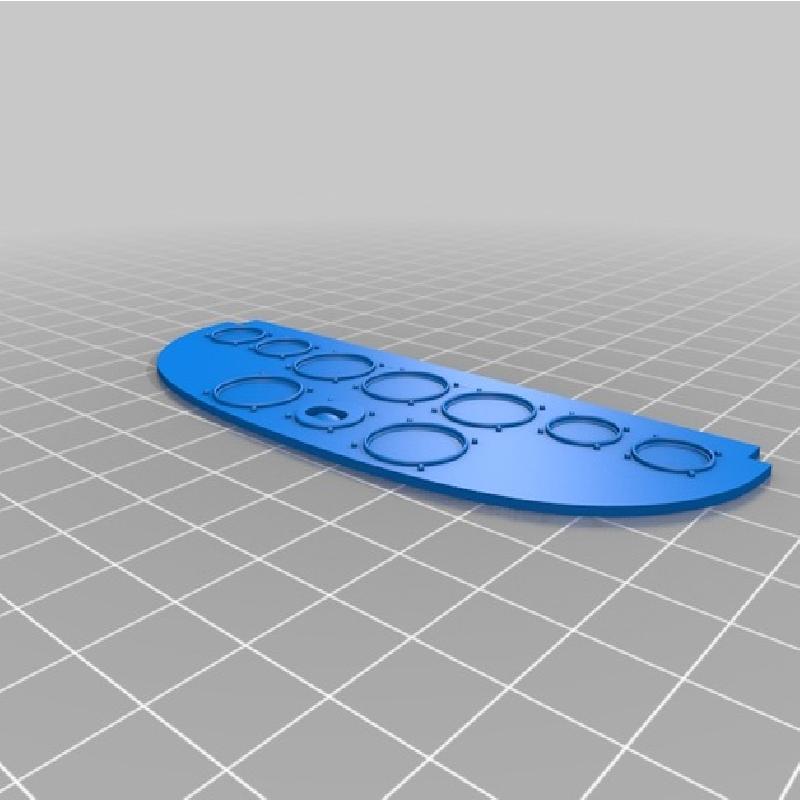

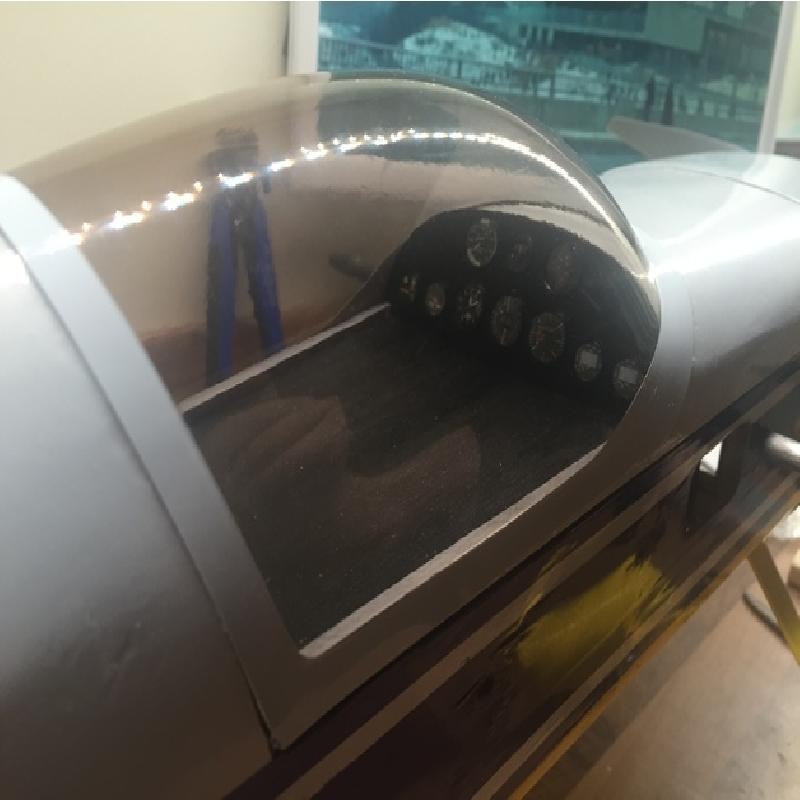

Dashboard to fit e-flite Extra 260 model.
Printer Brand:
Ultimaker
Printer:
Ultimaker 2
Rafts:
No
Supports:
No
Resolution:
0.25
Infill:
100
Notes:
Extruder Temp: 202
Bed Temp: 60
Layer Height 0.1
P/S: 41.7
Retraction on Speed: 25
Retraction on Distance: 4
Print Surface: Glass

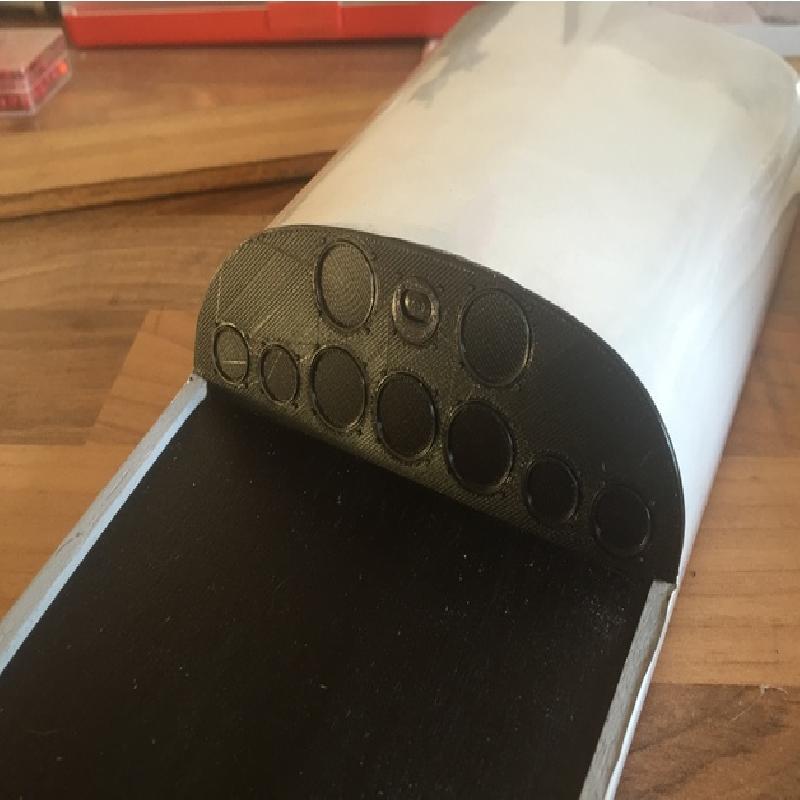

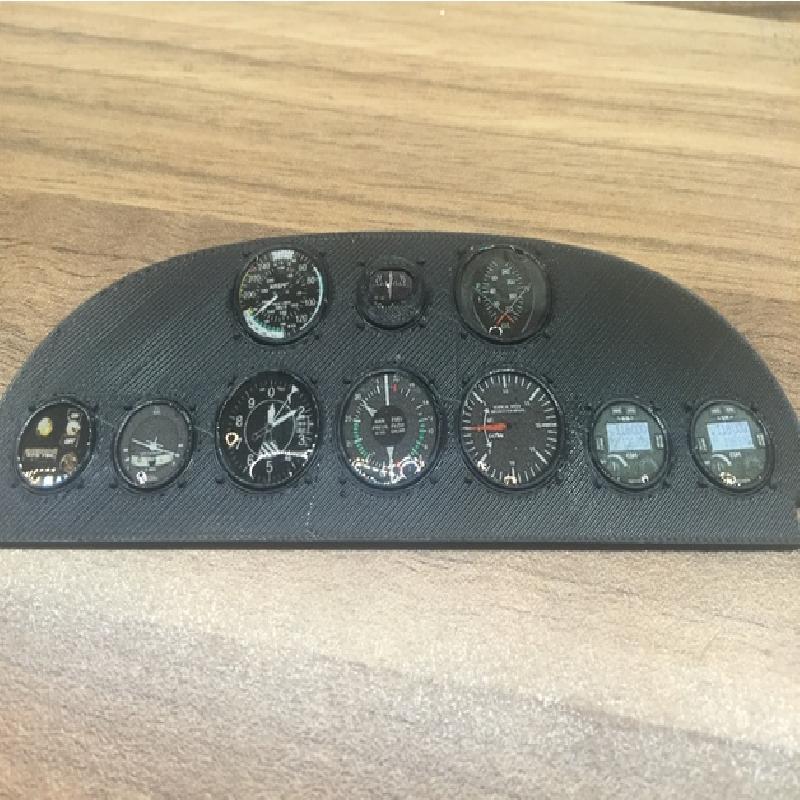

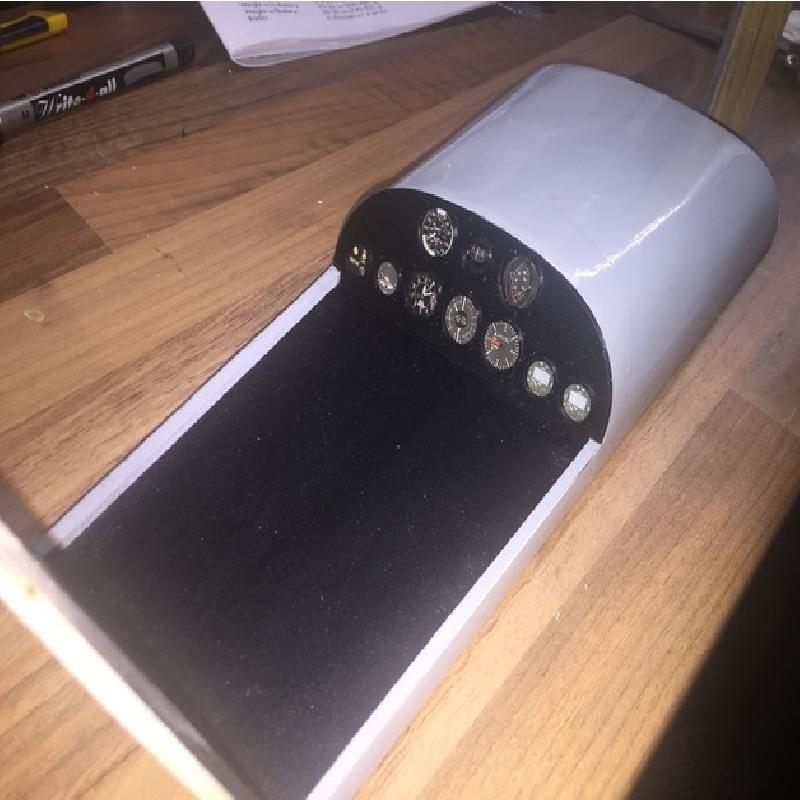

After printing the dash, print the gauge graphics. Cut them out and place in the dash. Fill each gauge with epoxy. This gives the effect of having glass over the gauages. Note the dash may need trimming back a little to fit - easily done with a craft knife or sissors.
