This is a remix of Syfy's Killjoys - Lucy from amazing Sci-Fi TV-Show Killjoys.

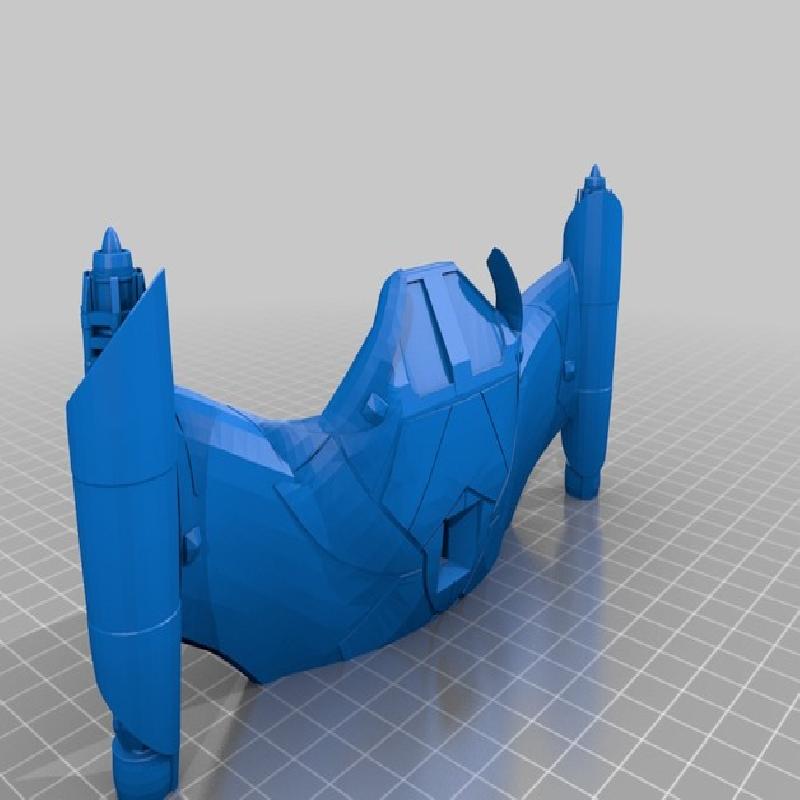

I added the space for the 3mm LEDs in the thrusters which means it wont be able to fly ;-). I also scaled it down to 75% and united the left and right peaces since it fits well on my printplate since it's under 20cm (~7.9") long. The LEDs and cables are inserting during the print (make a loop at the end of the cable so that you can pull it out with a pair of tweezers) which makes it more difficult to print, but it's worth it.

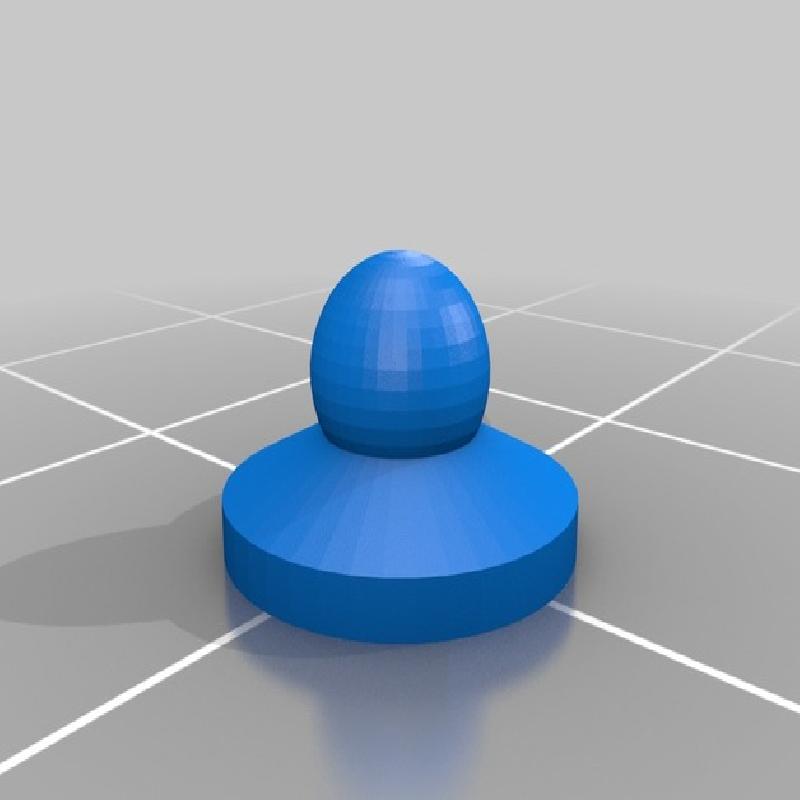

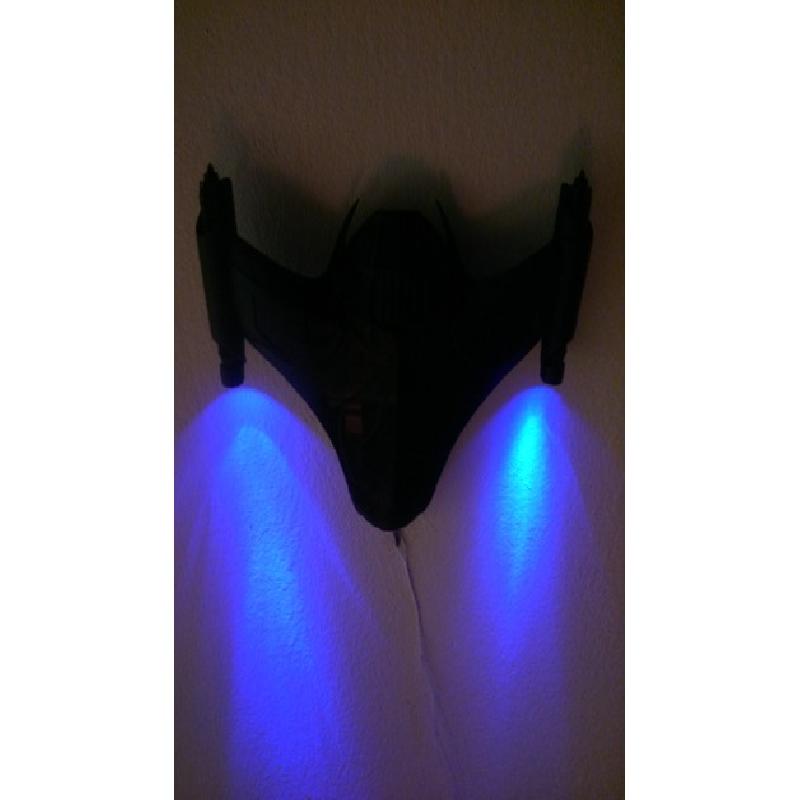

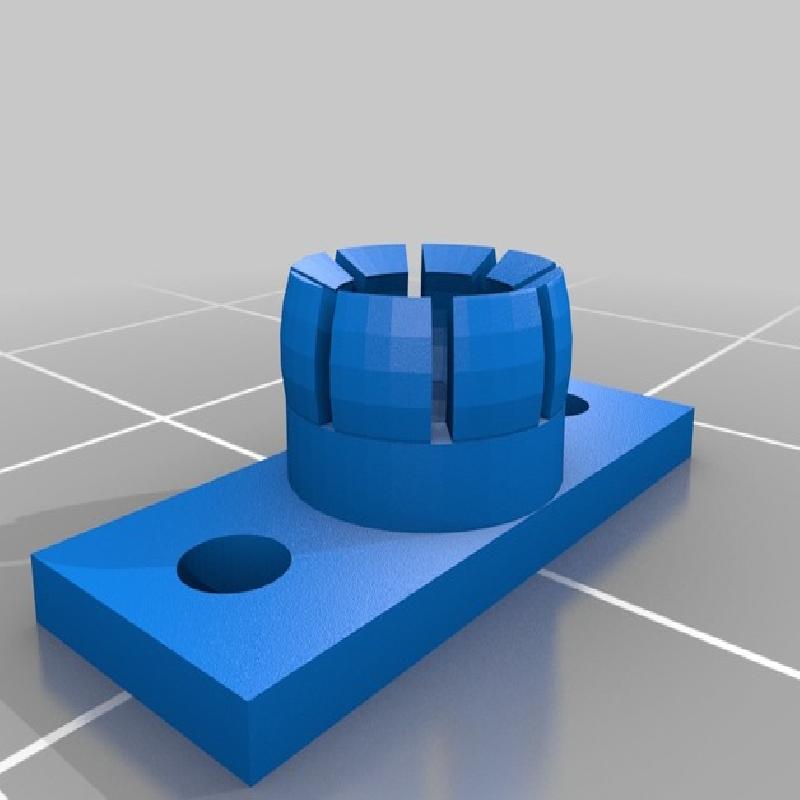

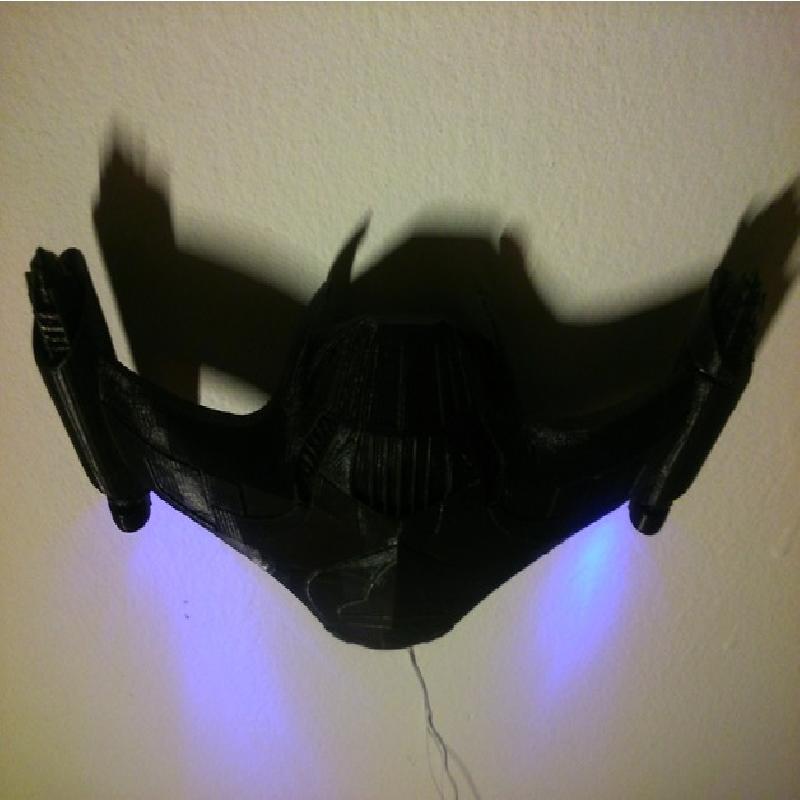

I mounted to the wall with a ball joint that I made with amedrano's library.
If you have any questions or requests feel free to ask them.
Printer:
Prusa i3 Original
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
100µm
Infill:
20% honeycomb
Notes:
Print must be stopped to insert LEDs. This can be done manually (f.e. in pronterface) or by inserting G-CODE at the right position. I used the following code (test it on a small model first if your not that it will work):G1 E-0.00422 F1800.000 ; pressure dischargeG0 X0 Y190 ; move the extruder to the left backsideM300 ; pause and wait for button press on printerG28 X Y ; recalibrate the x and y axis since the motors loose steps when paused too longG1 E0.00422 F1800.000 ; pressure advance
