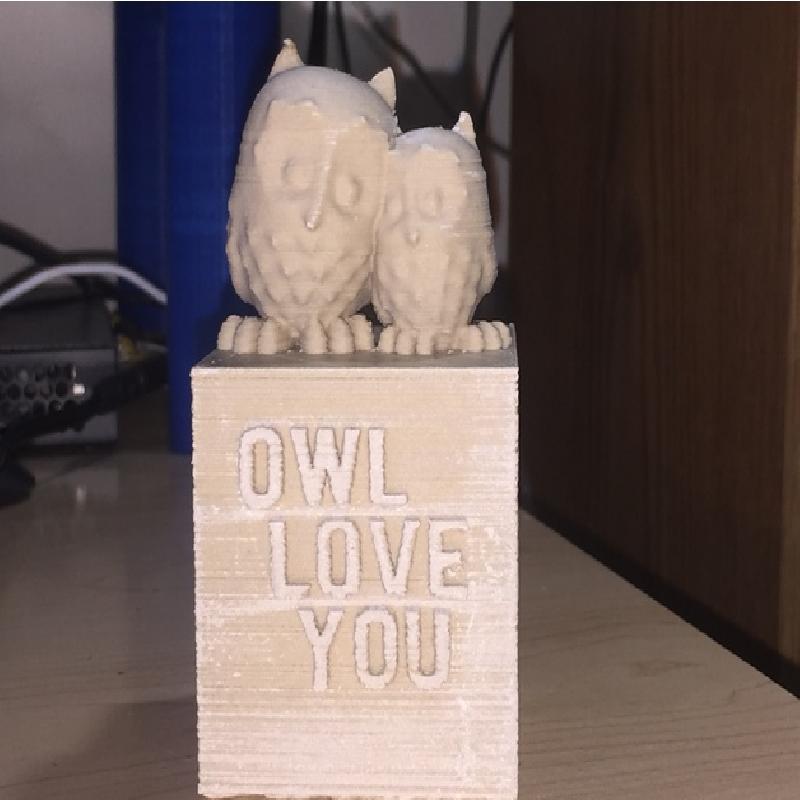

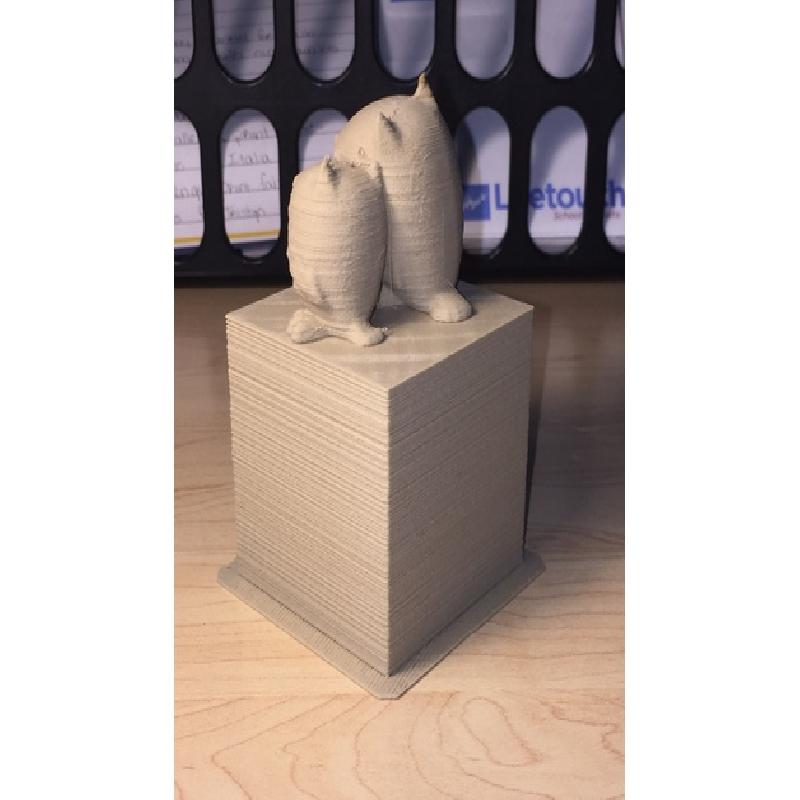

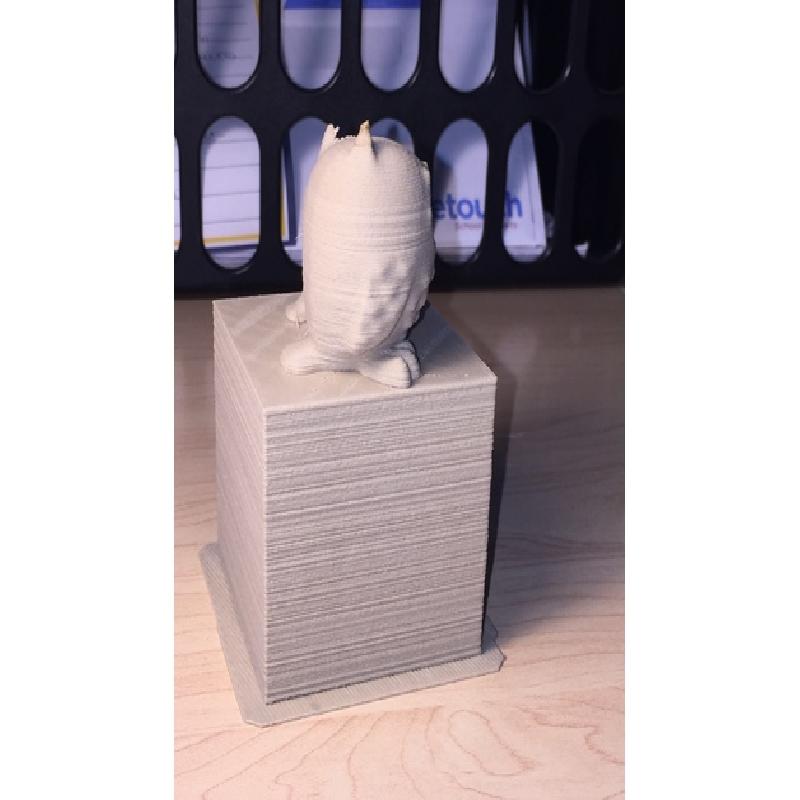

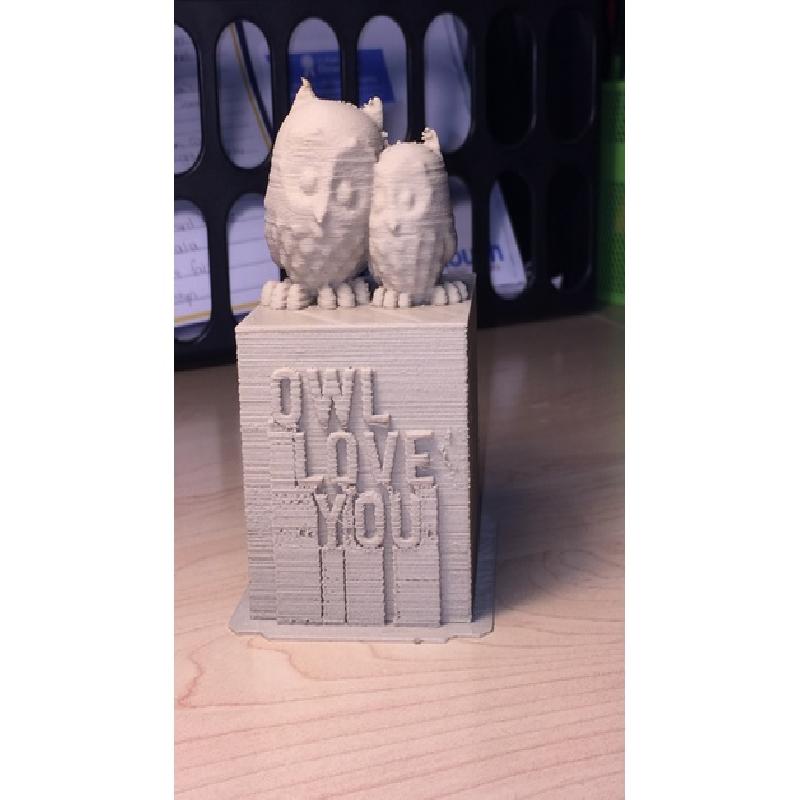

Created a box that the cuddling owls sit on with the words "Owl Love You" on the front for my wife (since she loves owls). I have attempted this several other times with not great results (due to settings and being relatively new to 3d printing). I used AMX3d 1.75mm Wood filament.
I used Tinker CAD to create the "Owl Love You" phrase.

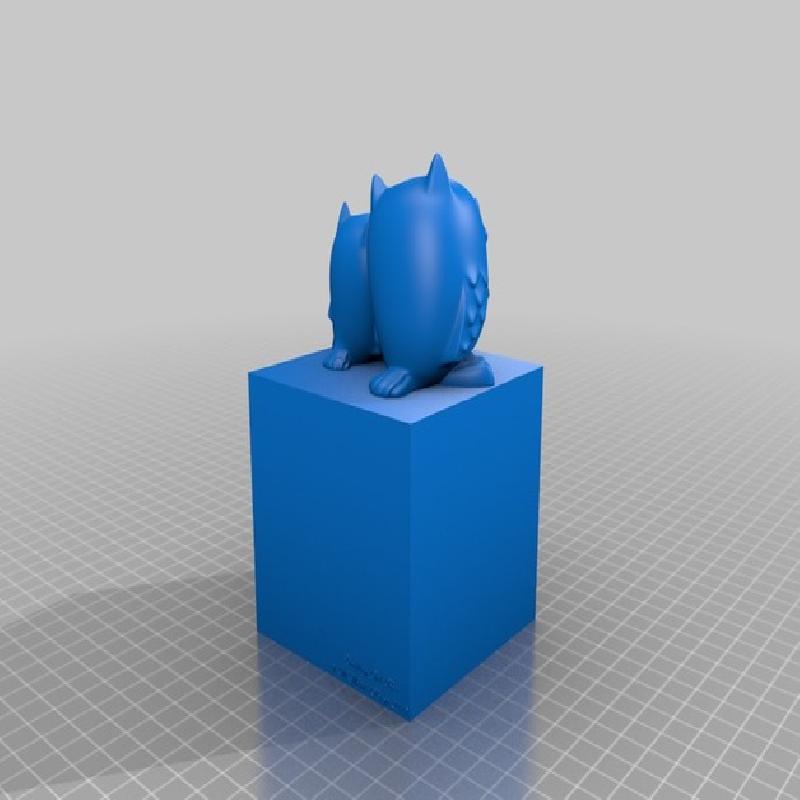

123D Design to create the block and place the "Cuddling Owls" and "Owl Love You" onto the block. With finally slicing the stl file in Simifly3D.
Printer:
i3
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
.2 for box and .12 for owls
Infill:
0%, 10% & 20%
Notes:
Used Simplify3D for slicing:
3 Processes
Process1 - LayerHeight .20; 10% infill - 0 - 53.5 Height
Process2 - LayerHeight .20; 20% infill - 53.5 - 56.80
Process3 - LayerHeight .12; 0% infill - 56.80 - End
Speed = 42mm/s w/perimeter @ 32%
Filament: AMX3d 1.75mm Wood filament @ 210/C, bed @ 60/C
Build Summary (estimated):
Build time: 7 hours 49 minutes 33 seconds
Filament length: 20661.4 mm (20.66 m)
Plastic volume: 49696.42 mm^3 (49.70 cc)
Plastic weight: 62.12 g (0.14 lb)
Material cost: $1.62
