Got chickens? Then you're all too familiar with having an abundance of eggs and constantly asking for egg box donations.

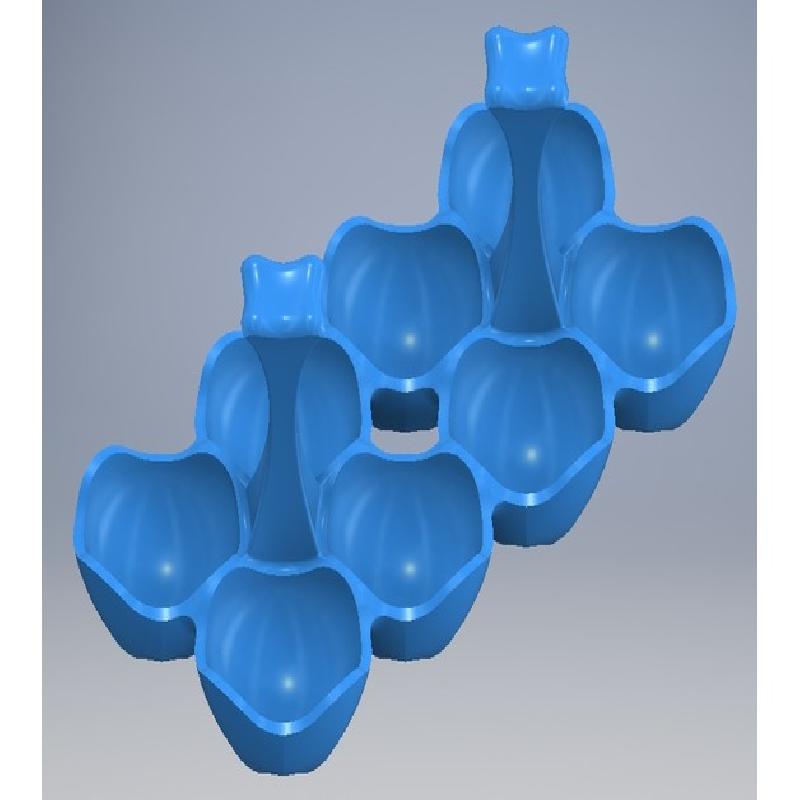

These stackable egg storage trays are far more attractive than having stacks of egg boxes everywhere.
Printer:
Flashforge Creator Pro
Rafts:
Yes
Supports:
Yes
Resolution:
0.1-0.2
Infill:
low (<20%)
Notes:

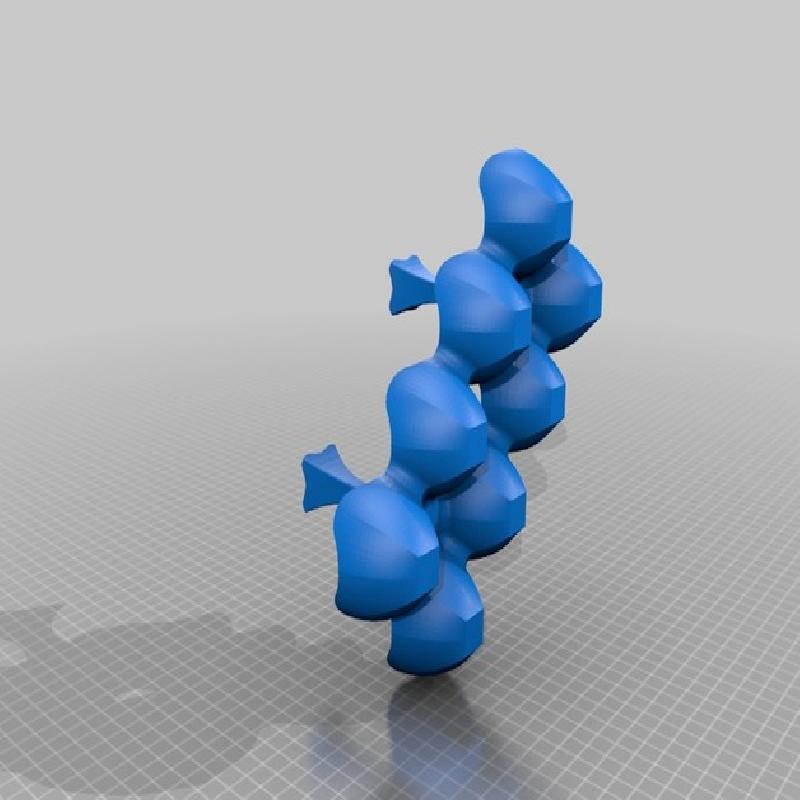

Support is required in the 'armpits' of each egg cup and under the two almost flat areas beneath the pillars.
The basics...
I used Autodesk Inventor.
I used surface modelling, where I created a 'skeleton' of the desired shapes to produce surface features which I patched together into solid objects.
Sometimes features were obtained (e.g. the wavy tops of the egg cups) by sculpting one shape from another and other times the surface models were replicated using either the mirror or rectangular pattern features.
I finished off by filleting the edges of features to make it look smooth and organic.
I hope you like.
