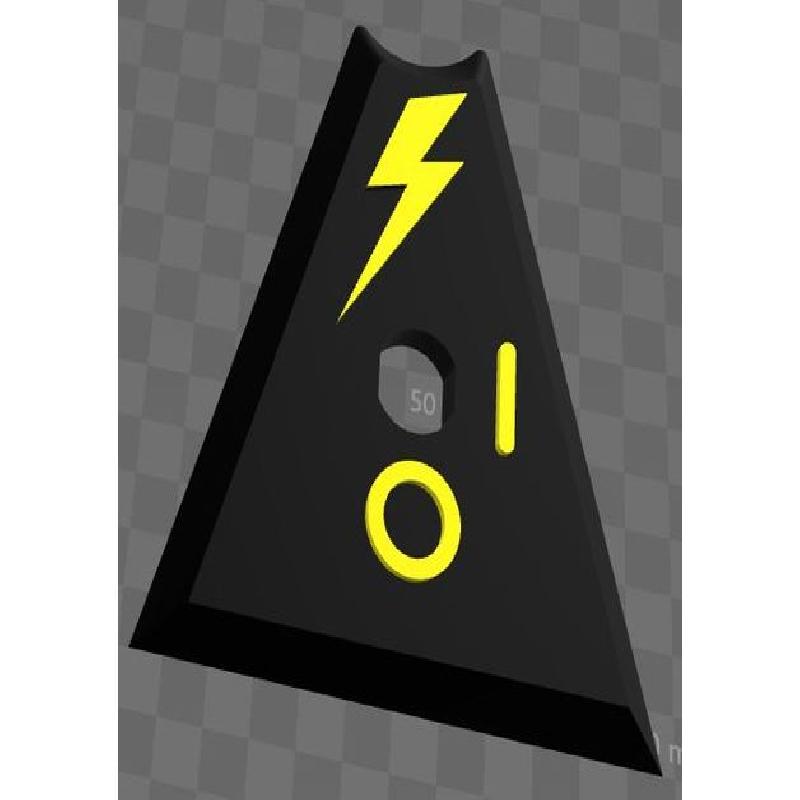

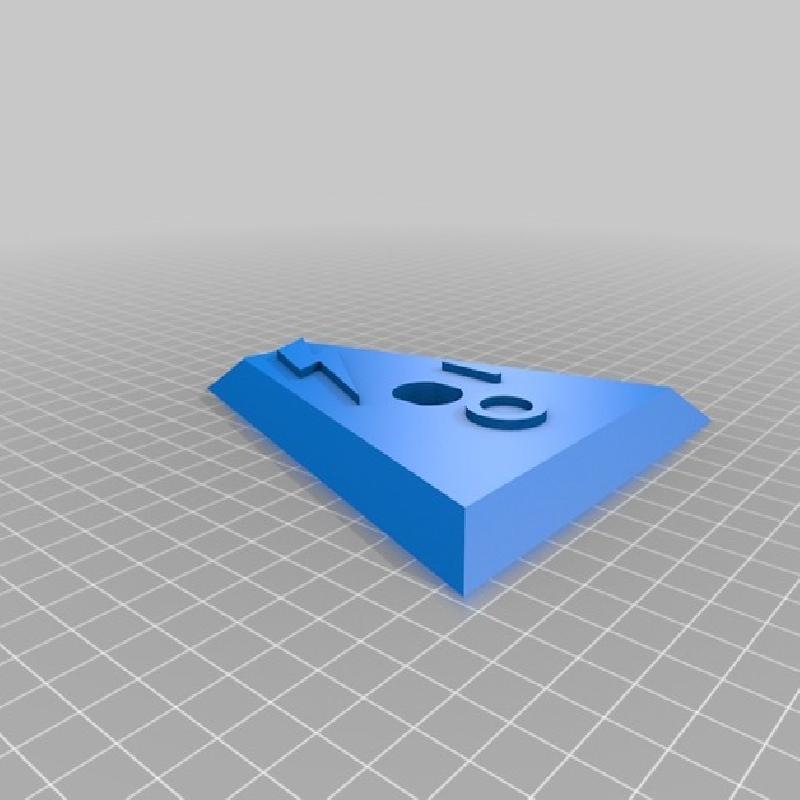

This is an Ignitionkey Plate for a lot of Ebike Frames.
I designed it for the Vector Ebikeframe.
The Ignitionkey for this Plate is available at Reichelt.de
The Order Number is : NS 30
Printer Brand:
Prusa
Printer:
Prusa Mk2
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
10%
Notes:
I printed this part with the color change feature of the Prusa MKII
Frame Preparation

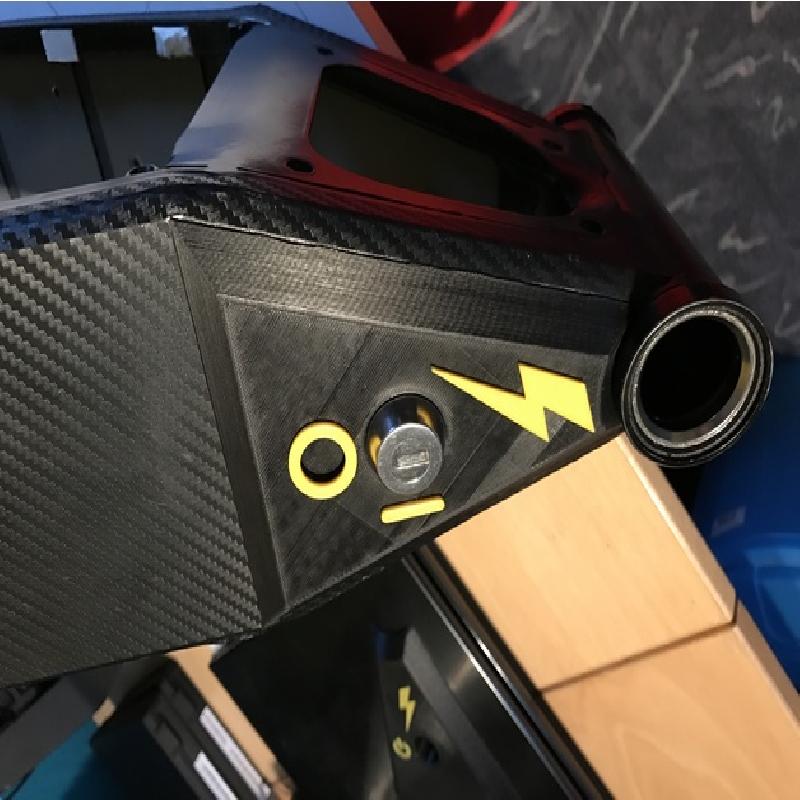

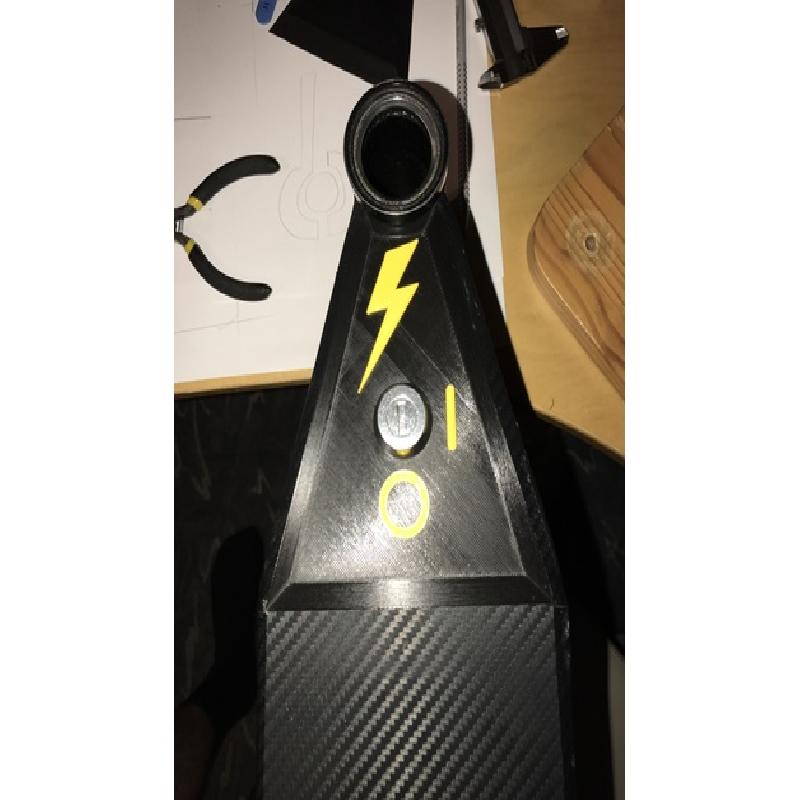

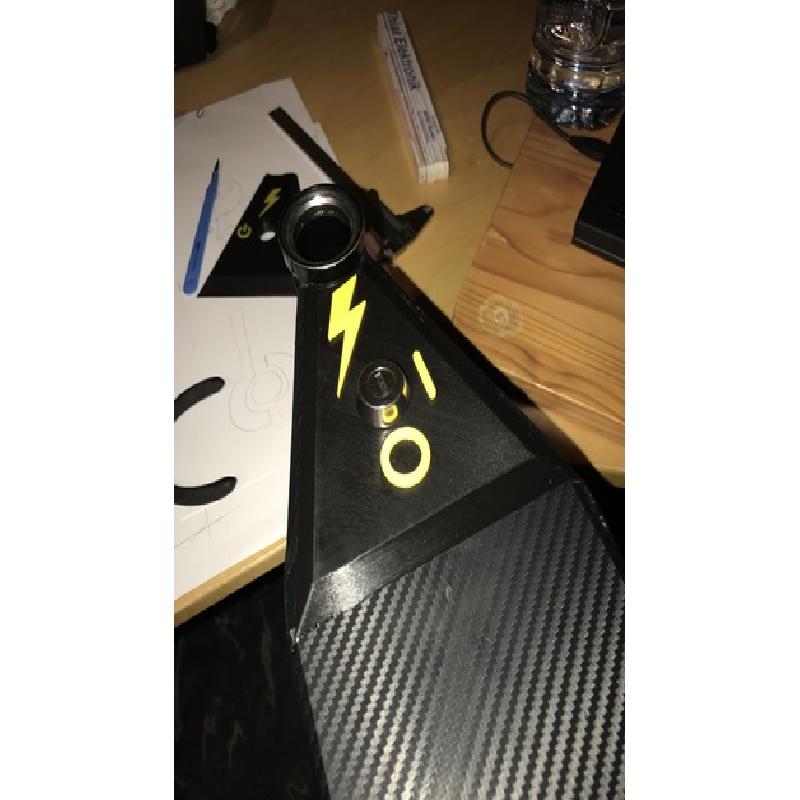

When you´ve printed this Plate you have to arrange it on the top of your Frame.
Then you need to draw the hole and drill it out of the Frameplate.
The Plate is getting hold in place only by the Ignitionkey.
When the Ignitionplate doesn´t hold in place you can add some silicone unde rthe plate for fixation.
