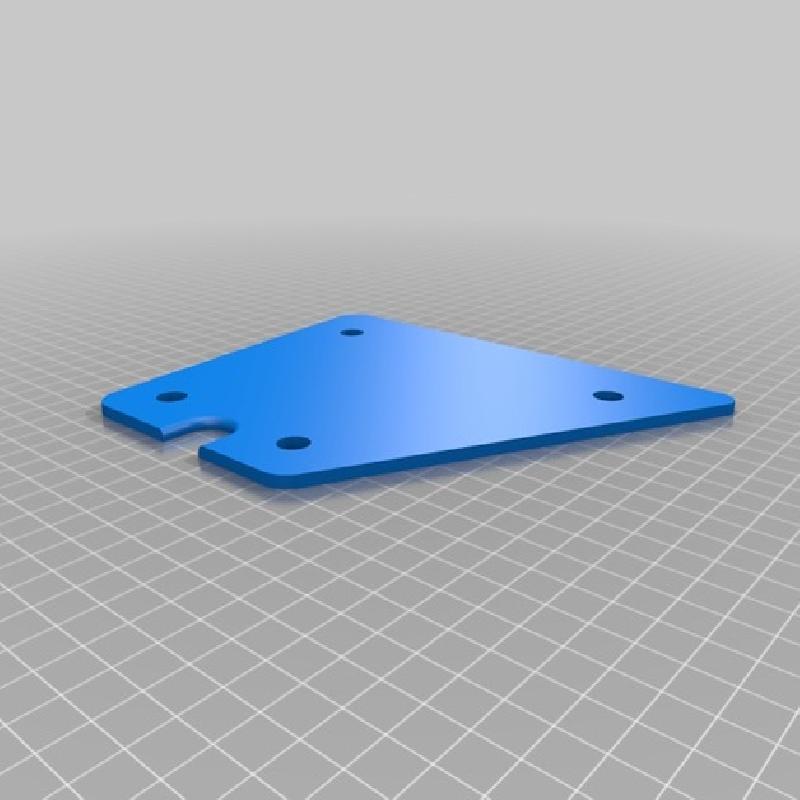

These are the Small upper Sideplates for Vector Frames.

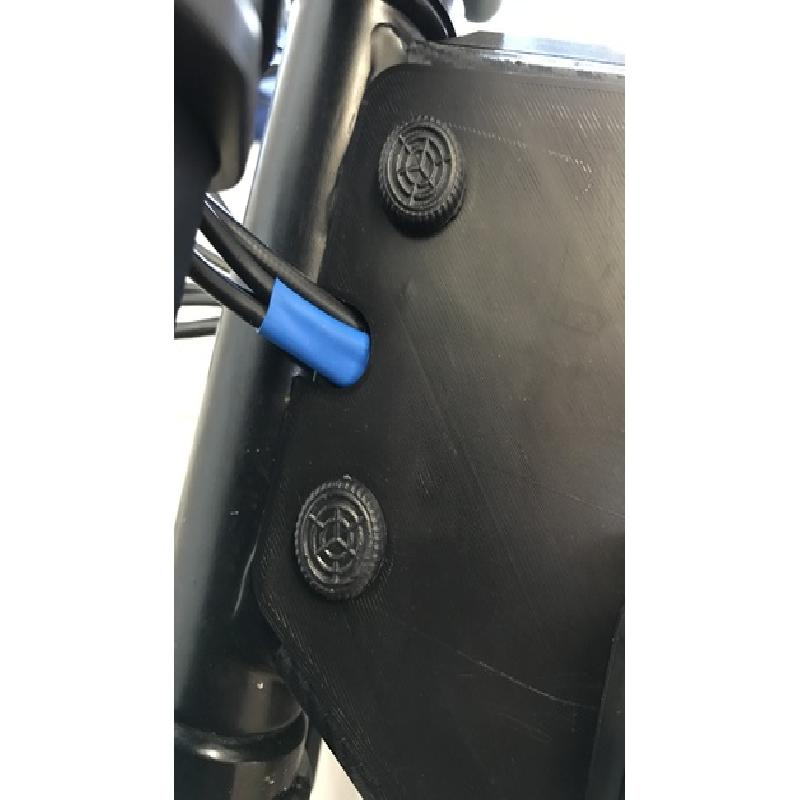

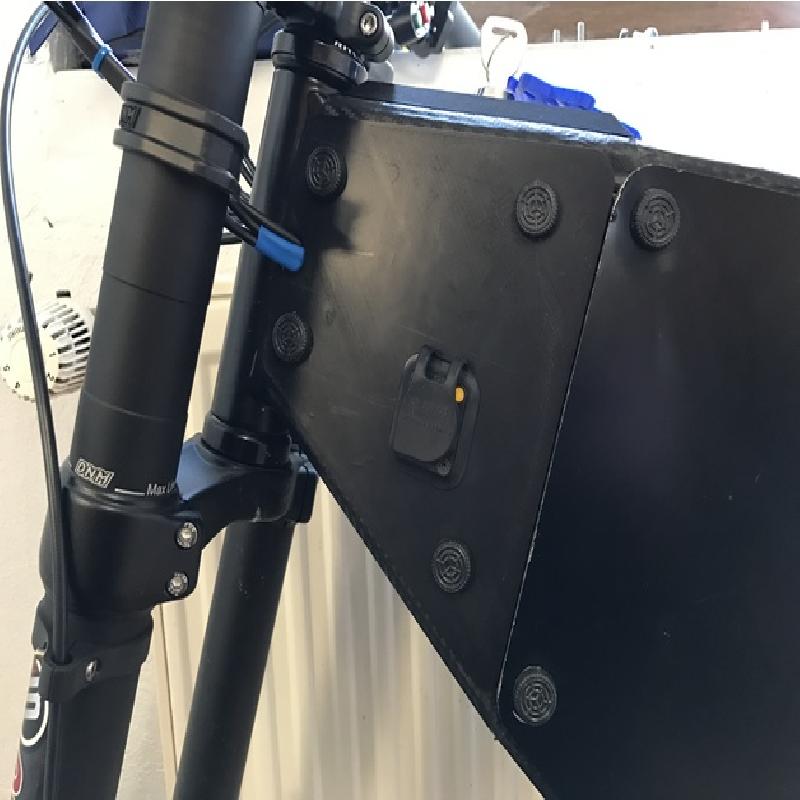

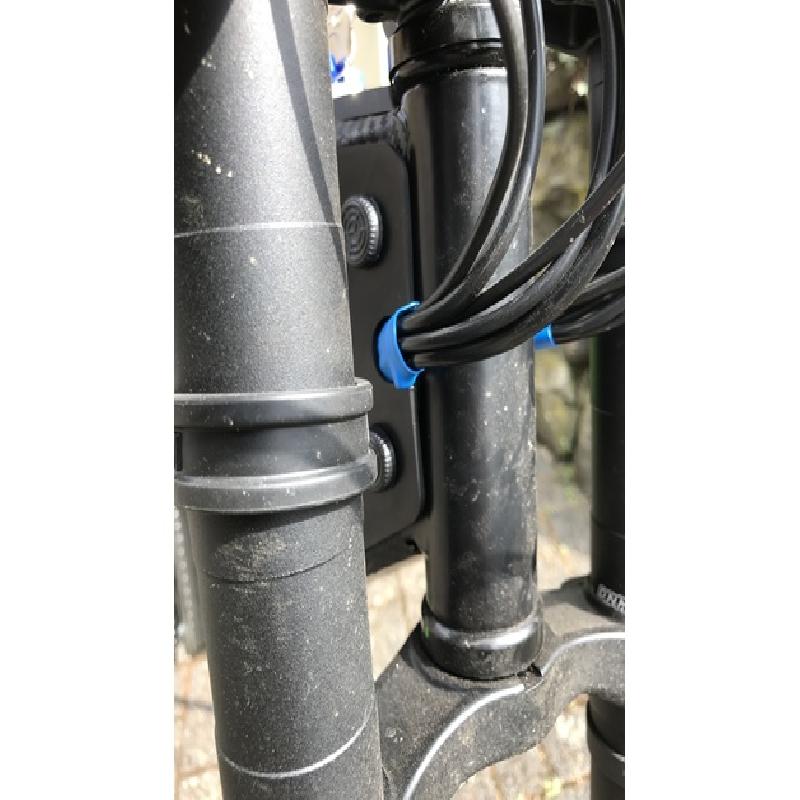

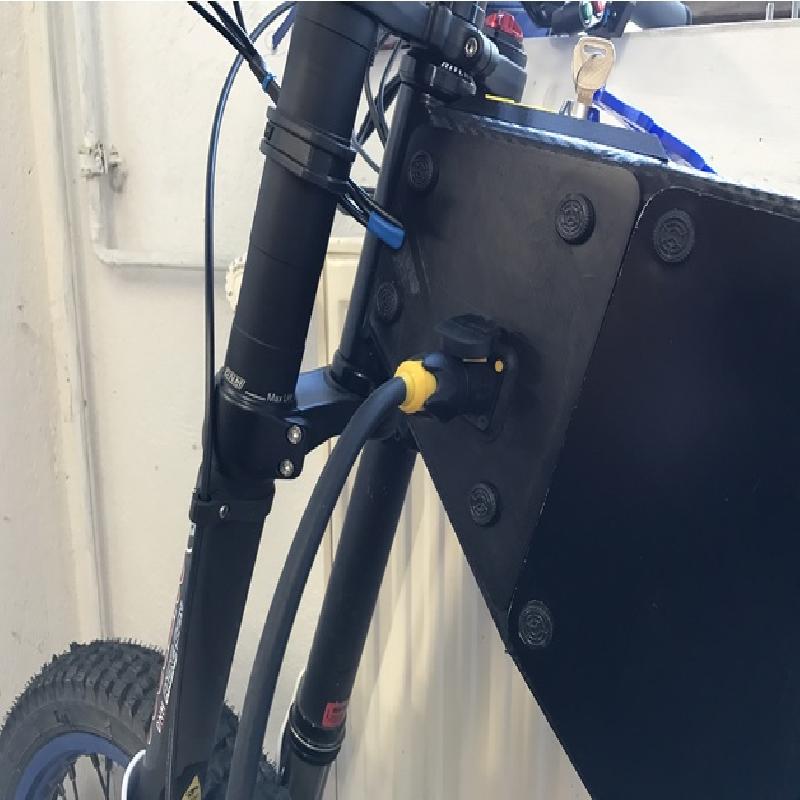

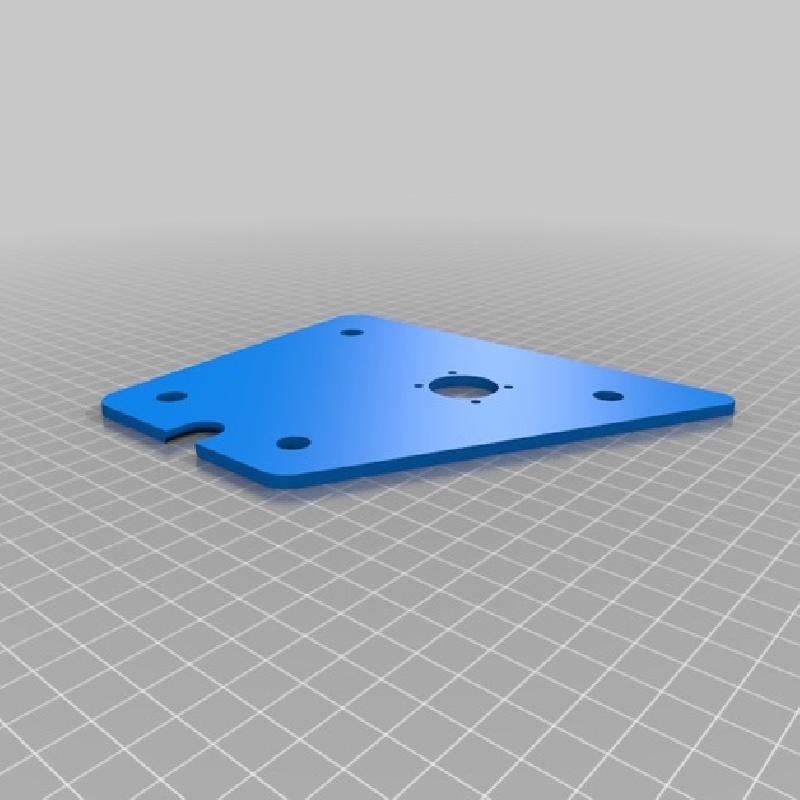

I´ve designed these Plates to integrate an Neutrik Charging Connector to the left Sideplate.

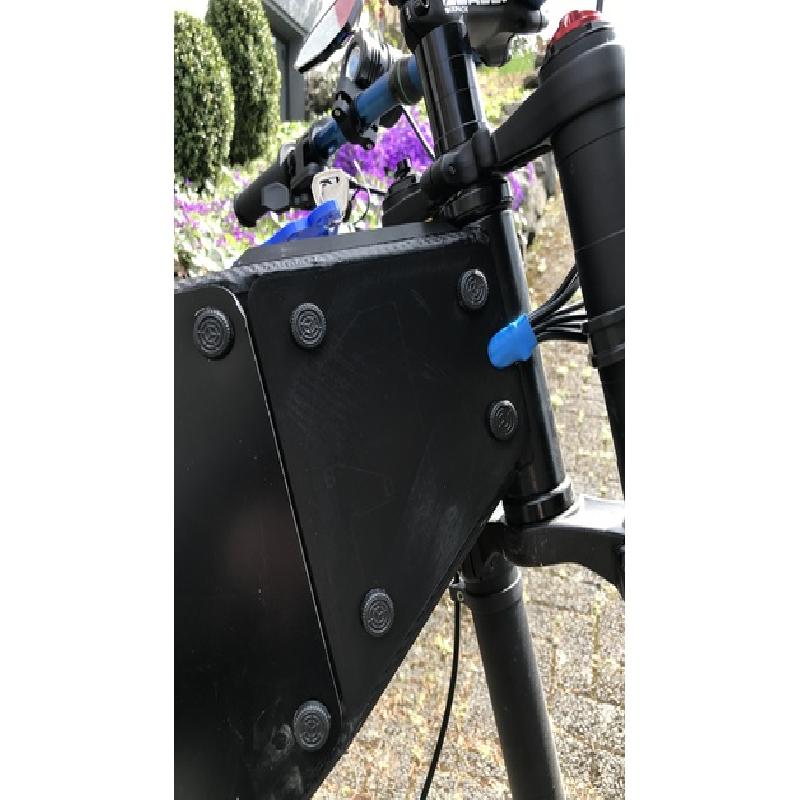

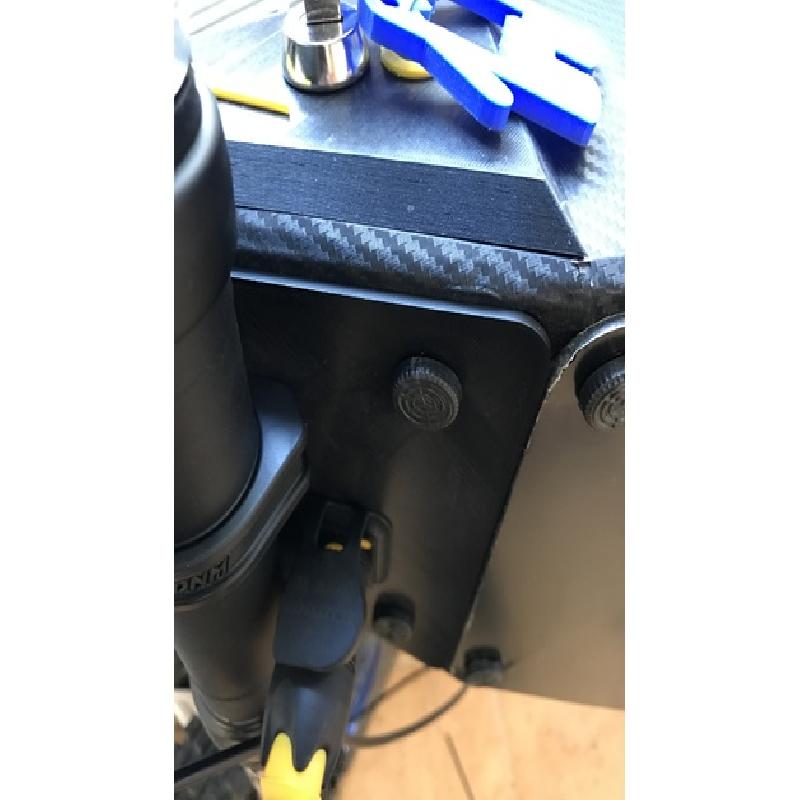

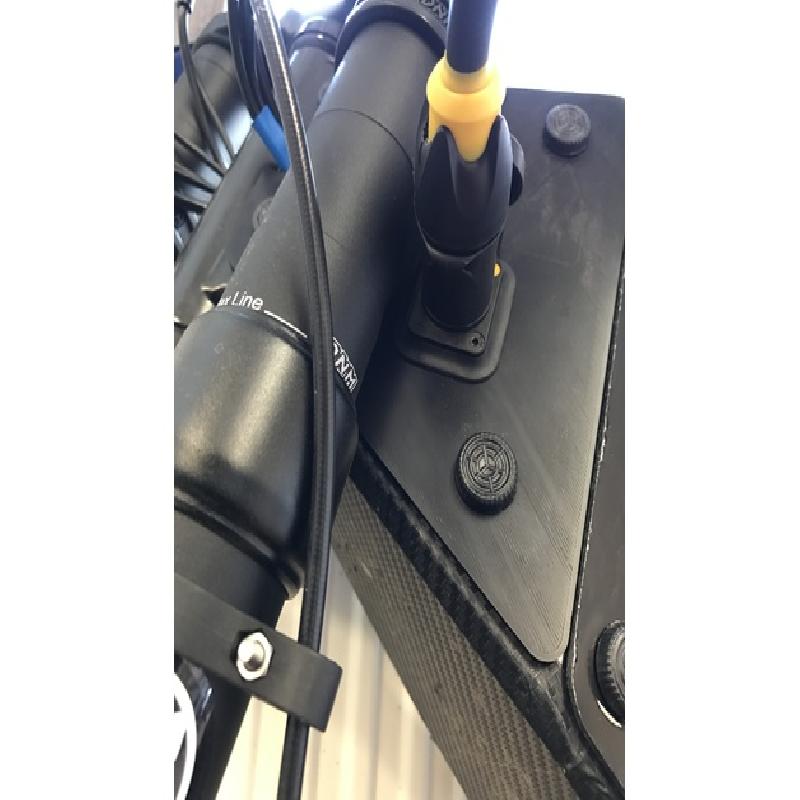

With these Sideplates you are able to Plug an Charging PSU directly to the Frame.
The Chargingport is from Reichelt.de
Order Number: NEUTRIK NAC3MPX
The Dust protection Cap is also from Reichelt.de
Order Number: NEUTRIK SCNAC-MP
Printer Brand:
Prusa
Printer:
Prusa Mk2
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
10%
Assembly
Just screw the Charging Port to the left Sideplate and you are good to go :)
I used an Relais to Connect the Charging Coil to the Controller.
You just have to connect the Relaiscoil to the Charging Port so the Charging Coil gets automatically connected to the Controller.
I have an Adappto Max-e Controller.
The Charging coil must only be connected to the Controller when you want to charge so that is the Reason why i soldered an Relais to the Charging Coil.
