by MikeRophone, published
This is the 3D model of the famous spaceship Orion which you can see in the german 60s mini series space patrol Orion.The files are based on the very detailed paper model of Marco Scheloske.
I didn`t want to rename all the file names or extend them to far, so you find the translation for the german names underneath.
Orion_A_Grav_Pylonen_8x ==== Antigravity pylons ( used 8x )
Orion_Abstandsscheibe 2x ==== Distance plate ( used 2x )
Orion_Achse_Abschlussplatte ==== Axis with end plate
Orion_Display_Stand ==== Display stand bottom
Orion_Display_Stuetze 3x ==== Holder for Orion ( used 3x )
Orion_Landeschach t ==== Elevator tunnel
Orion_Lichtwerfer_3x ==== Lightgun ( used 3x )
Orion_Rumpf_Oben ==== Upper hull
Orion_Rumpf_Unten ==== Lower hull
Orion_Sensordom ==== Sensordome or sensorarray
Orion_Triebwerkscheibe ==== Engine plate
I suggest to print the antigravity pylons , the lightguns, the holder fot the Orion and the sensordome with much infill because they are tiny and might brake.

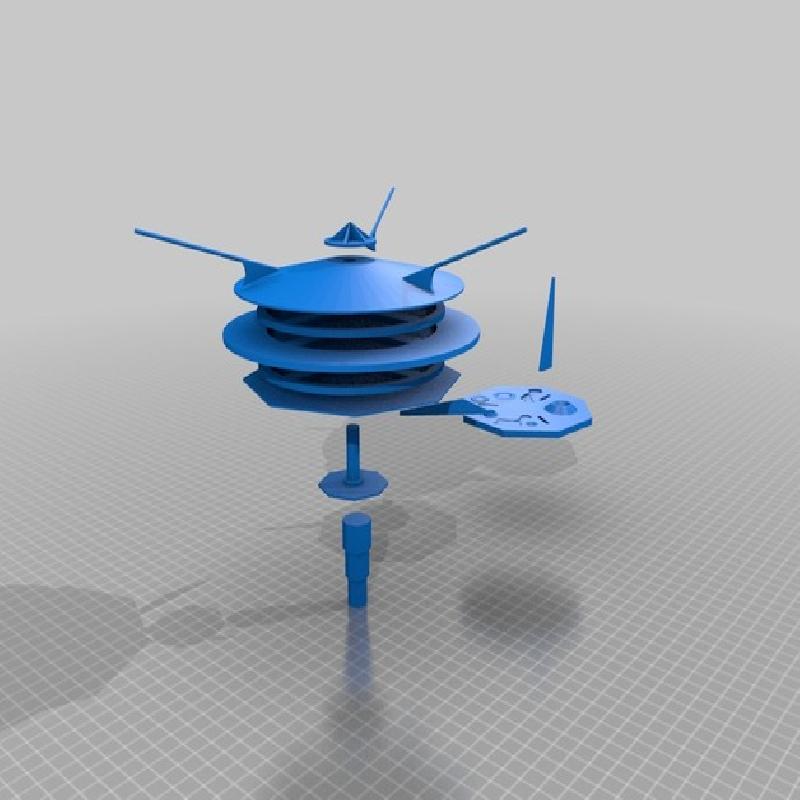

All other files are not critical.You can download a sketchup file which shows the mounting.
at the lower hull you have to glue 8 of the antigravity pylons in a 45 deg angle, on the upper hull 3 lightguns in a 120 deg angle.I designed the model because I couldn`t find a printable one and to remember the series which was one of my favourites when I was a boy although I did see the series later in the middle 70s.I hope you have fun !
" Rücksturz zur Erde ! "
