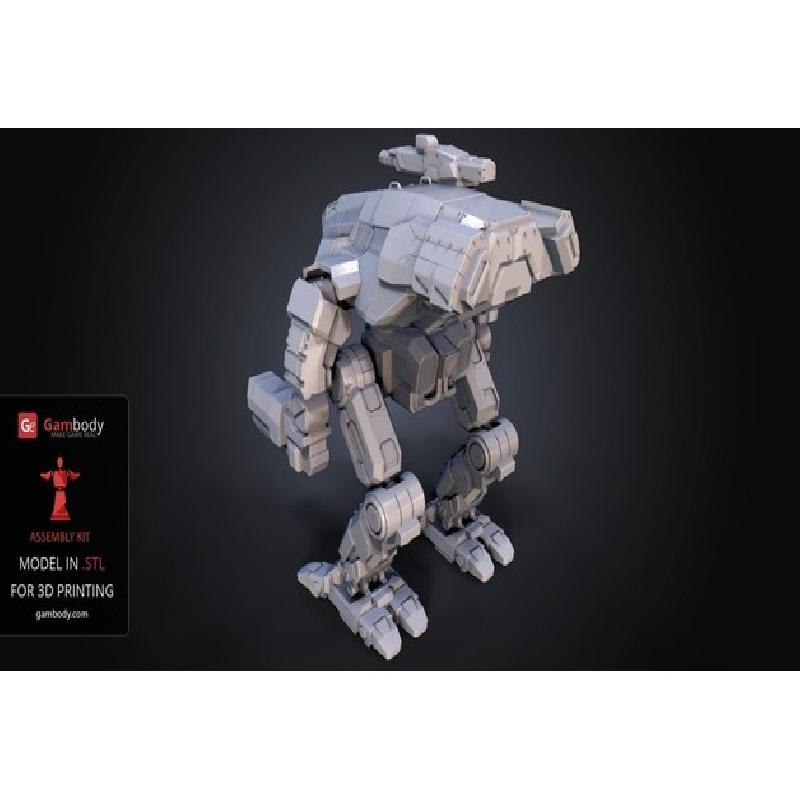

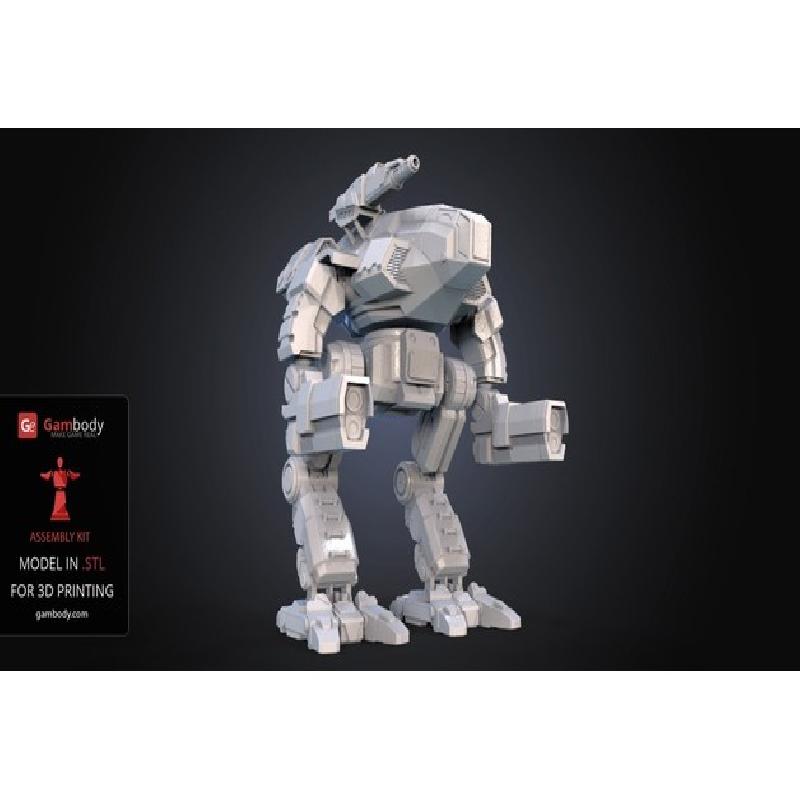

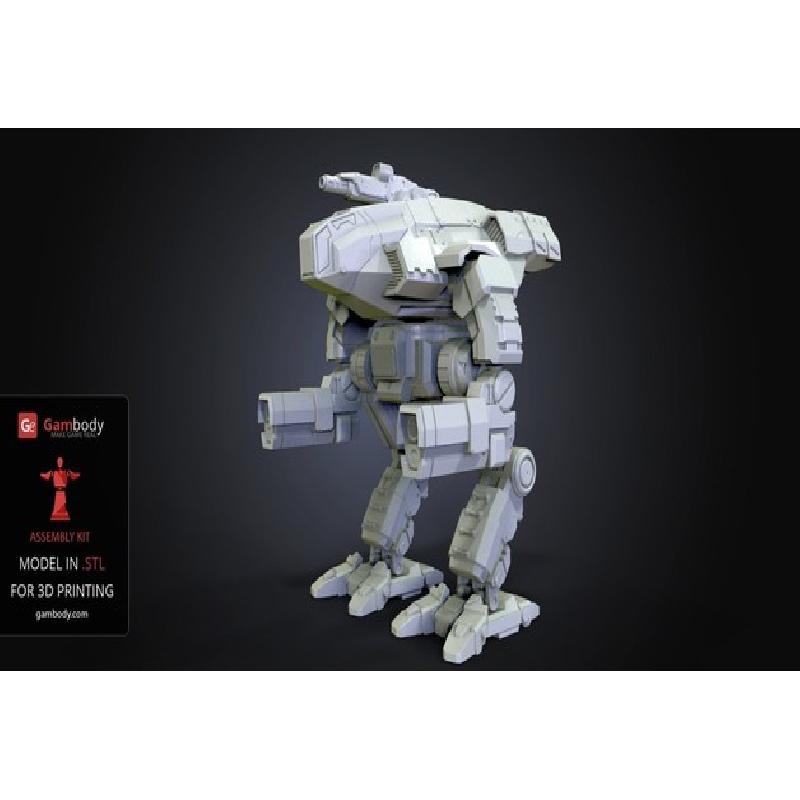

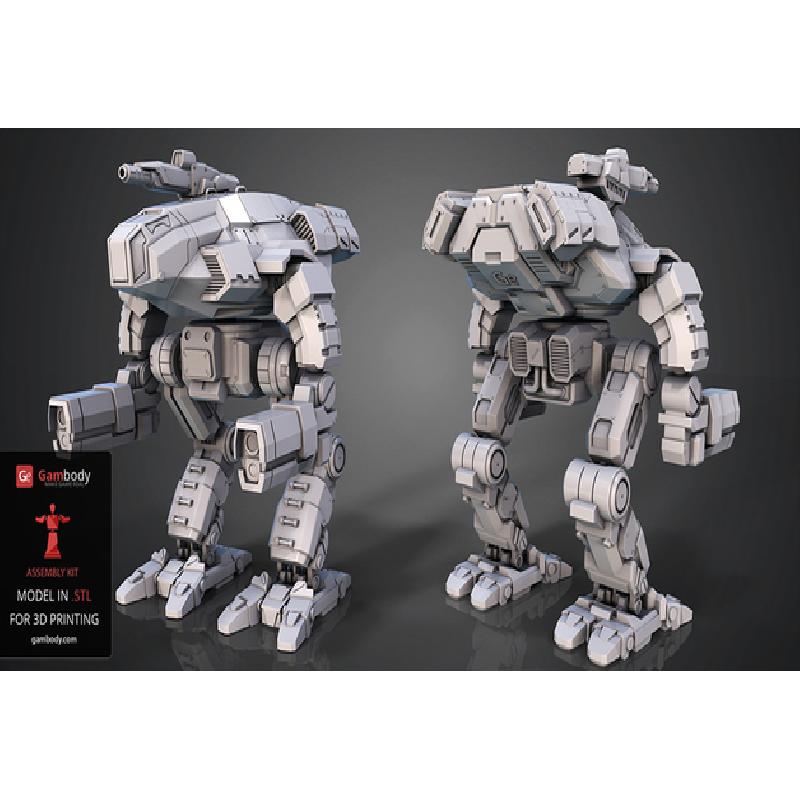

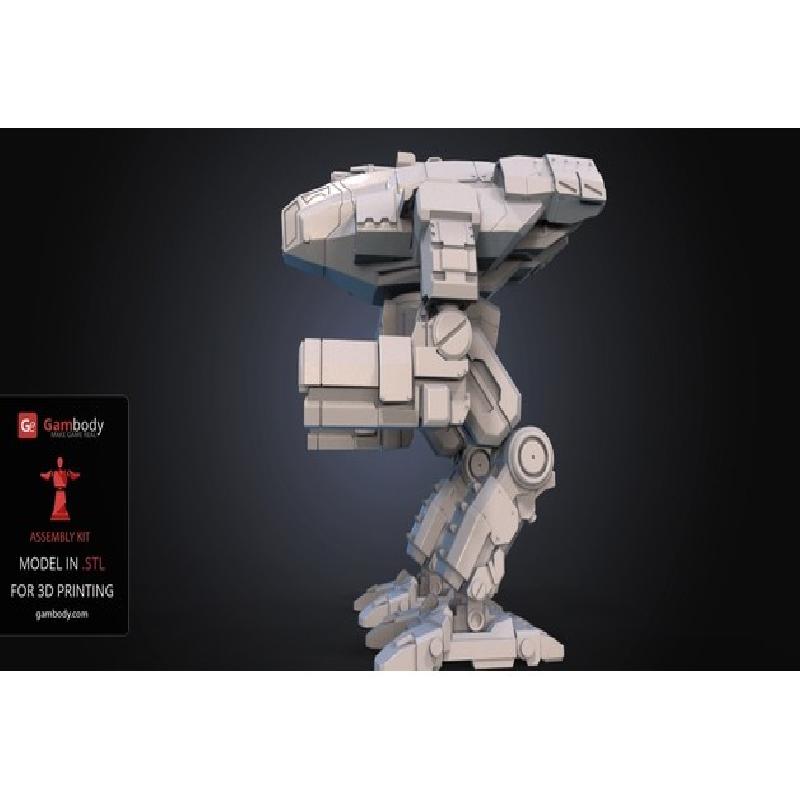

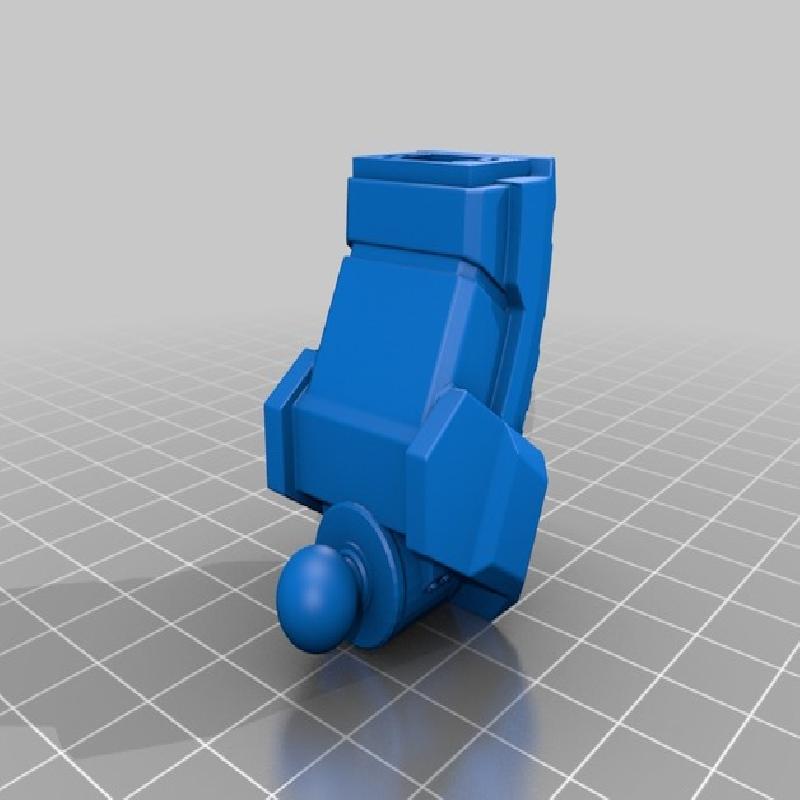

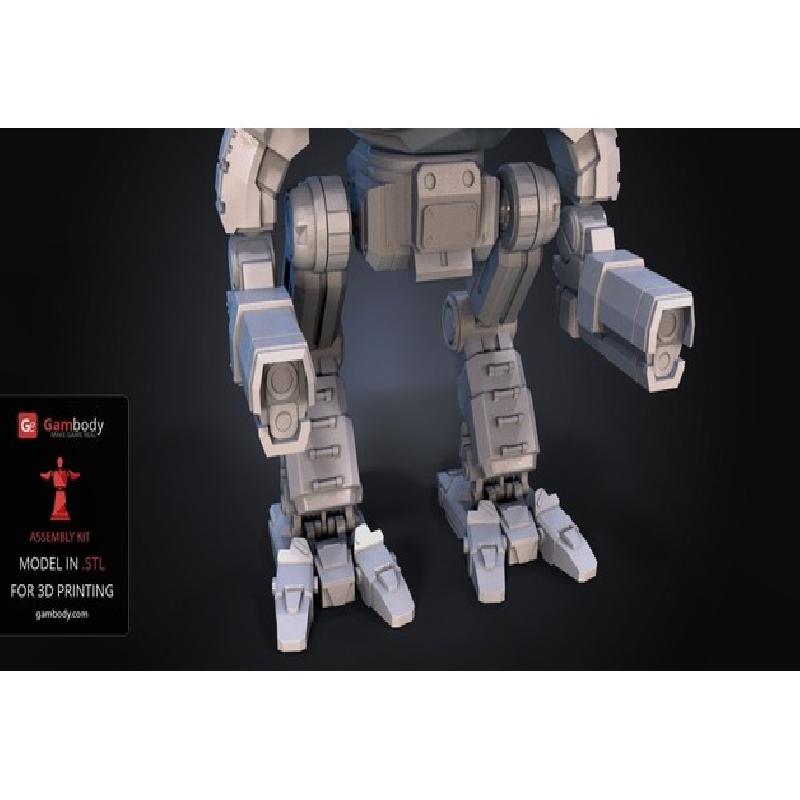

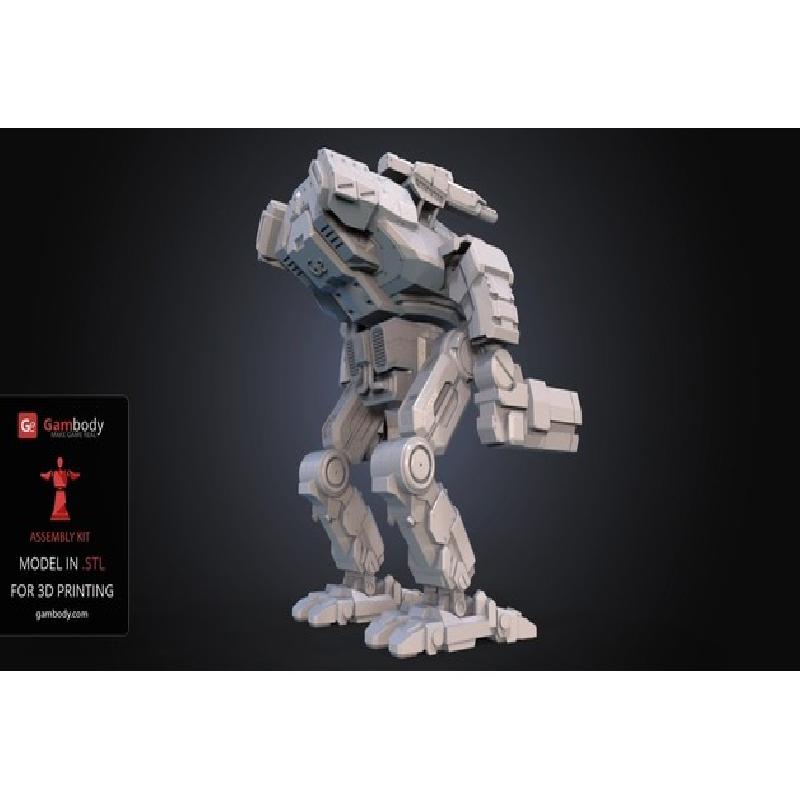

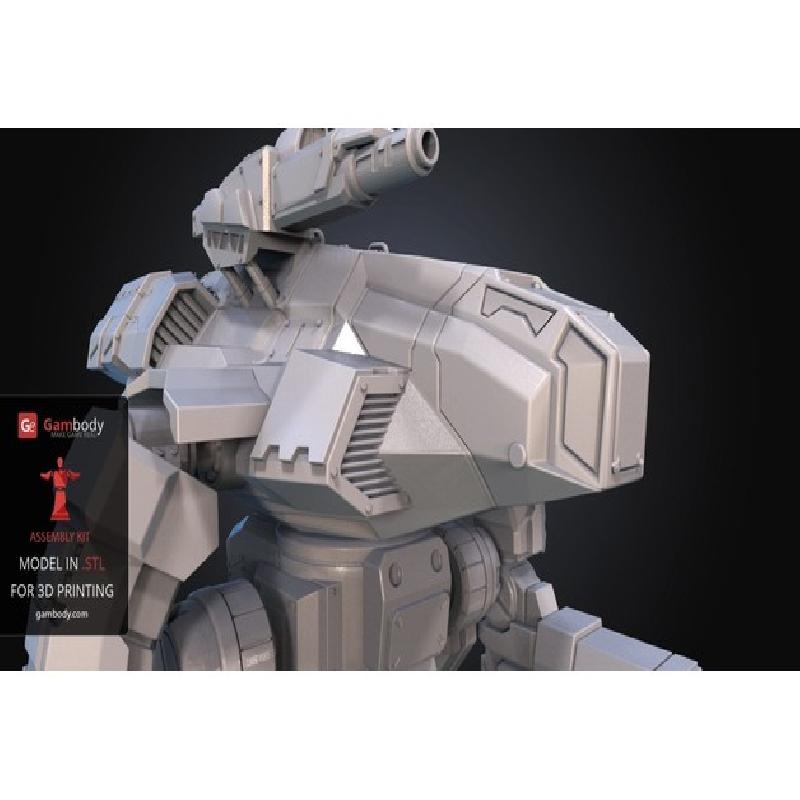

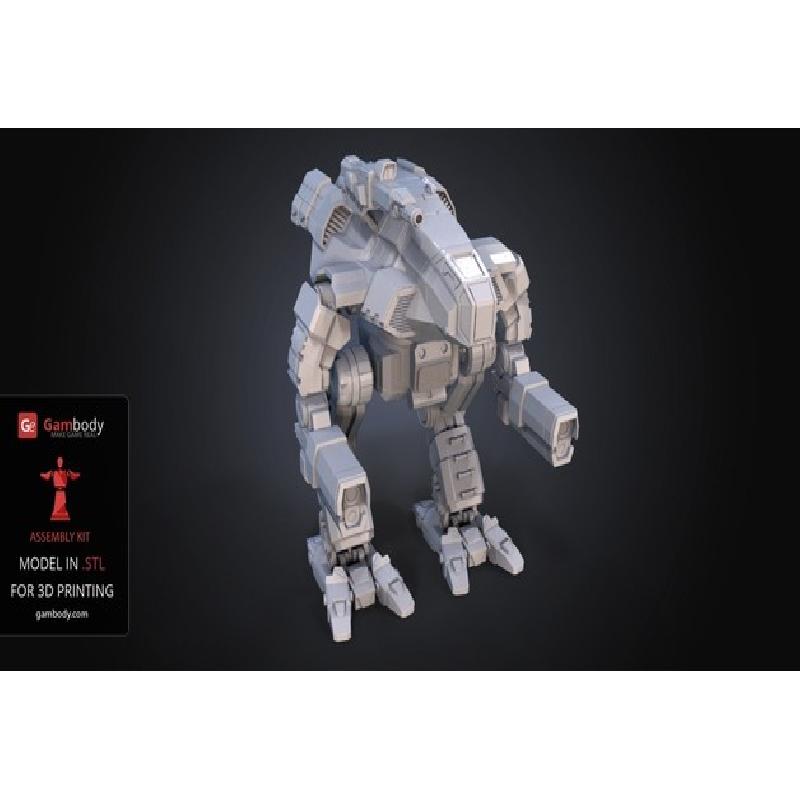

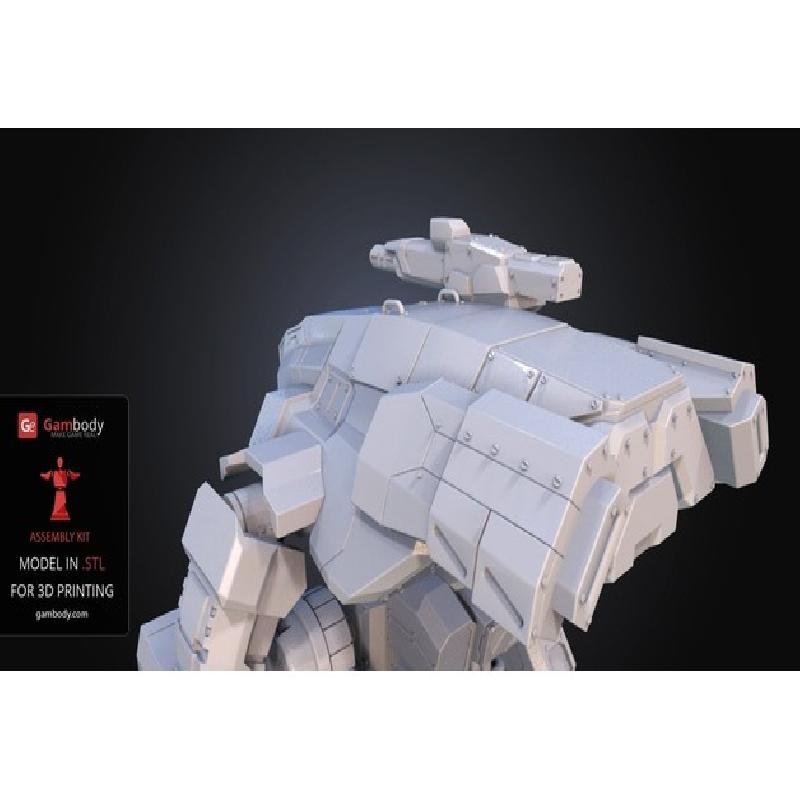

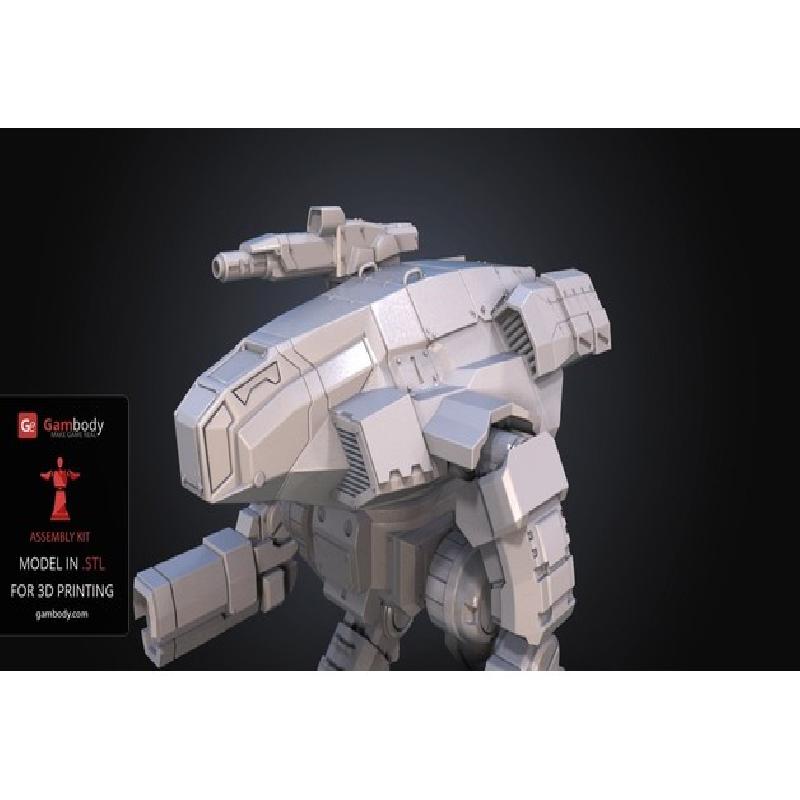

The 3D model represents a face-lift of Marauder Mech. Just like the other Marauder, the 3D model features ball joints, which increase its workability and operability.

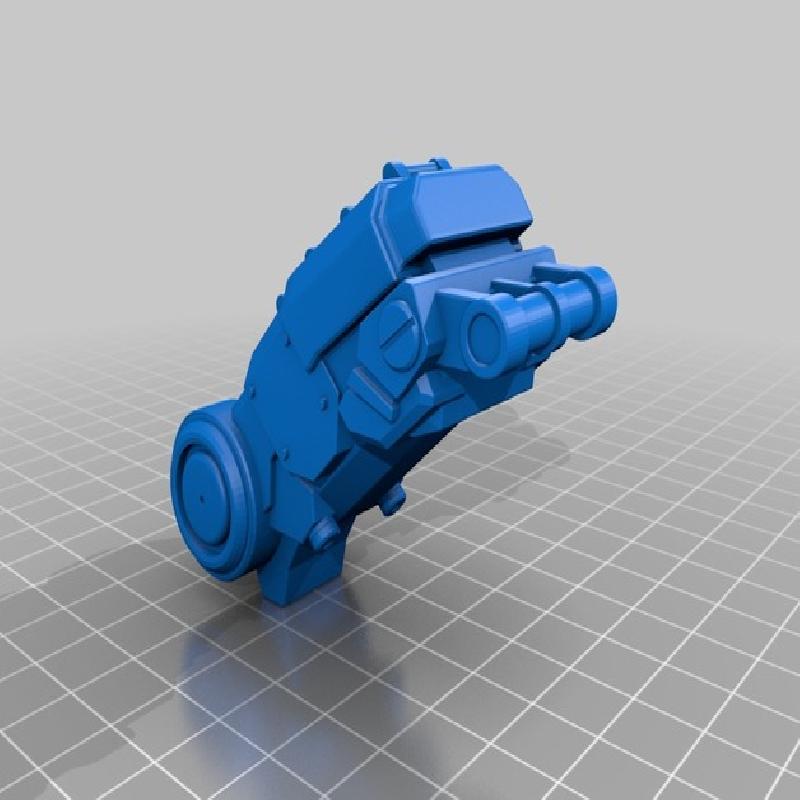

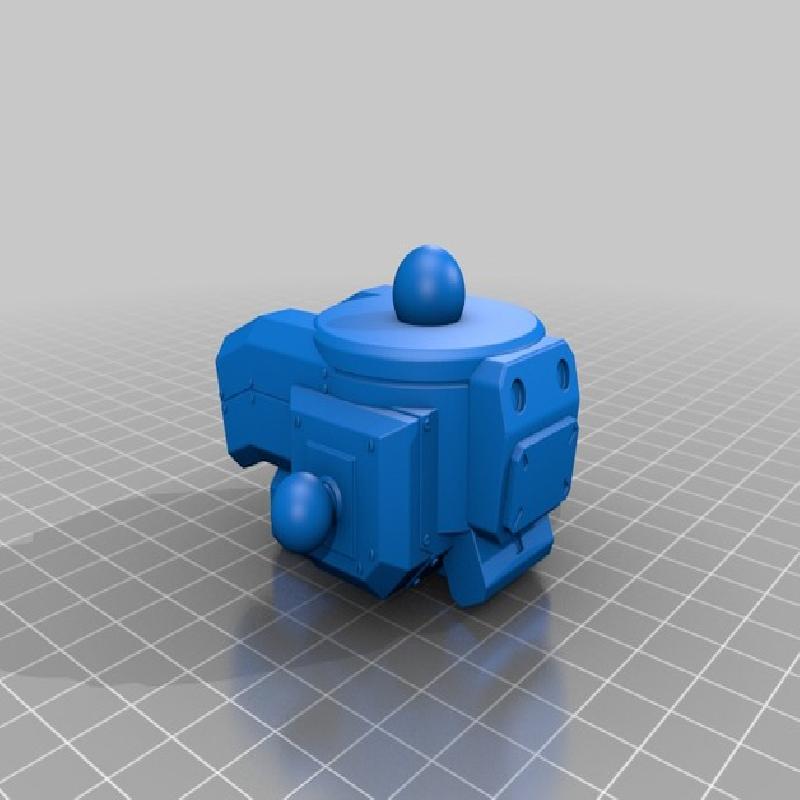

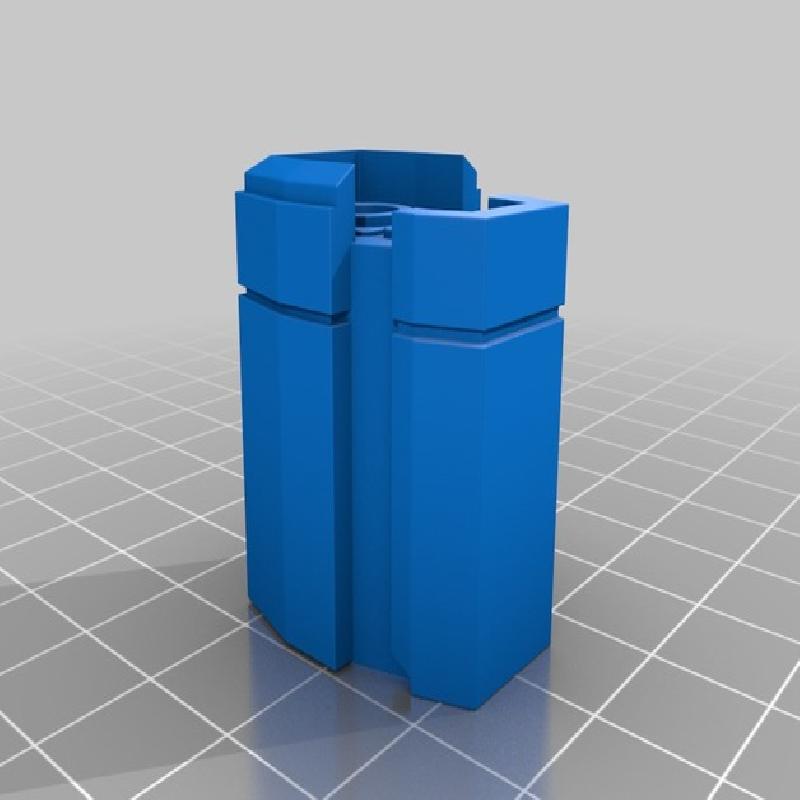

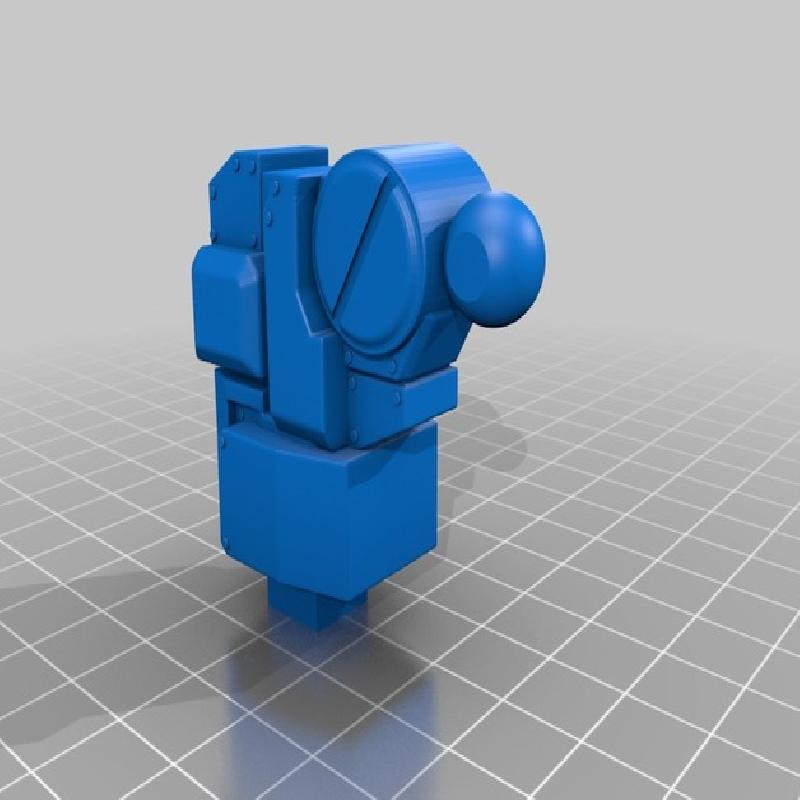

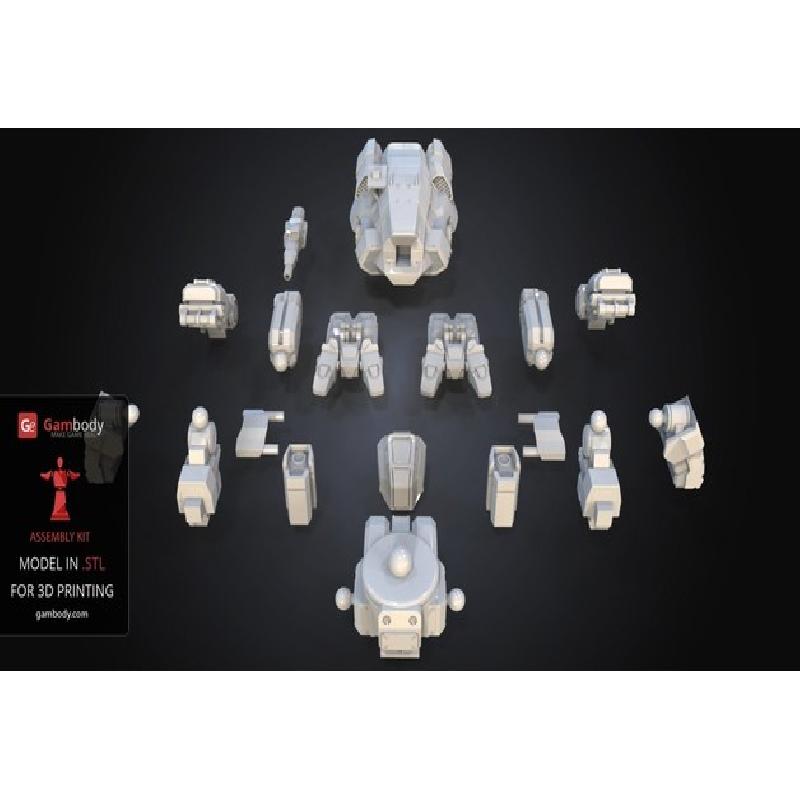

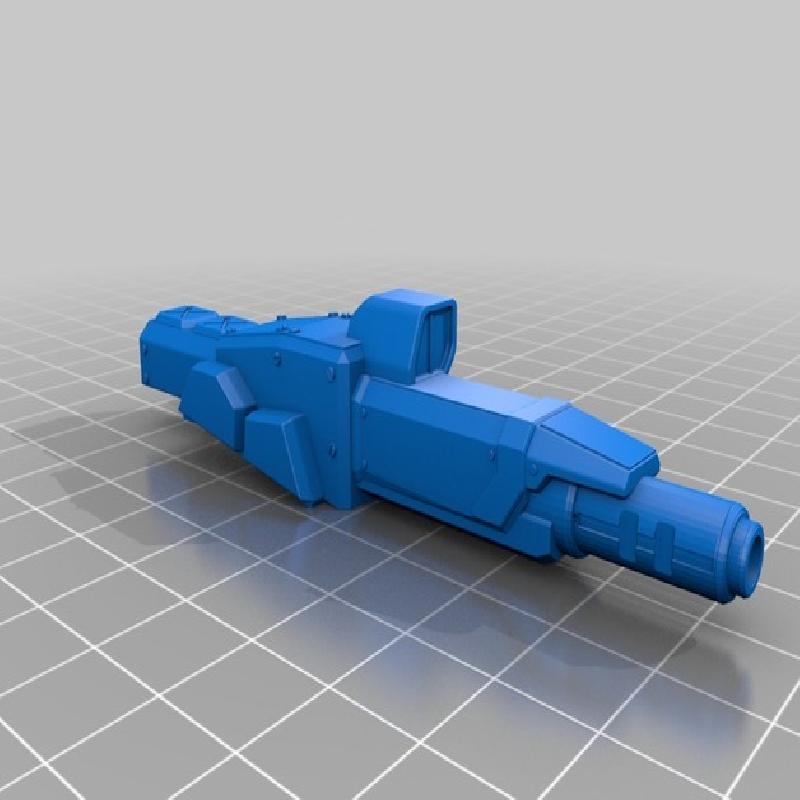

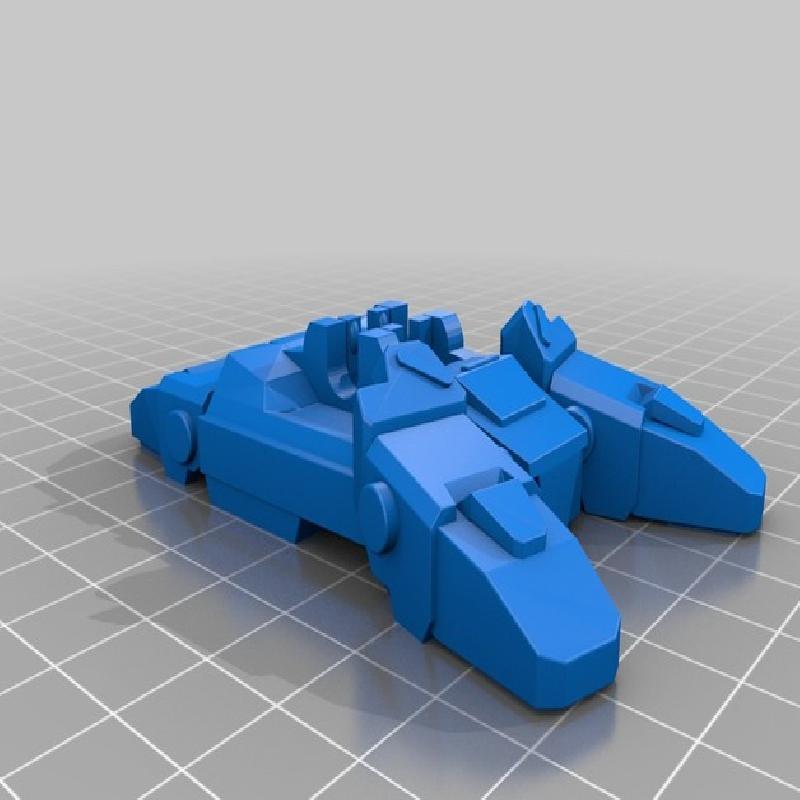

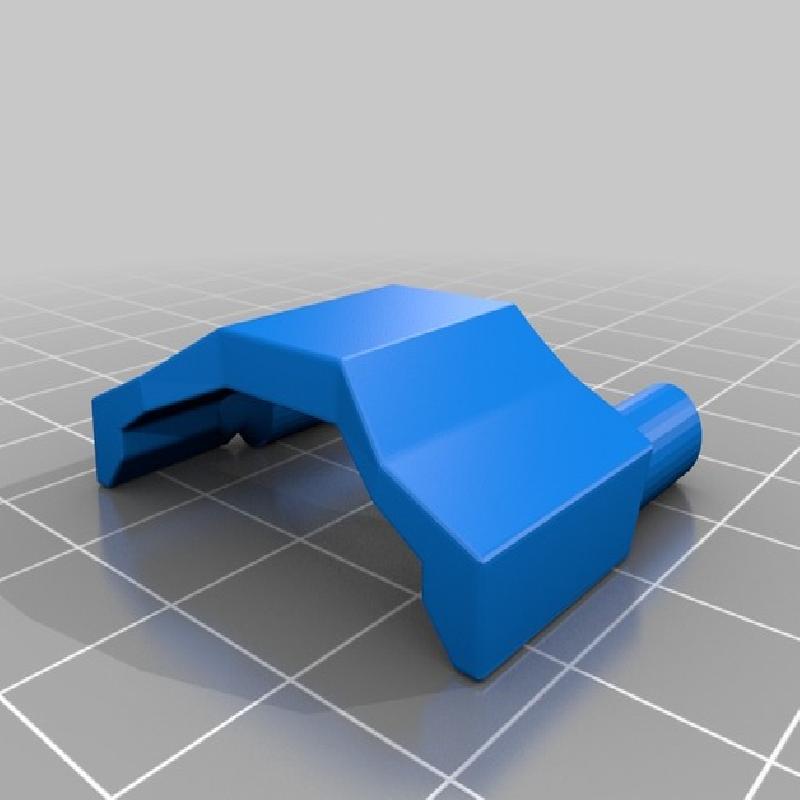

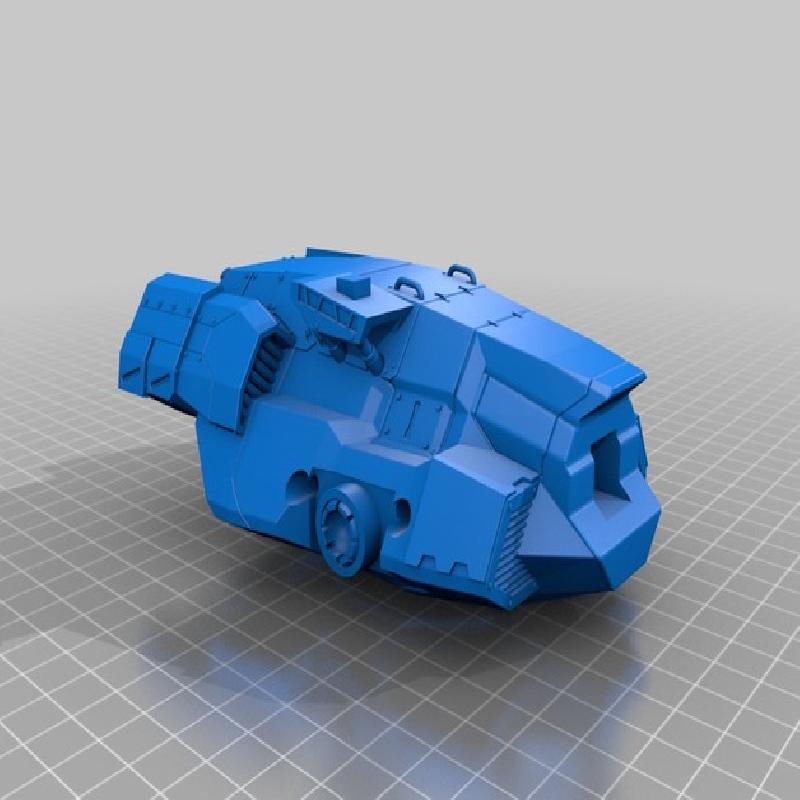

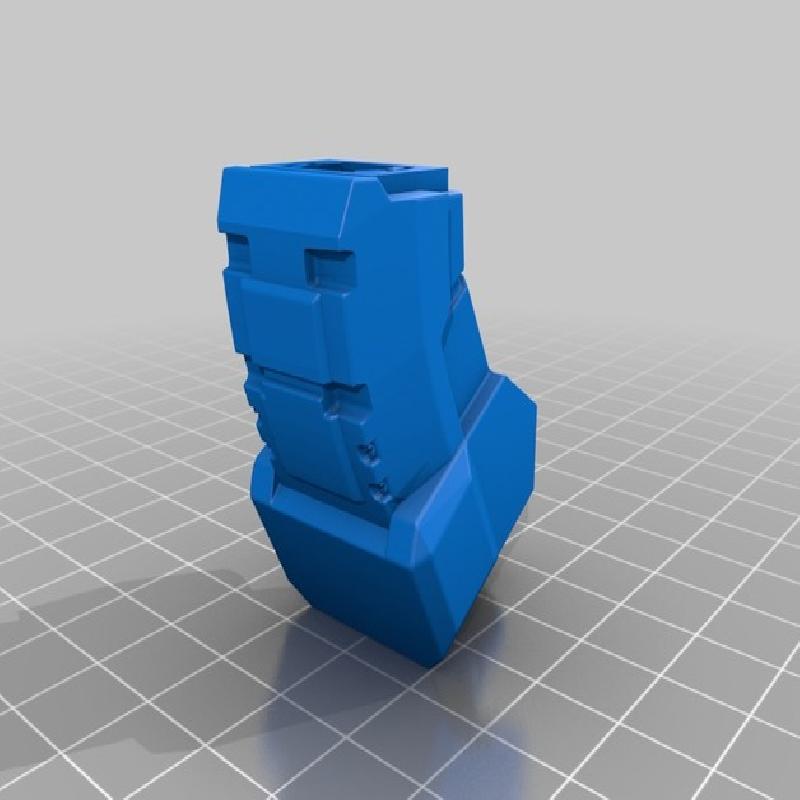

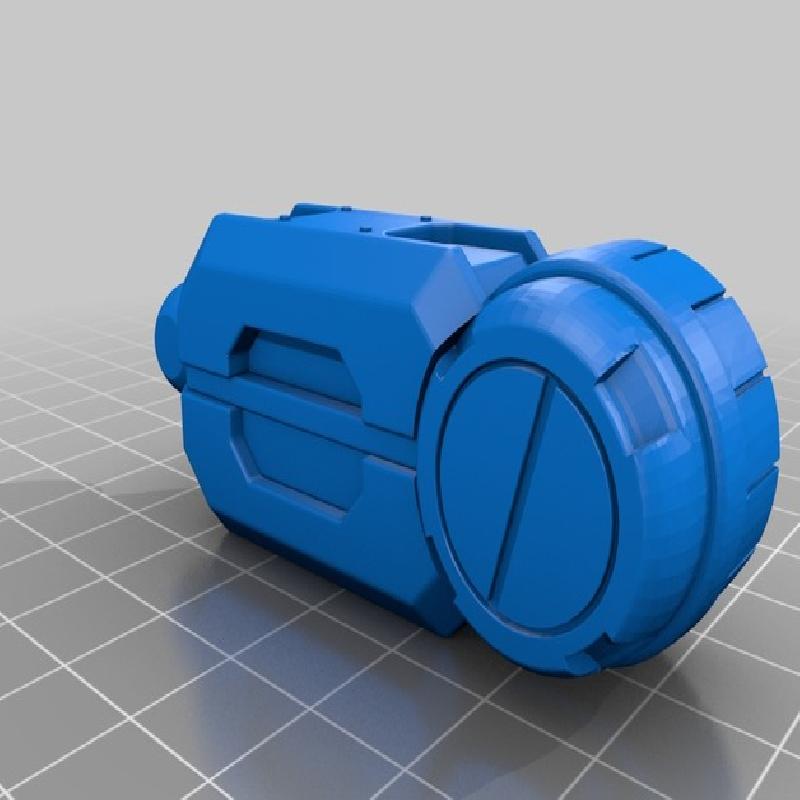

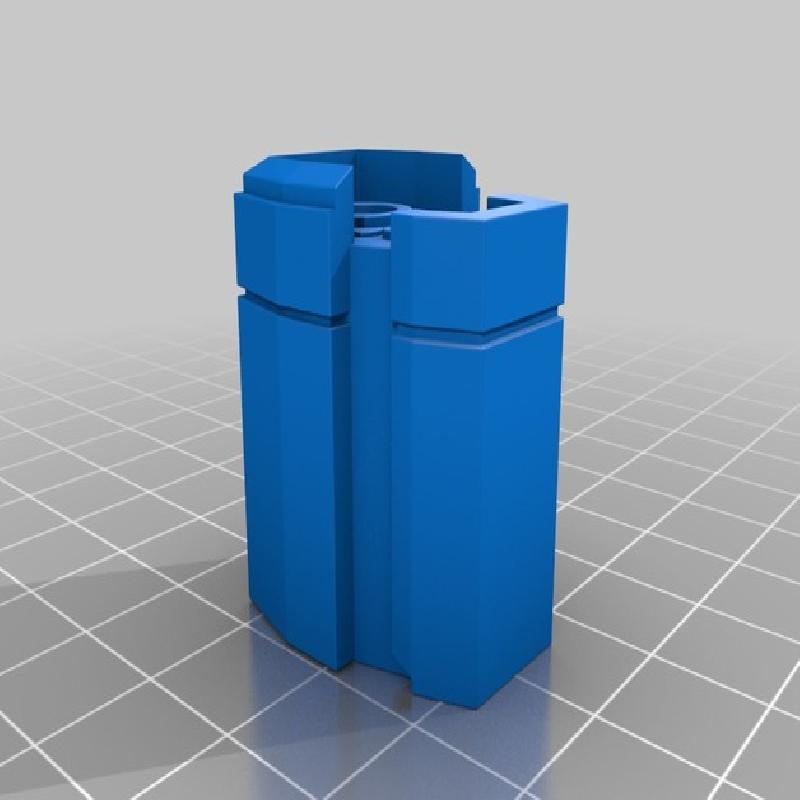

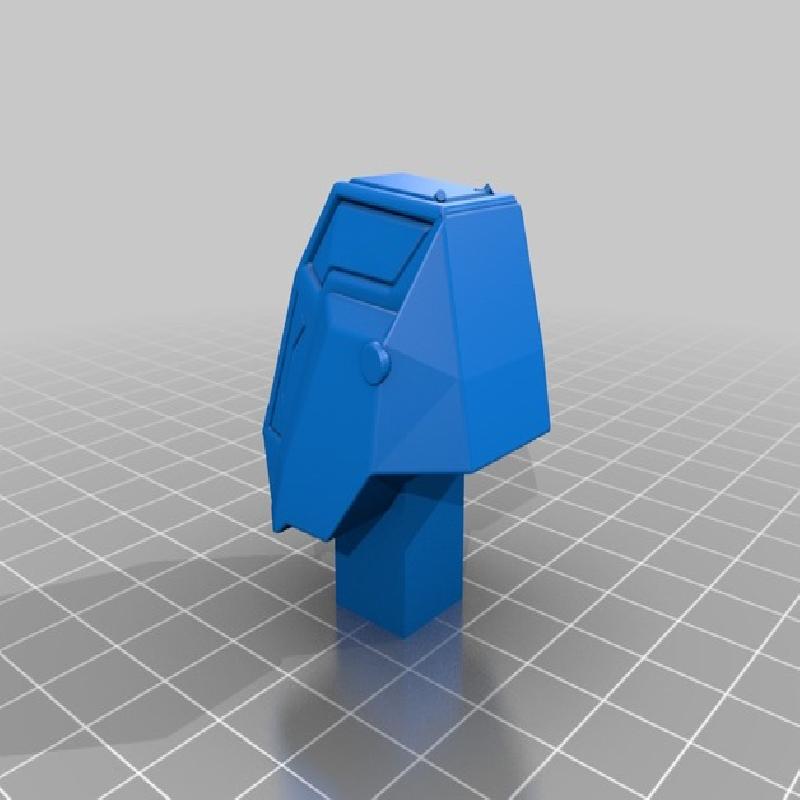

This Marauder 3D model consists of 19 separate parts. All parts are designed to fit onto 19x19 cm print bed. They are created in Autodesk Maya and converted into STL files. The files are checked and corrected in Netfabb.
There’s a detailed video guide on the assembly of the 3D model.
https://www.youtube.com/embed/yBiCXnaJ5XQ
This Marauder 3D model with changed looks will fit perfectly into the collection of your 3D printed MWO Mechs.
Free Download Marauder 3D model STL files by clicking the green Buy button in the top-right corner of the model’s page.
More Amazing Battletech (Mechwarriors) Assembly Kits go here: https://goo.gl/AAIjsS
MWO King Crab + Guns
BattleMaster 3D Model | Assembly
Kodiak 3D Model | Assembly
Atlas 3D Model | Assembly Action Figure
Zeus Mech 3D Model | Assembly
Mad Dog 3D Model | Assembly Action Figure
and etc here: https://goo.gl/AAIjsS
Printer Brand:
Ultimaker
Printer:
Ultimaker 2
Rafts:
Yes
Supports:
Yes
Resolution:
0.1
Infill:
20
Notes:
This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:
Quality
Layer height: 0.1mm
Initial layer thickness: 0.3mm
Bottom/top pattern: lines
Skin perimeter line count: 0
Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).
Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.
As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why, we only test print the most difficult segments of the model’s parts.
The model's parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.
Speed setups:
Infill speed: 30mm/s
Outer shell speed : 30mm/s
Inner shell speed: 20mm/s
Top/bottom speed: 20mm/s
Support speed: 50mm/s
Travel speed: 150mm/s
Skirt speed: 30mm/s
Amount of slower layers: 4
Infill:
Infill pattern: Grid
Line distance: 1.5mm
Infill overlap: 20%
Infill layers: 0
Support:
Enable support: Check
Placement: Everywhere
Overhang angle: 30°
X/Y distance: 0.7mm
Top distance: 0.2mm
Bottom distance: 0.2mm
Stair step height: 0.5mm
Join distance: 0.7mm
Area smoothing: 0.6mm
Use towers: check
Pattern: Grid
Line distance: 1.5mm
Platform adhesion:
Type: Brim
Brim line count: 10 (up to 20, depending on the model’s height)
Other 3D printing recommendations:
Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation. Apply other settings by default.
Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
