by Hiduken125, published
For a complete print print out the following

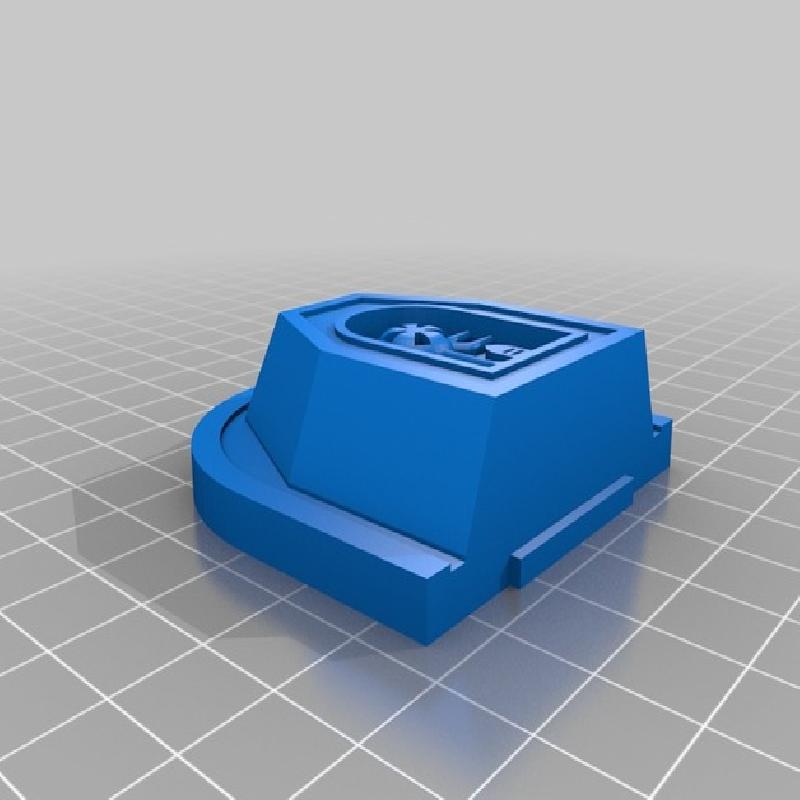

-1x base plate

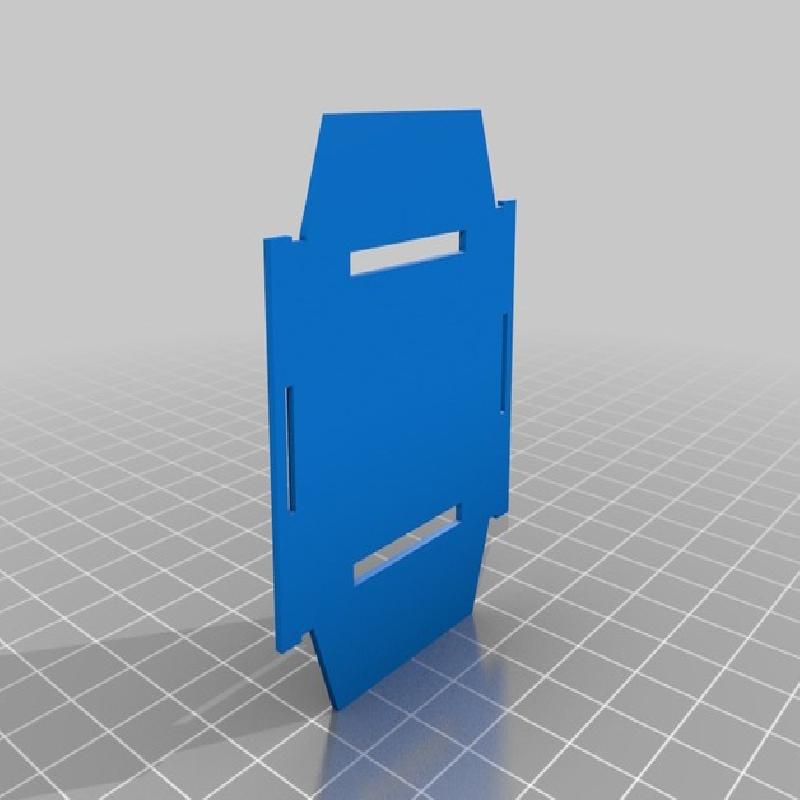

-2x side walls

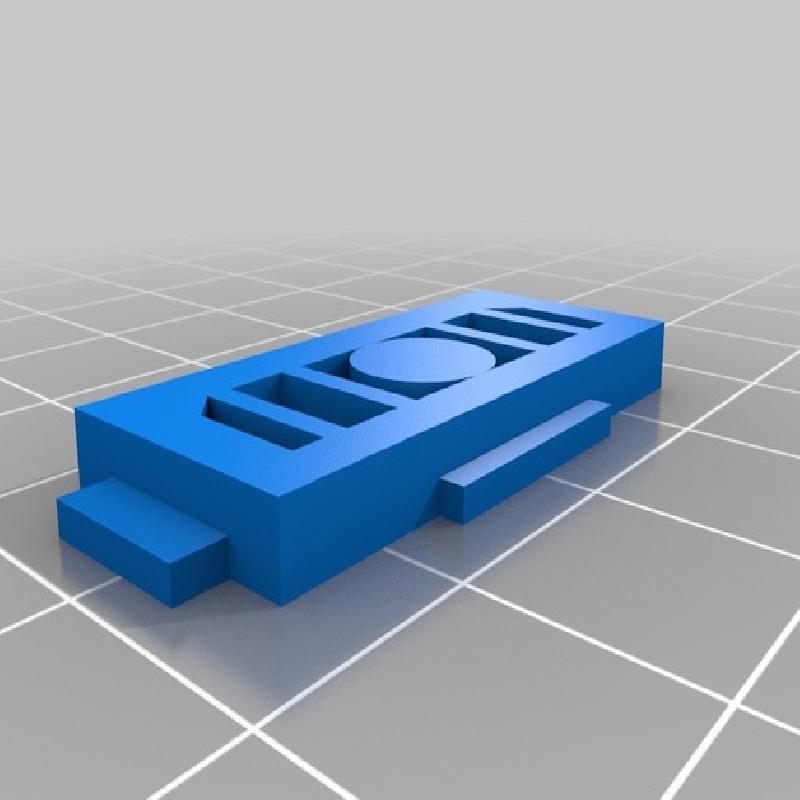

-2x front-back walls

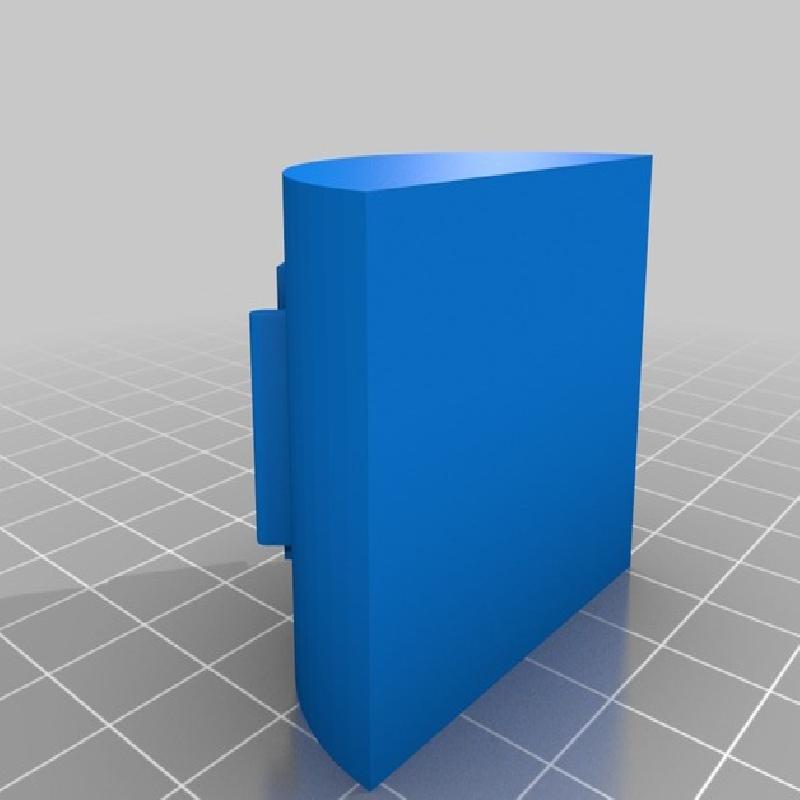

-1x turret rotation part 1

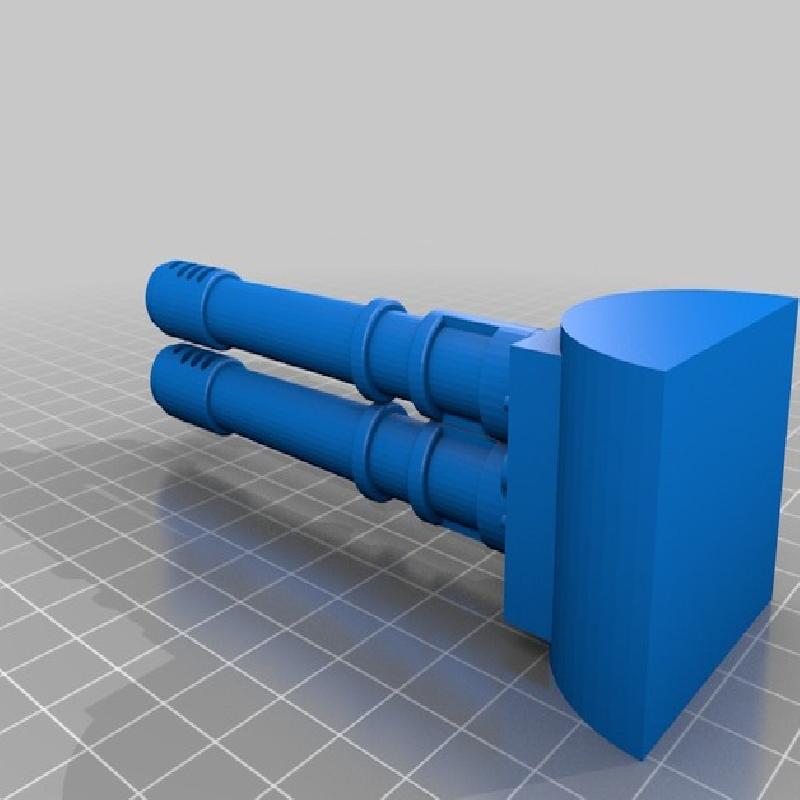

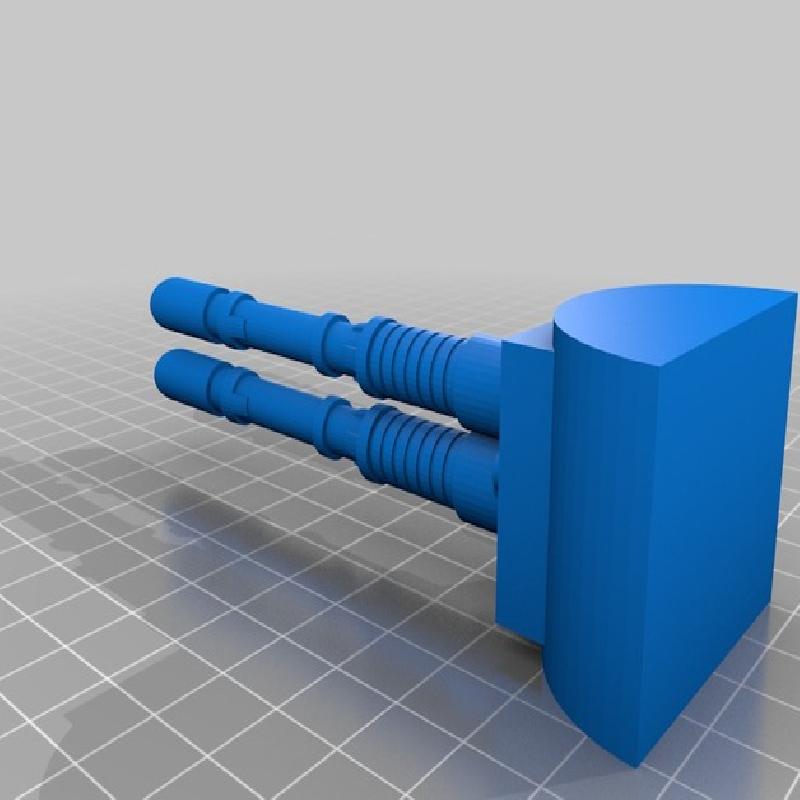

-1x either turret rotation part 1 cannons or turret rotation part 1 lasercannons
Rafts: Doesn't Matter
Supports: No
Resolution: .2
Infill: 10-20%
Notes:
Active cooling recommended.
Prep and Assembly
Standard fill and sanding for cleaning up the looks.
-Glue turret rotation pt 1 and 2 together with super glue roughing up contact surfaces will ensure better adhesion.
-The tabs that connect the parts together and rotate within each other will probably also need sanding to ensure it fits properly.
-I reccomend dry fitting all parts prior to any gluing.
Assembly
Glue both front and back piece to one of the side walls.
Then place the rotation part in its place on the side piece you have glued the front and back pieces to.
Then glue the other side piece to the front and back pieces ensure the rotation piece properly rotates.
Glue the base piece in place to complete assembly.
