NOTES TO PRINTERS:
Original scaling fits size 39EU ~ 39.5EU

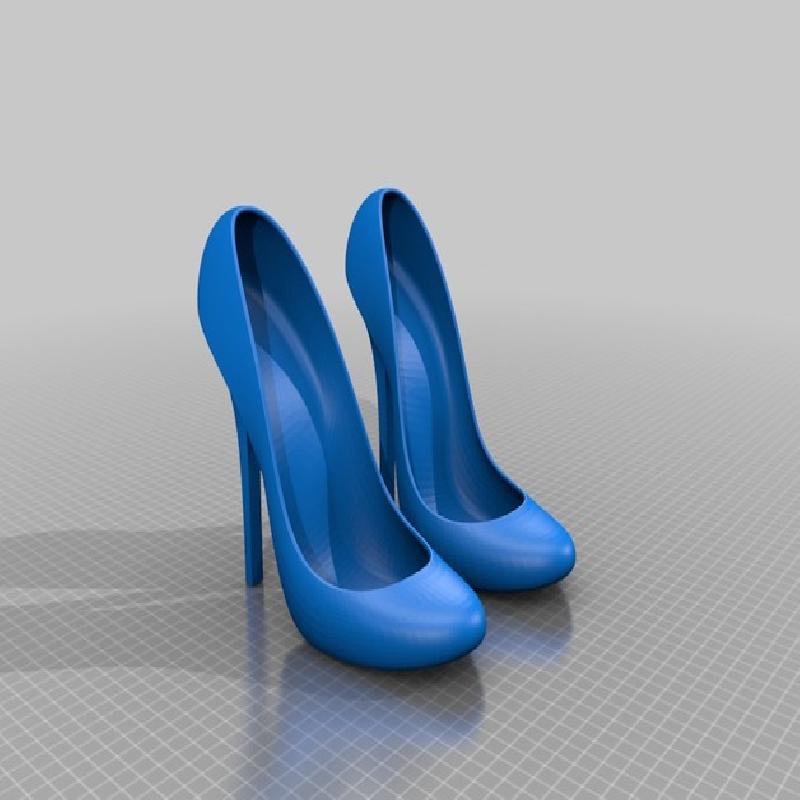

The files with the longer file names (4.206t9.29PLAL.STL and 4.206t9.29PLAR.STL) were used for printing, the others are previews of the result

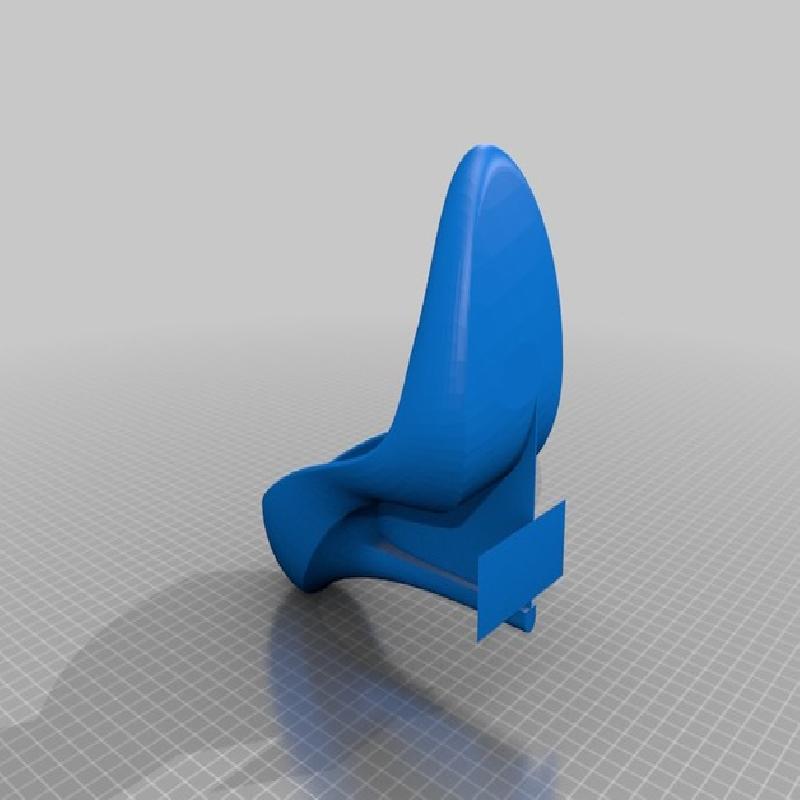

Print in upright position
Reconmended to print in ABS, PLA is possible, but probably structurally inadequate
Open the hole in the bottom of the heel after printing to install a 118x6mm steel threaded rod, keep in mind that these dimensions change when scaled to a different size!
cut the heel core only to size after inserting
Printable in one piece
Infill >80% reconmended
Print support from buildplate only

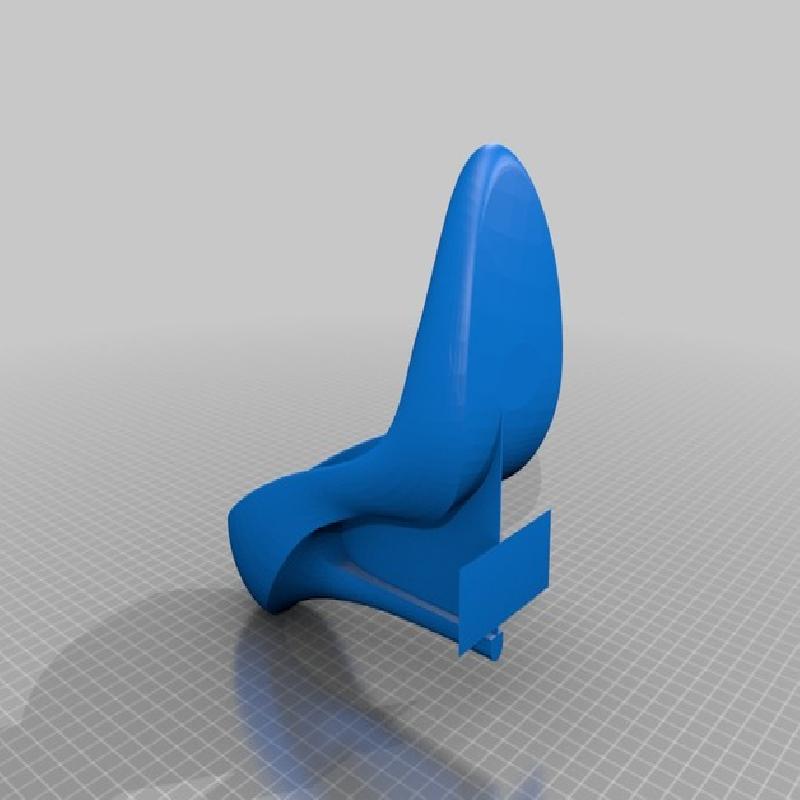

The fin spanning the heel and the sole is meant to be a custom support, remove after inserting the heel core, before acetone treatment
Printer Brand:
Ultimaker
Printer:
Ultimaker Original
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
<0.300mm
Infill:
80%
