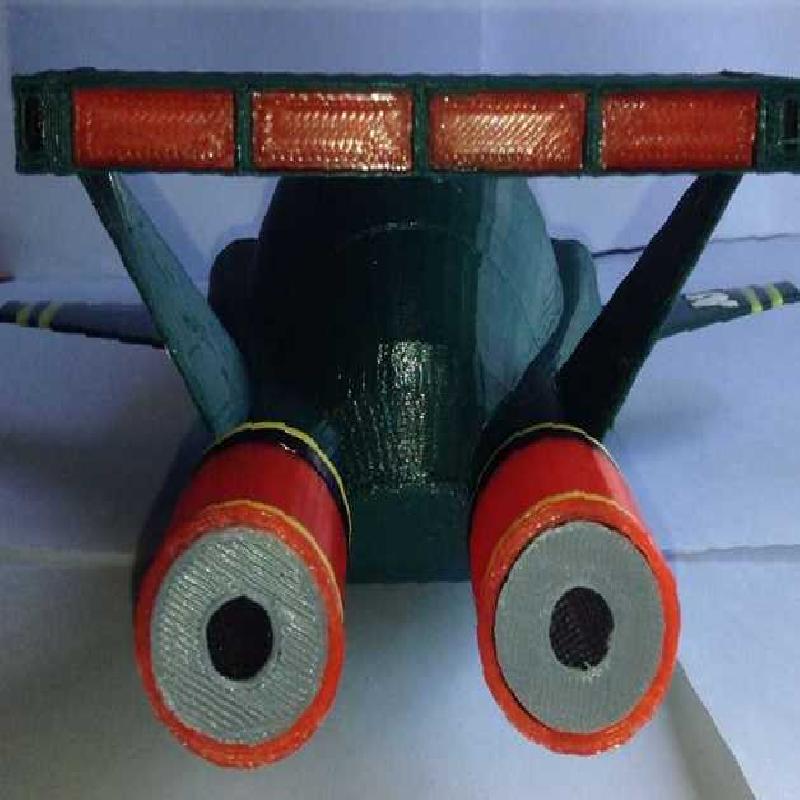

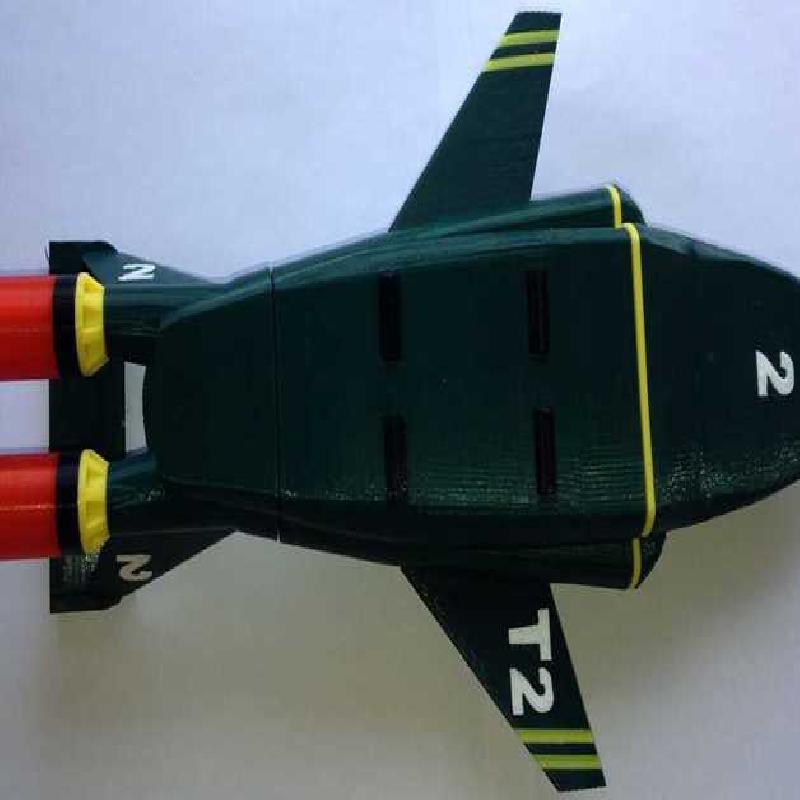

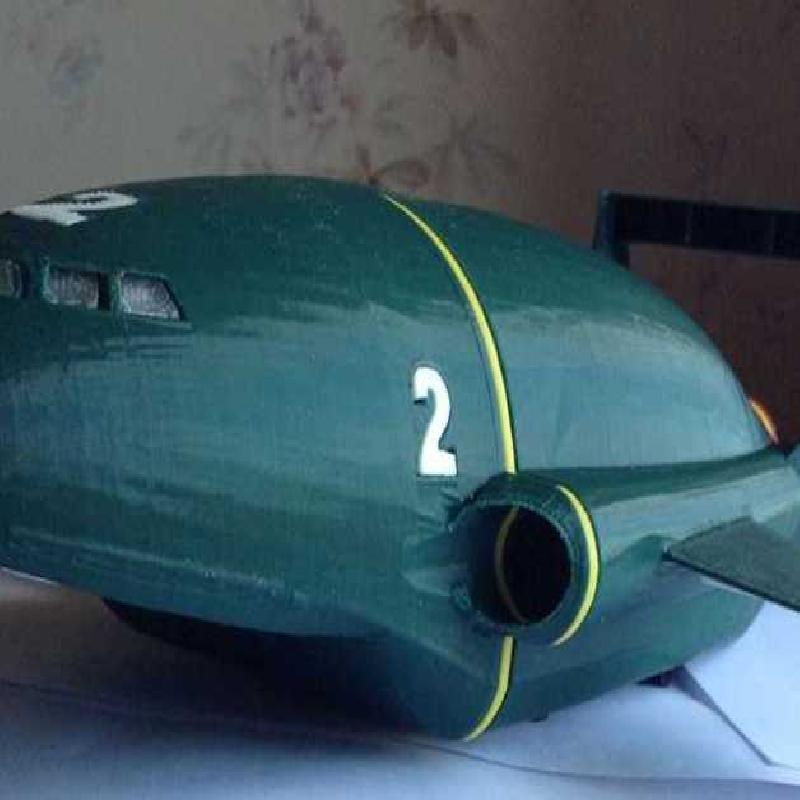

Thunderbird 2
Made with Green, Yellow, Red, White, Black, Silver & Natural PLA
From the TV series by Gerry Anderson
I used the Standard profile to print on a Replicator2
Part Name Plastic used Print time
Green- Front 48g 3.0 hrs

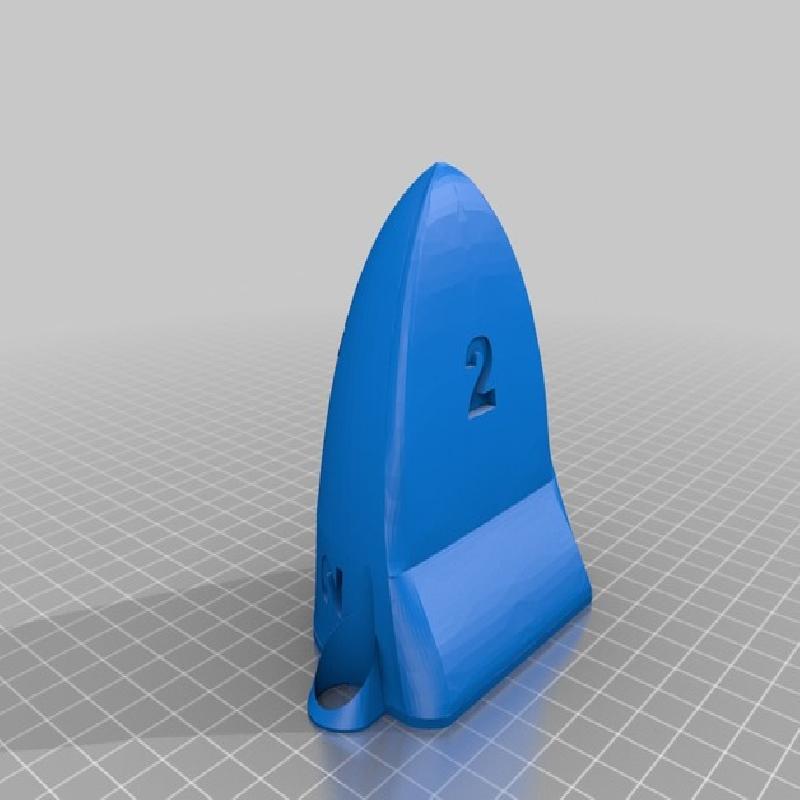

Green- Rear 23g 1.5 hrs

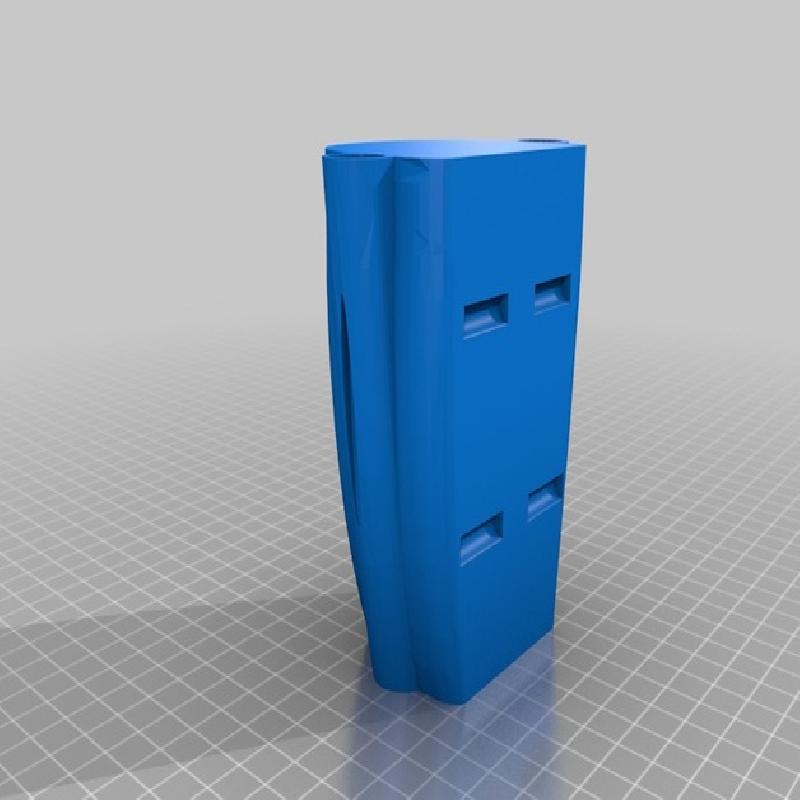

Green- center 86g 5.25 hrs

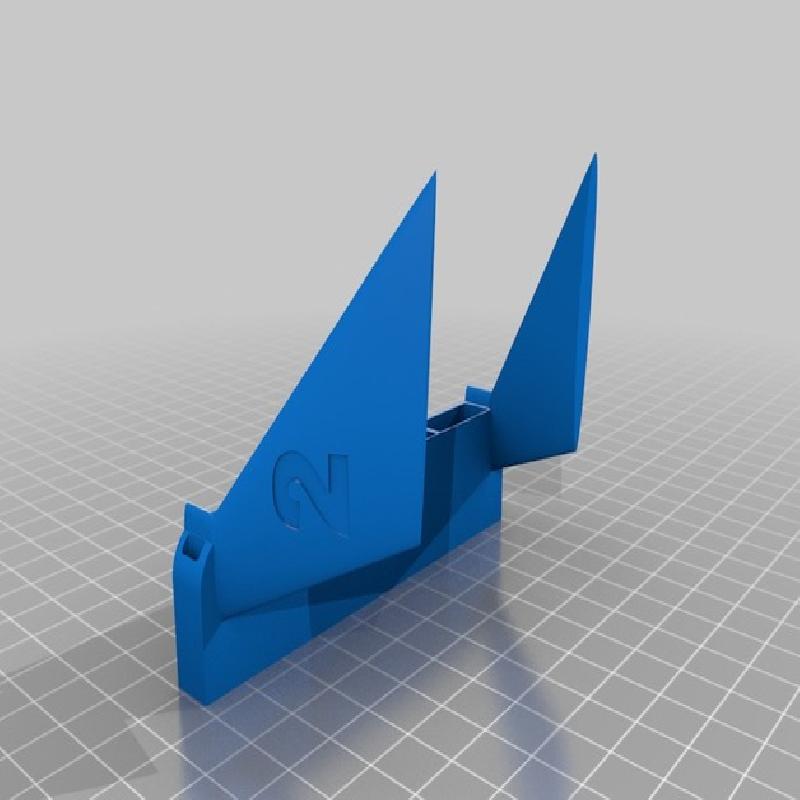

Green- Tailplane 17g 1.5 hrs

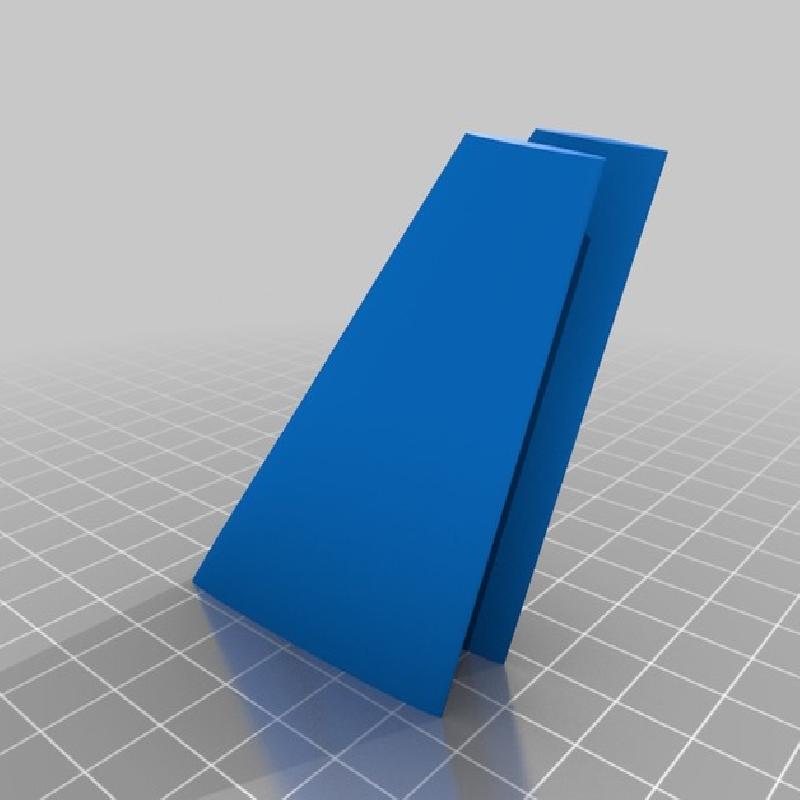

Green- wings 8g 45 min
Yellow- front_center partition 13g 30 min
yellow- engine front section 5g 20 min

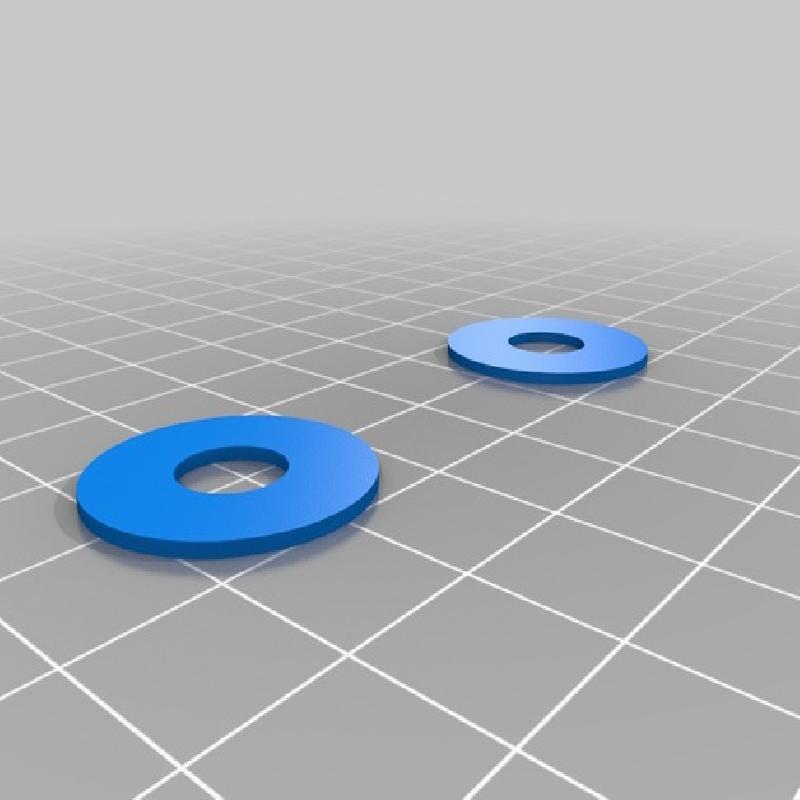

Yellow- engine ring 4g 10 min

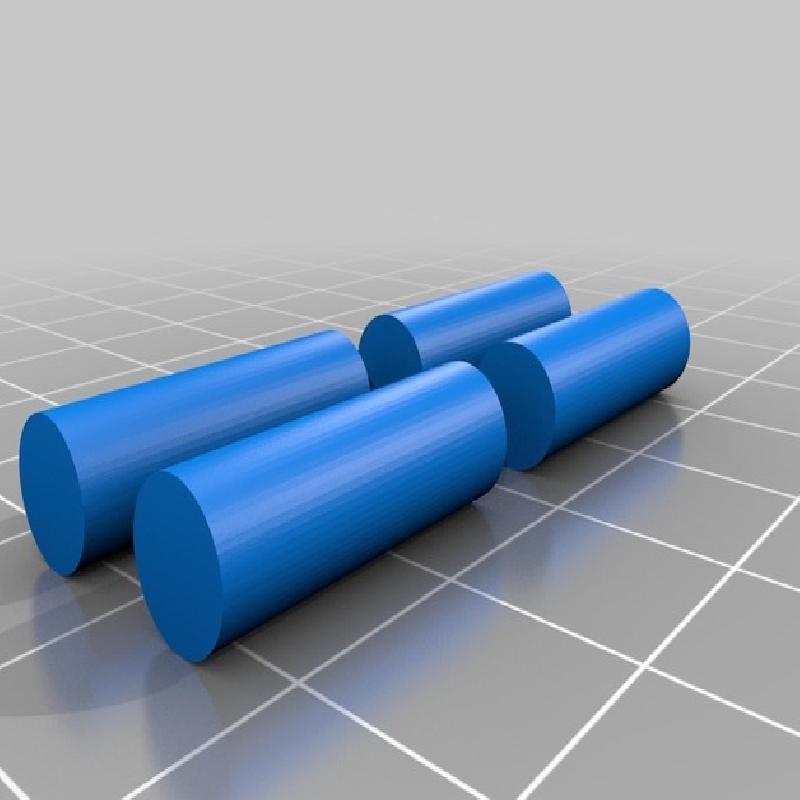

Black- Bottom rollers 3g 8 min
Black- Engine inlet 1g 5 min
Black- Rear engine insert 2g 5 min
Black- Tailplane center front inserts 3g 10 min
Black- rear engine section 5g 20 min
Black- Tailplane end inserts 1g 5 min
White- Figures 5g 15 min
Red- Engine_tail 13g 55 min

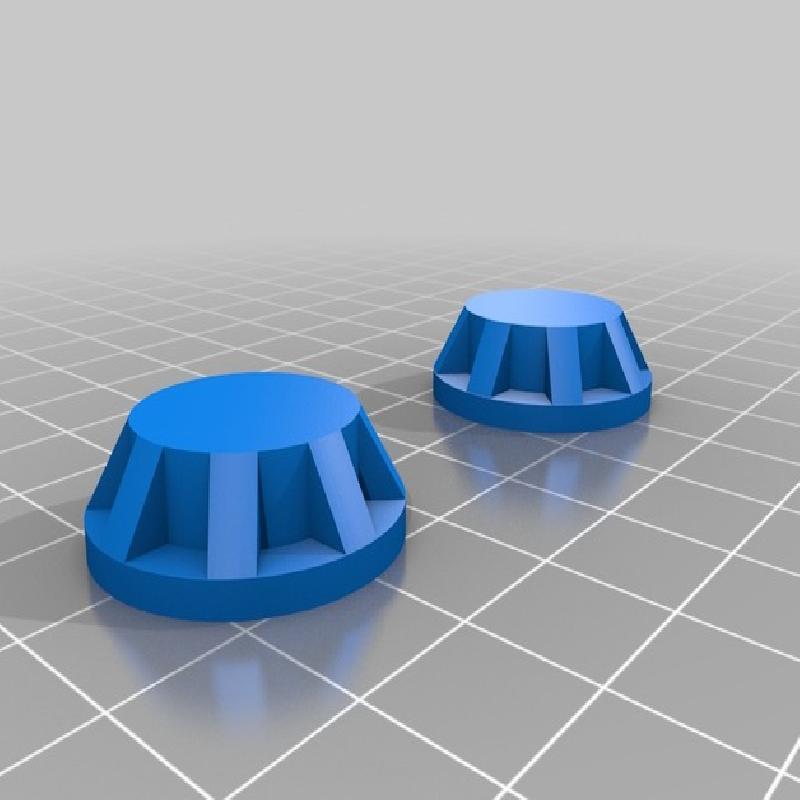

Grey- Engine baffle 2g 5 min
Transparent- Windows 2g 8 min
How to get yellow stripes on the wings using Green and yellow PLA.
This tip assumes you are printing 1 set of Green- Wings with rafts enabled.
Start the print using Green PLA
At 77% complete Change filament to Yellow
At 82% Change to Green
At 86% Change to Yellow
At 92% Change back to Green to finish the print
