my best spinner design so far ;D
based on D13mm stainless steel balls, which move freely inside their pockets for additional fidgeting

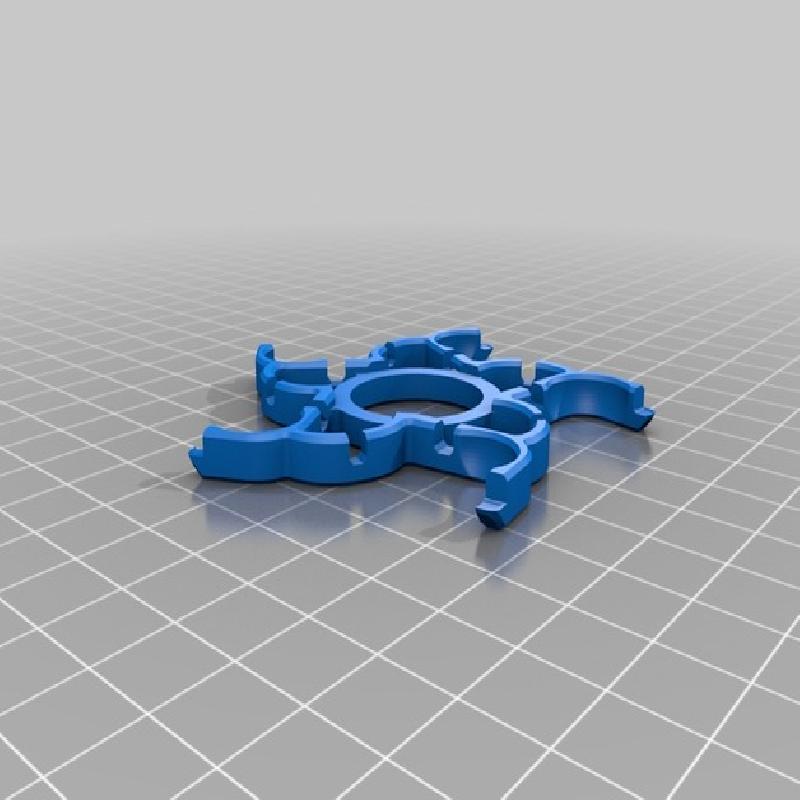

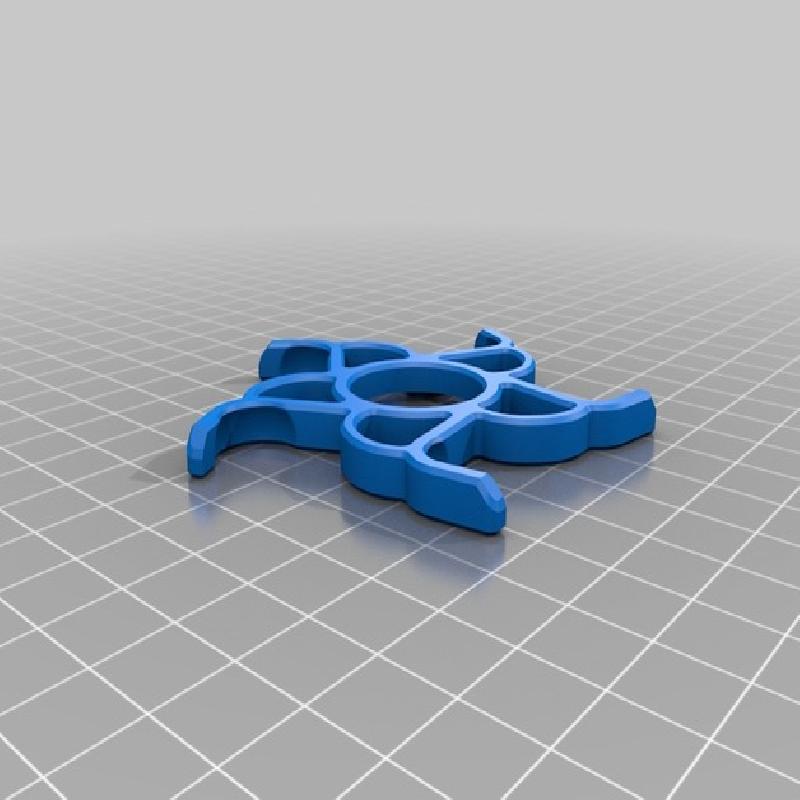

2 part design for easy color mixing and "3D" spinner contour, halfes should snap together easily

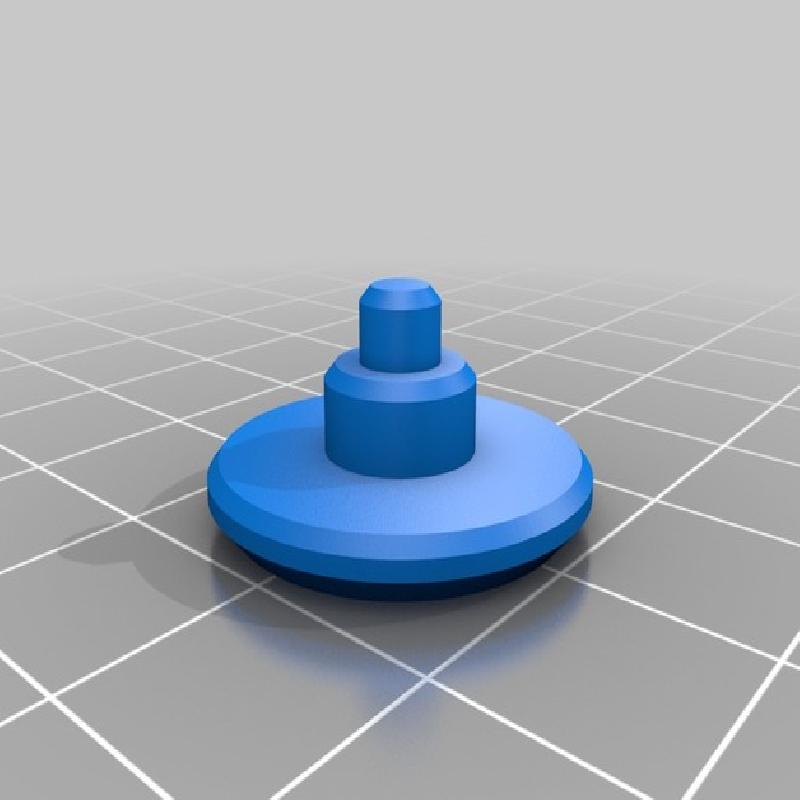

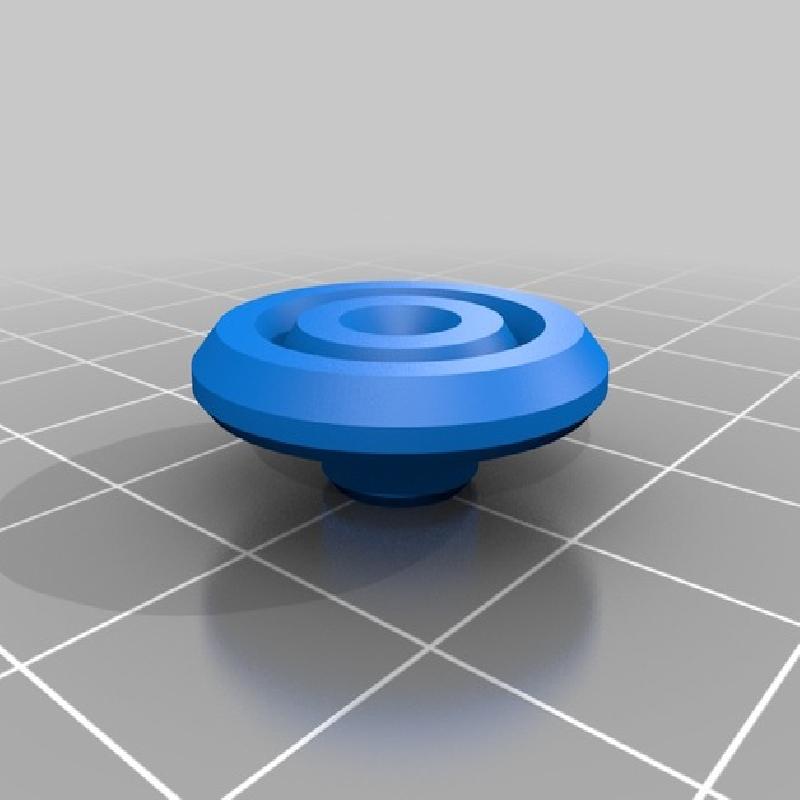

includes my latest cap design for good grip without print support need
needs 1x 608 skate ball bearing and 5x balls
balls need to be put in place before spinner halfes are glues together
caps will need some glue, depending on the print result fit
model units are [mm]
Printer Brand:
Prusa
Printer:
Prusa Mk2
Rafts:
No
Supports:
No
Resolution:
0.15
Infill:
30%
Notes:

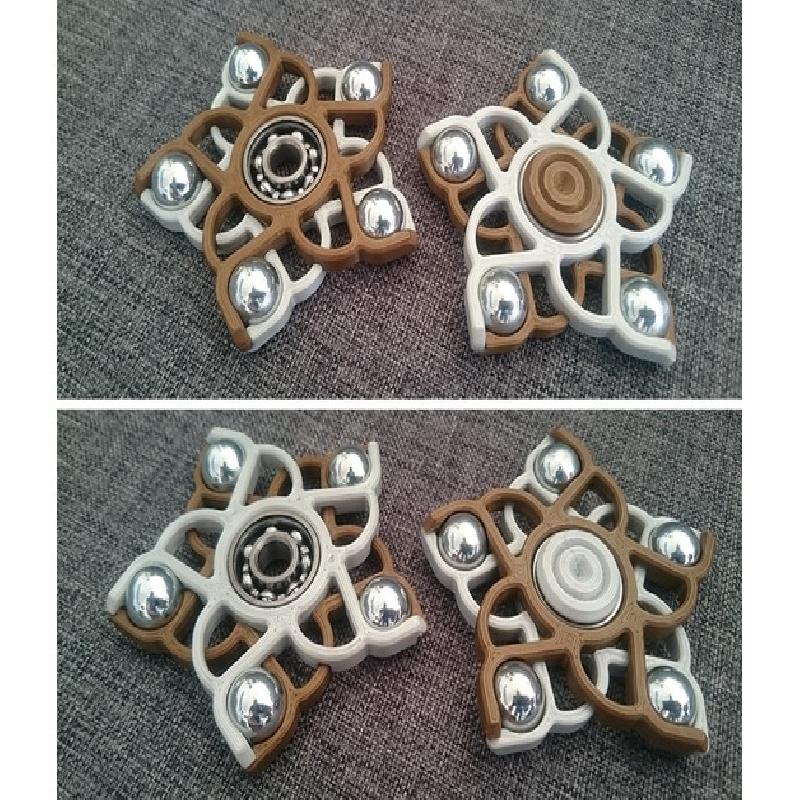

printed in DasFilament Bronze/Silver PLA
used 2mm brim due to delicate parts and to prevent warping issues
