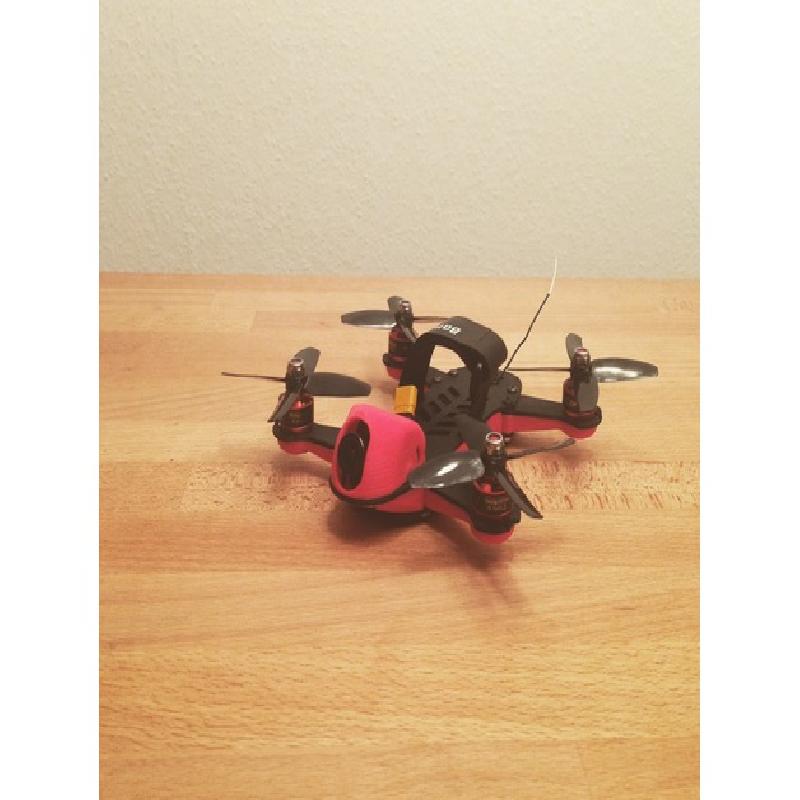

Hi flying folk and future quadcopter racers. This is the new firefly 150 it is inspired by the famous vortex 150. It is designed to deliver a unique flying experience in yet a so small form factor.
If you like the design but don't want to build

It is still a work in progress so bare with me if some parts aren't perfect.

Along these lines I have to point out that this is a really tight build and that it might be challenging for a first time builder.
I may make an instructables for build clarification.

So far I have collected a list of parts that are compatible with the firefly 150 and a list with all the necessary hardware to assemble the frame.

Post-Printing

Hardware

You'll need some additional parts to assemble the frame:
Bolts:

6x M2x10mm
4x M2x6mm
http://www.banggood.com/200pcs-M2-Allen-Bolt-Hex-Socket-Round-Cap-Head-Screw-Assortment-Kit-Set-Black-p-1041363.html?p=BQ31181713038201505L

16x M3x6mm
http://www.banggood.com/Diatone-M3x6-Inner-Hexagon-Screw-Pack-20pcs-For-RC-Multirotors-p-973474.html?p=BQ31181713038201505L

Standoff:
8x M3x8mm standoffs (brass or nylon: female to female)
Brass:
http://www.banggood.com/50pcs-M3-Brass-Female-Threaded-Hex-Standoffs-Spacer-Nut-4681012mm-p-1043793.html?p=BQ31181713038201505L
Nylon:
http://www.banggood.com/300pcs-M3-Nylon-Black-Hex-Scre-p-984310.html?p=BQ31181713038201505L

Required printed parts to build the frame:
1x Top plate

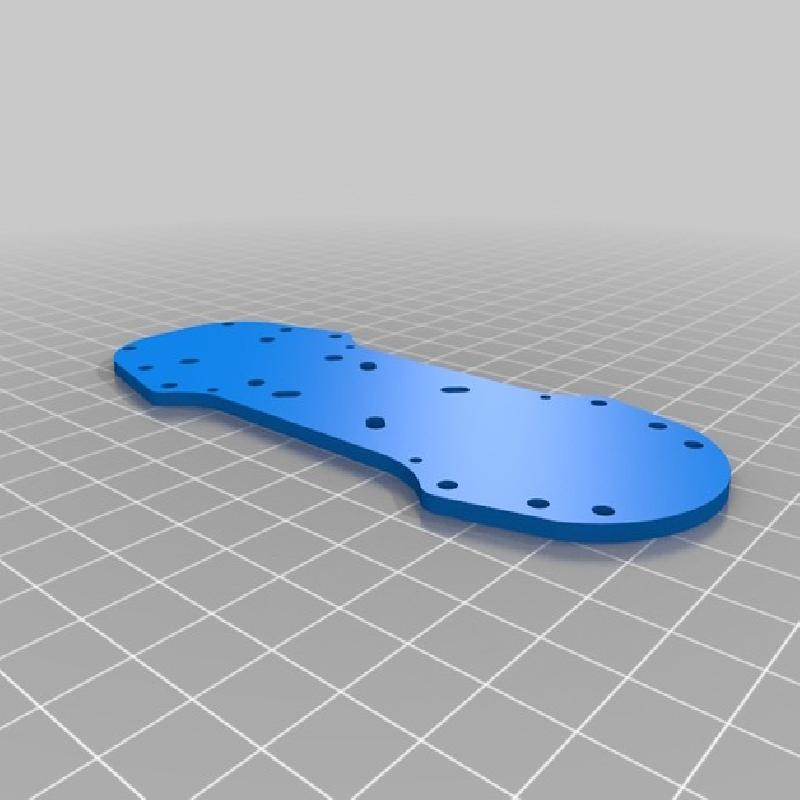

1x Lower plate
1x Canopy
1x Rear (antenna mount)

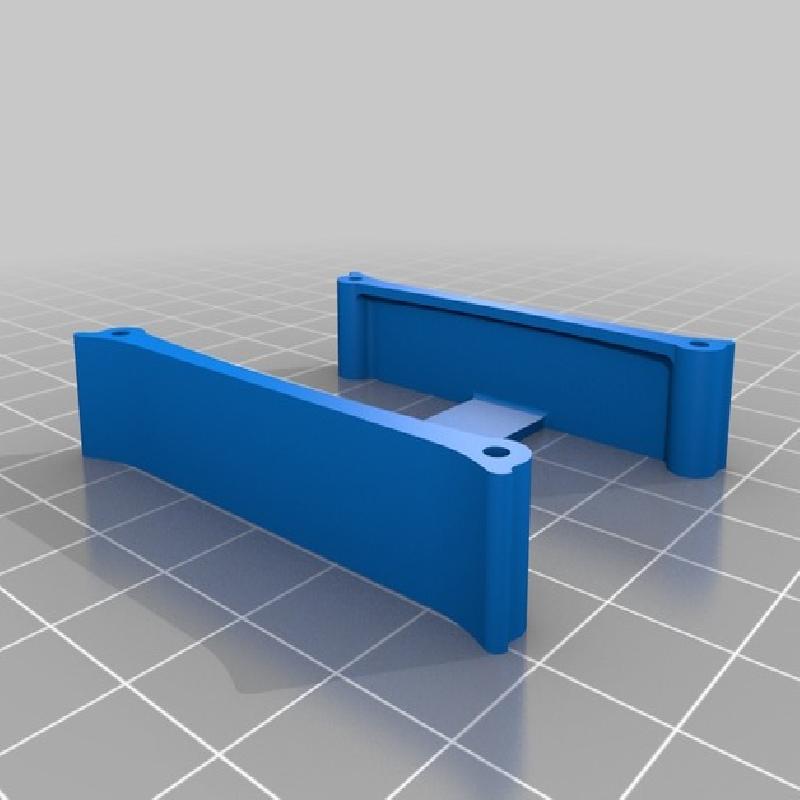

1x Front fence
1x Sides

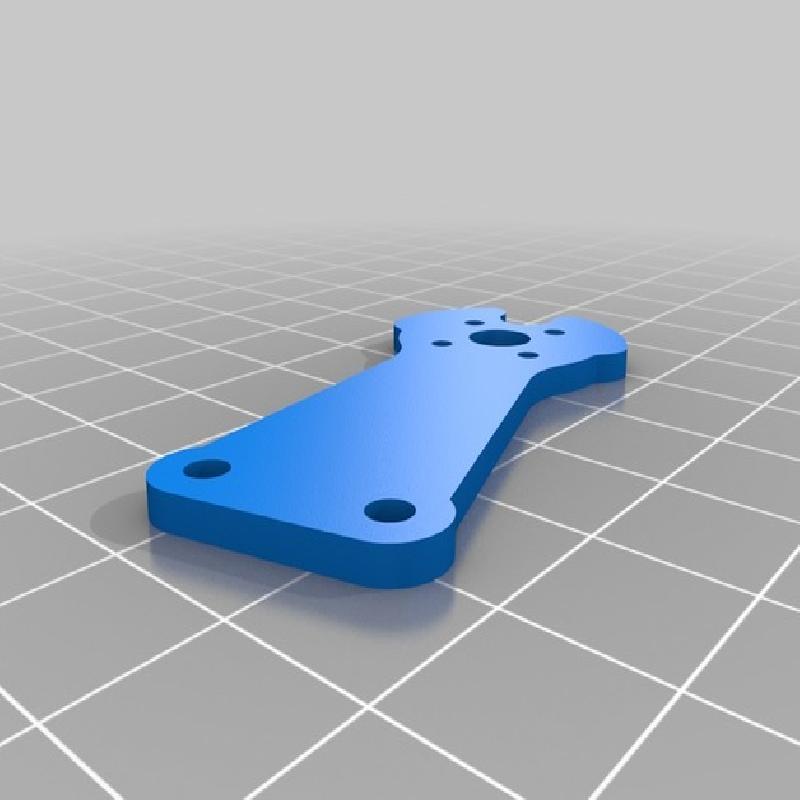

4x arm

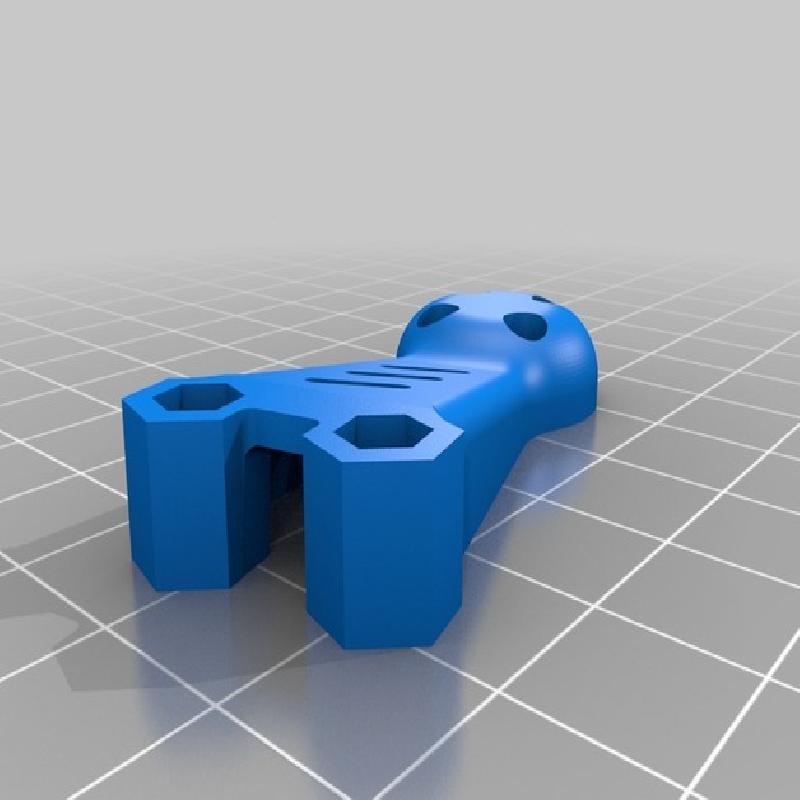

4x Arm esc mount (Brass or Nylon depends on you) hex

Electronics

I invested a lot of time in searching for the right components for this build. The main reason was the limited space. As far as I know there are no escs out the that would fit the esc mount with a higher current rating then 7A so I gave you some options in the ESC topic for alternative options.
Also don't miss out on the misc section.

Motors

http://www.banggood.com/4PCS-Emax-RS1306-4000KV-RaceSpec-Motor-2CW2CCW-For-FPV-Racing-p-1068501.html?p=BQ31181713038201505L

http://www.banggood.com/Emax-RS1306-3300KV4000KV-RaceSpec-Motor-CWCCW-For-FPV-Racing-p-1060943.html?p=BQ31181713038201505L

http://www.banggood.com/DYS-BX1306-14-4000KV-CWCCW-Brushless-Motor-for-Multicopter-p-1040415.html?p=BQ31181713038201505L

http://www.banggood.com/4X-Racerstar-Racing-Edition-1306-BR1306-4000KV-1-2S-Brushless-Motor-CWCCW-For-150-180-200-p-1078397.html?p=BQ31181713038201505L

http://www.banggood.com/Kingkong-1306-3100KV-2-4S-Burshless-Motor-CW-CCW-for-FPV-Racer-p-1068271.html?p=BQ31181713038201505L

http://www.banggood.com/Youbi-XV-130-XV-130-1306-3600KV-Mini-Micro-Motor-2S-4S-For-FPV-Racer-p-1119162.html?p=BQ31181713038201505L

http://www.getfpv.com/lumenier-rx1306-7-4000kv-motor.html

https://www.droneeclipse.com/collections/1306/products/brotherhobby-tornado-t1-1407-3600kv-racing-edition-motor

ESCs

http://www.banggood.com/20x20mm-Racerstar-Mini-RS12Ax4-12A-Blheli_S-BB2-2-4S-4-in-1-Brushless-ESC-D-Shot-Ready-p-1132683.html?p=BQ31181713038201505L

http://www.banggood.com/20x20mm-Racerstar-Mini-RS12Ax4-12A-Blheli_S-BB2-2-4S-4-in-1-Brushless-ESC-D-Shot-Ready-p-1132683.html?p=BQ31181713038201505L

http://www.banggood.com/Eachine-Minicube-10A-BLHeli_S-16_5-4-In-1-1-2S-ESC-BB2-Support-Oneshot42-Oneshot125-Multishot-Dshot-p-1126930.html?p=BQ31181713038201505L

http://www.banggood.com/Racerstar-Mini-RS6Ax4-6A-1-2S-Blheli_S-BB2-4-In-1-ESC-with-5V-BEC-Support-Oneshot125-D-Shot-p-1110025.html?p=BQ31181713038201505L

http://www.getfpv.com/multi-rotor-frames/mini-multi-rotor-store/mini-esc-s/lumenier-mini-blheli-s-10a-4-in-1-opto-esc.html

https://flexrc.com/product/busybee2-10a-4-in-1-esc/

http://furiousfpv.com/product_info.php?cPath=27&products_id=184

Flightcontroller

http://www.banggood.com/CleanFlight-BetaFlight-Micro-F3-Flight-Controller-Built-in-PDB-Buzzer-20X20mm-For-FPV-Racing-p-1094615.html?p=BQ31181713038201505L

http://www.banggood.com/STM32F4-F4-2-4S-Lipo-20x20mm-Mini-Flight-Control-with-BEC-for-Multirotor-p-1111289.html?p=BQ31181713038201505L

http://www.banggood.com/Betaflight-3_1-F3-6DOF-Mini-Flight-Controller-20x20mm-Integrated-OSD-Built-in-5V-BEC-p-1119503.html?p=BQ31181713038201505L

http://www.banggood.com/Eachine-Minicube-F3-6DOF-Flight-Controller-Intergrated-Betaflight-OSD-20mm20mm-p-1126931.html?p=BQ31181713038201505L

http://www.banggood.com/Mini-ACRO-F4-Betaflight-Flight-Controller-Buil-in-PDB-5V1A-BEC-with-Micro-Buzzer-p-1110441.html?p=BQ31181713038201505L

http://www.banggood.com/Micro-Betaflight-3_1_0-Revo-F4-Flight-Controller-2020mm-Built-in-PDB-5V-1A-BEC-p-1125680.html?p=BQ31181713038201505L

AIO (All in one)
http://www.banggood.com/6_5g-XJB-V1-6DOF-F3-EVO-Flight-Control-AIO-5V-BEC-PDB-with-XR25A-25A-Blheli-2-6S-4-In-1-ESC-p-1120103.html?p=BQ31181713038201505L

Props

http://www.banggood.com/DYS-X30303-3-blade-bullnose-propeller-3030-CWCCW-Nylon-Fiber-p-1053275.html?p=BQ31181713038201505L

http://www.banggood.com/10-Pairs-Kingkong-3x3x4-3030-4-Blade-Propeller-CW-CCW-for-FPV-Racer-p-1083920.html?p=BQ31181713038201505L

http://www.banggood.com/2-Pairs-Eachine-Falcon-120-Spare-Part-4-Blad-3030-Propeller-Black-Red-p-1115997.html?p=BQ31181713038201505L

Video transmitter

http://www.banggood.com/Eachine-VTX03-Super-Mini-5_8G-72CH-025mW50mw200mW-Switchable-FPV-Transmitter-p-1114206.html?p=BQ31181713038201505L

http://www.banggood.com/Eachine-VTX02-Super-Mini-5_8G-40CH-200mW-FPV-Transmitter-p-1114204.html?p=BQ31181713038201505L

http://www.banggood.com/ImmersionRC-Tramp-HV-6-18V-5_8GHz-1mW-to600mW-Video-Transmitter-International-Version-p-1088990.html?p=BQ31181713038201505L

http://www.banggood.com/Micro-20x20mm-VTX-OSD-Board-40CH-5_8G-25mw-200mw-Mini-FPV-Transmitter-Integrated-OSD-RHCP-p-1107269.html?p=BQ31181713038201505L

http://www.team-blacksheep.com/products/prod:unify_pro

Cam

http://www.banggood.com/RunCam-Swift-2-13-CCD-PAL-Micro-Camera-FOV-130150165-Degree-2_5mm2_3mm2_1mm-Integrated-OSD-MIC-p-1118948.html?p=BQ31181713038201505L

http://www.banggood.com/Runcam-Swift-600TVL-2_8MM-Lens-DC-5-to-17V-Horizontal-Fov-90-Mini-FPV-Camera-PAL-p-1044126.html?p=BQ31181713038201505L

Misc

http://www.banggood.com/Tarot-RC-Helicopter-Part-Amass-One-Pair-XT30-Non-slip-Plugs-TL2918-p-954269.html?p=BQ31181713038201505L

http://www.banggood.com/10cm-PCI-UFL-IPX-to-RPSMA-Female-Jack-Pigtail-Cable-p-924933.html?p=BQ31181713038201505L

http://www.banggood.com/1M-8101214161820222426-AWG-Silicone-Wire-SR-Wire-p-921159.html?p=BQ31181713038201505L (16 AWG for xt30 / 12 AWG for xt60)

http://www.banggood.com/1-Meter-Black-Silicone-Wire-Cable-10121416182022AWG-Flexible-Cable-p-1035760.html?p=BQ31181713038201505L (20 AWG for motor wires)
