at this point I have no FPV gear so I didn't include camera mount, when I will receive a camera I will redesign top plate so I can mount it. This is a work in progress and I will update this model with new parts. To assemble the frame I used WN1452 screws.
Frame size: 180mm
Motors: DYS BE1806
ESC: EMAX 12A SimonK
Flight controller: CC3D mounted 90° so you can access usb port from the side
Reciever: Turnigy 9x8Cv2
Battery: Multistar 3S 1400mAh High discharge
Weight with battery installed: 397,5g
this model was inspired by http://www.semaker.com/productdetail/7497
I wanted a slightly bigger model where I can mount ESC in arms so I made this.
Required printed parts to build the frame:
Bottom_plate 1x
Top_plate 1x
Front 1x

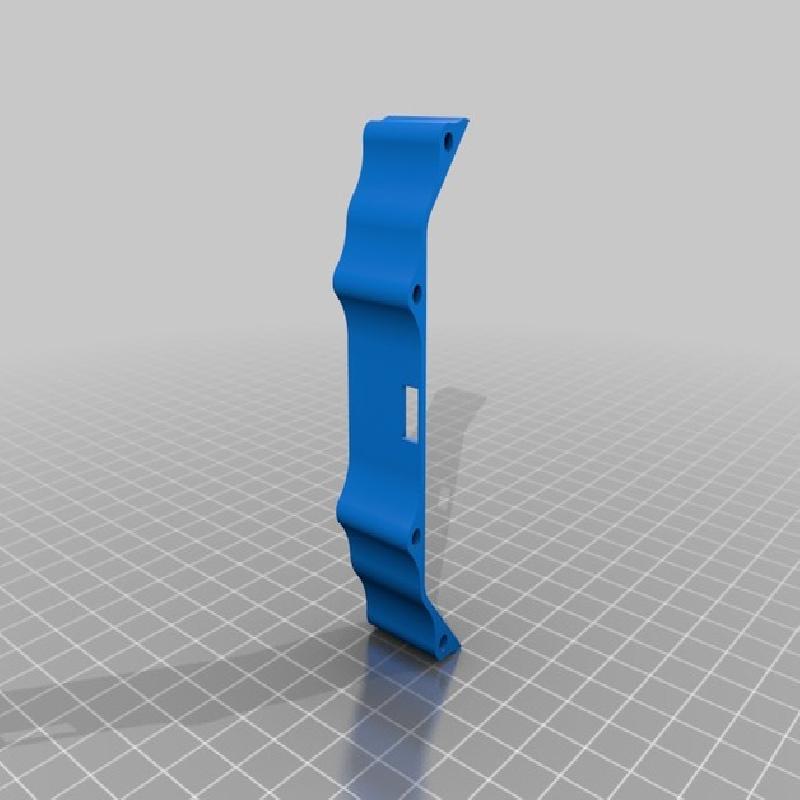

Side 2x
Rear 1x

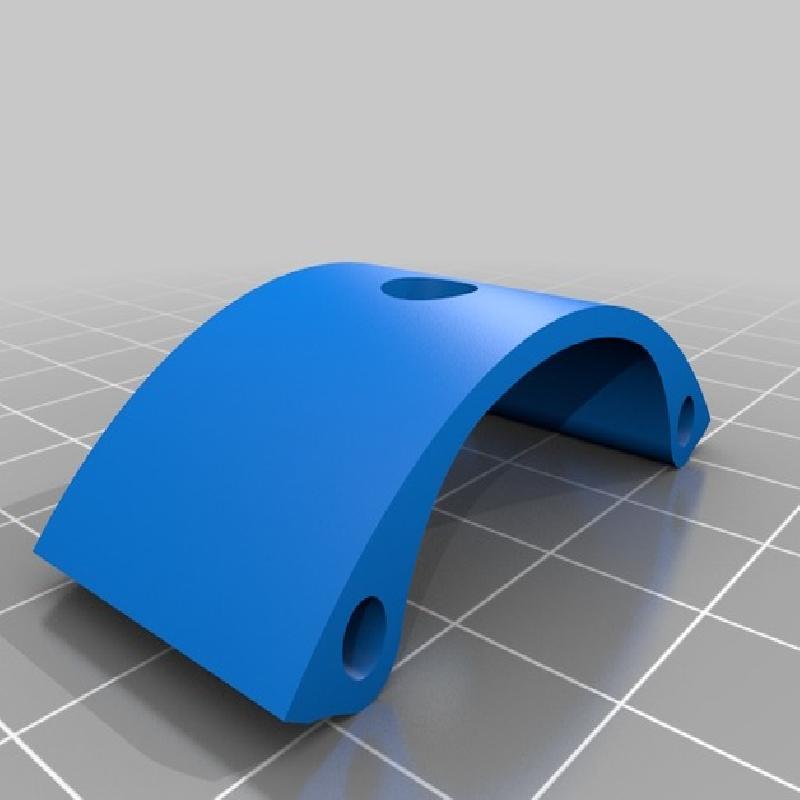

Lower_arm 4x

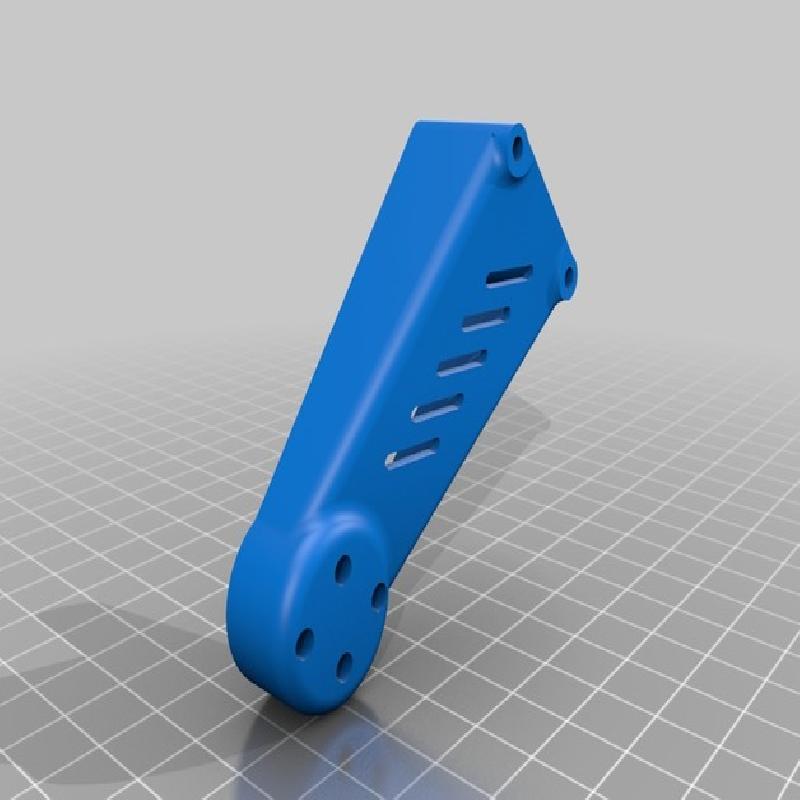

Upper_arm 4x
Feet 4x
Printer:
Custom Delta
Rafts:
No
Supports:
Yes
Resolution:
0.3
Infill:
5%
Notes:
play with extrusion width and outline count to get solid walls
clean up motor mounting holes with a drill.
supports where used only for lower arm.
