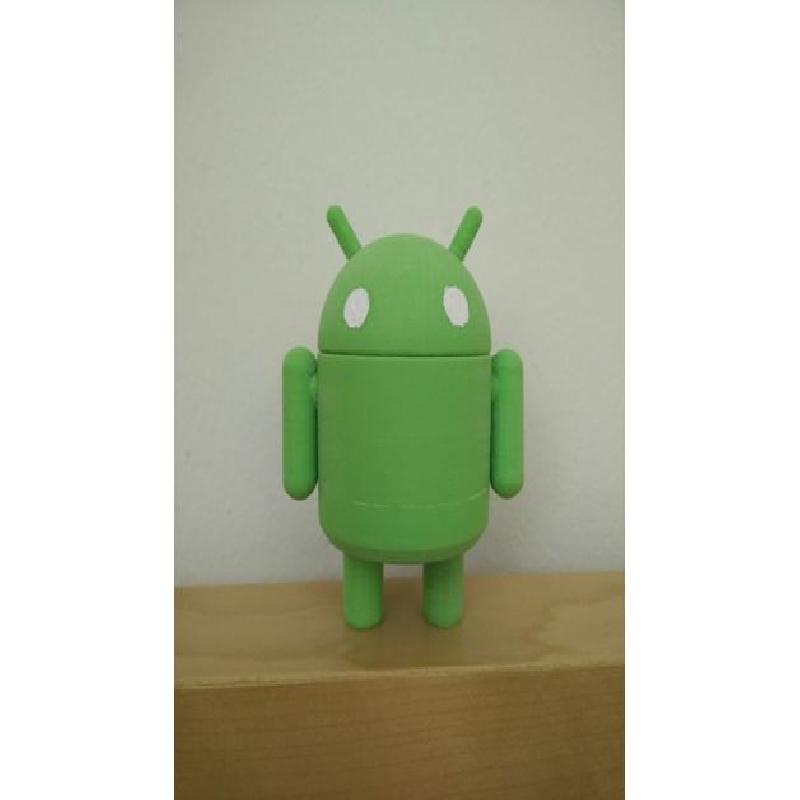

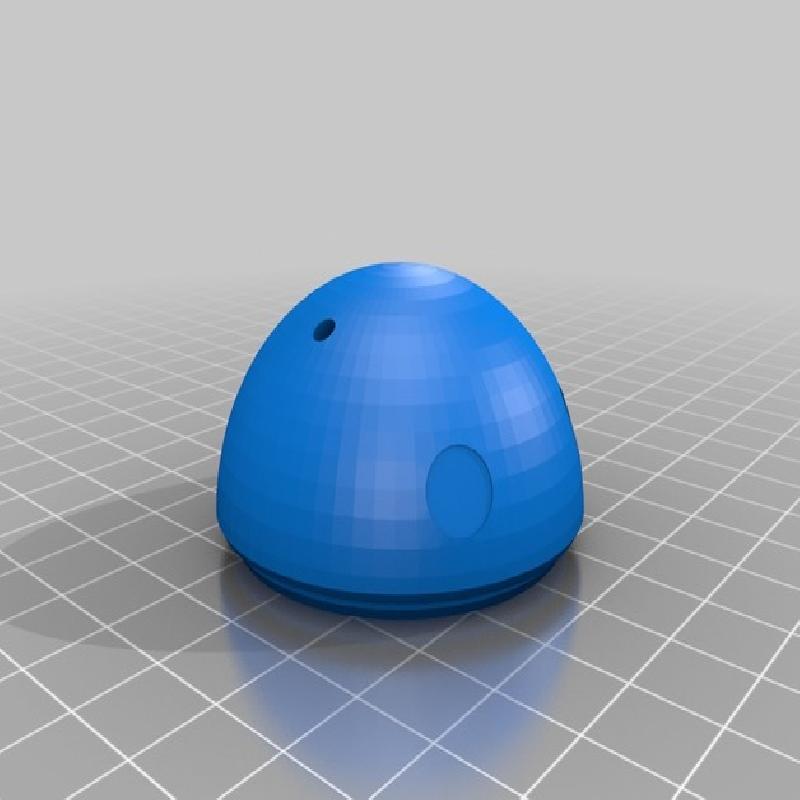

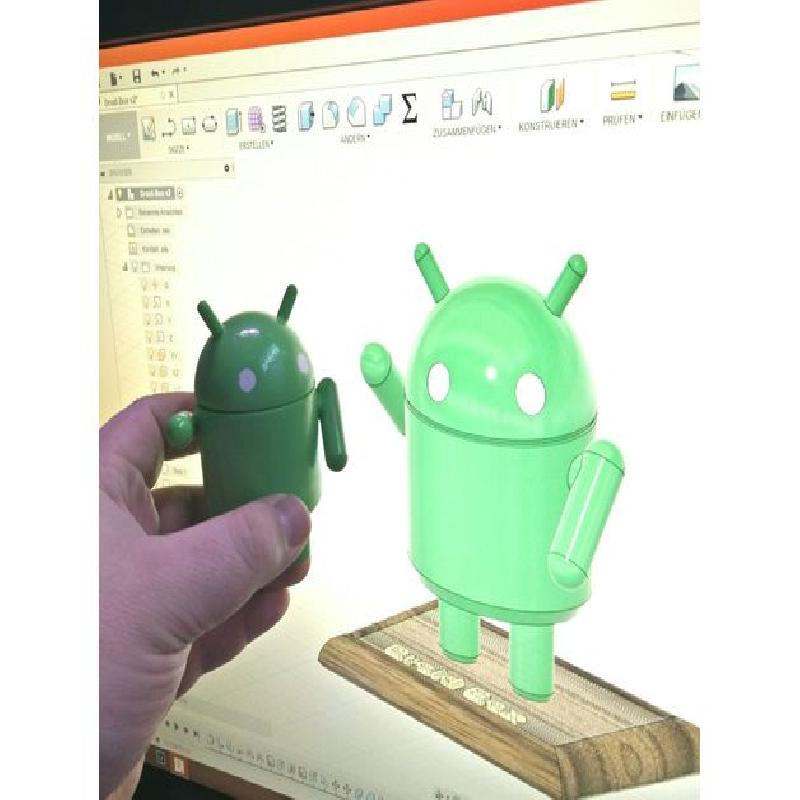

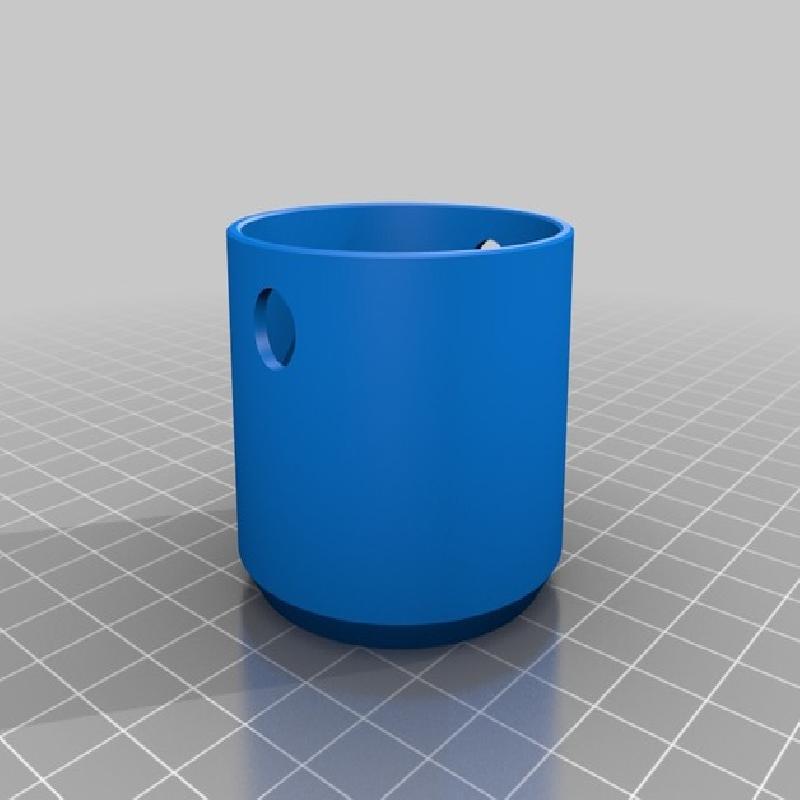

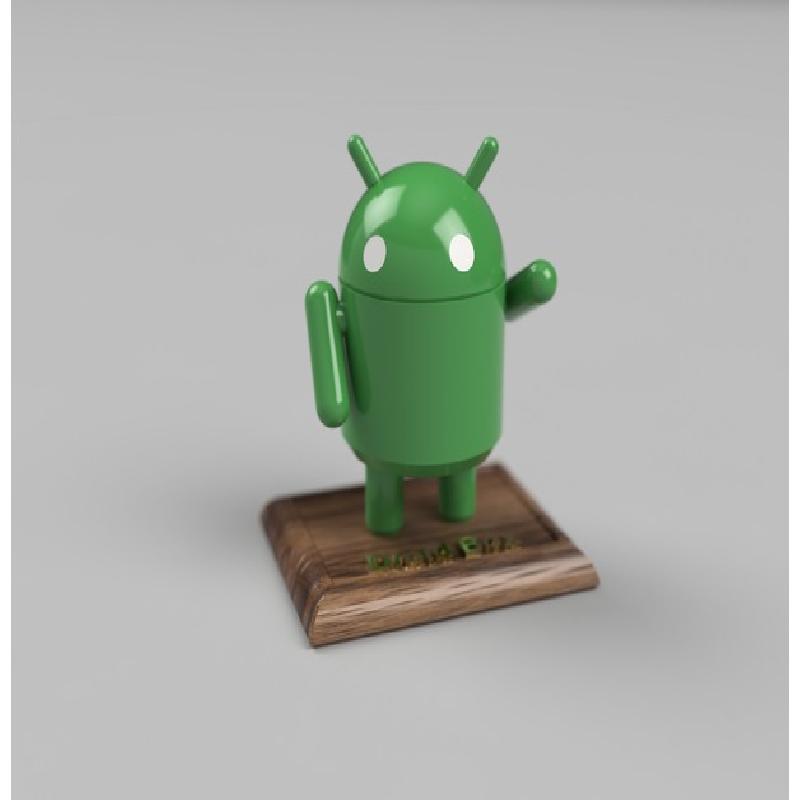

One of my first design tests with Fusion 360. A Droid Box/Droid Figure with moveable arms and head.

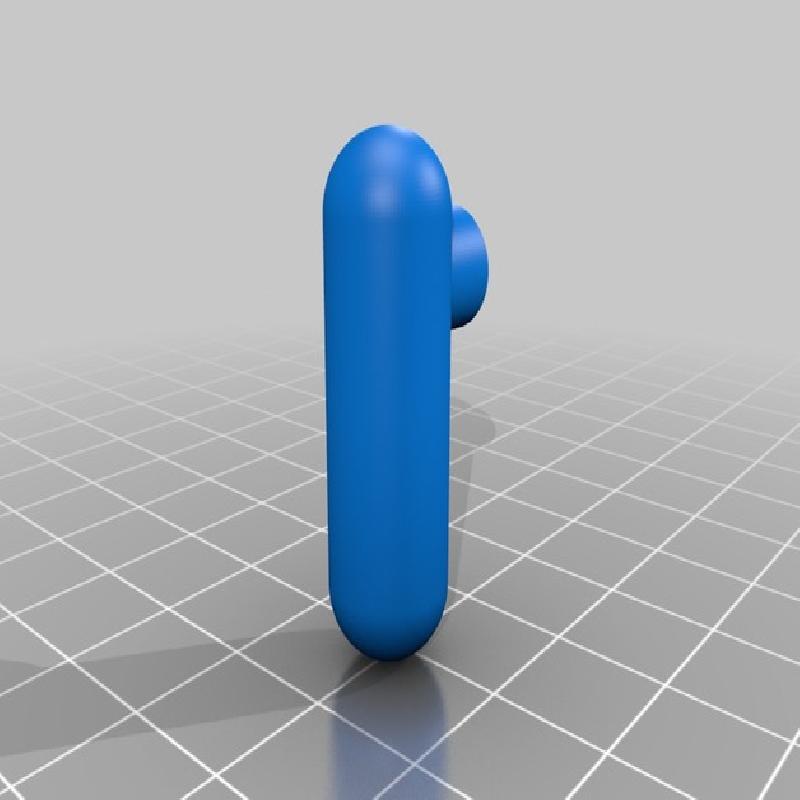

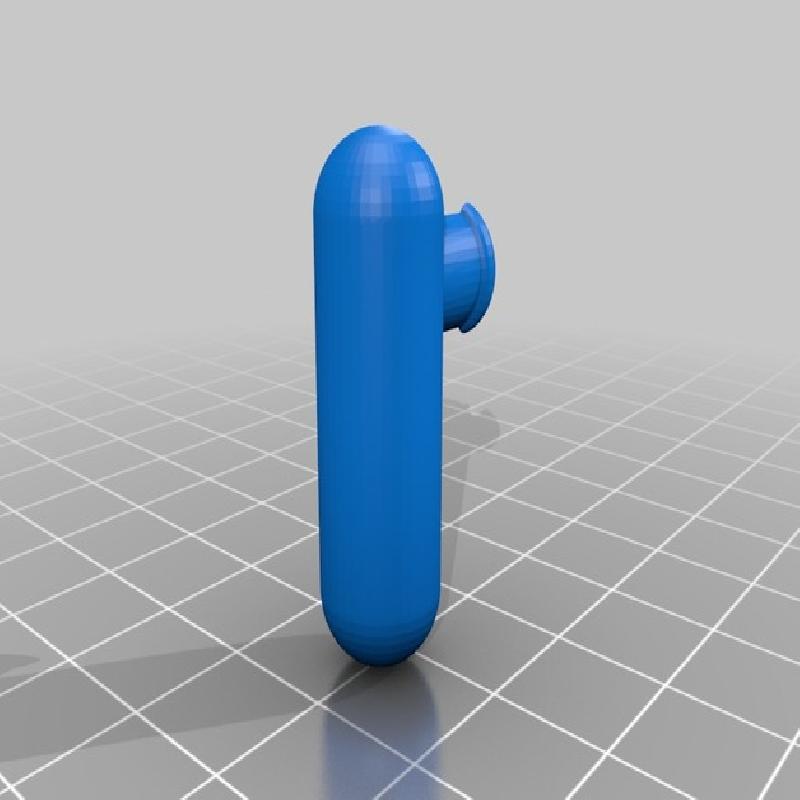

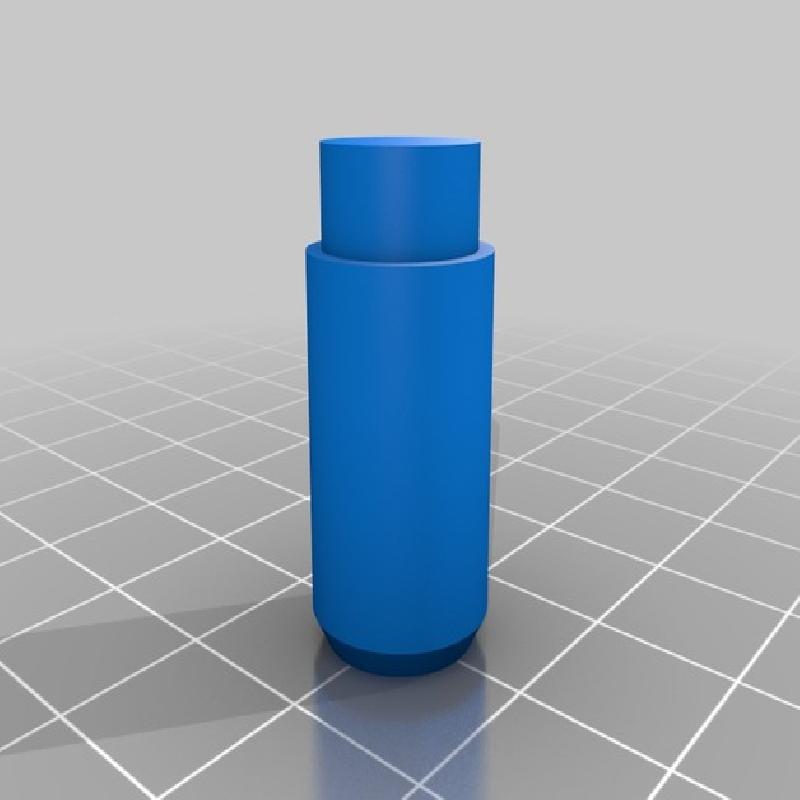

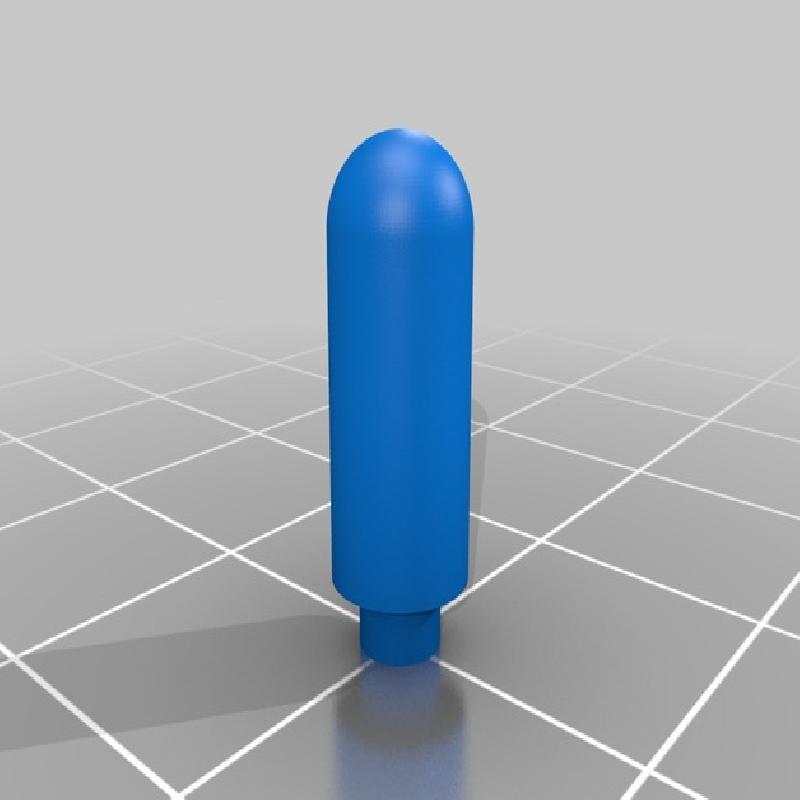

There are 2 versions of the arm. The v2 should hopefully snap in the holes for the arms (not tested yet).

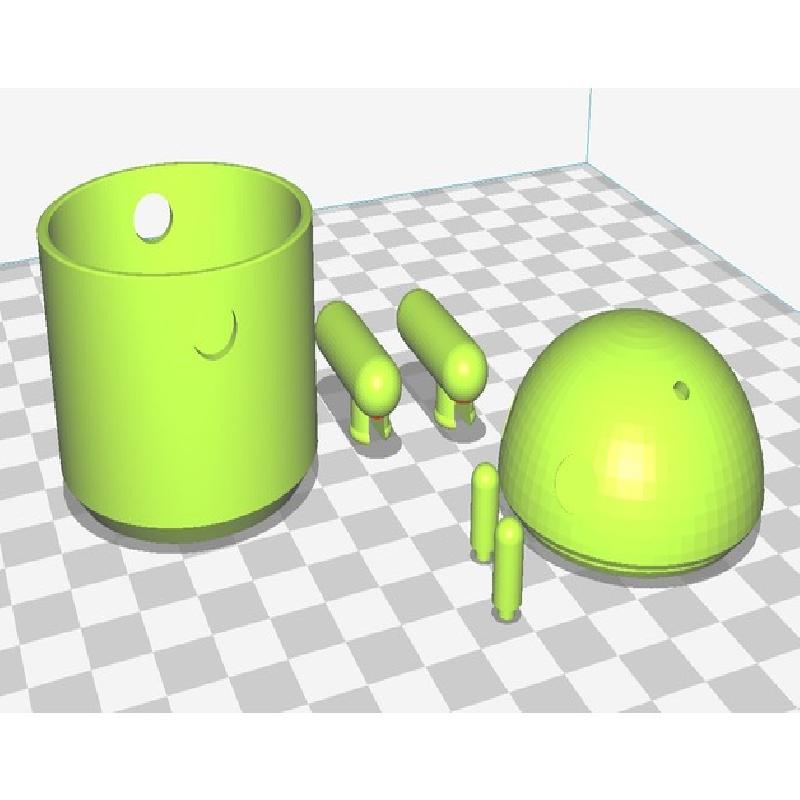

Important: Have a look at the print layout picture. Be sure to position it like that (you have to rotate the arms). Print with support and for the legs and antennas use a brim.
Printer Brand:
Prusa
Printer:
Prusa Clone
Rafts:
No
Supports:
Yes
Resolution:
as you like (for mine in the pictures, i used 0.2)
Infill:
as you like
Notes:
Be sure to rotate the arms and print with support. Use brim for leg and antenna for better adhesion to the bed.

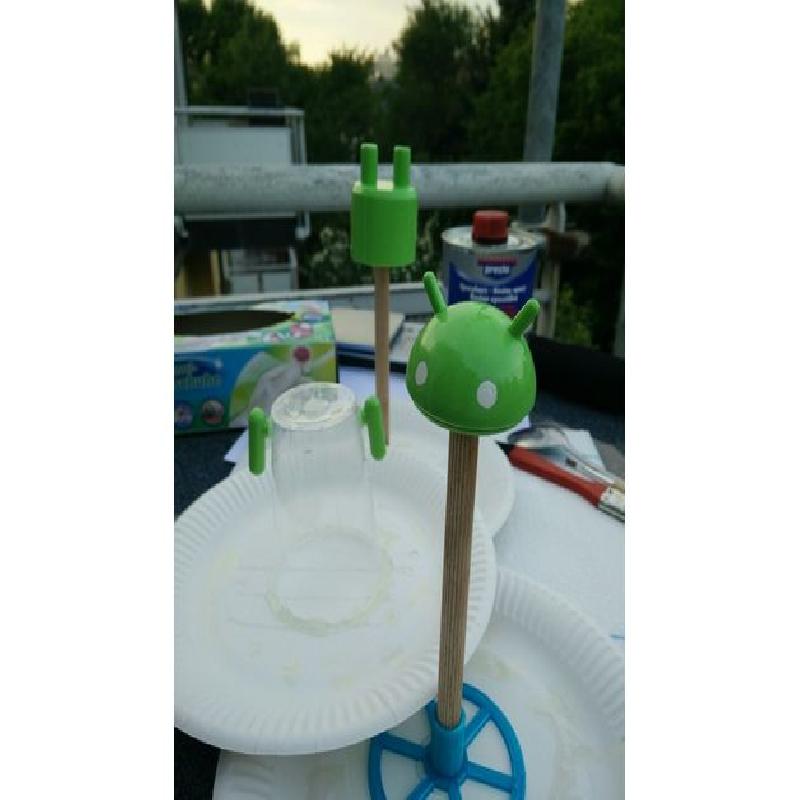

Sanding, acrylic paint and epoxy resin finishing
I've sanded my droid with 120, 180, 280 and finally 400 grit sandpaper. After that i painted the eyes with white acrylic paint. Finally i finished it with a coat of epoxy resin.
Fusion 360
