This is a dog treat dispenser that I made for a guy that works with people who are in wheelchairs and need a way to give their dogs a treat when they do something good because those in wheelchairs might not have enough articulation of their hands to give it to the dog.
to finish this build:
a continuous rotation servo added to the back of the augur to spin it (mounts are not in the cad model for this)
a normal, 9 gram servo that gets attached on the side to control the door.
dog teats ( the pebble kind... almost like food)
I guess a dog would be nice... or a cat... or you can feed yourself...
Printer Brand:
FlashForge
Printer:
Creator Pro
Rafts:
Doesn't Matter
Supports:
No
Resolution:
.2
Infill:
10
Notes:
you may need to change the orientation of the parts to make it easier to print
Solidworks

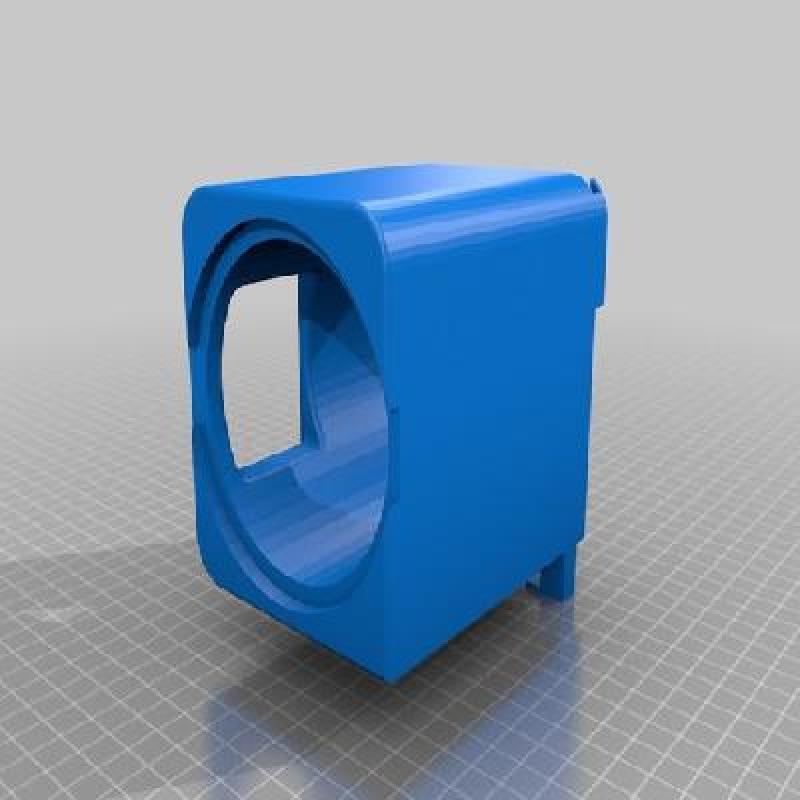

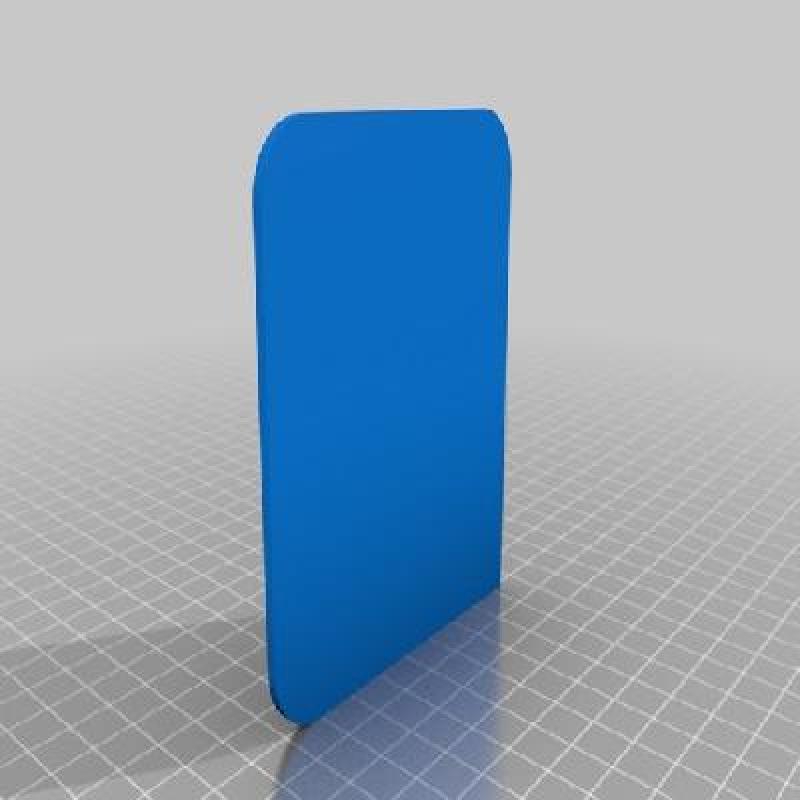

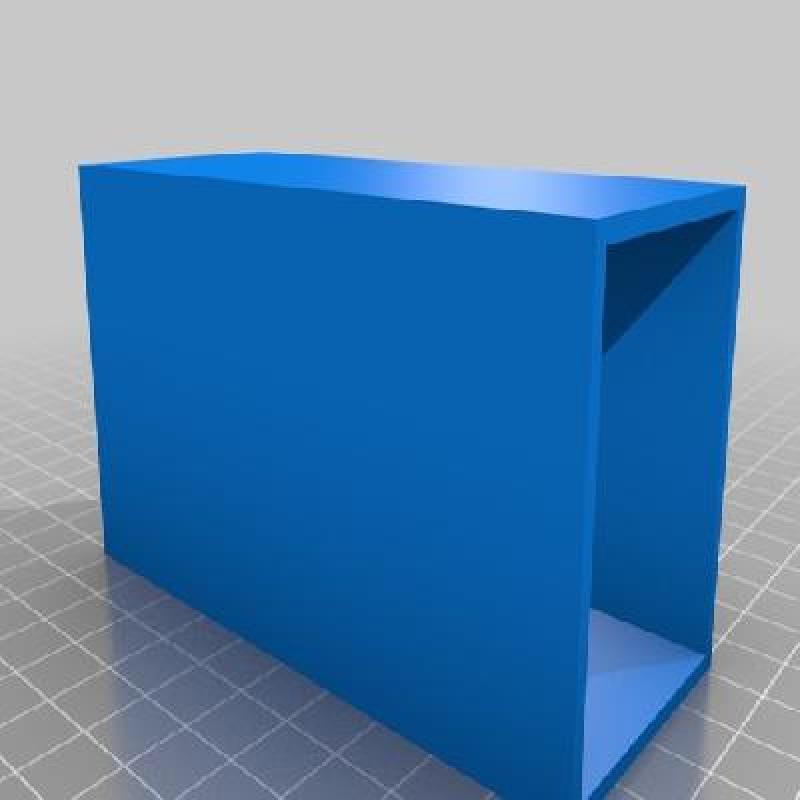

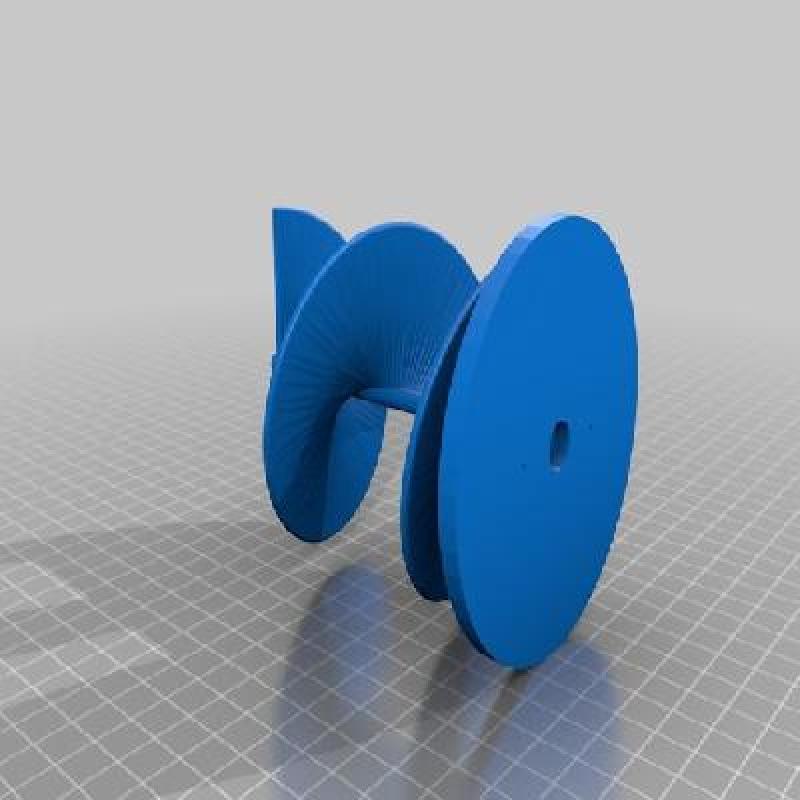

I started with a block then cut into it where I felt it needed. then I made the augur to fit inside the hole. added a front plate that would close to prevent contamination or a curious dog from contaminating the treats or hurting the augur. lastly, I added the hopper on the top.
