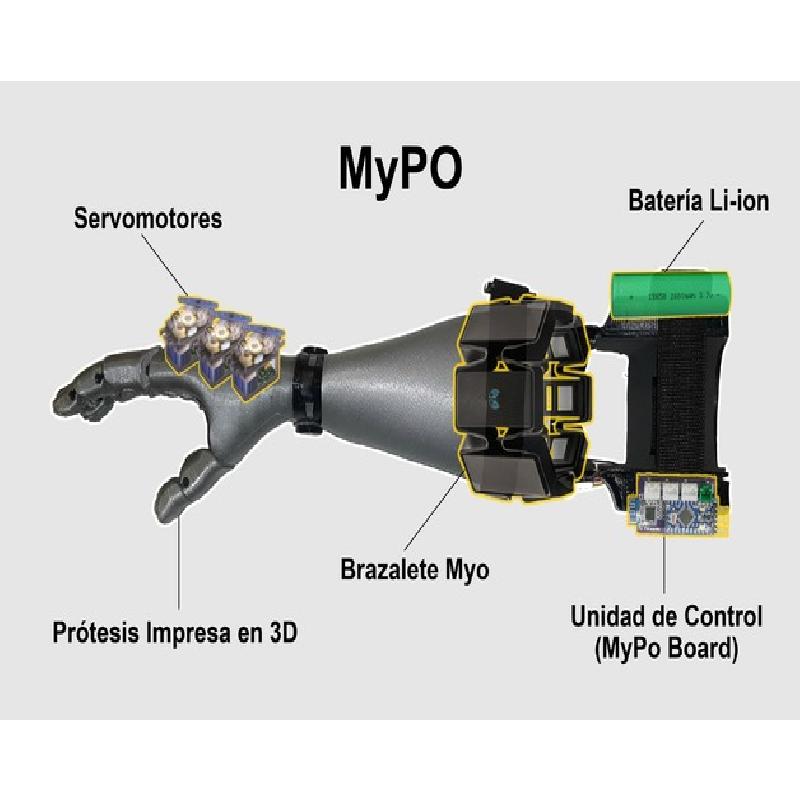

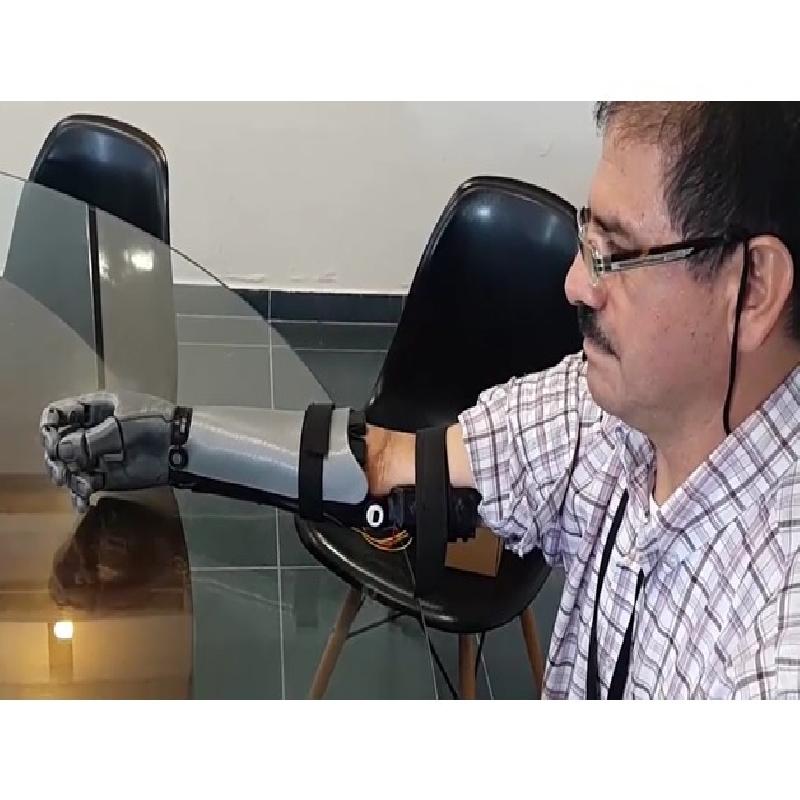

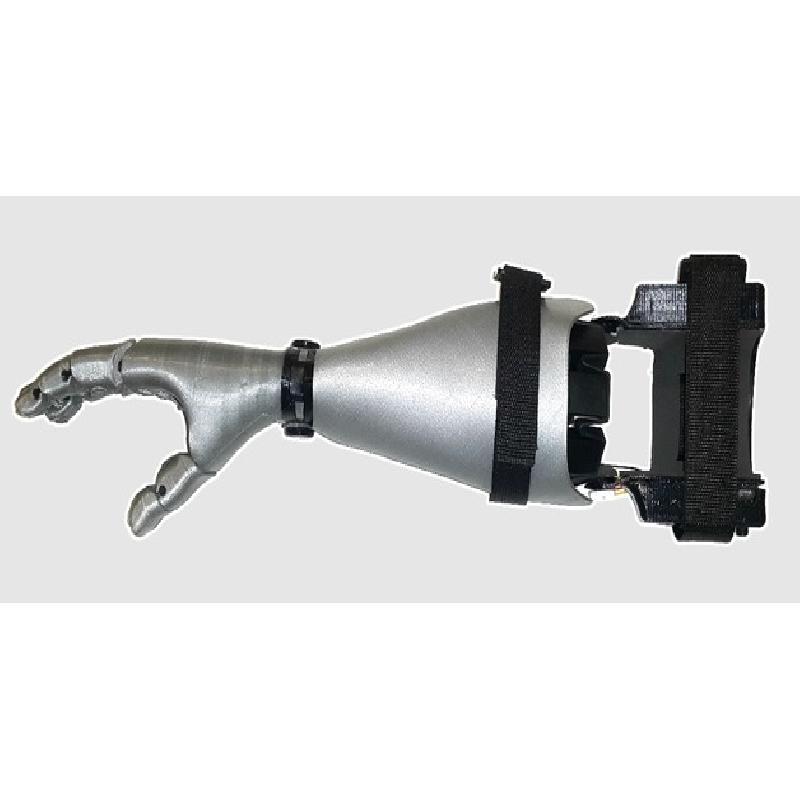

A Myo armband user can perform several hand movements and effortlessly and wirelessly control a PC. We have implemented this technology into our prosthesis to create a new myoelectric-controlled arm prosthetic, the Mypo 2.0, based on our previous Mypo (Myo + Po).
Check out the GitHub project page for more detailed instructions on the electronics.
GitHub (WIP)
Facebook Page
Our Webpage

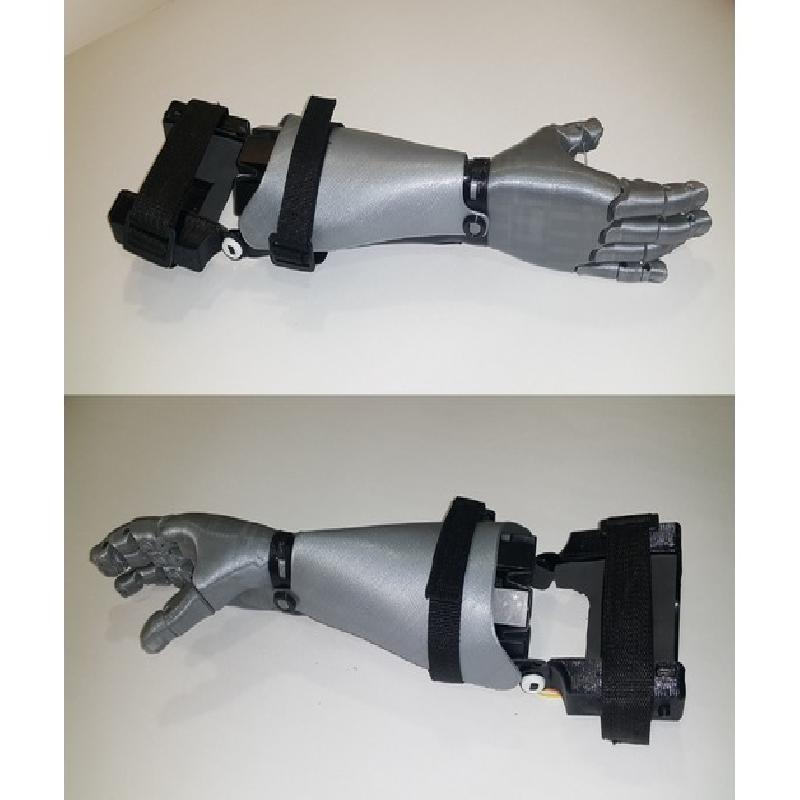

This is ultimately a prototype. Although we have successfully tested it with a few users, size and measurements for different users haven’t been taken into account yet. The files and images posted correspond to a right arm. Files can be mirrored and sized to fit a specific user.
Printer:
FlashForge Creator and Reprap Prusa i3
Rafts:
Doesn't Matter
Supports:
Yes
Notes:

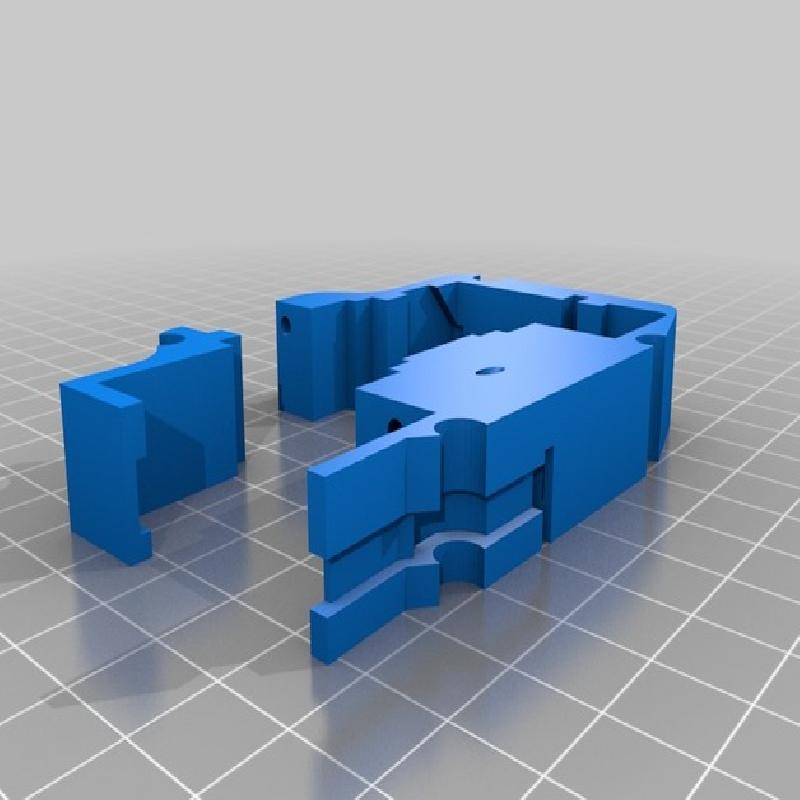

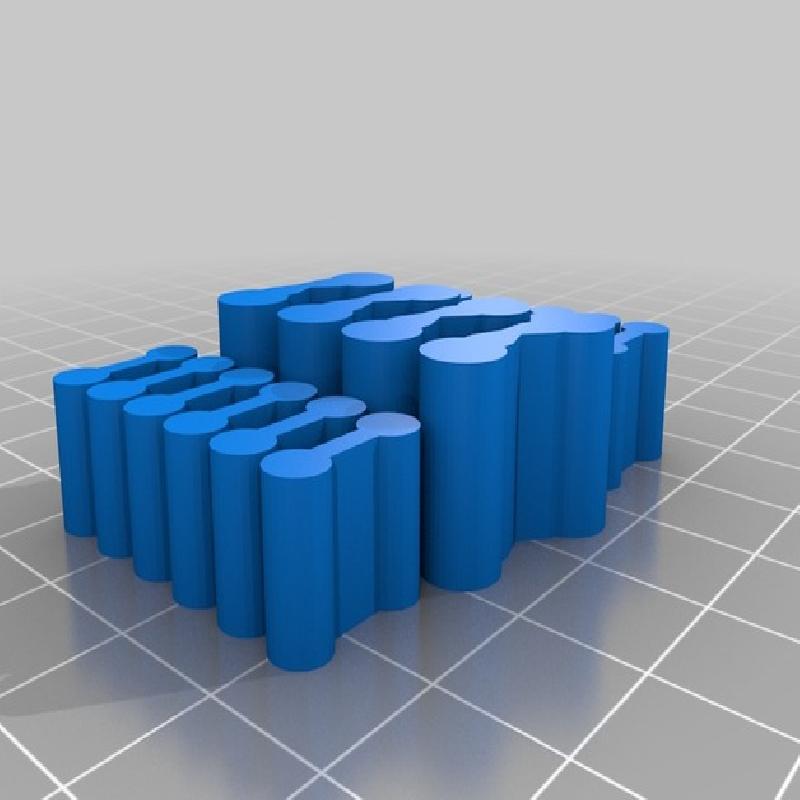

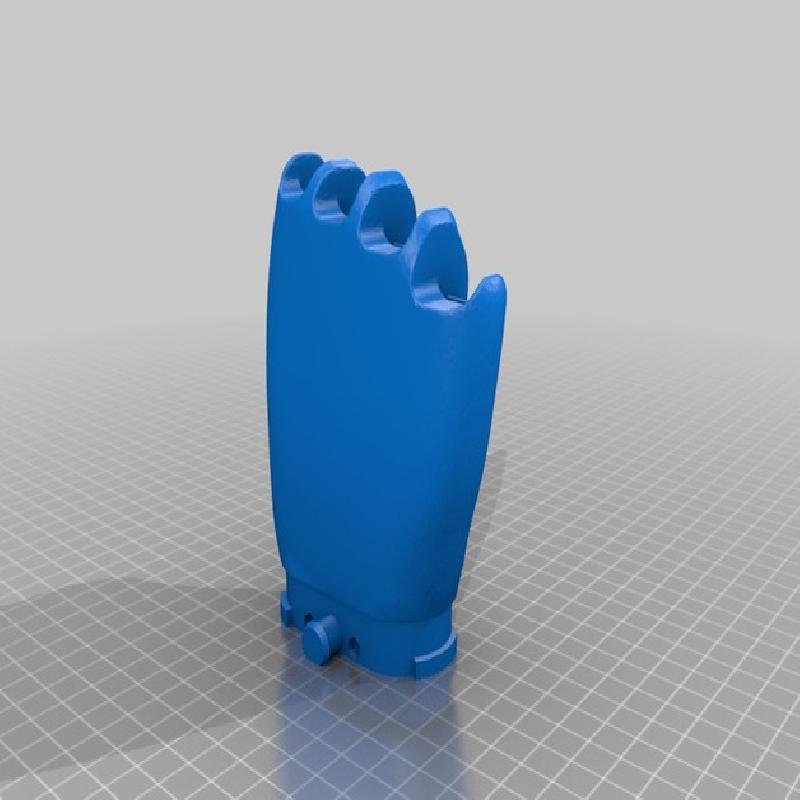

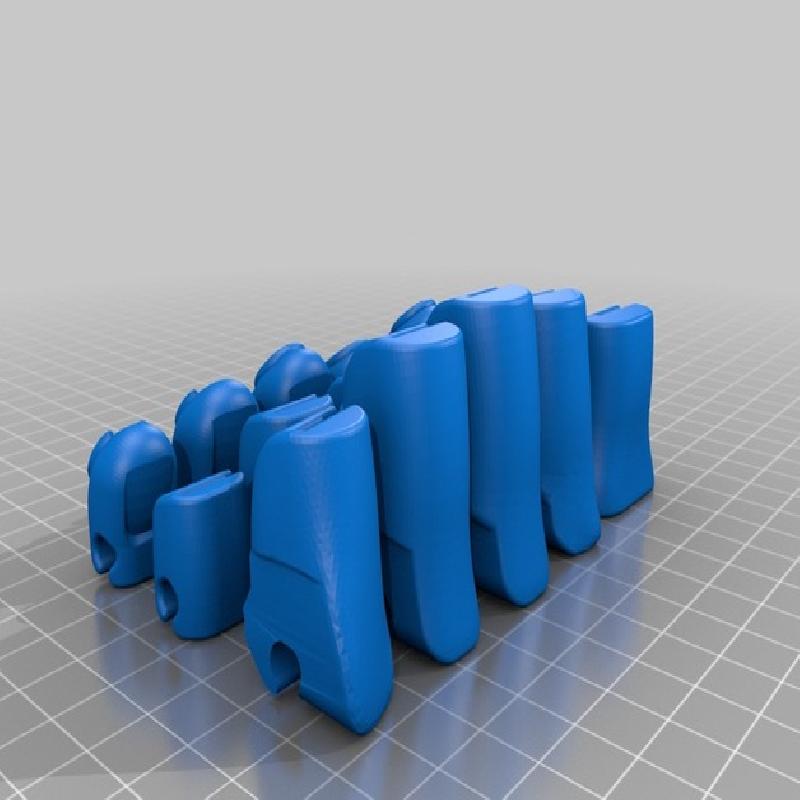

Sliced in Simplify3D and printed on a FlashForge Creator and a custom 20x40cm reprap. All parts printed in PLA with regular settings. Automatically generated support is added where needed. The palm and fingers have the same settings as the regular Flexy-Hand from gyrobot. Filaflex filament was used for the flexible hinges.

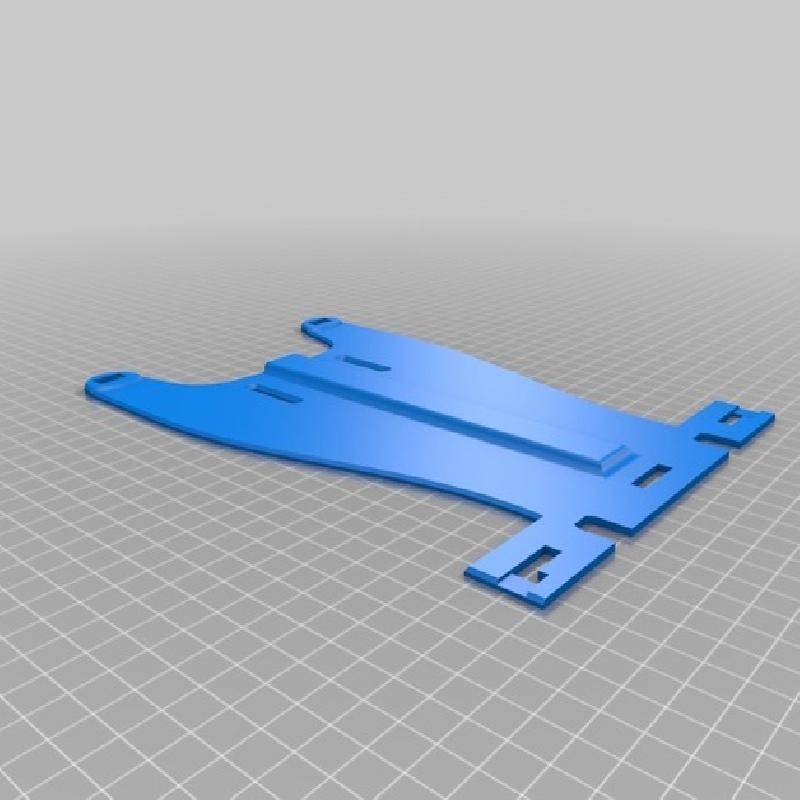

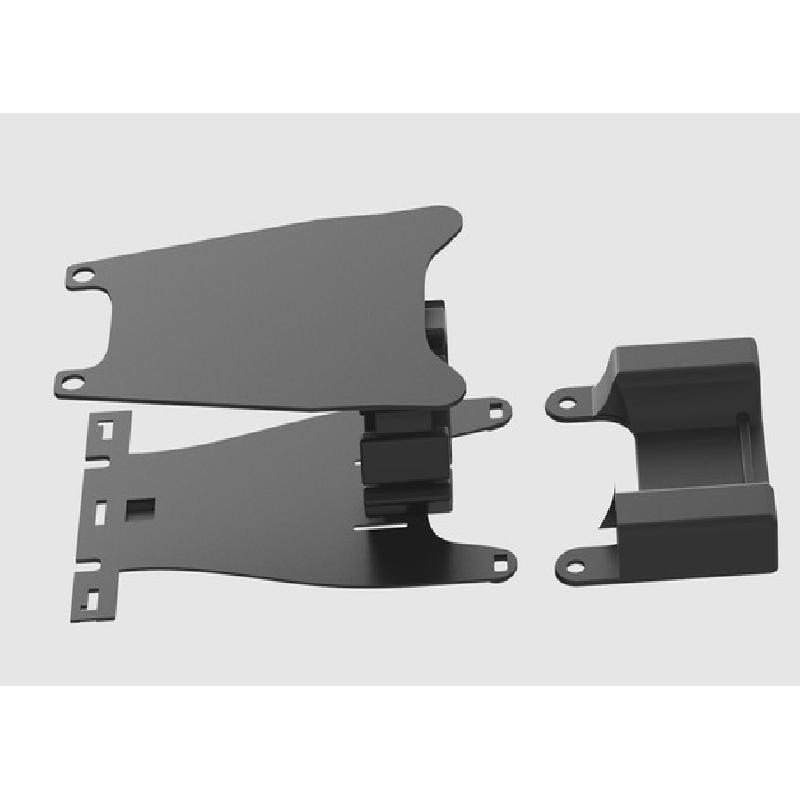

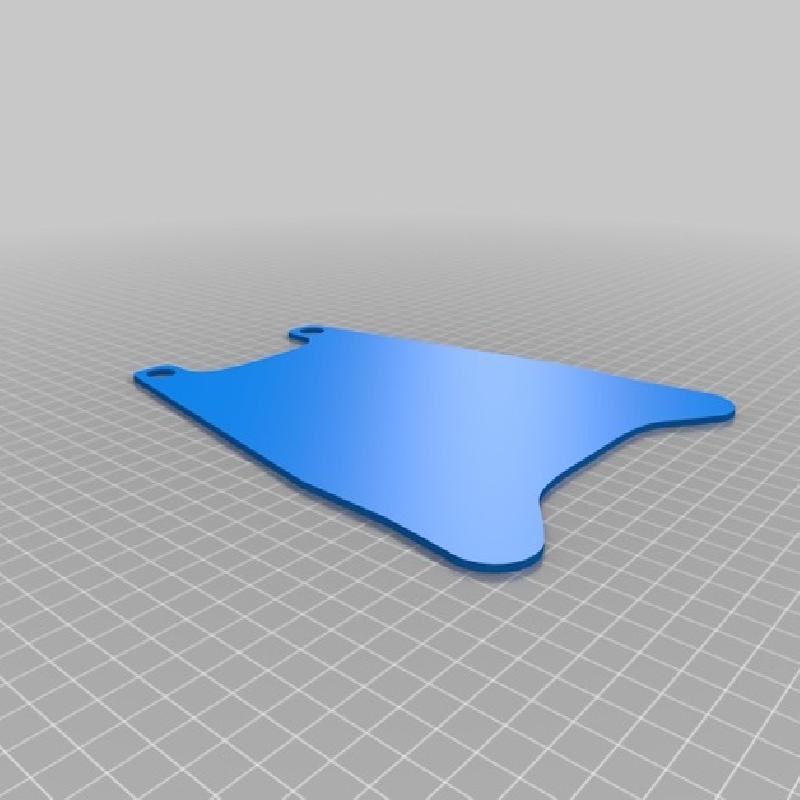

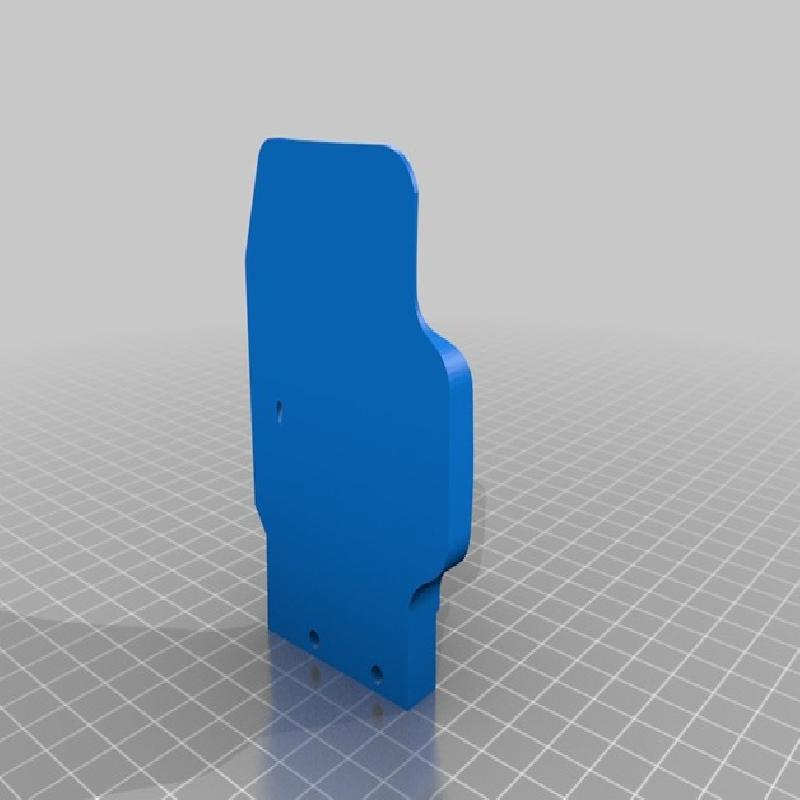

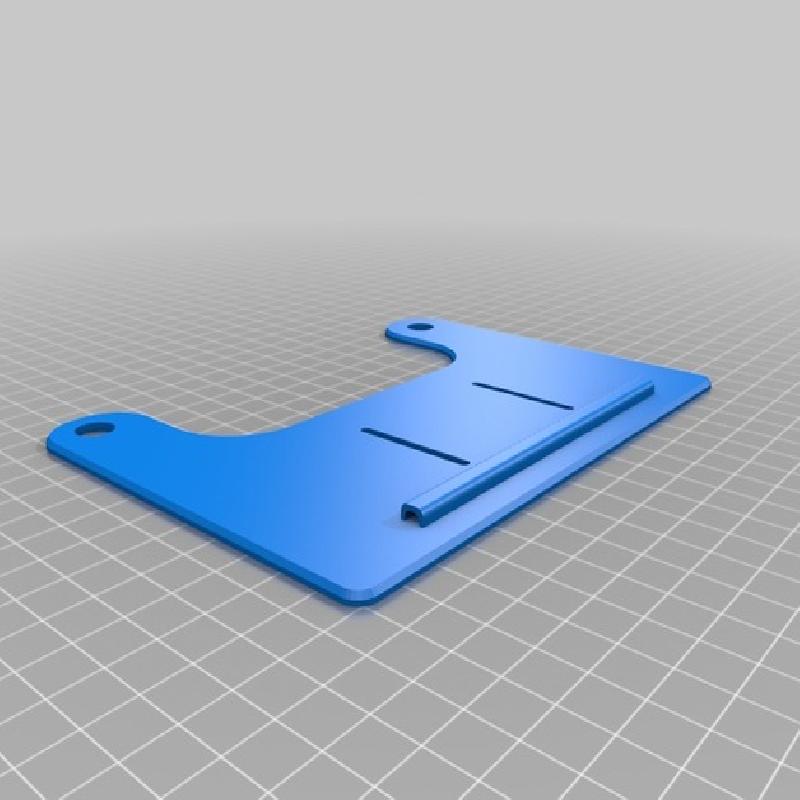

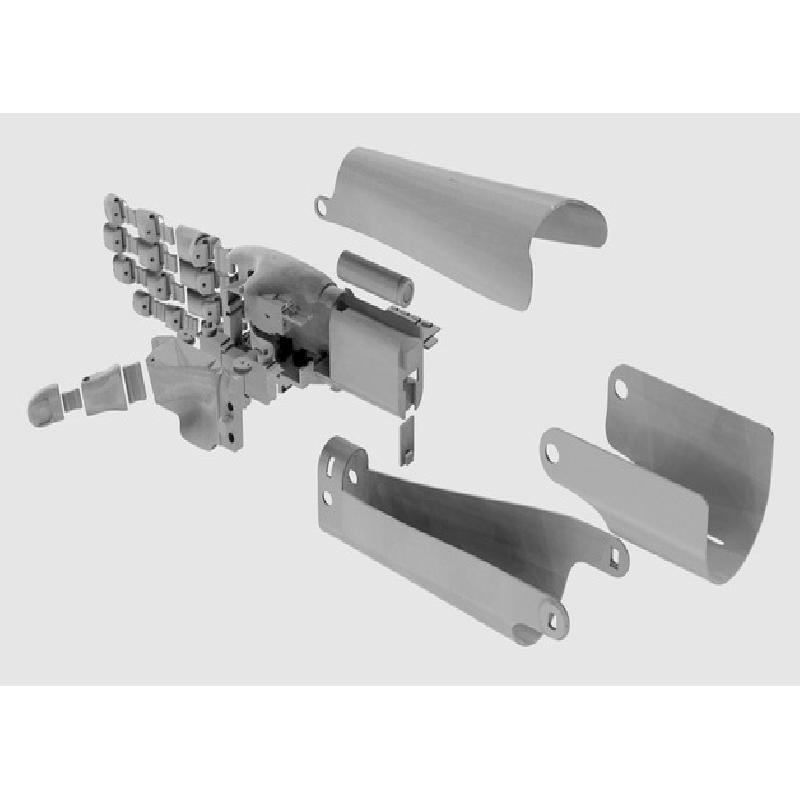

The base, cover, and tricep are thermoformed (heated and reshaped).

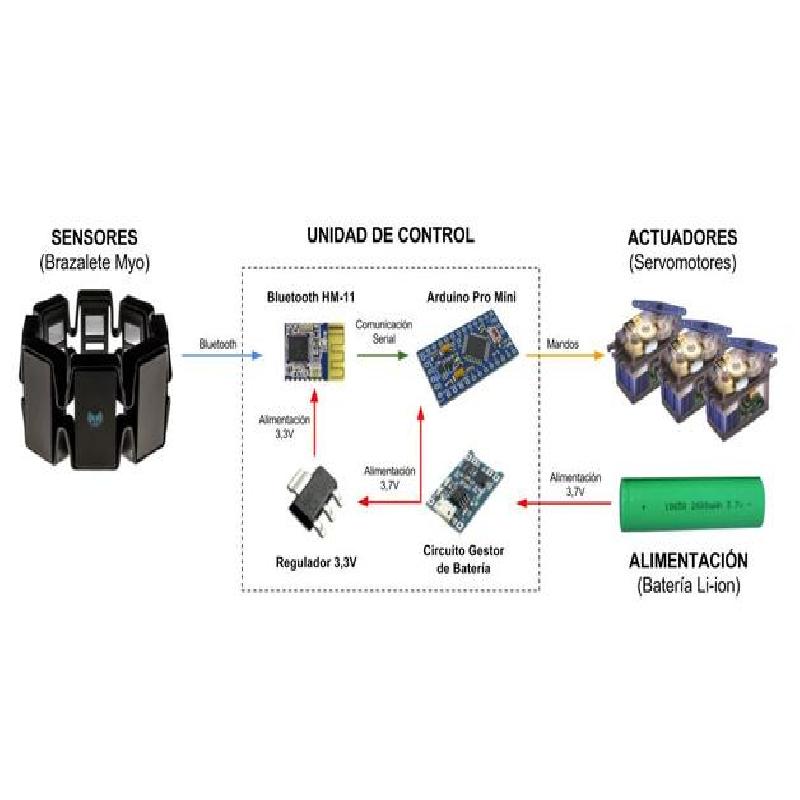

Components
Refer to the project’s Github repository (WIP) for more detailed intructions.
Custom-made MyPo board.
Bluetooth BLE HM-11 CC2541 SoC.
Arduino Pro Mini 328 5V/16Mhz.
3 x TowerPro MG92B.
Li-Ion 1S 2600mAh Battery.
Micro USB 1A Li-ion Battery Charging Board.
3.3V Regulator.
Contact Us
Feel free to throw us any questions at
macosta@po.com.py (Project lead developer)
Short video showcasing the development of MyPo 2.0.
