THESE WILL HAVE TO BE SCALED TO THE SIZE OF YOUR BODY TUBE!!!!!!
Just a few different model rocket designs that can be resized to fit whatever material you decide to use for the body tubes. Be careful when building and launching these models and make sure to abide by all laws and NAR regulations. I am not responsible for any injuries or damage that results from use.
Note that the GOLFTUBENOSE was not designed to couple into the parachute hold.

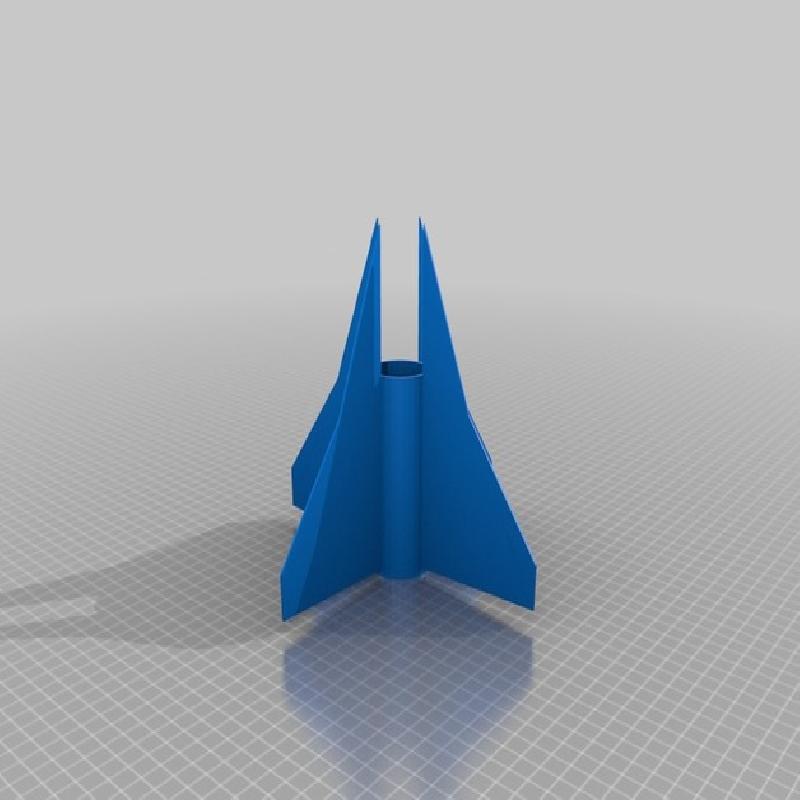

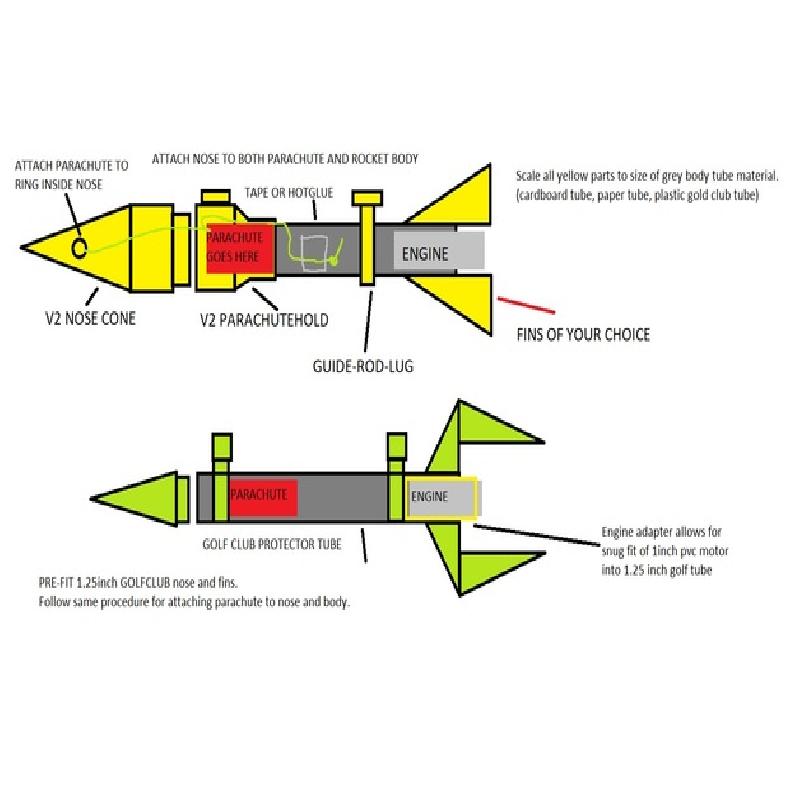

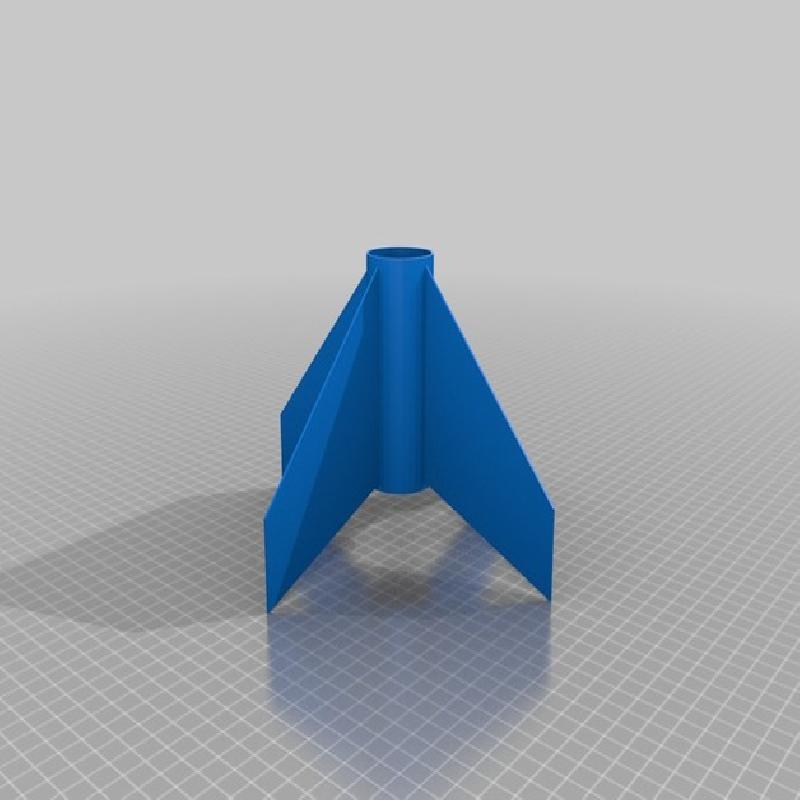

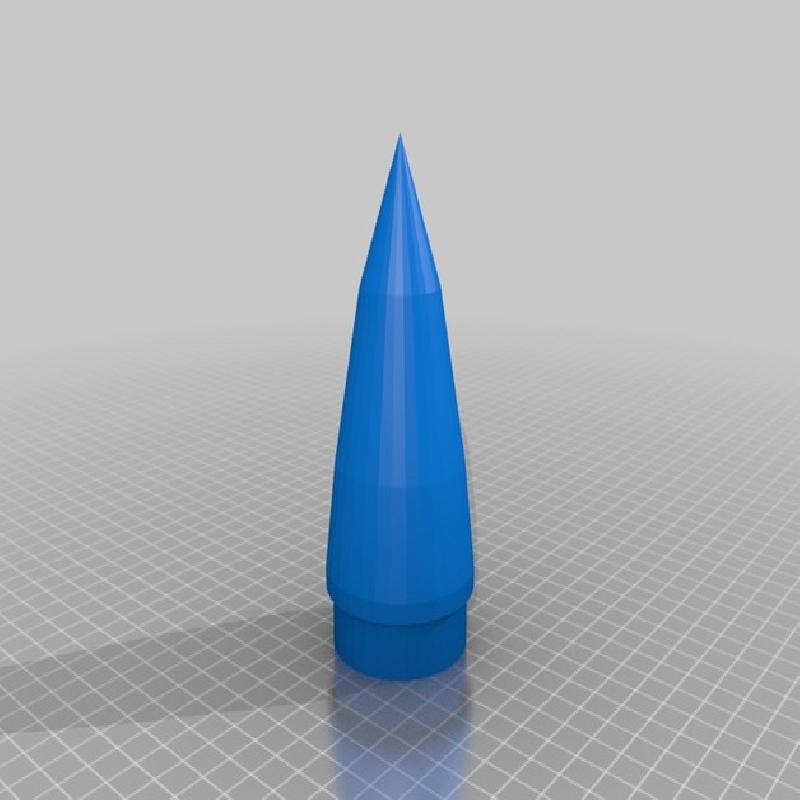

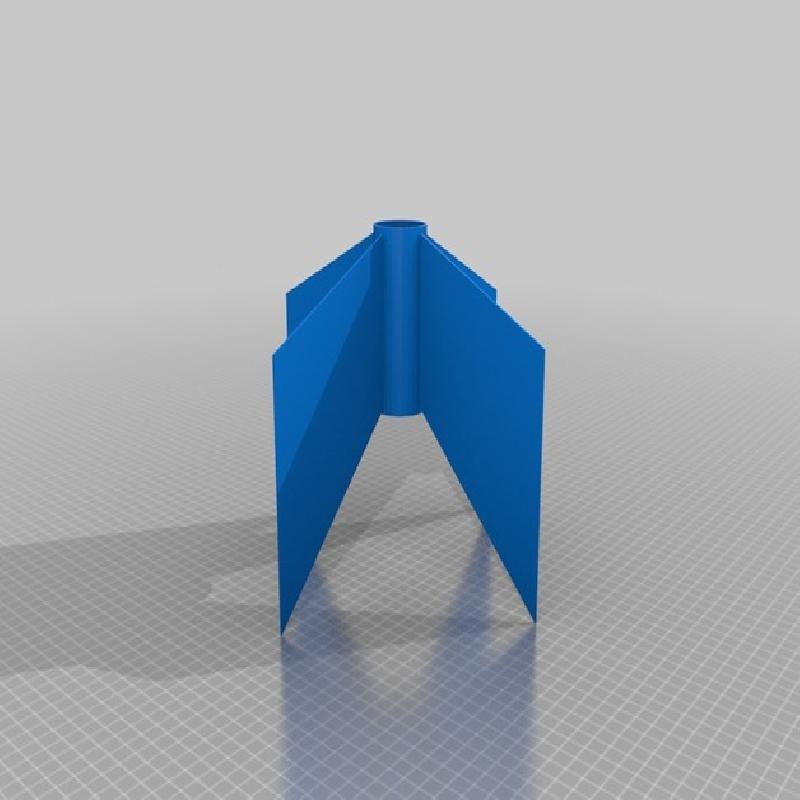

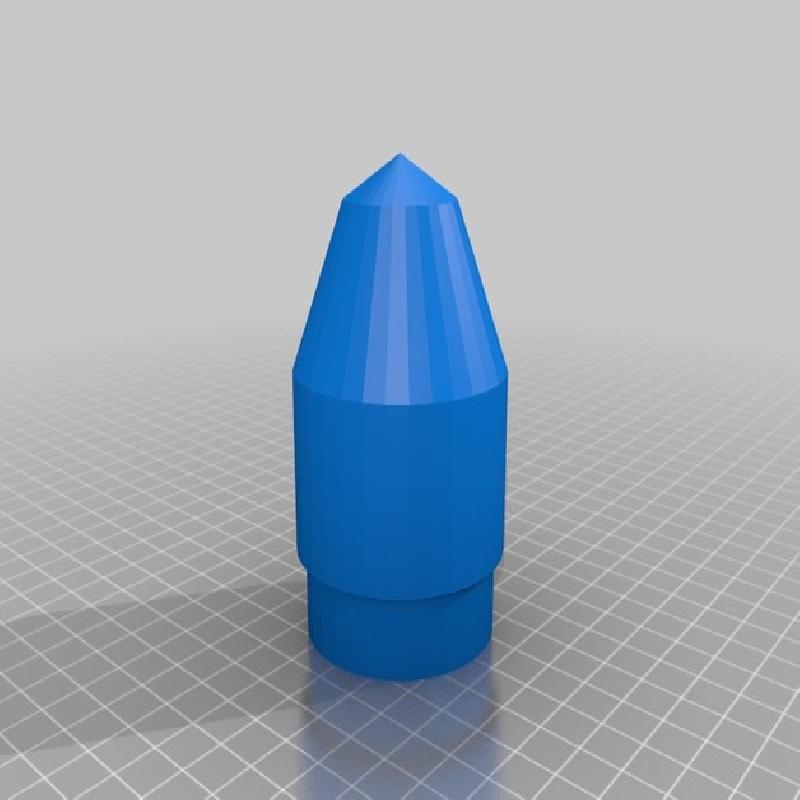

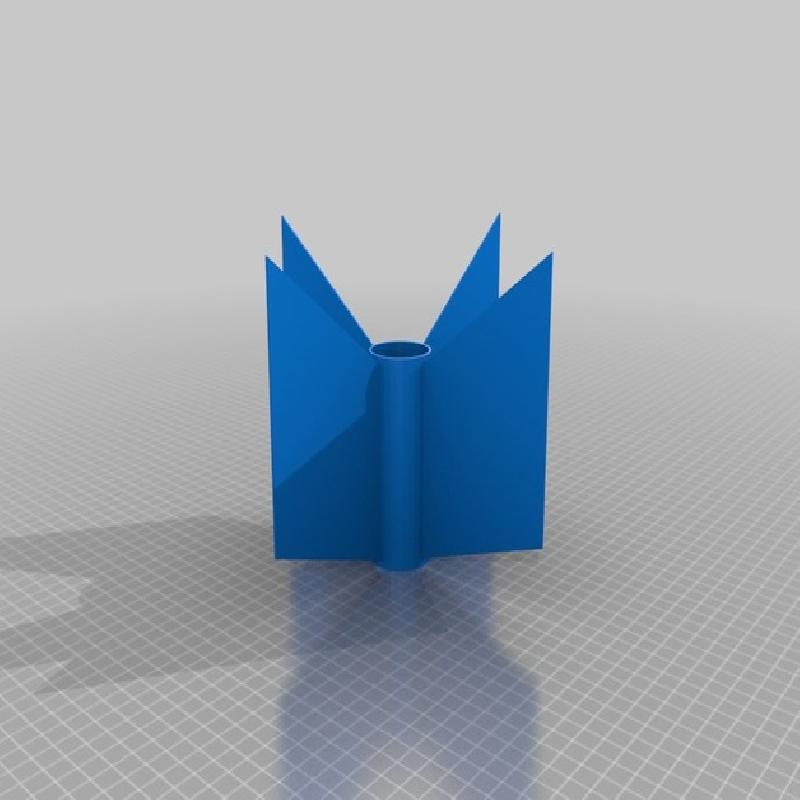

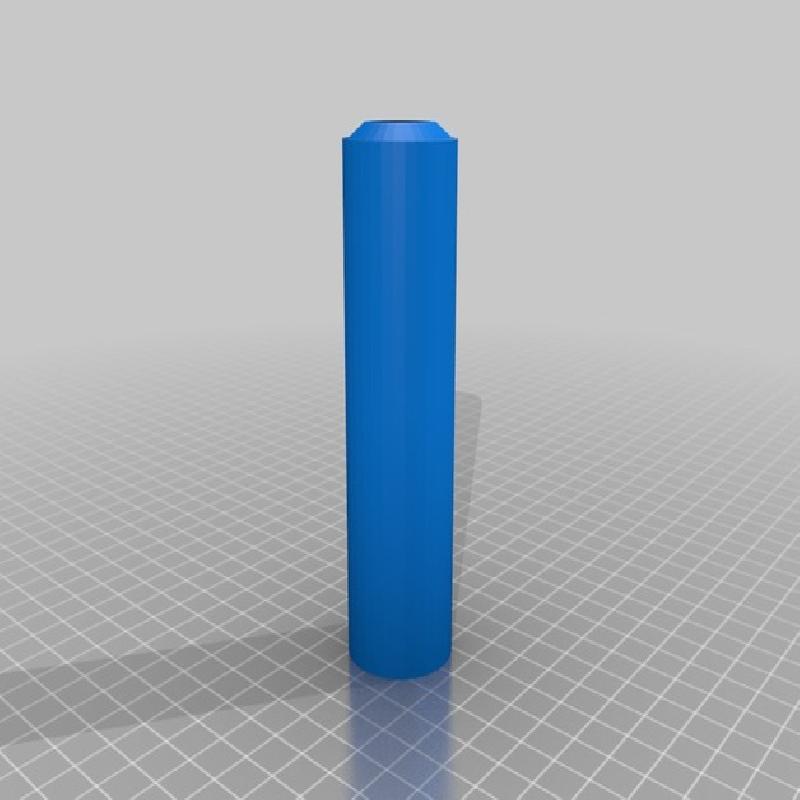

The V2 nose files and parachute hold files go together along with all of the fins except the GOLFTUBEFINS.

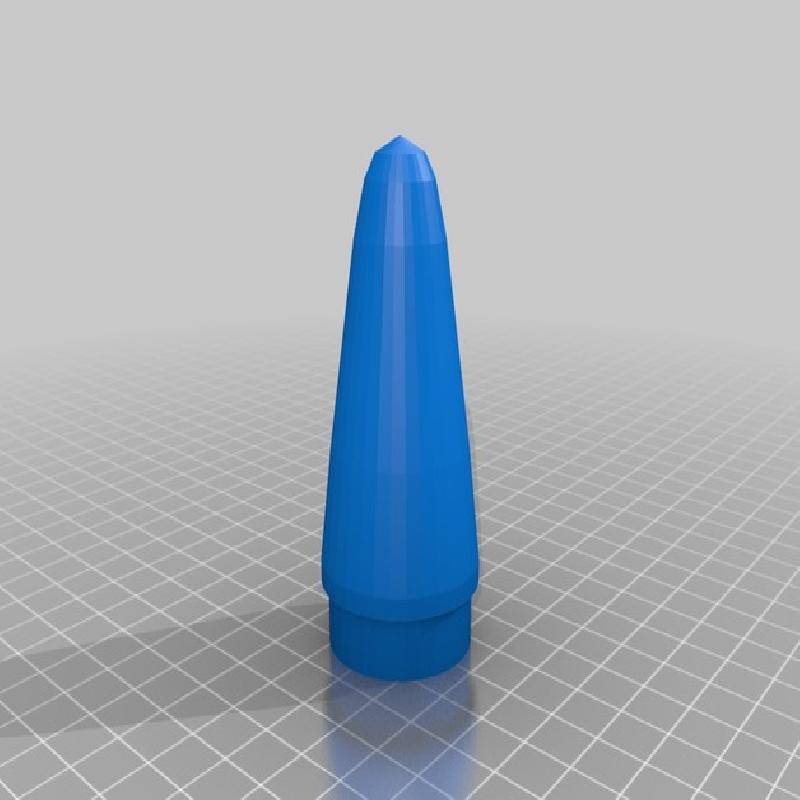

The GOLFTUBEFINS and GOLFTUBENOSE are made to fit the 1.25 inch golfclub tube that can be purchased from amazon.

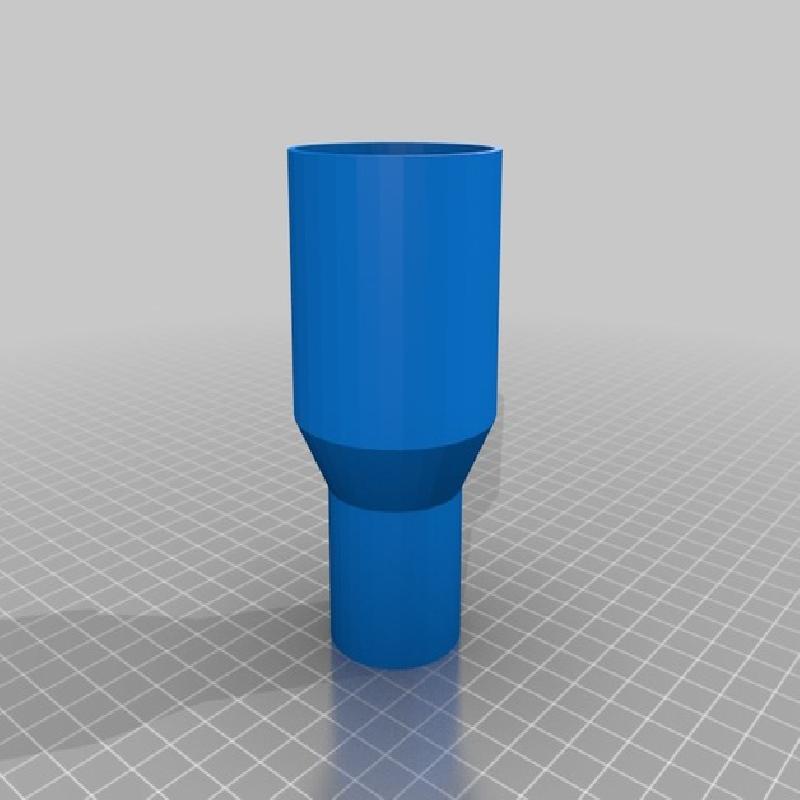

The motor adapter file is used to fit the 1 inch PVC motor into the 1.25 inch plastic golf club protector tube used for the rocket body.
Sugar rocket motors made using "The King of Random" motor manufacturing technique.
https://youtu.be/Ve_O1MjSZ6o
https://www.youtube.com/watch?v=12fR9neVnS8
Printer Brand:
Prusa
Printer:
Prusa Mk2
Rafts:
No
Supports:
Yes
Resolution:
.3
Infill:
25-50%
Notes:
Just a few sets of fins and parachute holds along with nose cones for various model rockets. Resize the inside diameter of the parts to fit the outside diameter of whatever material you are using for the body (cardboard tube, rolled paper, or plastic golf club divider tube).
